KC868-A8S hotel room demo configure for ESPhome
admin Offline
Administrator
*******
Posts: 9,178
Threads: 1,204
Joined: Oct 2020
Reputation: 237
#7
03-07-2023, 10:40 PM

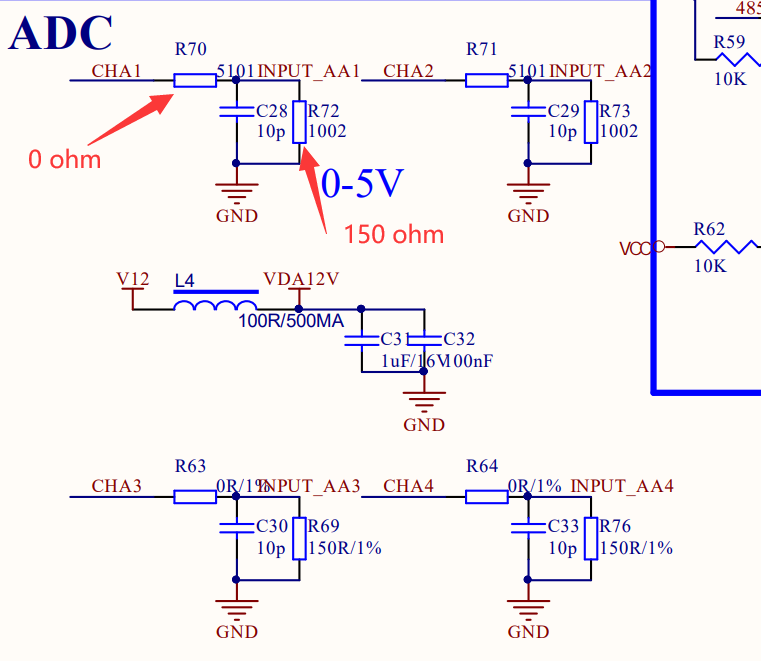

the default circuit is use for analog input 0-5v. if you want to test with 4-20mA, need replace two resistance value. such as here is sample of ADC1, replace R70=0 ohm R72=150 ohm
