⚡ 40 Buttons, 36 Lighting Circuits & Home Assistant — How Would You Build It?

[lulu01]

If you have a single phase system, yes the Kincony N10 and the CT transformers will do the job. You can extend the cable, you will just need to solder.

The 1.5mm2 should be good for lighting. I *think* 0.5 mm2 will be ok for the rest, but I would check with the electrician.

[viko]

Yes, thanks. I'll definitely get that confirmed!

Just so you know, I've decided to go with the TP-Link Omada system instead of UniFi after all.

Thanks again for the advice!

[viko]

Hi everyone,

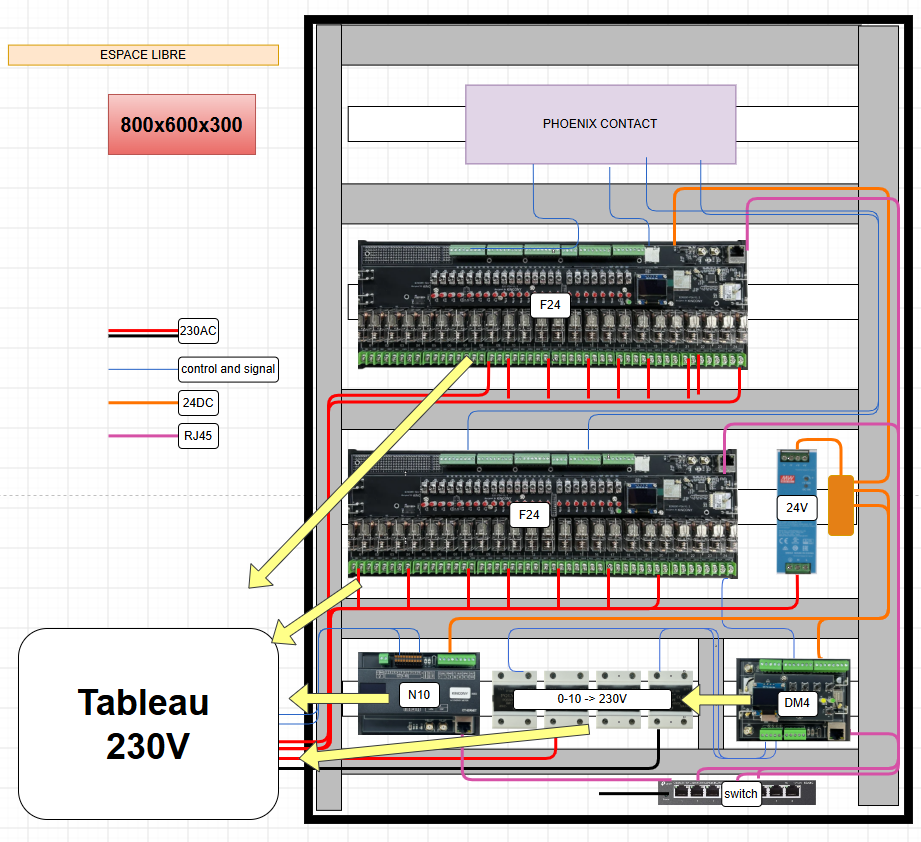

• Does the layout of the components in the cabinet seem logical to you?

• Would you move or rearrange any of the components?


Please note that the cables are not precisely placed on their actual connection terminals.  The wiring shown is only a rough representation of the different voltages and cable types.

Cheers!
