We improved ethernet relay module — KC868-H32. The new model called “KC868-H32L”. What’s the difference between “KC868-H32” and “KC868-H32L”?
1: Relay Max load from 5A to 10A.
2:Use pluggable terminals,easy to install and maintain.
3:The function of power-off memory of relay switch is added. If the power is cut off suddenly or power failure, the relay will automatically return to the state before the power cut when the power is called again.

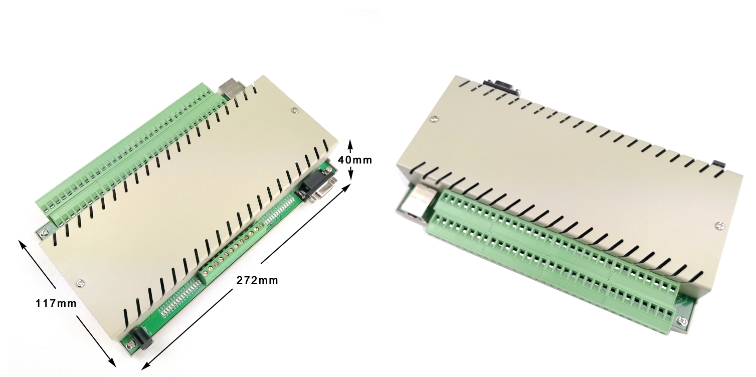

Product Display
Product Description
Dimension: 206*117*40mm
Material: Fire resistance ABS、metal shell
Relay Remember: Power ON Auto recovery
Working Voltage: DC 12V
Working Temp: -20℃ ~70℃
Working Humidity: 20%RH ~ 80%RH
Output Load: each 250V/10A
Communication Mode: Ethernet/ RS232
Input Port qty: 6 Ports
Output Port qty: 32 Ports
Remote control, Timing control and Scenario linkage can be realized through the mobile phone
Knowledge Base
Anlysis KC868-H8&H32 Communication Protocol
Disk Downloads
Disk for KC868-H32 Controller (APP, PC software, VirCom tool)
Sample Code
KC868-Hx LAN local control demo source code VB2005.rar (relay.rar’s source code)
KC868-H8 relay control hello world demo source code delphi.rar (Delphi 10.2.3)
KC868-H8 relay control hello world demo source code.rar (PyCharm IDE 2018)
KC868-Hx relay control hello world sample source code.rar (Android Studio3.2)
KC868-H8 relay control hello world demo sample source code ios (Xcode)
Videos
KC868-H32 Local Control by VB PC software via LAN
KC868-HxW Local Control by VB PC Software via WiFi
KC868-Hx Local Control by VB PC software via USB-RS232
