KC868-COL acquisition board (analog input digital input module) is used to read AI, DI, Temperature,electricity meter . The equipment supports 5 channel of DS18b20 temperature sensors, 16 channel of Digital input signal detection, 16 channel of Analog input signal detection and RS485 communication smart meter.
KC868-COL have two version of firmware, this website version is for development, it’s easy to program, because use Ansi-String format protocol, easy to understand, but this firmware version without automatic control function. Another firmware version have automatic control function, but Hexadecimal communication protocol.

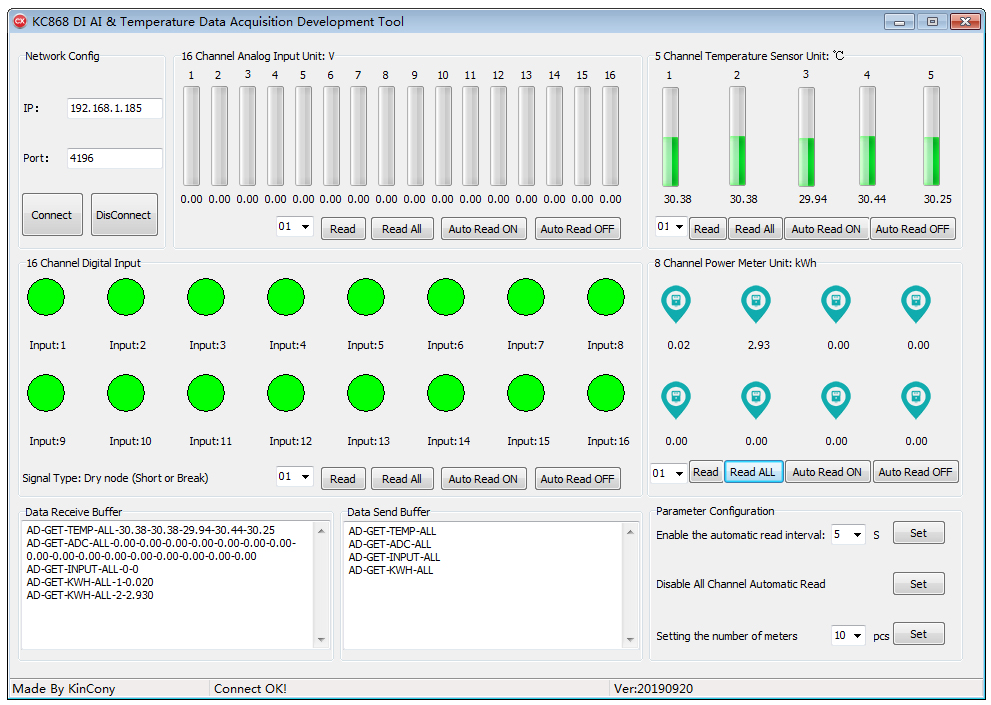

KC868-COL acquisition module has the following data acquisition channels:
1. 16 Channel Analog Input Unit: V KC868-COL support 0-5V voltage Analog sensors. “Read”: Read selected input channel’s data. “Read ALL”: Read 16 Channels Analog Input channel’s data. “Auto Read ON”:Enable automatically read data according to the time interval. “Auto Read OFF”: Disable automatically read data.
2. 16 Channel Digital Input KC868-COLsupport DI signal, it can read the signal status and display in Red/Green color. “Read”: Read selected DI channel’s data. “Read ALL”: Read 16 Channels DI channel’s data. “Auto Read ON”:Enable automatically read data according to the time interval. “Auto Read OFF”: Disable automatically read data.
3. 5 Channels Temperature Sensor Unit:℃ KC868-COL support DS18B20 temperature sensor, the temperature value can be displayed in the window , from -55℃–125℃. “Read”: Read selected temperature channel’s data. “Read ALL”: Read 5 Channels temperature. “Auto Read ON”:Enable automatically read data according to the time interval. “Auto Read OFF”: Disable automatically read data.
4. 8 Channels Power Meter Unit: KWh KC868-COL support KinCony’s RS485 power meter. It can read power consumption through RS485 interface. The numbers of power meters needs to be set before use .
“Read”: Read selected power meter’s data. “Read ALL”: Read all online power meter’s data. “Auto Read ON”:Enable automatically read data according to the time interval. “Auto Read OFF”: Disable automatically read data.

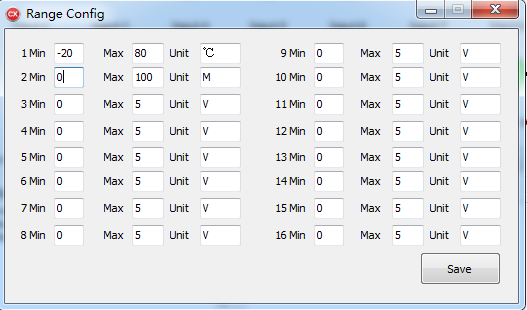

Sensor Range Config
Min and Max is the range of the equipment. For example: NO.2 The detection distance of the water level sensor is 0-100M. When the voltage is 3.3v, the water level is 100/5*3.3=66M.

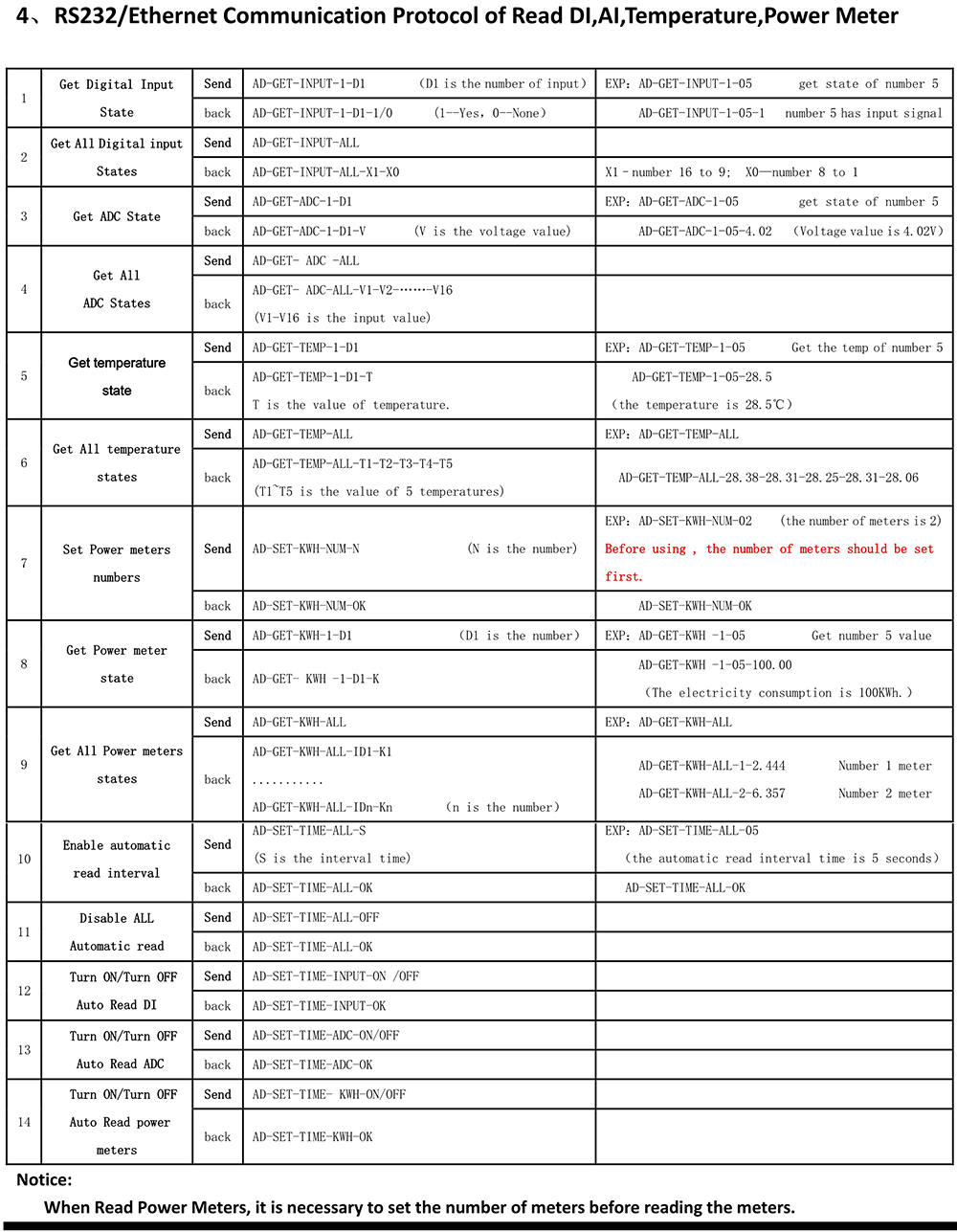

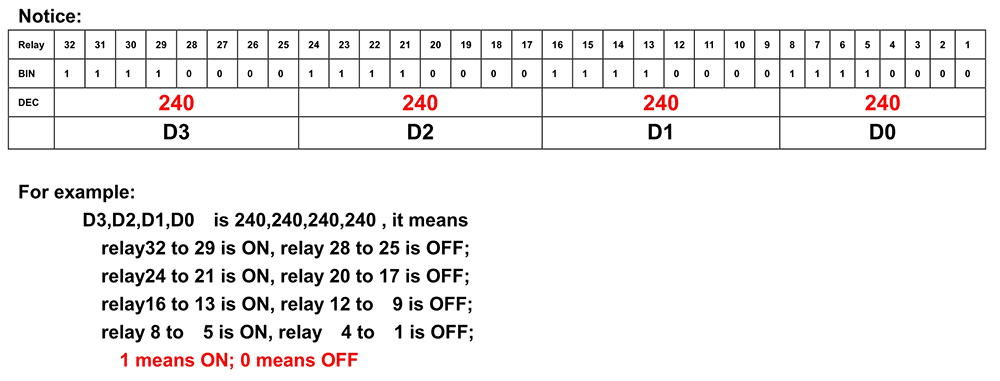

RS232/Ethernet Communication Protocol of Read DI,AI,Temperature,Power Meter
