This manual is for the controlling when you have the account for Kincony Smart Home System; For how to get the account, please see the detail 《2-KC868-H8&H32 APP User Manual》！ And this program can control all KC series device of Kincony. First Step: You should already download and install the APP with your mobile…
First Step: Please power the device KC868-H32 and connect it into the internet. Second Step: Download the program from: http://www.kincony.com/download-readme Please release the control program on the root directory of Disk C, because it’s one demo program, we make the icons in Disk C as default. For the config tool program, it can be…
Please kindly note there are two controlling mode: Local Controlling and Remote Controlling. When the device and your computer are connecting to the Ethernet, (same local internet), following the manual of Local controlling. When the device and your computer are connecting to different internets, please follow the remote controlling. LOCAL CONTROLLING. First Step: Please…
Relay Controlling(SET): RELAY-SET-x(1bytepack_num),x(1byterelayserialnumber),x(1byteaction0/1) RETURN: RELAY-SET-x(1bytepack_num),x(1byterelayserialnumber),x(1byteaction0/1),OK/ERROR Relay Status(READ): RELAY-READ-x(1bytepack_num),x(1byterelayserialnumber) RETURN: RELAY-READ-x(1bytepack_num),x(1byterelayserialnumber),x(1bytestatus0/1),OK/ERROR Input Status(GET_INPUT): RELAY-GET_INPUT-x(1bytepack_num) RETURN: RELAY-GET_INPUT-x(1bytepack_num),x(1bytestatus),OK/ERROR Trigger Alarm(ALARM): RELAY-ALARM-x(1bytealarmchannel) BACKSTAGE RETURN: RELAY-ALARM-x(1bytealarmchannel),OK/ERROR Re: Without receiving the RETURN, ALARM will be re-triggered every 3 seconds, totally re-triggered 3 times. Scanning(SCAN_DEVICE): RELAY–SCAN_DEVICE–NOW RETURN: RELAY–SCAN_DEVICE–CHANNEL_8,OK/ERROR Serial Number acquisition(HOST): RELAY-HOST-NOW(under TCP working mode) RETURN: HOST-CHKLIC-97813679bd8cc4c42ddb6c27(return…
Products Parameter： Dimension： 272x117x40mm Working Voltage： DC 12V Material：Fire resistance ABS、metal shell Working Temp： -20℃~70℃ Working Humidity： 20%RH ~ 80%RH Output Load：each 250V/3A Communication mode：Ethernet/RS232 Input port qty：6 ports Output port qty：32 ports Products Function： Supporting RS232 and Ethernet communication mode Remote controlling the opening/closing of 32 routes or 32 groups’ circuits. Supporting 6…
Products Parameter： Dimension： 148x117x40mm Working Voltage： DC 12V Material：Fire resistance ABS、metal shell Working Temp： -20℃~70℃ Working Humidity： 20%RH ~ 80%RH Output Load：each 250V/10A Communication mode：Ethernet/RS232 Input port qty：8 ports Output port qty：8 ports Output power：12V/9V Products Function： Supporting RS232 and Ethernet communication mode Remote controlling the opening/closing of 8 routes or 8 groups’ circuits.…
irstly, pls have a check if it’s TCP mode by the “Vircom” Program(as below) After making sure it is already the TCP mode, then open the “Relay” program Input IP address and port due to the “Vircom” program, then click Connect button: After clicking “Connect” button, then click the “Scan” button (see below picture) When…
KC868-H8&H32 APP user manual Firstly, pls have a check if it’s the UDP mode by the “vircom” program: Then, please scan the below QR code to download the APP. For IOS: you can also search “smart home” from Apply store. After download the APP, pls operate with the following steps: adding the device into APP…

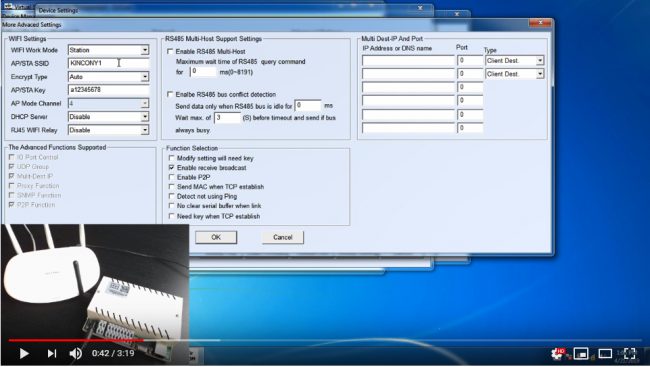

Open the Vircom program as below, click the Device Icon As default, when the device had been connecting to the internet, it shows the device automatically. If not showing,Pls click the Auto Search button. It’s the default settings for the UDP mode; Drop-down the IP mode to choose Static, instead of DHCP. Then the IP…
The following table lists the functional parameters of the KinCony Smart Home Host (wireless and wired versions). You can choose the right product by comparing parameters.
Output Load：each 250V/5A
Communication mode：WiFi/RS232
Input port qty：6 ports
Output port qty：32 ports
Output Load：each 250V/10A Communication mode：Ethernet/RS232 Input port qty：8 ports Output port qty：8 ports
