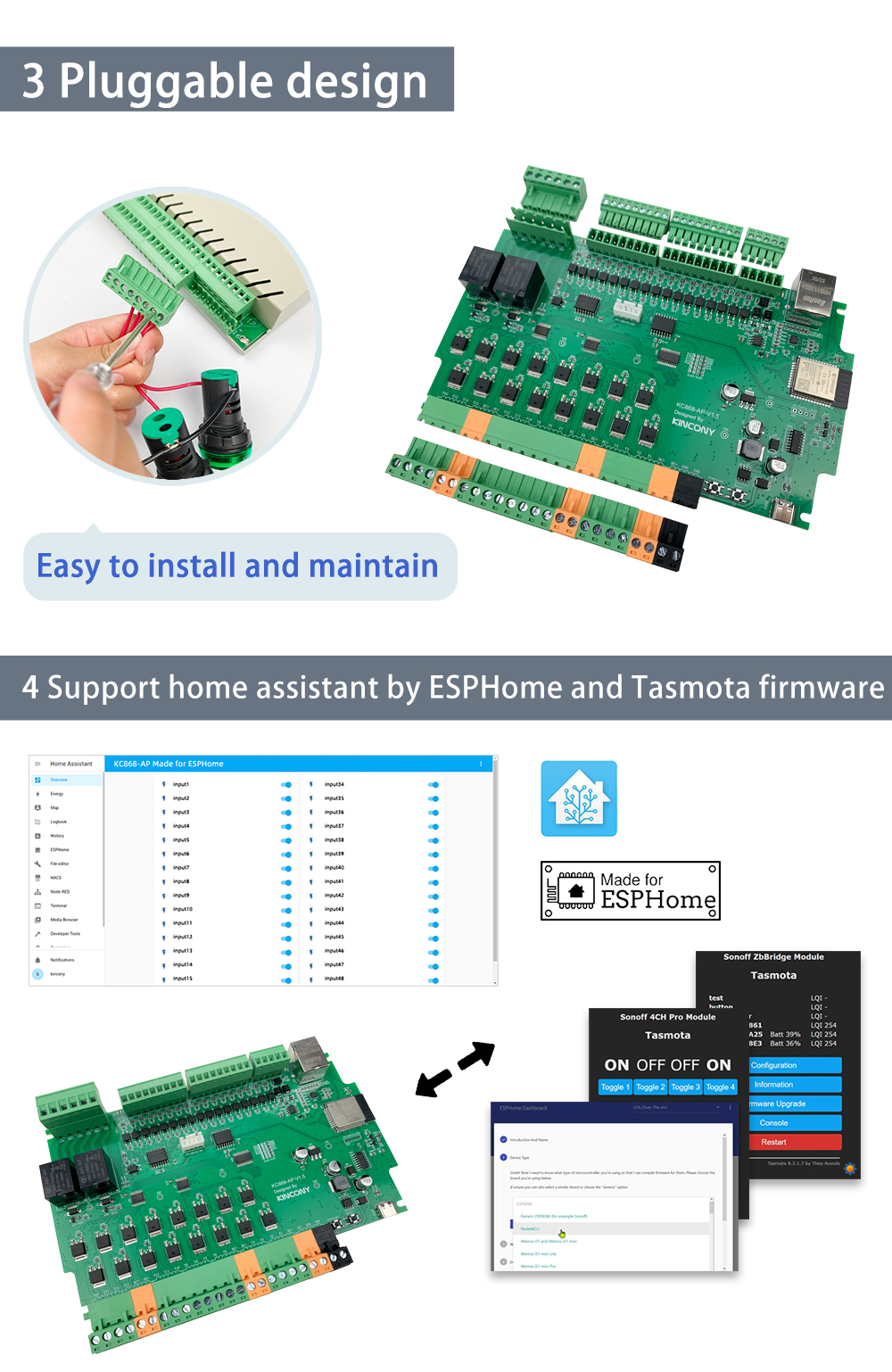

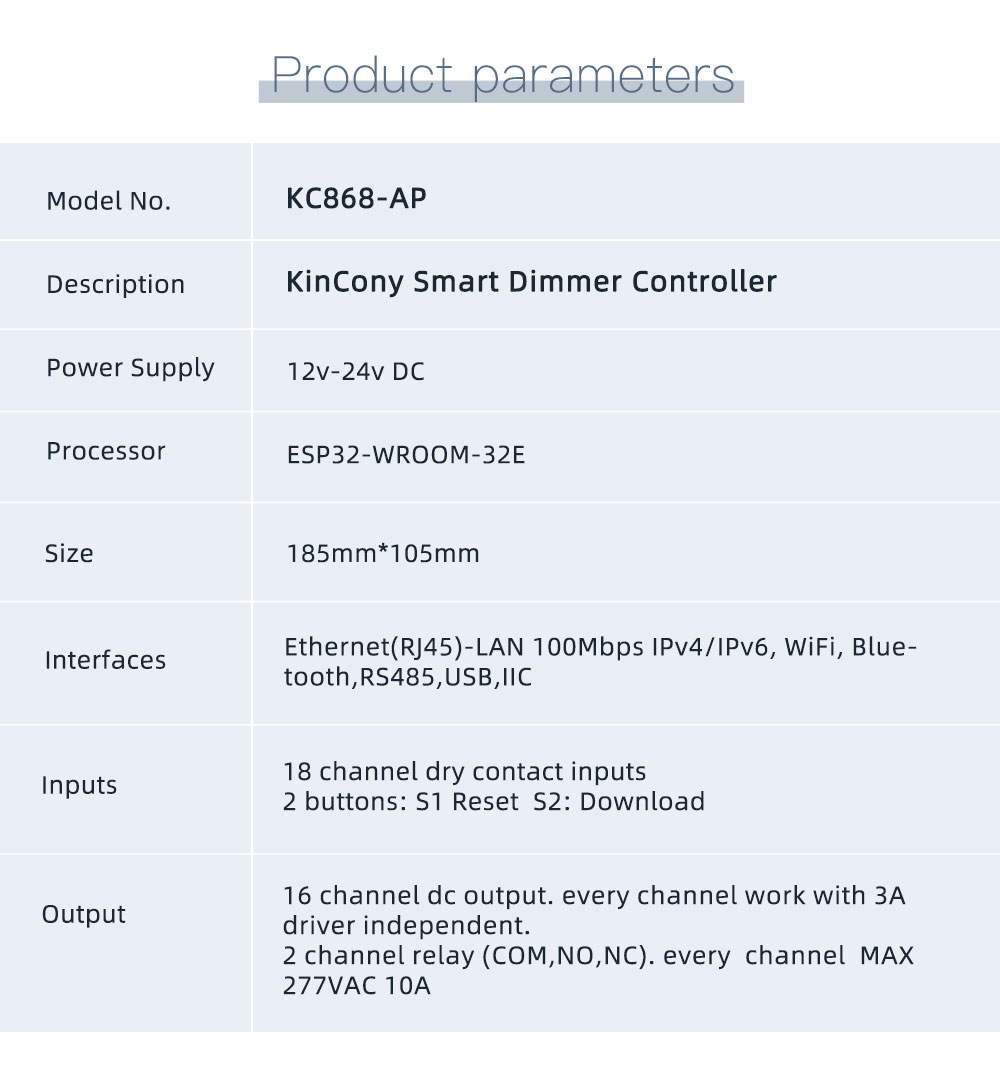

KC868-AP is a ESP32 16 channel LED dimmer board. It use PCA9685. The PCA9685 component represents a PCA9685 12-bit PWM driver. It uses I²C Bus for communication. every channel output have MAX 3A driver chip. KC868-AP support use by ESPHome in home assistant. It also have digital input and relay output.
KC868-AP schematic download

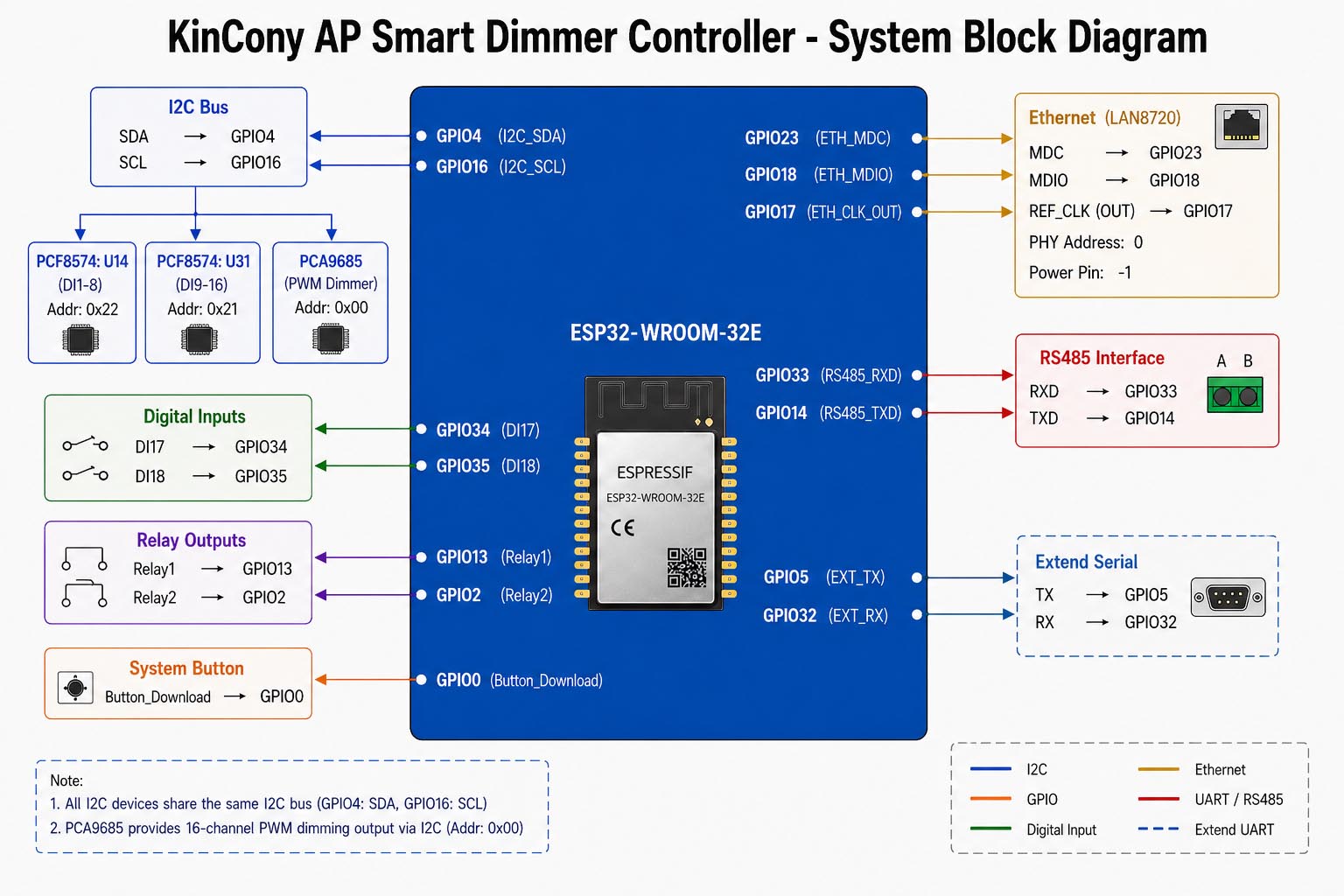

KC868-AP ESP32 I/O pin define
KC868-AP ESPHome demo config for home assistant by wifi
KC868-AP ESPHome demo config for home assistant by ethernet

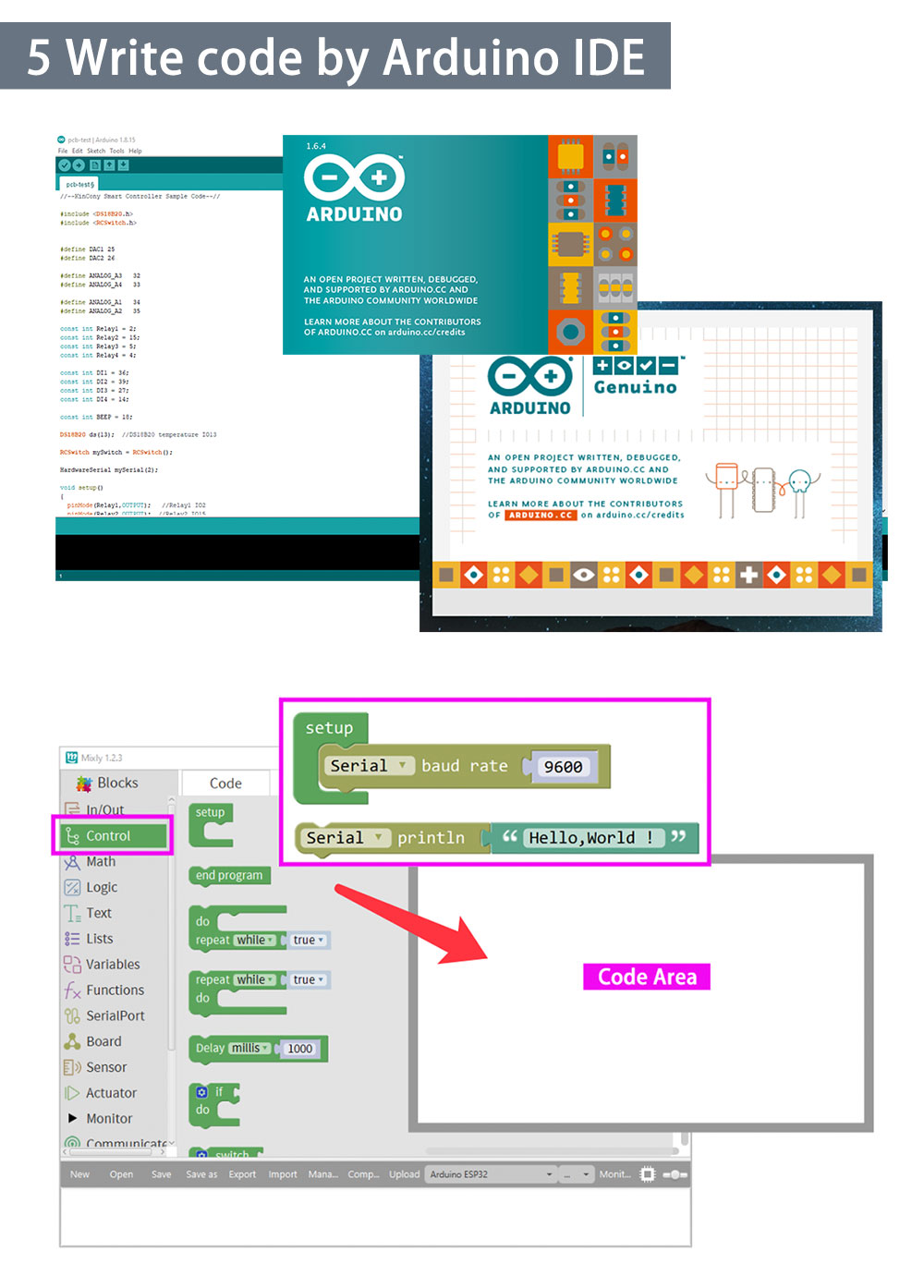

KC868-AP arduino source code demo

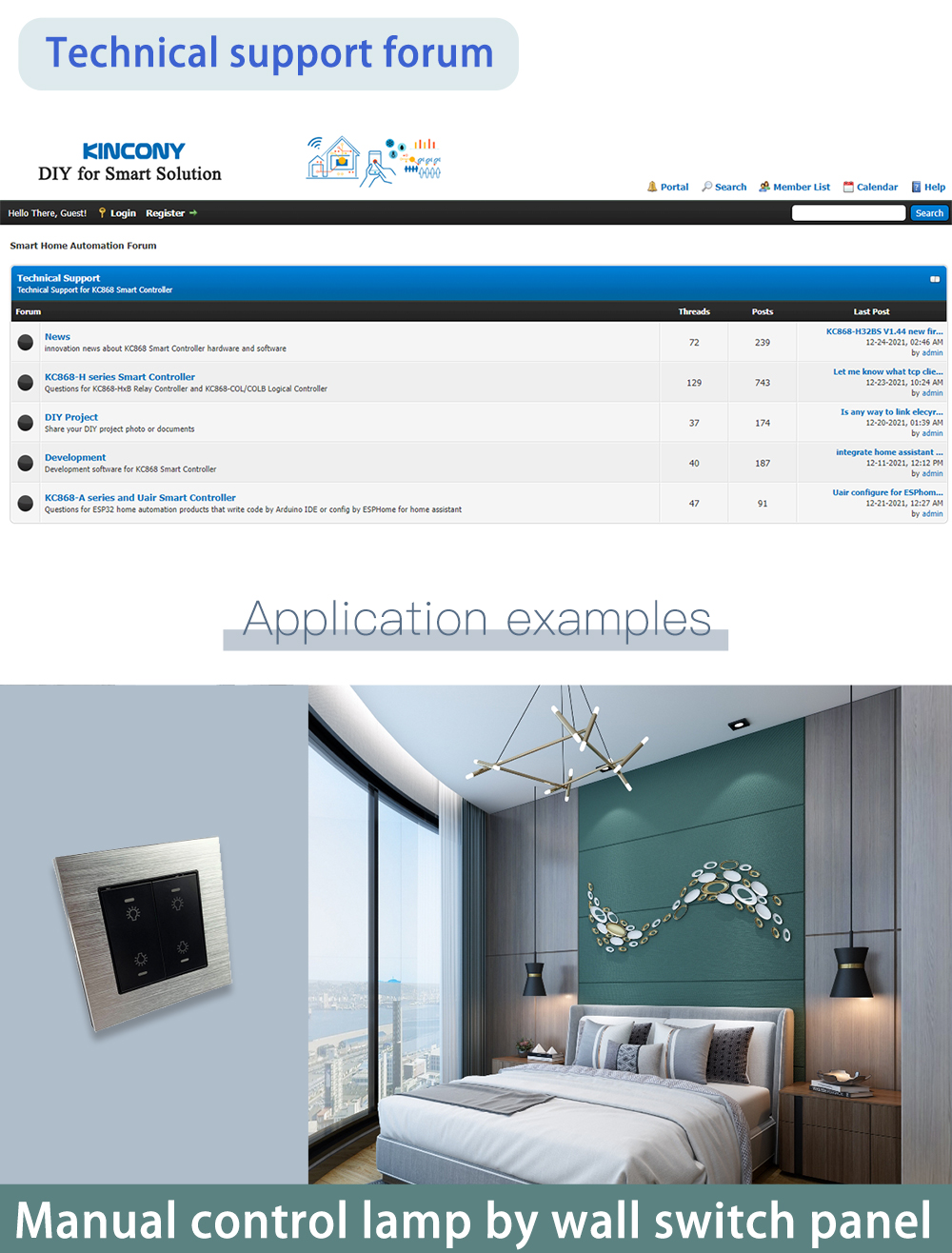

KC868-AP technical support forum
KCS v2 firmware online guide: https://www.kincony.com/esp32-kcsv2-firmware.html

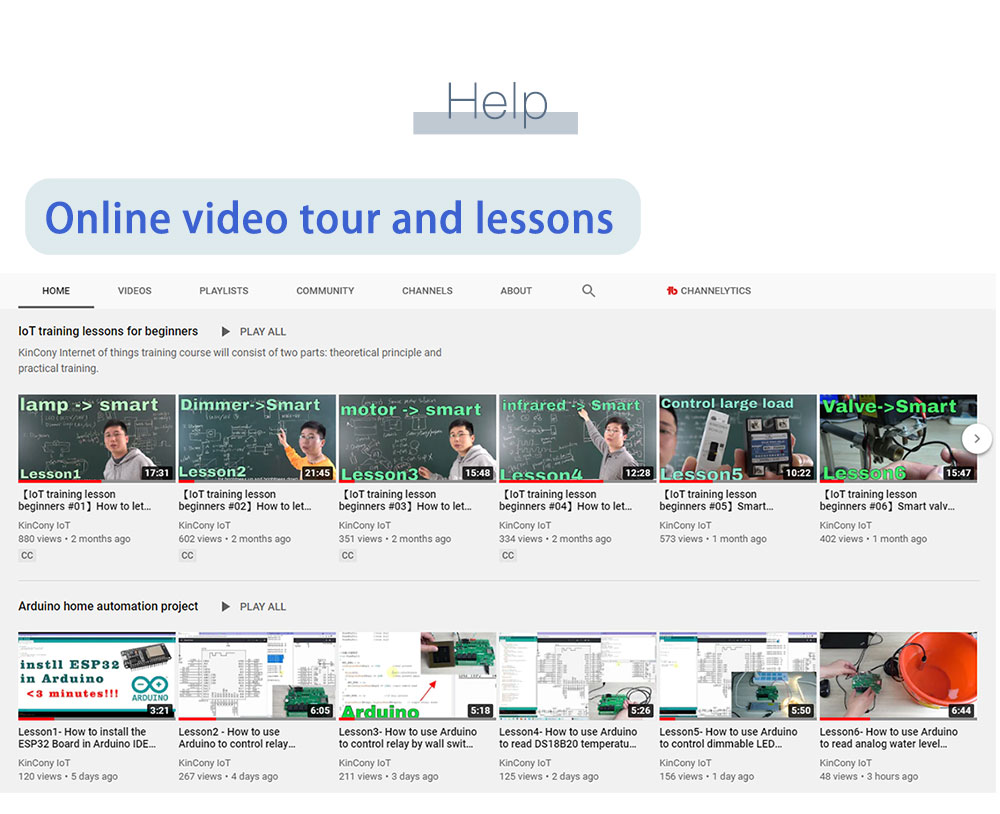

KCS v2 function explanation video tour: https://youtu.be/-DexVHAxPUM
