KinCony KC868-A6v3 ESP32 smart controller based on ESP32-S3-WROOM-1 (N16R8) wifi chip. Support 6 channel relay output, 2 channel 1-wire GPIOs, 16 channel free gpio on PCB. A6v3 include DS3231 high precision RTC clock chip. A6v3 support SX1278 LoRa or nRF24L01 wireless module. LCD display will show wifi and ethernet IP address. A6v3 have I2C bus extender and RS485 port. You can write any code by Arduino IDE / Micro Python / ESP-IDF development tool to ESP32 module. We will supply Arduino / ESP-IDF demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY. A6v3 use KCS v3 firmware, it support home assistant auto discovery function by MQTT, so without write any config code (zero code) for home assistant. KCS v3 support KinCony cloud service (official shop customer free 2 years), remote monitor and control device by webpage in anywhere. KCS v3 support KinCony board integrate to Loxone Miniserver. Support Apple HomeKit for Siri.
Model No. KinCony A6v3
Description: KinCony 6 Channel ESP32-S3 Smart Relay Controller – A6v3
Power supply: 12V DC
Processor: ESP32-S3-WROOM-1 (N16R8)
Size: 148mm*106mm
interfaces: WiFi,RS485,Bluetooth,USB-C,LCD,I2C
RTC: DS3231 high precision chip (battery socket on PCB)

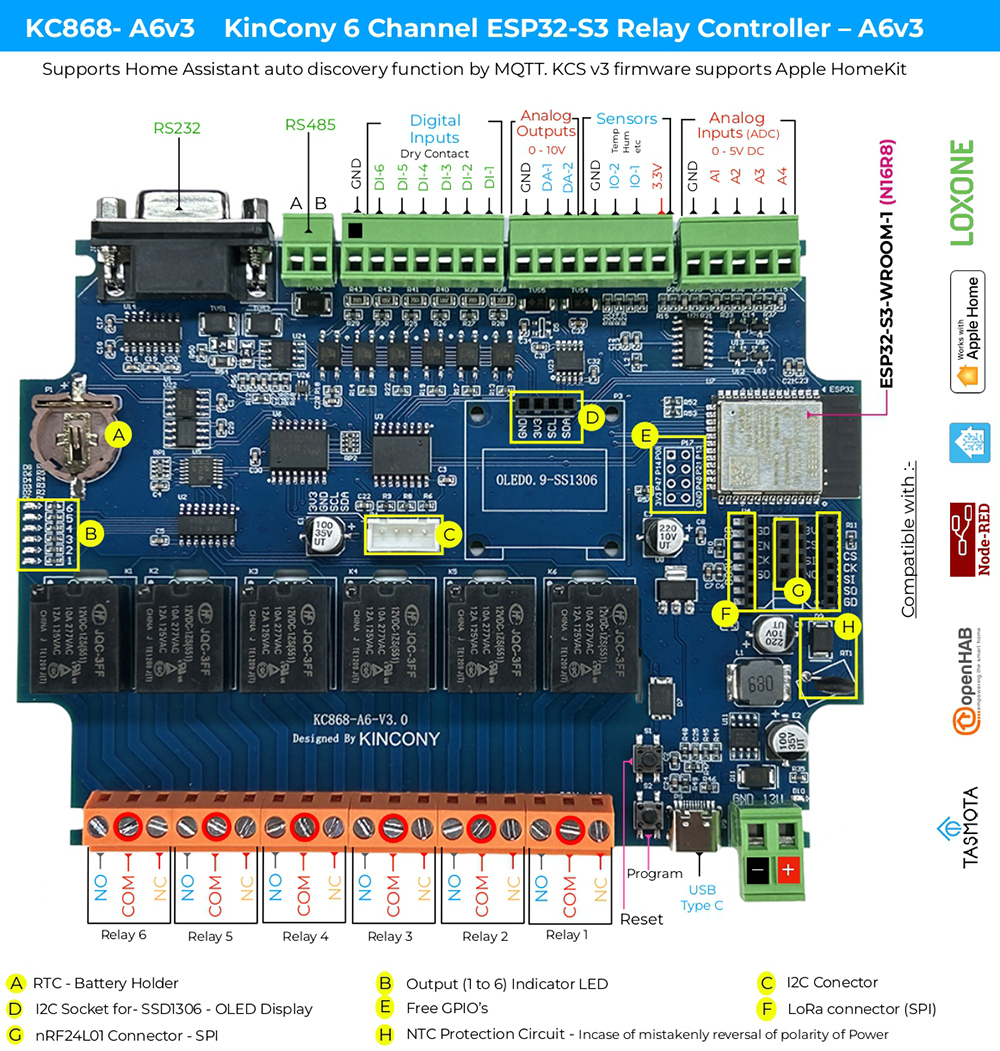

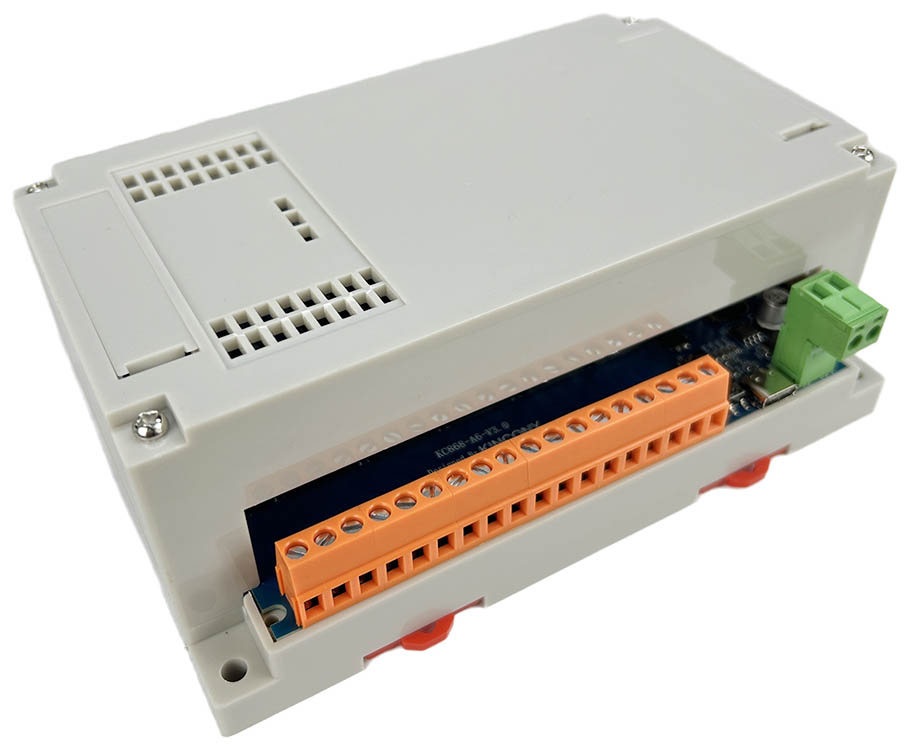

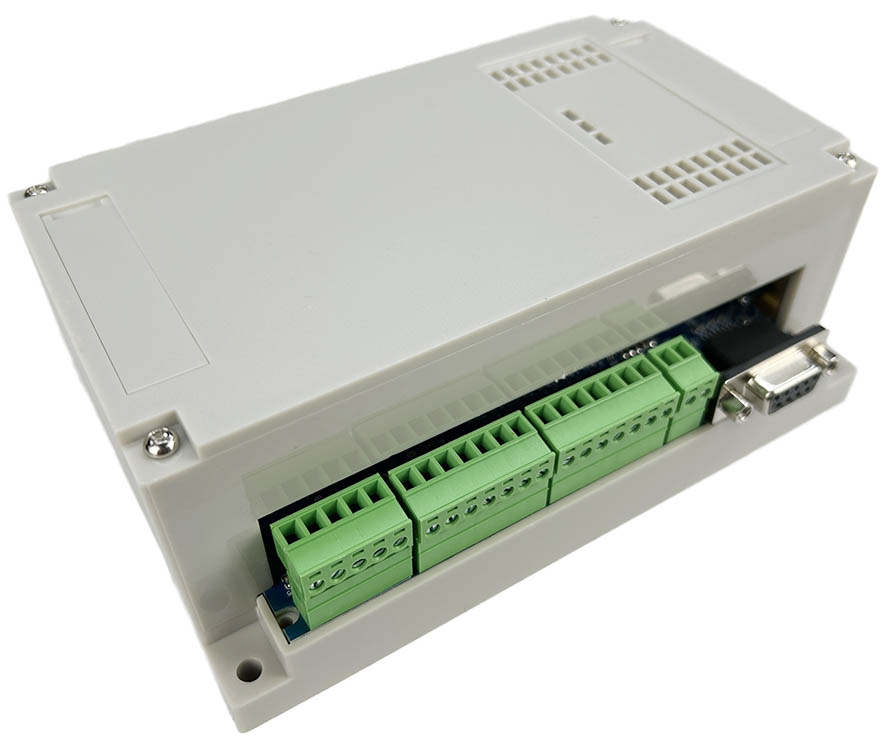

Installation method: DIN RAIL (need plastic shell)

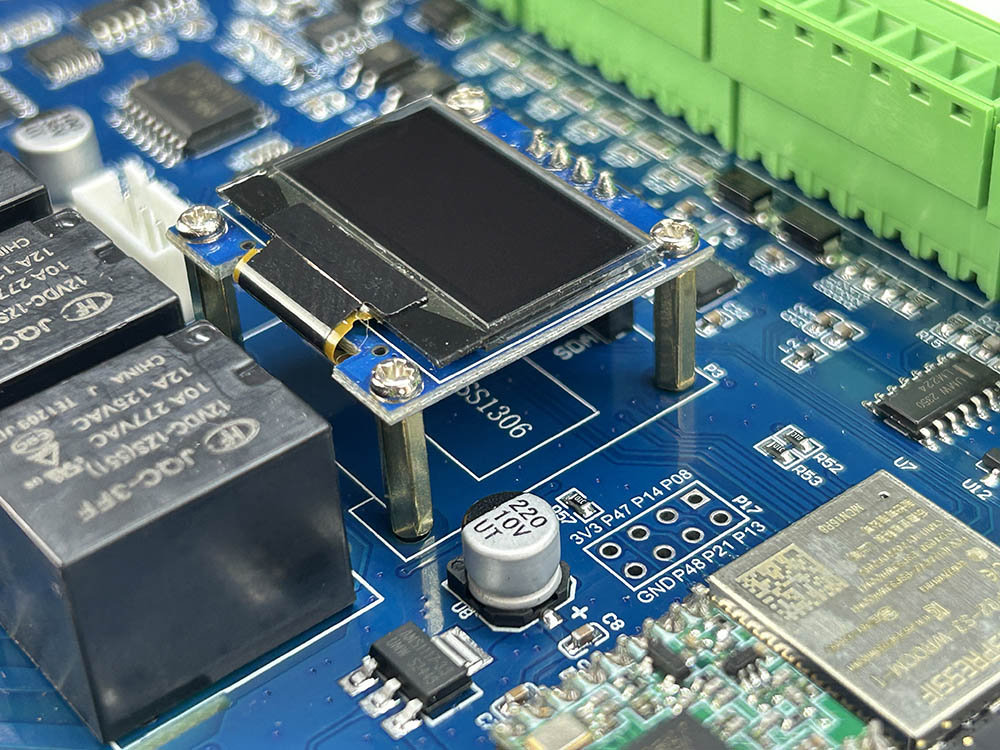

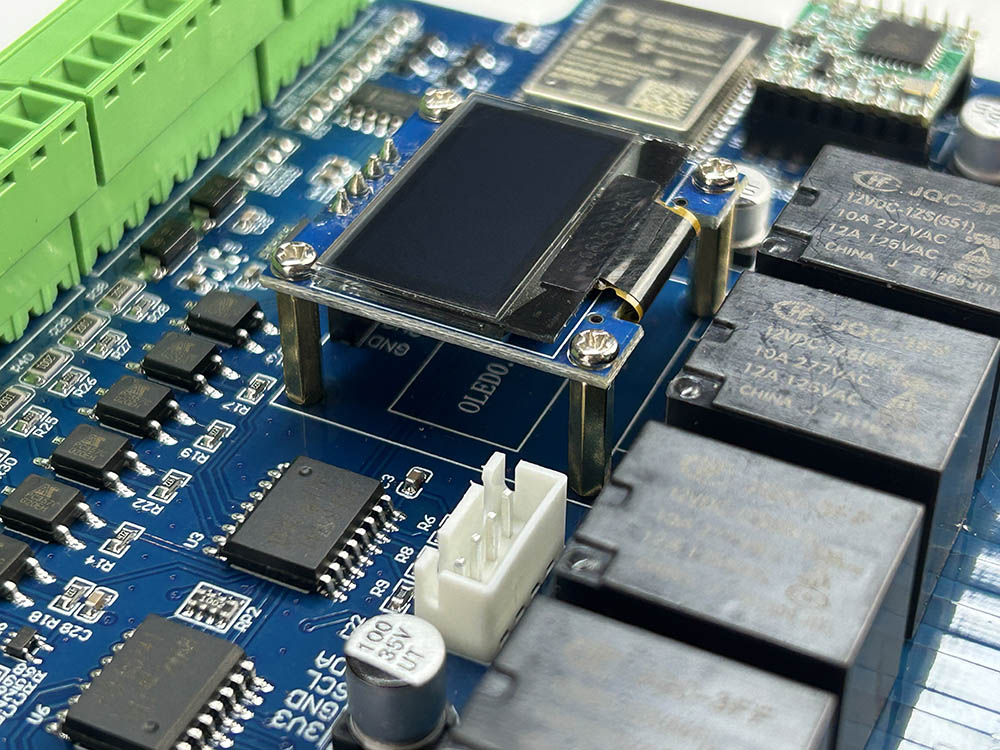

LCD: SSD1306 I2C display
wireless module socket: SX1278 LoRa / nRF24L01
Outputs:
6CH relay Outputs, every relay use by MAX AC250V/10A

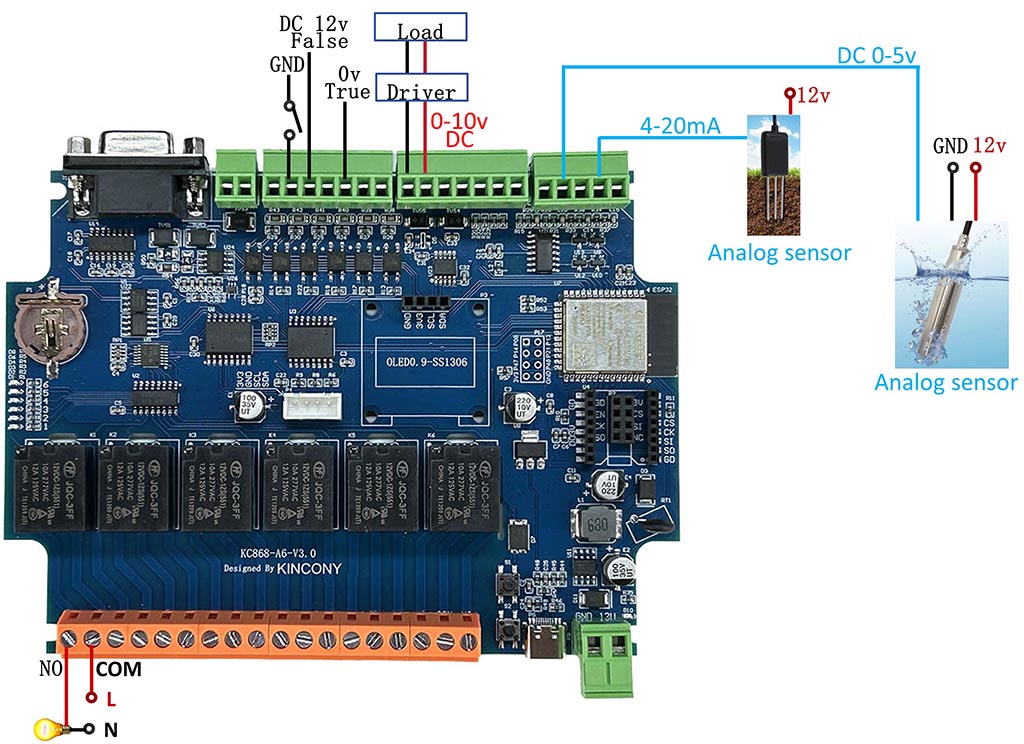

Inputs:
ADC: 4CH analog input DC0-5V (A1,A2,A3,A4)
6CH dry contact inputs (optocoupler isolation, long distance circuit for MAX 500 meters cable)
2 buttons: S1:ESP32 Reset S2:ESP32 Download
1-Wire GPIO: 2CH (with pull-up resistance on PCB)
free GPIO on PCB: 7 ports
support install on din rail
software solution:
1. download KinCony KCS v3 firmware, so that work with multi protocol: HTTP, MQTT, TCP, RS485 modbus, config OUTPUT for “momentary” and “interlock” group functions. “KCS” support IFTTT function work locally without internet. It also support use by KinCony cloud server. KCS v3 support home assistant auto discovery function by MQTT, so without any config file for home assistant.
2. download firmware by ESPHome, integrate to home assistant or use by web service.
3. download tasmota firmware.
4. write your own Arduino or ESP-IDF code for your own requirements.
5. support tuya app if buy tuya license.
6. It is recommended to use home assistant and Tuya mobile phone app at the same time. So that remote control by internet using Tuya app, local control by LAN using home assistant app.
Related technical information
———————————

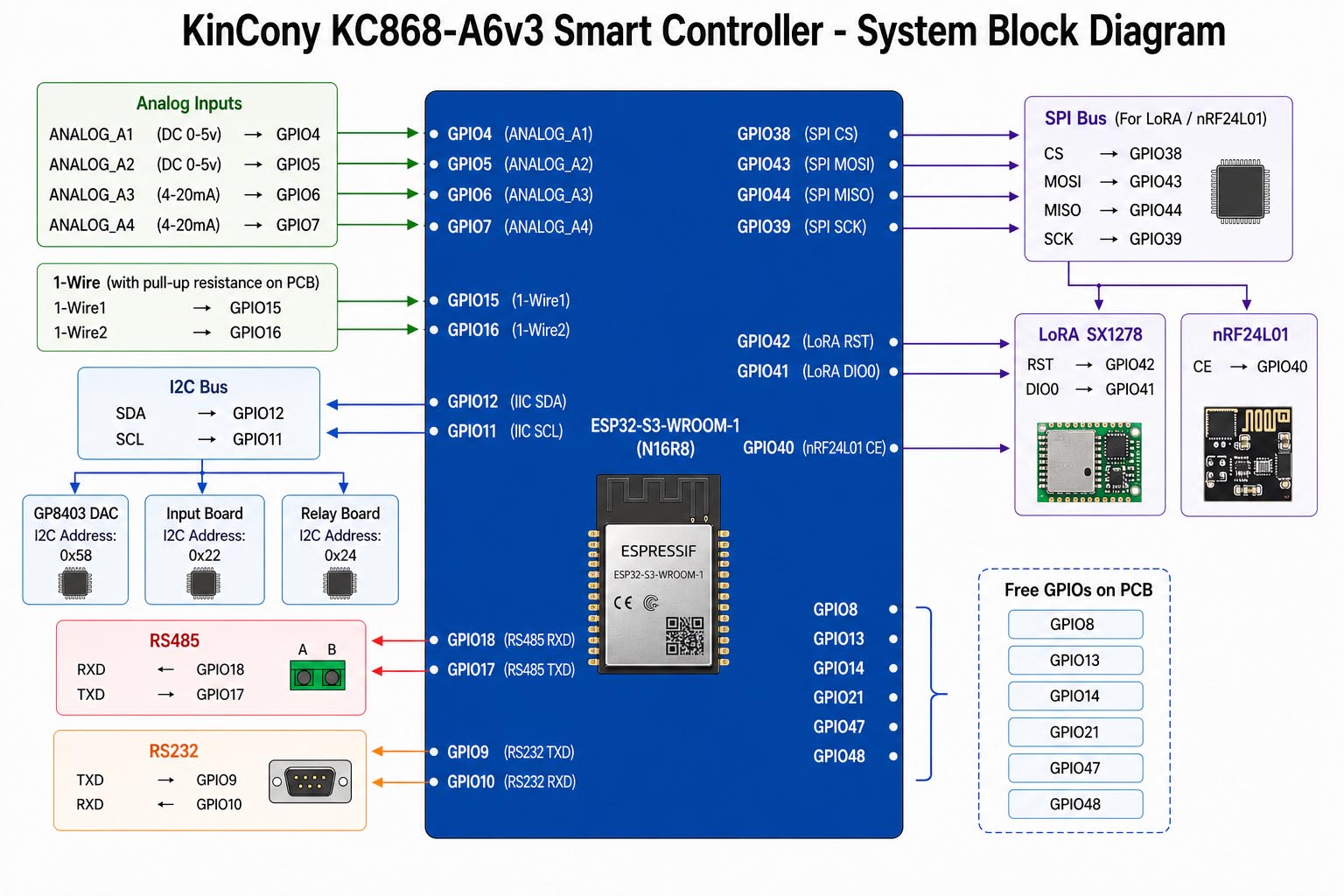

ESP32 I/O pin define: https://www.kincony.com/forum/showthread.php?tid=7622
KCS v3 firmware download: https://www.kincony.com/forum/forumdisplay.php?fid=75
config yaml file for ESPHome: https://www.kincony.com/forum/showthread.php?tid=7623
ESPHome official supportted list:
arduino demo source code: https://www.kincony.com/forum/forumdisplay.php?fid=69
KCS v3 firmware online guide: https://www.kincony.com/how-to-use-kcsv3-firmware-esp32-board.html

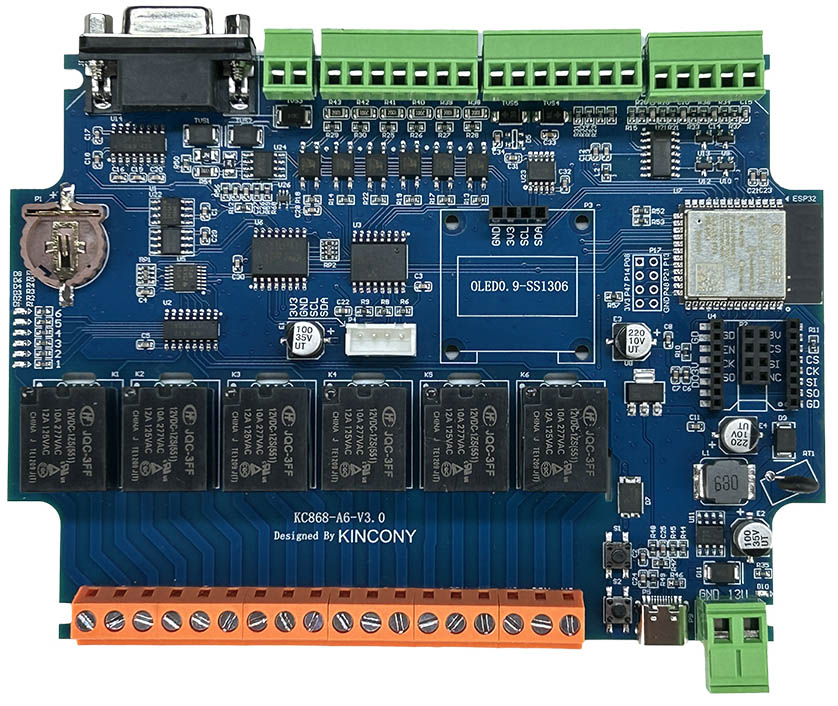

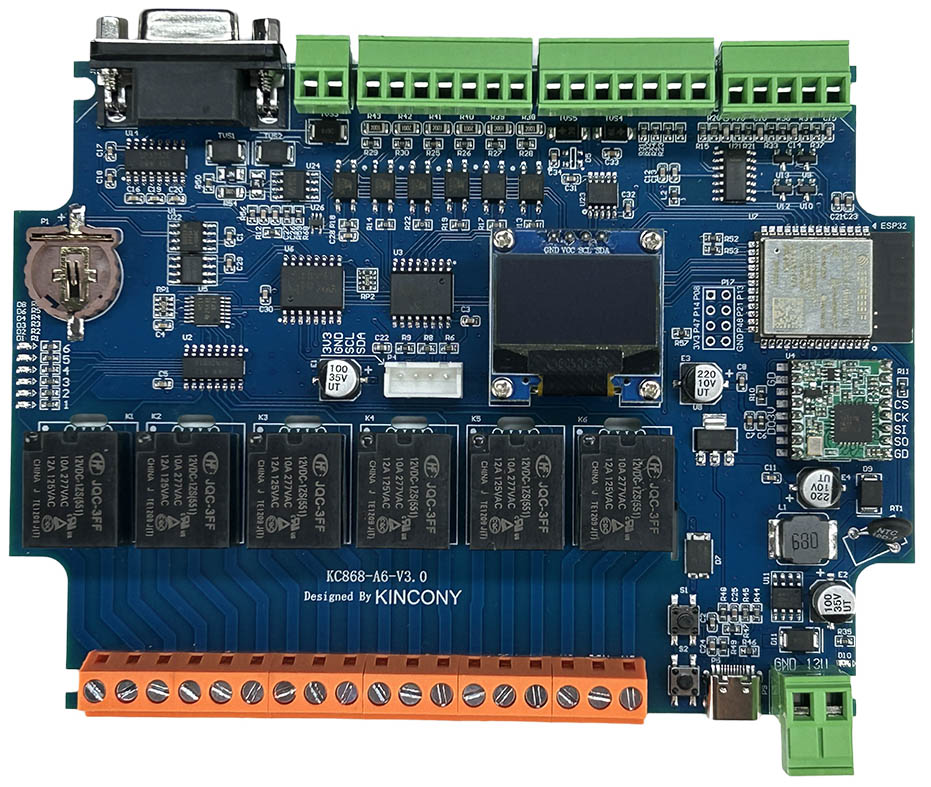

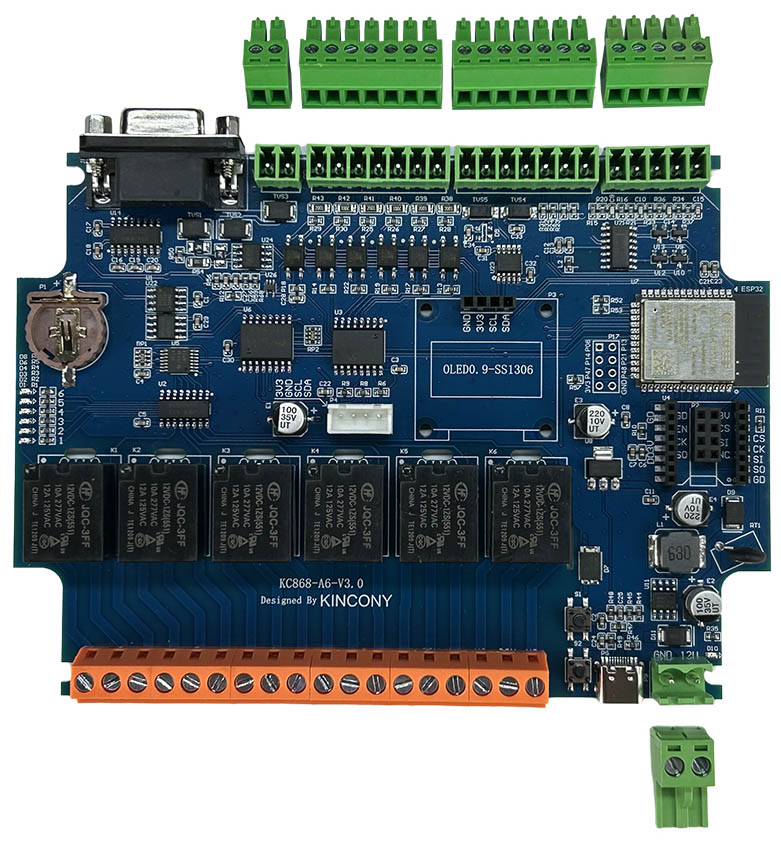

Design detail photos:

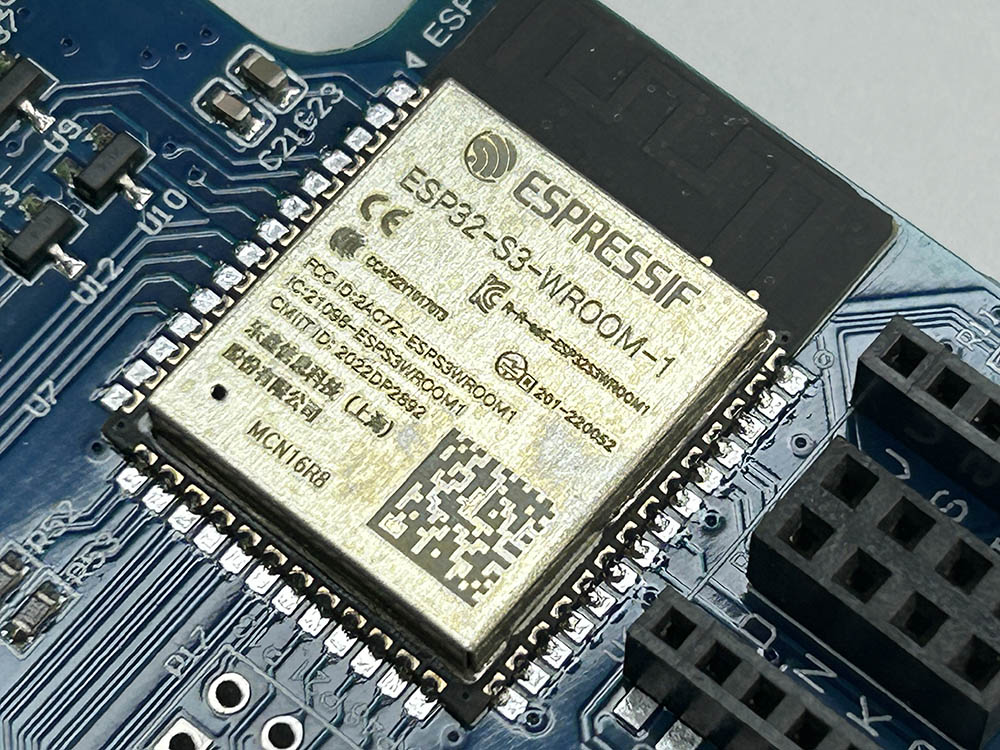

use by ESP32-S3-WROOM-1U (N16R8) big memory size chip.
DS3231 high precision RTC clock chip and battery socket.

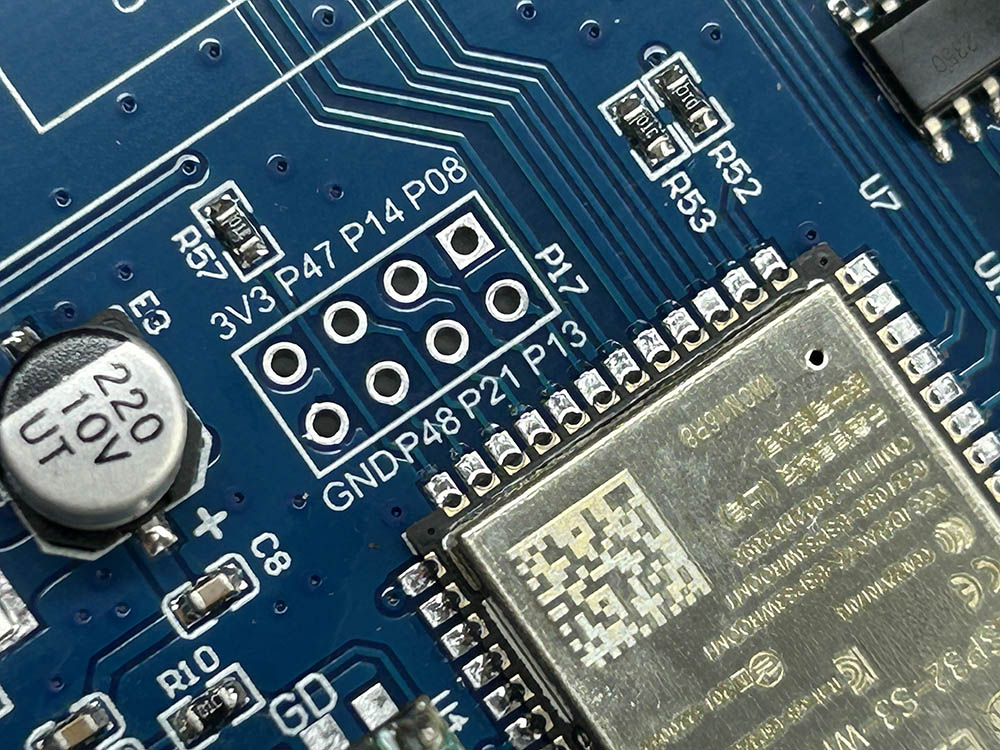

more free gpio on PCB use for extend device.
i2c extender
new protection circuit to prevent power polarity from burning out

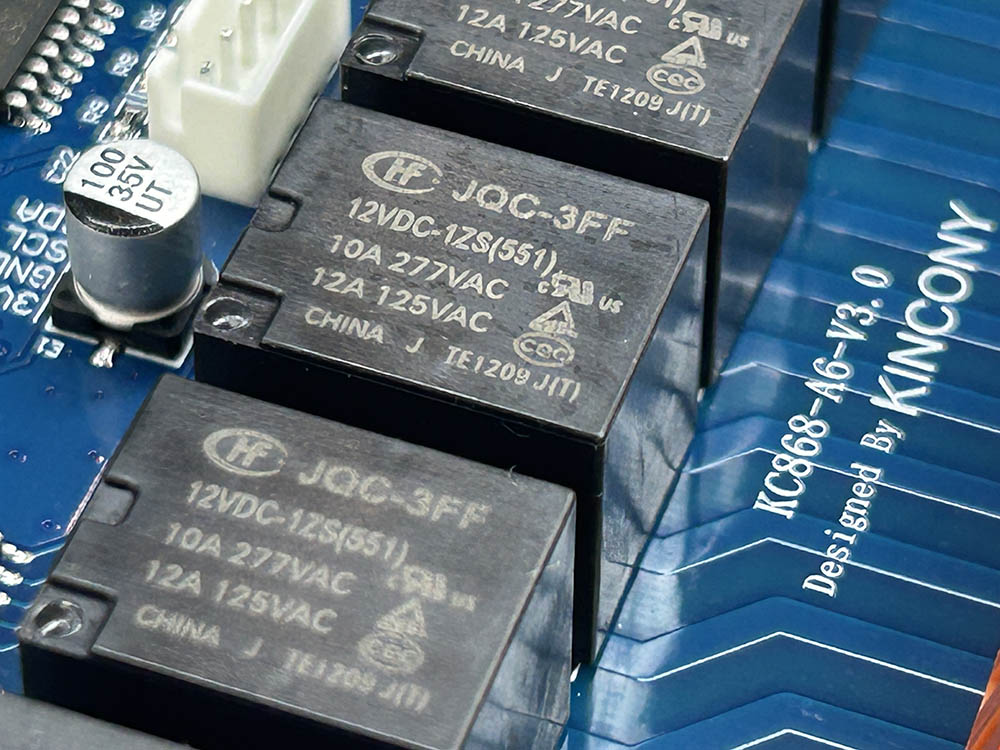

relay support MAX10A
RS232 circuit based on SP3232 chip
RS485 circuit based on MS2548 (MAX13478) chip

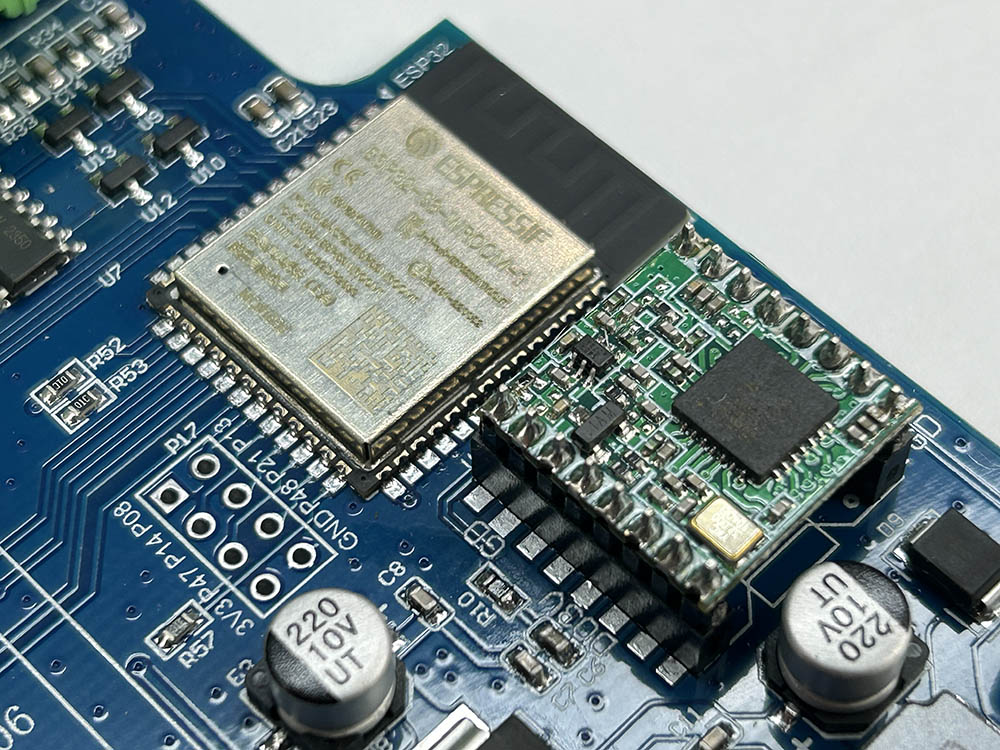

work with SX1278 LoRa module

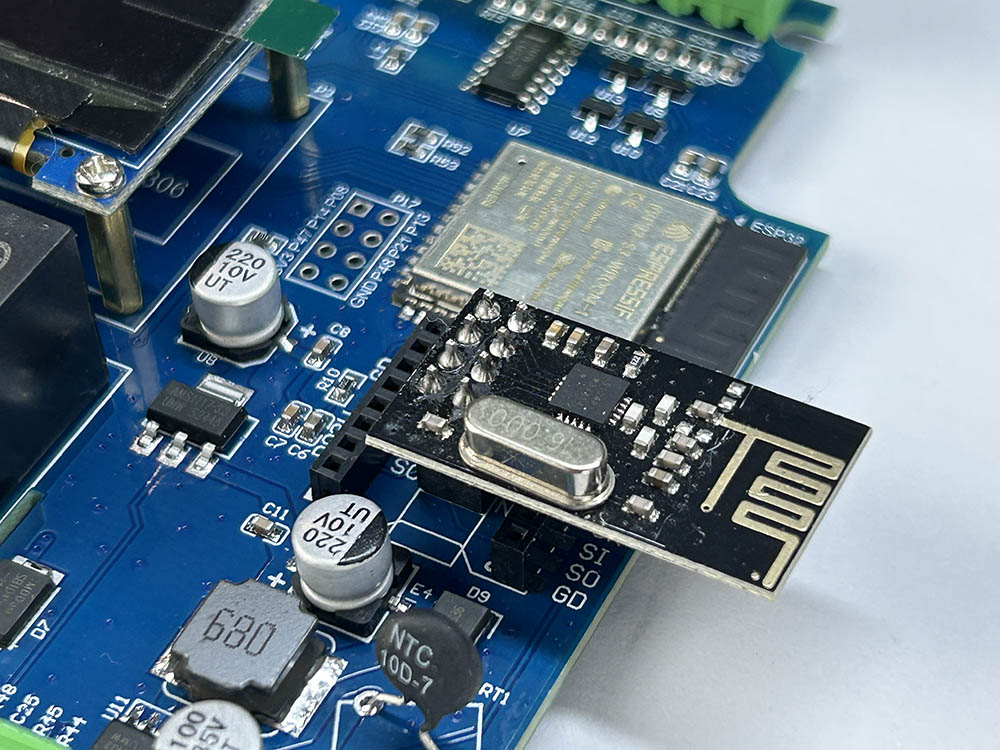

work with nRF24L01 wireless module
