RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - MariusM - 06-18-2023

(06-18-2023, 08:30 AM)admin Wrote: suggest config by ESPHome, it's easy and stable.
Could you help me with some ESP Home config files for server, AIO, and AP?

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - admin - 06-18-2023

ESPHome yaml config file for KC868-AIO: https://www.kincony.com/forum/showthread.php?tid=2736
ESPHome yaml config file for KC868-AP: https://www.kincony.com/forum/showthread.php?tid=2476

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - MariusM - 06-19-2023

(06-18-2023, 11:27 AM)admin Wrote: ESPHome yaml config file for KC868-AIO: https://www.kincony.com/forum/showthread.php?tid=2736
ESPHome yaml config file for KC868-AP: https://www.kincony.com/forum/showthread.php?tid=2476

Thank you, all working fine .

Could you help me also with config file for server in ESP Home ?

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - admin - 06-19-2023

ESPHome yaml config file for KC868-Server: https://www.kincony.com/forum/showthread.php?tid=1780

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - MariusM - 06-22-2023

the file above is for mqtt , can i configure the server with ESP Home?

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - admin - 06-23-2023

if you want use by ESPHome, because that ESP32 only connected with these pins:

IR receiver: GPIO22
IR sender: GPIO23
433MHz wireless receiver: GPIO13
GPIO-1: GPIO4
GPIO-2: GPIO5
GPIO-3: GPIO18
GPIO-4: GPIO19
GPIO1-4 can use for LED Strip/DS18B20/DHT11/21 Temperature and humidity sensor.

so you can config IR,RF, 1-wire sensor by ESPHome. digital input and output can't config by ESPHome. that need by MQTT for integration.

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - MariusM - 06-23-2023

Aleight,
I have configured by mqtt as per your latest config file uploaded in other thread and i still don't have any feedback of outputs and inputs in home assistant  also i'm no able to activate any outputs frome home assistant.
I have checked my homeassistant IP and i update it in web server  all ok.

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - admin - 06-23-2023

take a photo , how you wire with your KC868-Server.

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - MariusM - 06-26-2023

Hello,
I attached the photo

RE: Lesson9 - integrate KC868-Server to home assistant by MQTT - admin - 06-26-2023

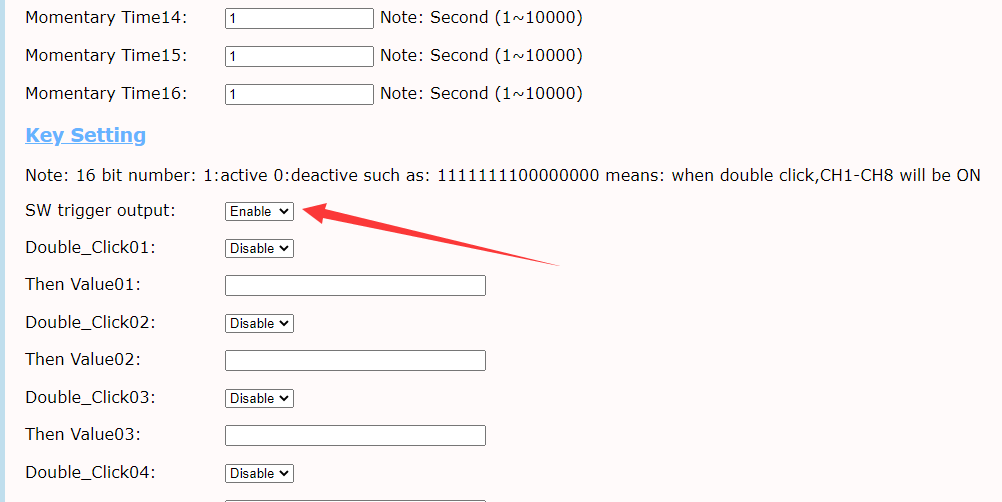

there is one option in KC868-Server's config webpage, you need disable "SW trigger output" option, then when you press button, will feedback mqtt message.
