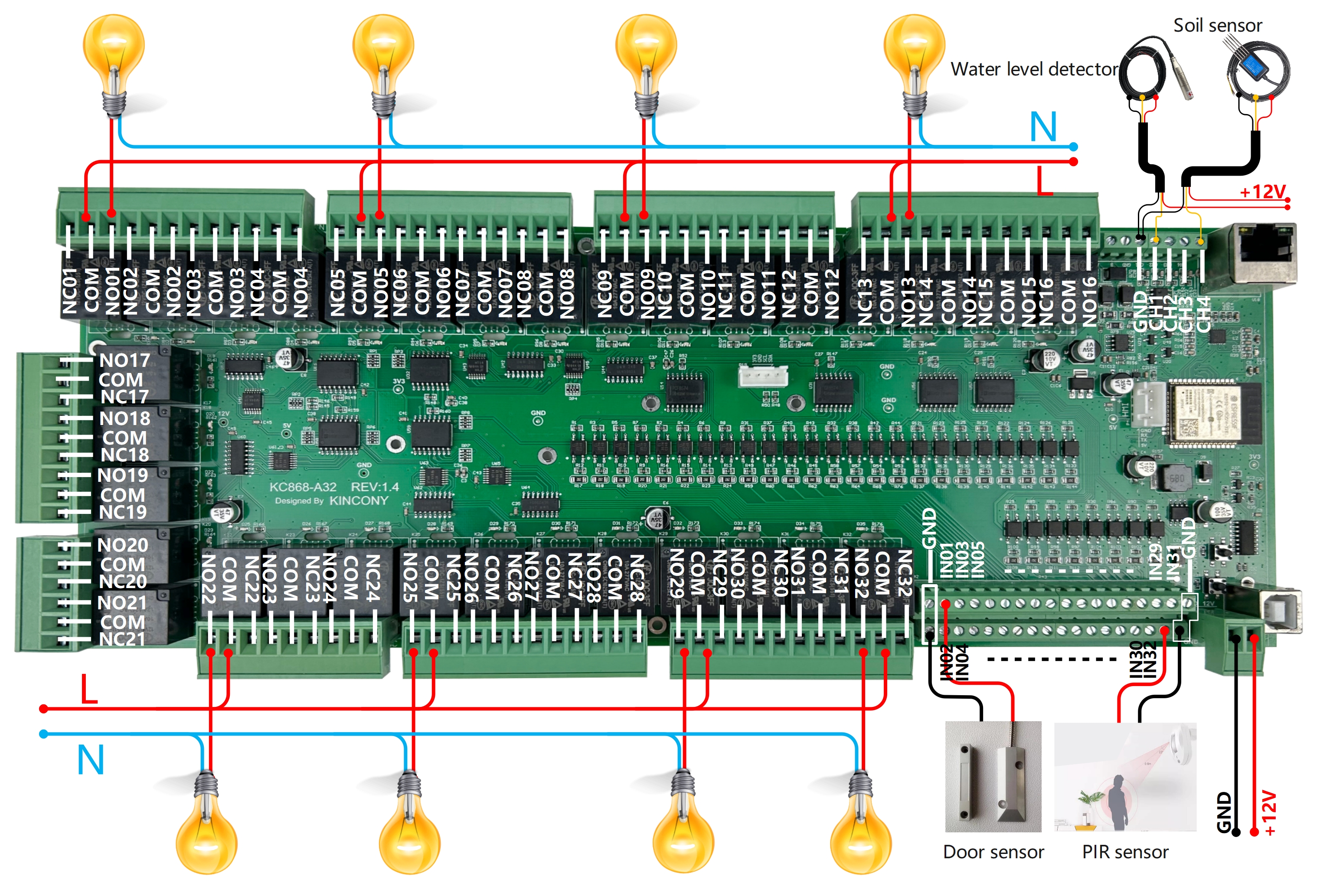

KC868-A32 wiring diagram - KinCony Support - 09-27-2023
RE: KC868-A32 wiring diagram - shuhrat - 10-21-2023
Which pin to connect the ds18b20 temperature sensor to?
RE: KC868-A32 wiring diagram - admin - 10-21-2023
if you want connect DS18B20, you can connect to extend serial port GPIO on the PCB.
RE: KC868-A32 wiring diagram - johnsmith8439 - 11-03-2024
Good day,
How do I output 12/24V for LED? Just replace light bulb in the diagram with 12/24V power supply and LED?
RE: KC868-A32 wiring diagram - admin - 11-04-2024
yes, you are right.
RE: KC868-A32 wiring diagram - johnsmith8439 - 11-04-2024
Thank you very much.
RE: KC868-A32 wiring diagram - johnsmith8439 - 12-05-2024
Hello,
How should I wire an AC-AC contactor? Do I need RC Snubber? I want to control a 20A water heater. Thank you every much.
RE: KC868-A32 wiring diagram - admin - 12-05-2024
if you want to use AC-AC contactor, just let A32's relay output AC220V to contactor's coin. KC868-A32 designed PCB can work without RC snubber.
RE: KC868-A32 wiring diagram - johnsmith8439 - 12-14-2024
Is the screws terminal for this board 3.81mm or 5.08mm? I mean something like this:
https://www.aliexpress.com/item/1005007634896358.html
In my project the wires have to come in from the side.
I want to know if 3.81mm or 5.08mm will fit on A32. Thank you very much.
RE: KC868-A32 wiring diagram - admin - 12-15-2024
if you are asking relay output green terminal, it's 5.00mm, NOT 5.08mm.
