[Arduino source code for KC868-M16 V2]-OLED Show - KinCony Support - 10-10-2023
Code:
/*OLED SSD1306 Code for KC868-M16v2*/
#include <U8g2lib.h>
#include <Wire.h>
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0, 5, 4, U8X8_PIN_NONE);//SCL IO5 SDA IO4
void page1() {
u8g2.setFont(u8g2_font_timR12_tf);//Font 12
u8g2.setCursor(0,15);
u8g2.print("KC868-M16 V2");
}
void setup(){
u8g2.setI2CAddress(0x3C*2);
u8g2.begin();
u8g2.enableUTF8Print();
}
void loop(){
u8g2.firstPage();
do
{
page1();
}while(u8g2.nextPage());

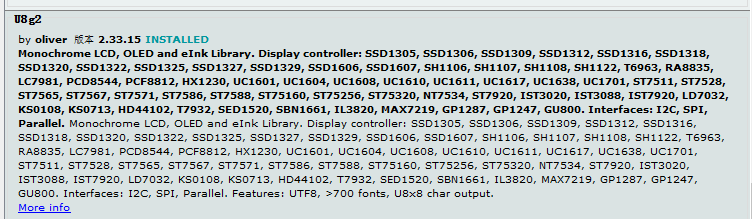

}Install ug82 library
