KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - admin - 10-16-2023

Use this plugin for ESPHome. you can add everyone KC868-HA board with 6 digital input ports and 6 digital output ports to home assistant. "digital input" can use for switch panel buttons or dry contact sensors. "digital output" can use for LEDs or extend relay module (need add driver).


how is config yaml file demo details: https://github.com/hzkincony/esphome-kc868-ha


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - NicTheModder - 10-31-2023

(10-16-2023, 04:50 AM)admin Wrote: Use this plugin for ESPHome. you can add everyone KC868-HA board with 6 digital input ports and 6 digital output ports to home assistant. "digital input" can use for switch panel buttons or dry contact sensors. "digital output" can use for LEDs or extend relay module (need add driver).


how is config yaml file demo details: https://github.com/hzkincony/esphome-kc868-ha


My dear friends,
Is it possible that the latest kc868_ha component don't work with the firmware flashed into the kc868-HA board (HA485_KU_V106_221102_SP230903) ?
I have bootloaded my 6 kc868_HA boards with this firmware. With ESPHome, the boards work smooth with kc868_component, but not with kc868_ha. Can they be reloaded with newer firmware?

Greetings.
Nic


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - admin - 10-31-2023

update KC868-HA firmware to newest, then use newest esphome component for KC868-HA.


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - Kataktok - 11-02-2023

Good afternoon, please tell me the problem I have is that the output switches do not work. I configured everything as in the description on the guide hub. The inputs work in the Home assistant, but the outputs do not react, nothing, what did I do wrong?


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - admin - 11-02-2023

how do you test your output port? can you take a photo?


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - Kataktok - 11-02-2023

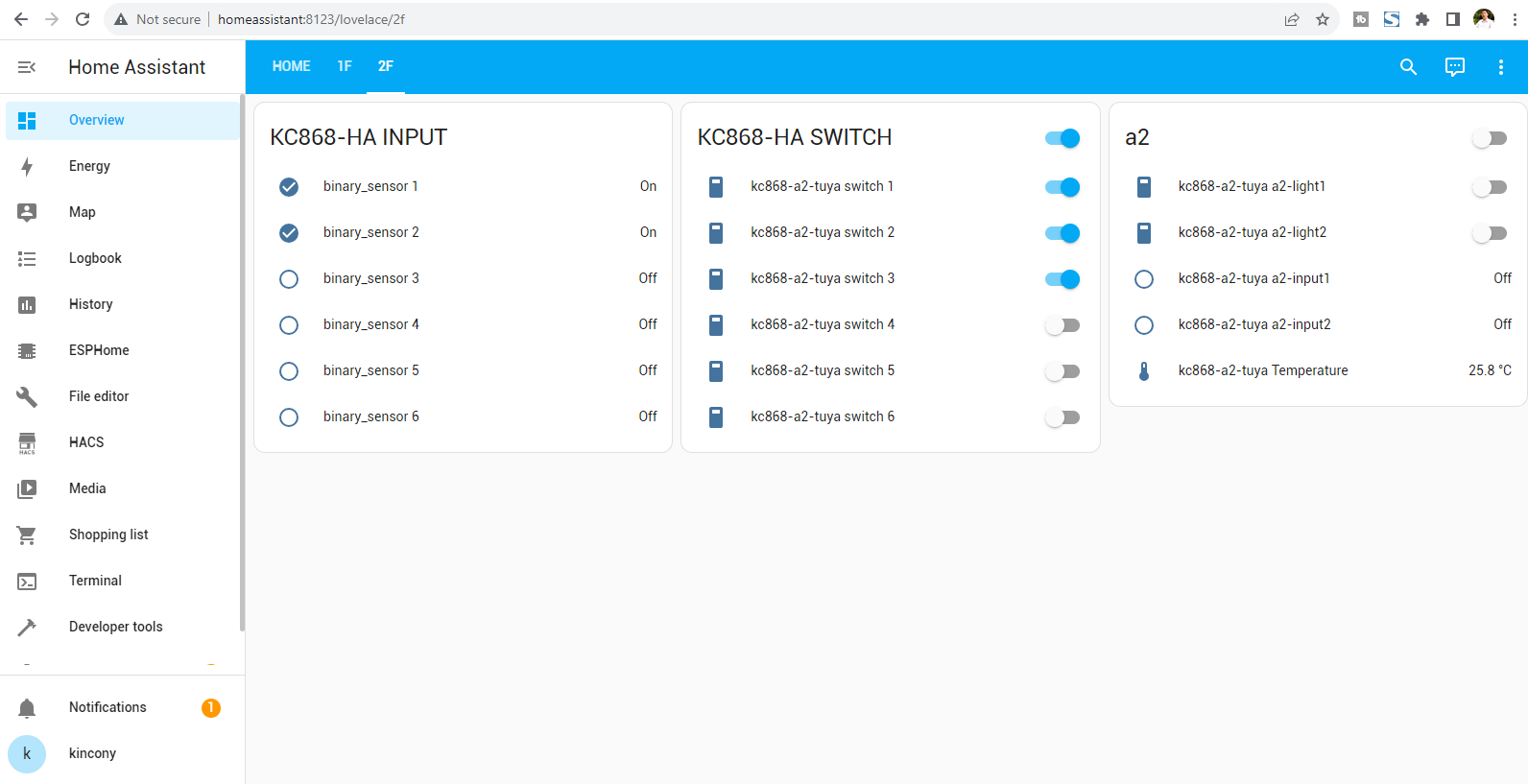

Video of input working and output not working I can’t send the video here’s the photo


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - NicTheModder - 11-02-2023

(11-02-2023, 10:54 AM)Kataktok Wrote: Video of input working and output not working I can’t send the video here’s the photo

Hoi Kataktok,

Be aware that the output of the kc868-HA is active - LOW !

Where do you found the firmware HA485_KU_V108 ? (to flash into a kc868-HA)

Greetings
Nic


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - admin - 11-02-2023

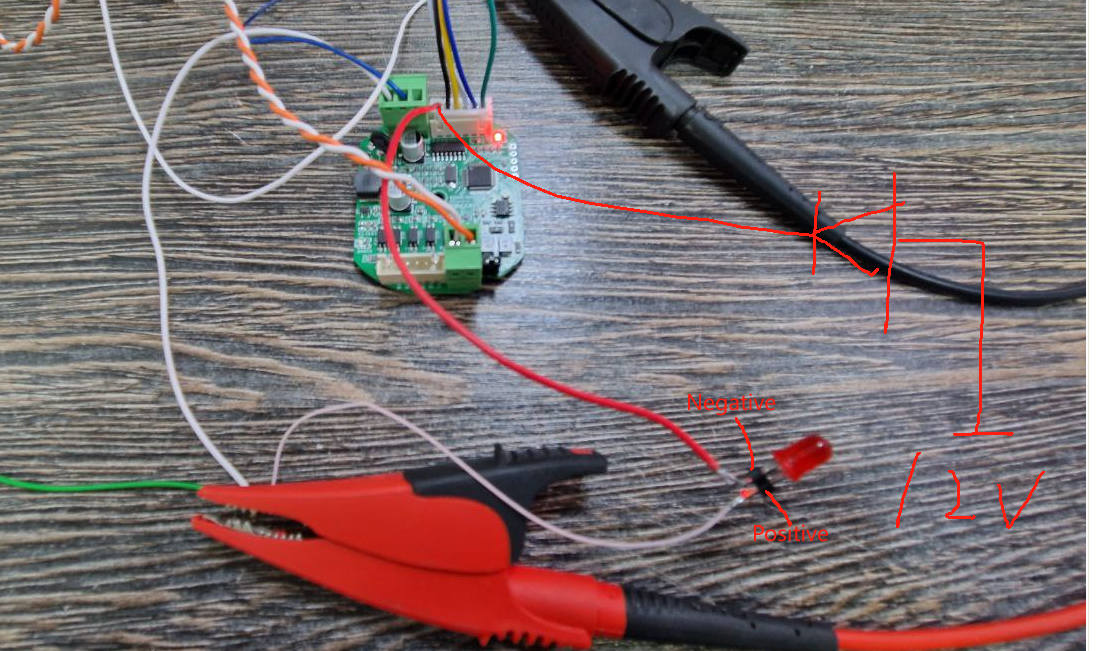

[Image: detail1_03.jpg]
test output as this way, this is KC868-HAv2 PCB, but v1 PCB is same.


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - Kataktok - 11-03-2023

I downloaded the firmware from here https://www.kincony.com/forum/showthread.php?tid=3454&highlight=kc868-ha  .Now I changed it to version 106 but it still doesn’t work, the state doesn’t change. I tried the same thing with 2 boards. Help please, what's wrong? what am I doing wrong?


RE: KC868-HA RS485 INPUT & OUTPUT plugin for ESPHome - KinCony Support - 11-03-2023

(11-03-2023, 04:54 AM)Kataktok Wrote: I downloaded the firmware from here https://www.kincony.com/forum/showthread.php?tid=3454&highlight=kc868-ha  .Now I changed it to version 106 but it still doesn’t work, the state doesn’t change. I tried the same thing with 2 boards. Help please, what's wrong? what am I doing wrong?

check the pin is right
