+--- Thread: convert 4-20mA to 0-5v by 250 Ohm resistance for KC868-COLB/COL (/showthread.php?tid=49)
convert 4-20mA to 0-5v by 250 Ohm resistance for KC868-COLB/COL - admin - 11-24-2020
KC868-COL support use analog sensor that 0-5V output, if you already have 4-20mA sensor. you can use a 250 Ohm resistance connect with signal input port and GND to convert.
To convert a mA analog input signal to voltage you need to attach a inline resistor. The size of your resistor will determine the output range of your voltage.
Resistor Calculations are as follows:
Using ohms law V = R(I) (Voltage = Resistance * Current)
If we were to scale a 4-20mA to 1-5V
For the 0 Value: .004 Amps * 250 ohms = 1 Volt
For the Max Value: .20 Amps * 250 ohms = 5 Volts
RE: convert 4-20mA to 0-5volt by 250 Ohm resistance - James Alabama - 11-26-2020
Very useful tip, thank you. Could you please add a picture of resistor installed?
RE: convert 4-20mA to 0-5volt by 250 Ohm resistance - admin - 11-27-2020

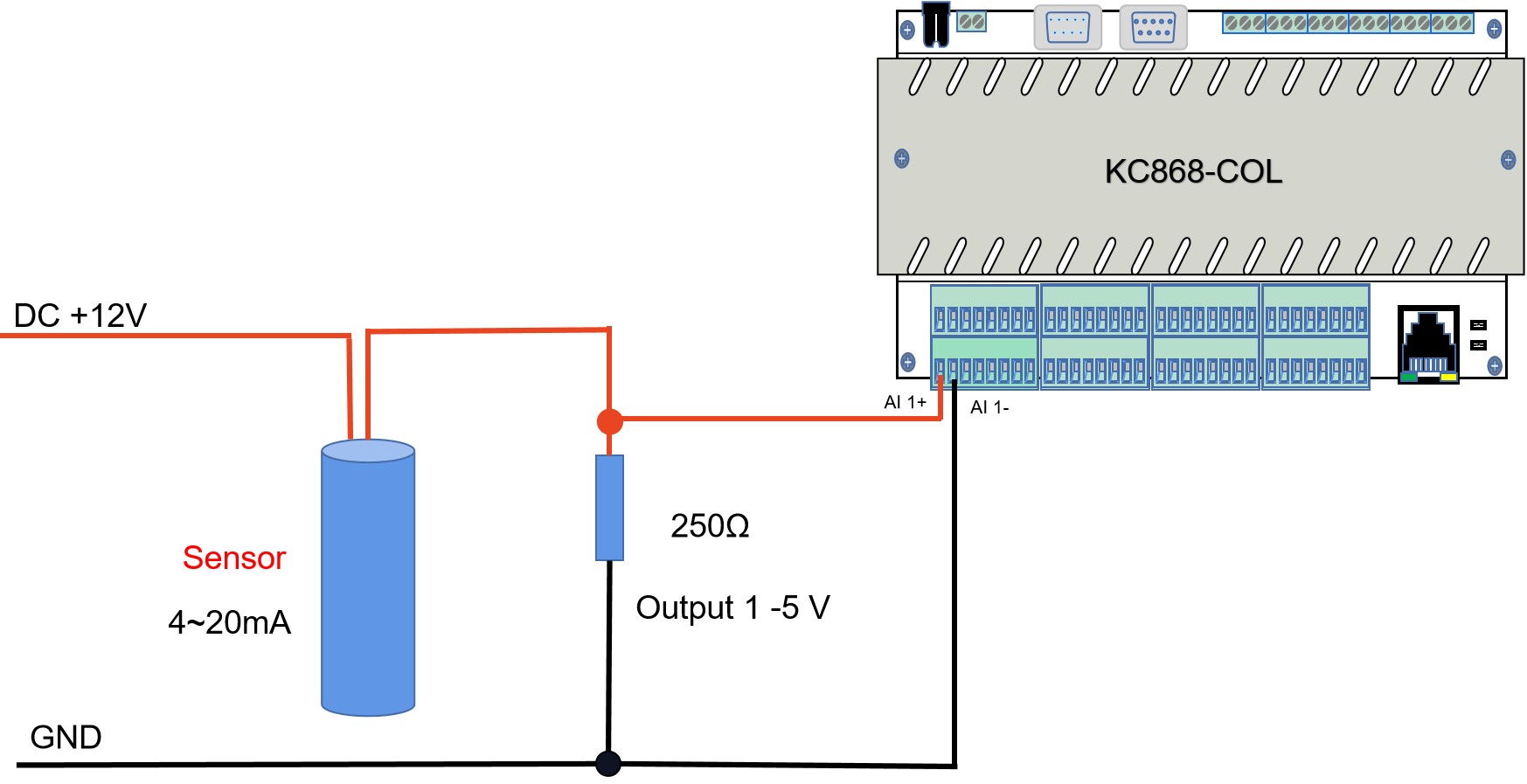

this is a sample for AI1 and AI3 input use by 4-20mA sensor to convert to voltage signal by 2pcs 250 ohm resistance.
RE: convert 4-20mA to 0-5v by 250 Ohm resistance for KC868-COLB/COL - admin - 04-26-2021
