Arduino source code for A32 Pro - UDP with Ethernet chip W5500

Code:
/****************************************************************************************************************************

  Async_UdpClient.ino

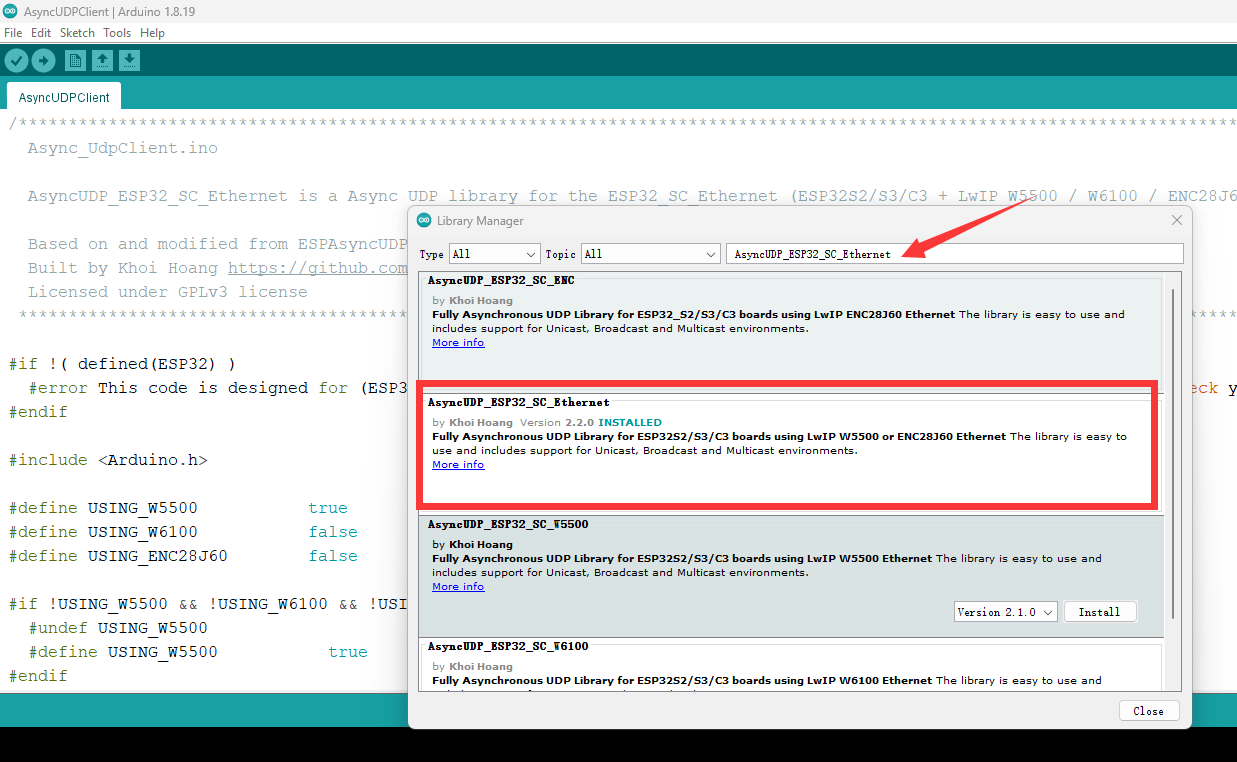

  AsyncUDP_ESP32_SC_Ethernet is a Async UDP library for the ESP32_SC_Ethernet (ESP32S2/S3/C3 + LwIP W5500 / W6100 / ENC28J60)



  Based on and modified from ESPAsyncUDP Library (https://github.com/me-no-dev/ESPAsyncUDP)

  Built by Khoi Hoang https://github.com/khoih-prog/AsyncUDP_ESP32_SC_Ethernet

  Licensed under GPLv3 license

 *****************************************************************************************************************************/



#if !( defined(ESP32) )

  #error This code is designed for (ESP32S2/S3/C3 + LwIP W5500, W6100 or ENC28J60) to run on ESP32 platform! Please check your Tools->Board setting.

#endif



#include <Arduino.h>



#define USING_W5500           true

#define USING_W6100           false

#define USING_ENC28J60        false



#if !USING_W5500 && !USING_W6100 && !USING_ENC28J60

  #undef USING_W5500

  #define USING_W5500           true

#endif



#define ASYNC_UDP_ESP32_SC_ETHERNET_DEBUG_PORT      Serial



// Use from 0 to 4. Higher number, more debugging messages and memory usage.

#define _ASYNC_UDP_ESP32_SC_ETHERNET_LOGLEVEL_      4



//////////////////////////////////////////////////////////



#if USING_W5500



  #define ESP32_Ethernet_onEvent            ESP32_W5500_onEvent

  #define ESP32_Ethernet_waitForConnect     ESP32_W5500_waitForConnect



  // For ESP32_S3

  // Optional values to override default settings

  // Don't change unless you know what you're doing

  //#define ETH_SPI_HOST        SPI3_HOST

  //#define SPI_CLOCK_MHZ       25



  // Must connect INT to GPIOxx or not working

  #define INT_GPIO            41



  #define MISO_GPIO           40

  #define MOSI_GPIO           44

  #define SCK_GPIO            42

  #define CS_GPIO             39



  // For ESP32_C3

  // Optional values to override default settings

  // Don't change unless you know what you're doing

  //#define ETH_SPI_HOST        SPI2_HOST

  //#define SPI_CLOCK_MHZ       25



  // Must connect INT to GPIOxx or not working

  //#define INT_GPIO            10



  //#define MISO_GPIO           5

  //#define MOSI_GPIO           6

  //#define SCK_GPIO            4

  //#define CS_GPIO             7



  //////////////////////////////////////////////////////////



#elif USING_W6100



  #define ESP32_Ethernet_onEvent            ESP32_W6100_onEvent

  #define ESP32_Ethernet_waitForConnect     ESP32_W6100_waitForConnect



  // For ESP32_S3

  // Optional values to override default settings

  // Don't change unless you know what you're doing

  //#define ETH_SPI_HOST        SPI3_HOST

  //#define SPI_CLOCK_MHZ       25



  // Must connect INT to GPIOxx or not working

  //#define INT_GPIO            4



  //#define MISO_GPIO           13

  //#define MOSI_GPIO           11

  //#define SCK_GPIO            12

  //#define CS_GPIO             10



  // For ESP32_C3

  // Optional values to override default settings

  // Don't change unless you know what you're doing

  //#define ETH_SPI_HOST        SPI2_HOST

  //#define SPI_CLOCK_MHZ       25



  // Must connect INT to GPIOxx or not working

  //#define INT_GPIO            10



  //#define MISO_GPIO           5

  //#define MOSI_GPIO           6

  //#define SCK_GPIO            4

  //#define CS_GPIO             7



  //////////////////////////////////////////////////////////



#else   // #if USING_W5500



  //////////////////////////////////////////////////////////



  // For ENC28J60



  #define ESP32_Ethernet_onEvent            ESP32_ENC_onEvent

  #define ESP32_Ethernet_waitForConnect     ESP32_ENC_waitForConnect



  // Optional values to override default settings

  // Don't change unless you know what you're doing

  //#define ETH_SPI_HOST        SPI2_HOST

  //#define SPI_CLOCK_MHZ       8



  // Must connect INT to GPIOxx or not working

  //#define INT_GPIO            4



  //#define MISO_GPIO           13

  //#define MOSI_GPIO           11

  //#define SCK_GPIO            12

  //#define CS_GPIO             10



  //////////////////////////////////////////////////////////



#endif    // #if USING_W5500



//////////////////////////////////////////////////////////



#include <AsyncUDP_ESP32_SC_Ethernet.h>



IPAddress remoteIPAddress = IPAddress(192, 168, 3, 101);



#define UDP_REMOTE_PORT         5698



/////////////////////////////////////////////



// Enter a MAC address and IP address for your controller below.

#define NUMBER_OF_MAC      20



byte mac[][NUMBER_OF_MAC] =

{

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x01 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x02 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x03 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x04 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x05 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x06 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x07 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x08 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x09 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x0A },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x0B },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x0C },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x0D },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x0E },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x0F },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x10 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x11 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x12 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0x13 },

  { 0xDE, 0xAD, 0xBE, 0xEF, 0xBE, 0x14 },

};



// Select the IP address according to your local network

IPAddress myIP(192, 168, 3, 232);

IPAddress myGW(192, 168, 3, 1);

IPAddress mySN(255, 255, 255, 0);



// Google DNS Server IP

IPAddress myDNS(8, 8, 8, 8);



/////////////////////////////////////////////



AsyncUDP udp;



void parsePacket(AsyncUDPPacket packet)

{

  Serial.print("UDP Packet Type: ");

  Serial.print(packet.isBroadcast() ? "Broadcast" : packet.isMulticast() ? "Multicast" : "Unicast");

  Serial.print(", From: ");

  Serial.print(packet.remoteIP());

  Serial.print(":");

  Serial.print(packet.remotePort());

  Serial.print(", To: ");

  Serial.print(packet.localIP());

  Serial.print(":");

  Serial.print(packet.localPort());

  Serial.print(", Length: ");

  Serial.print(packet.length());

  Serial.print(", Data: ");

  Serial.write(packet.data(), packet.length());

  Serial.println();

  //reply to the client

  packet.printf("Got %u bytes of data", packet.length());

}



void initEthernet()

{

  UDP_LOGWARN(F("Default SPI pinout:"));

  UDP_LOGWARN1(F("SPI_HOST:"), ETH_SPI_HOST);

  UDP_LOGWARN1(F("MOSI:"), MOSI_GPIO);

  UDP_LOGWARN1(F("MISO:"), MISO_GPIO);

  UDP_LOGWARN1(F("SCK:"),  SCK_GPIO);

  UDP_LOGWARN1(F("CS:"),   CS_GPIO);

  UDP_LOGWARN1(F("INT:"),  INT_GPIO);

  UDP_LOGWARN1(F("SPI Clock (MHz):"), SPI_CLOCK_MHZ);

  UDP_LOGWARN(F("========================="));



  ///////////////////////////////////



  // To be called before ETH.begin()

  ESP32_Ethernet_onEvent();



  // start the ethernet connection and the server:

  // Use DHCP dynamic IP and random mac

  //bool begin(int MISO_GPIO, int MOSI_GPIO, int SCLK_GPIO, int CS_GPIO, int INT_GPIO, int SPI_CLOCK_MHZ,

  //           int SPI_HOST, uint8_t *W6100_Mac = W6100_Default_Mac);

  ETH.begin( MISO_GPIO, MOSI_GPIO, SCK_GPIO, CS_GPIO, INT_GPIO, SPI_CLOCK_MHZ, ETH_SPI_HOST );

  //ETH.begin( MISO_GPIO, MOSI_GPIO, SCK_GPIO, CS_GPIO, INT_GPIO, SPI_CLOCK_MHZ, ETH_SPI_HOST, mac[millis() % NUMBER_OF_MAC] );



  // Static IP, leave without this line to get IP via DHCP

  //bool config(IPAddress local_ip, IPAddress gateway, IPAddress subnet, IPAddress dns1 = 0, IPAddress dns2 = 0);

  //ETH.config(myIP, myGW, mySN, myDNS);



  ESP32_Ethernet_waitForConnect();



  ///////////////////////////////////

}



////////////////////////////////////



void setup()

{

  Serial.begin(115200);



  while (!Serial && (millis() < 5000));



  delay(500);



  Serial.print(F("\nStart Async_UDPClient on "));

  Serial.print(ARDUINO_BOARD);

  Serial.print(F(" with "));

  Serial.println(SHIELD_TYPE);



#if USING_W5500

  Serial.println(WEBSERVER_ESP32_SC_W5500_VERSION);

#elif USING_W6100

  Serial.println(WEBSERVER_ESP32_SC_W6100_VERSION);

#else

  Serial.println(WEBSERVER_ESP32_SC_ENC_VERSION);

#endif



  Serial.println(ASYNC_UDP_ESP32_SC_ETHERNET_VERSION);



  Serial.setDebugOutput(true);



  ///////////////////////////////////



  initEthernet();



  ///////////////////////////////////



  // Client address

  Serial.print("Async_UDPClient started @ IP address: ");

  Serial.println(ETH.localIP());



  if (udp.connect(remoteIPAddress, UDP_REMOTE_PORT))

  {

    Serial.println("UDP connected");



    udp.onPacket([](AsyncUDPPacket packet)

    {

      parsePacket( packet);

    });



    //Send unicast

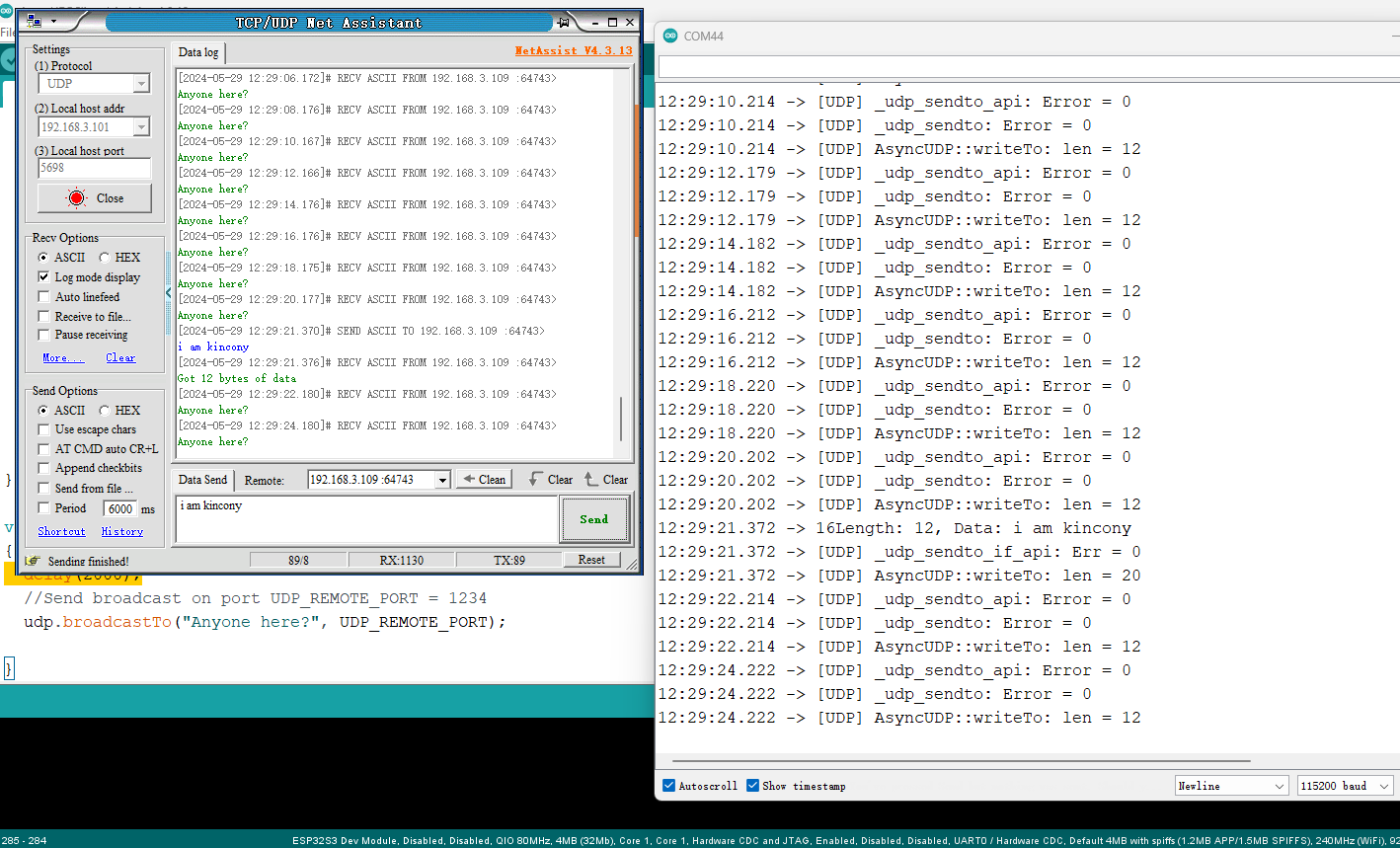

    udp.print("Hello Server!");

  }

}



void loop()

{

  delay(2000);

  //Send broadcast on port UDP_REMOTE_PORT = 1234

  udp.broadcastTo("Anyone here?", UDP_REMOTE_PORT);



}
