m16v2 - Unable to read voltages

Thread Rating:
  • 0 Vote(s) - 0 Average
  • 1
  • 2
  • 3
  • 4
  • 5
Threaded Mode
m16v2 - Unable to read voltages
admin Offline
Administrator
*******
Posts: 6,339
Threads: 811
Joined: Oct 2020
Reputation: 156
#11
09-22-2023, 10:01 AM (This post was last modified: 09-22-2023, 01:42 PM by admin.)
can you take the PCB board from green plastic shell, take a PHOTO of bottom PCB, i want to see pins.

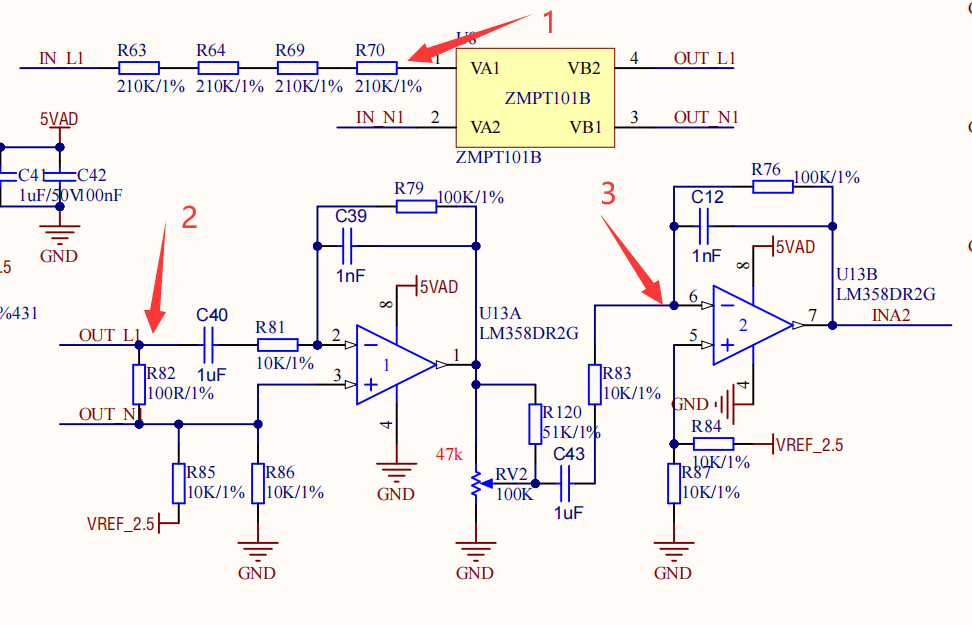

check these point of signal , test whether have signal on these pins, input ------> ESP32 ADC pin.

diagram download: https://www.kincony.com/download/KC868-M...ematic.pdf
