[Arduino IDE demo source code for KC868-A16]--#08-PCF8574-DO

[KinCony Support]

Code 7: //The demo code is PCF8574-DO    You can copy the code to your Arduino IDE.

Code:

#include "Arduino.h"
#include "PCF8574.h"

// Set i2c address
PCF8574 pcf8574_1(0x24,4,5);
PCF8574 pcf8574_2(0x25,4,5);

void setup()
{
  Serial.begin(115200);

  pcf8574_1.pinMode(P0, OUTPUT);
  pcf8574_1.pinMode(P1, OUTPUT);
  pcf8574_1.pinMode(P2, OUTPUT);
  pcf8574_1.pinMode(P3, OUTPUT);
  pcf8574_1.pinMode(P4, OUTPUT);
  pcf8574_1.pinMode(P5, OUTPUT);
  pcf8574_1.pinMode(P6, OUTPUT);
  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);
  pcf8574_2.pinMode(P1, OUTPUT);
  pcf8574_2.pinMode(P2, OUTPUT);
  pcf8574_2.pinMode(P3, OUTPUT);
  pcf8574_2.pinMode(P4, OUTPUT);
  pcf8574_2.pinMode(P5, OUTPUT);
  pcf8574_2.pinMode(P6, OUTPUT);
  pcf8574_2.pinMode(P7, OUTPUT);


    Serial.print("Init pcf8574_1...");
    if (pcf8574_1.begin()){
        Serial.println("PCF8574_1_OK");
    }else{
        Serial.println("PCF8574_1_KO");
    }

  Serial.print("Init pcf8574_2...");
  if (pcf8574_2.begin()){
    Serial.println("PCF8574_2_OK");
  }else{
    Serial.println("PCF8574_2_KO");
  }


}

void loop()
{
  pcf8574_1.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_1.digitalWrite(P7, HIGH);
  delay(1000);

  pcf8574_2.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_2.digitalWrite(P7, HIGH);
  delay(1000);
}




[admin]

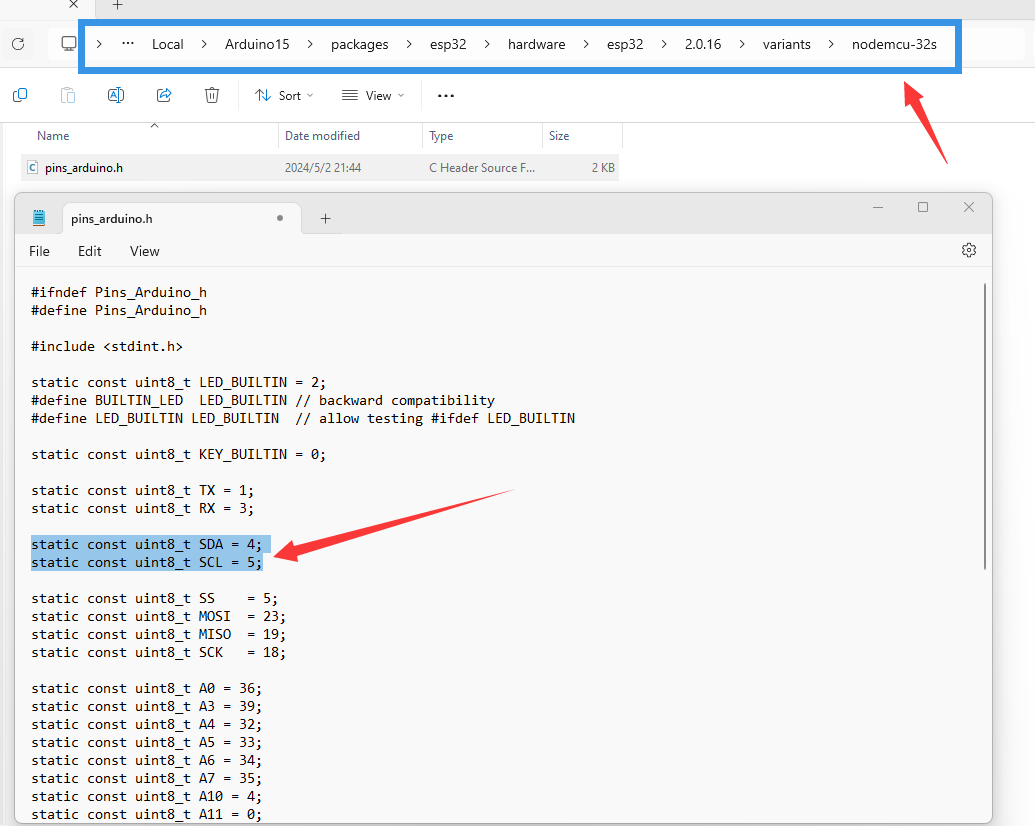

i2c bus pins setting.


[lenguyentrong]

Running this code, the relays are not able on/ off. Measure the voltage from opto coupler. they are just change from 3.3V to 2.1V (should be 0V). Please help.

[admin]

maybe you have not connect dc12v with these "INPUT" terminal. take a photo how you wire cable.


[lenguyentrong]

Sorry, I was wrong. the 1.2V is good for couplers. The question is now move to where are LO0 and LO1 come from? Measuring the pin#6 and pin#4 of couplers, the voltage is not change when couplers is on or off.

[admin]

take a photo how you wire cable.

[lenguyentrong]

You're right. we didn't connect 12V to output terminals yet. And board is working now. thanks!!!!

[shell]

I've got a16 board and downloaded latest arduino IDE with esp board support rev 3.0.5. The difference is that pinout is a bit modified e.g. SDA/SDL are 21 & 22 not 4 & 5. Should use older version e.g. rev. 2.0.16? Also there is no definition of P0..P7, I made modification od example code as follow to get it compiled:

Code:

#include "Arduino.h"
#include "Adafruit_PCF8574.h"

static const uint8_t P0 = 0;
static const uint8_t P1 = 1;
static const uint8_t P2 = 2;
static const uint8_t P3 = 3;
static const uint8_t P4 = 4;
static const uint8_t P5 = 5;
static const uint8_t P6 = 6;
static const uint8_t P7 = 7;

// Set i2c address
Adafruit_PCF8574 pcf8574_1;//(0x24,4,5);
Adafruit_PCF8574 pcf8574_2;//(0x25,4,5);

void setup()
{
  Serial.begin(115200);

  pcf8574_1.pinMode(P0, OUTPUT);
  pcf8574_1.pinMode(P1, OUTPUT);
  pcf8574_1.pinMode(P2, OUTPUT);
  pcf8574_1.pinMode(P3, OUTPUT);
  pcf8574_1.pinMode(P4, OUTPUT);
  pcf8574_1.pinMode(P5, OUTPUT);
  pcf8574_1.pinMode(P6, OUTPUT);
  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);
  pcf8574_2.pinMode(P1, OUTPUT);
  pcf8574_2.pinMode(P2, OUTPUT);
  pcf8574_2.pinMode(P3, OUTPUT);
  pcf8574_2.pinMode(P4, OUTPUT);
  pcf8574_2.pinMode(P5, OUTPUT);
  pcf8574_2.pinMode(P6, OUTPUT);
  pcf8574_2.pinMode(P7, OUTPUT);

  Wire.begin(21, 22);

    Serial.print("Init pcf8574_1...");
    if (pcf8574_1.begin(0x24, &Wire)){
        Serial.println("PCF8574_1_OK");
    }else{
        Serial.println("PCF8574_1_KO");
    }

  Serial.print("Init pcf8574_2...");
  if (pcf8574_2.begin(0x25, &Wire)){
    Serial.println("PCF8574_2_OK");
  }else{
    Serial.println("PCF8574_2_KO");
  }


}

void loop()
{
  pcf8574_1.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_1.digitalWrite(P7, HIGH);
  delay(1000);

  pcf8574_2.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_2.digitalWrite(P7, HIGH);
  delay(1000);
}

[admin]

just do as our sample code's I2C bus pin define.

[shell]

just do as our sample code's I2C bus pin define.

I did set pint to 4/5 and modified your example to get it up and running, maybe someone else will re-use it as original code is not working - at lest for myself)

Code:

#include "Arduino.h"
#include "Adafruit_PCF8574.h"

static const uint8_t P0 = 0;
static const uint8_t P1 = 1;
static const uint8_t P2 = 2;
static const uint8_t P3 = 3;
static const uint8_t P4 = 4;
static const uint8_t P5 = 5;
static const uint8_t P6 = 6;
static const uint8_t P7 = 7;
static const uint8_t PIN_UART_RX = 3;
static const uint8_t PIN_UART_TX = 1;
static const uint8_t PIN_SDA = 4;
static const uint8_t PIN_SCL = 5;

// Set i2c address
Adafruit_PCF8574 pcf8574_1;//(0x24,4,5);
Adafruit_PCF8574 pcf8574_2;//(0x25,4,5);
TwoWire i2c = TwoWire(0);

void setup()
{
  Serial.setPins(PIN_UART_RX, PIN_UART_TX);
  Serial.begin(9600);

  delay(1000);

  i2c.begin(PIN_SDA, PIN_SCL);

  Serial.print("Init pcf8574_1...");
    if (pcf8574_1.begin(0x24, &i2c)){
        Serial.println("PCF8574_1_OK\n");
    }else{
        Serial.println("PCF8574_1_KO");
    }

  Serial.print("Init pcf8574_2...");
  if (pcf8574_2.begin(0x25, &i2c)){
    Serial.println("PCF8574_2_OK");
  }else{
    Serial.println("PCF8574_2_KO");
  }

  pcf8574_1.pinMode(P0, OUTPUT);
  pcf8574_1.pinMode(P1, OUTPUT);
  pcf8574_1.pinMode(P2, OUTPUT);
  pcf8574_1.pinMode(P3, OUTPUT);
  pcf8574_1.pinMode(P4, OUTPUT);
  pcf8574_1.pinMode(P5, OUTPUT);
  pcf8574_1.pinMode(P6, OUTPUT);
  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);
  pcf8574_2.pinMode(P1, OUTPUT);
  pcf8574_2.pinMode(P2, OUTPUT);
  pcf8574_2.pinMode(P3, OUTPUT);
  pcf8574_2.pinMode(P4, OUTPUT);
  pcf8574_2.pinMode(P5, OUTPUT);
  pcf8574_2.pinMode(P6, OUTPUT);
  pcf8574_2.pinMode(P7, OUTPUT);
}

void loop()
{
  pcf8574_1.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_1.digitalWrite(P7, HIGH);
  delay(1000);

  pcf8574_2.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_2.digitalWrite(P7, HIGH);
  delay(1000);
}
