RS485 modbus energy meter integrate to ESPHome yaml file for home assistant
admin Offline
Administrator
*******
Posts: 6,311
Threads: 808
Joined: Oct 2020
Reputation: 154
#1
04-03-2023, 12:04 PM (This post was last modified: 04-04-2023, 05:30 AM by admin.)



esphome:
  name: a8s
  platform: ESP32
  board: esp32dev

wifi:
  ssid: "KinCony"
  password: "a12345678"

captive_portal:


uart:
  id: mod_bus
  tx_pin: 33
  rx_pin: 32
  baud_rate: 9600
  stop_bits: 1
  parity: EVEN

modbus:
  id: modbus1
  uart_id: mod_bus

modbus_controller:
  - id: a8s
    address: 0x01
    modbus_id: modbus1
    setup_priority: -10
    update_interval: 5s


sensor:
  - platform: modbus_controller
    modbus_controller_id: a8s
    name: "Voltage"
    id: modbus_voltage
    register_type: holding
    address: 0x64
    unit_of_measurement: "V"
    value_type: FP32
    accuracy_decimals: 2

  - platform: modbus_controller
    modbus_controller_id: a8s
    name: "Current"
    id: modbus_current
    register_type: holding
    address: 0x6A
    unit_of_measurement: "A"
    value_type: FP32
    accuracy_decimals: 2

  - platform: modbus_controller
    modbus_controller_id: a8s
    name: "Active Power"
    id: modbus_Active_Power
    register_type: holding
    address: 0x76
    unit_of_measurement: "kW"
    value_type: FP32
    accuracy_decimals: 2

  - platform: modbus_controller
    modbus_controller_id: a8s
    name: "Power Factor"
    id: modbus_Power_Factor
    register_type: holding
    address: 0x8E
    unit_of_measurement: ""
    value_type: FP32
    accuracy_decimals: 2

  - platform: modbus_controller
    modbus_controller_id: a8s
    name: "Grid Frequency"
    id: modbus_Grid_Frequency
    register_type: holding
    address: 0x90
    unit_of_measurement: "hz"
    value_type: FP32
    accuracy_decimals: 2

  - platform: modbus_controller
    modbus_controller_id: a8s
    name: "Total Energy"
    id: modbus_Total_Energy
    register_type: holding
    address: 0x0
    unit_of_measurement: "kWh"
    value_type: FP32
    accuracy_decimals: 2

# Enable logging
logger:

# Enable Home Assistant API
api:

yaml file for KC868-A8S download:

.txt   HA_modbus_energy-meter.txt (Size: 1.91 KB / Downloads: 650)

KinCony energy meter RS485 modbus protocol document:

.pdf   KinCony-energy-meter-rs485-modbus-protocol.pdf (Size: 117.75 KB / Downloads: 755)
YouTube: https://www.youtube.com/c/KinCony
Online Store: https://kincony.aliexpress.com
Find
Reply
JCh Offline
Junior Member
**
Posts: 4
Threads: 1
Joined: Nov 2022
Reputation: 0
#2
06-13-2023, 12:40 PM
Hello,

Is it possible to use RS485 on the KC868-A8S to read data according to IEC 62056-21, mod C , 7E1 via ESPHome? It is not Modbus RTU.

Thank you
Find
Reply
admin Offline
Administrator
*******
Posts: 6,311
Threads: 808
Joined: Oct 2020
Reputation: 154
#3
06-13-2023, 01:15 PM
i am not sure whether ESPHome support that protocol, i think it's not easy, suggest use by modbus.
YouTube: https://www.youtube.com/c/KinCony
Online Store: https://kincony.aliexpress.com
Find
Reply
tatu Offline
Junior Member
**
Posts: 15
Threads: 2
Joined: Apr 2023
Reputation: 0
#4
08-30-2023, 07:40 AM
Hi!

Do you have ESPHome sample configuration for Kincony 3-phase RS485 energy meter? Model KC868-Meter-7P-RTU
Find
Reply
admin Offline
Administrator
*******
Posts: 6,311
Threads: 808
Joined: Oct 2020
Reputation: 154
#5
08-30-2023, 09:11 AM
you can see this video:

YouTube: https://www.youtube.com/c/KinCony
Online Store: https://kincony.aliexpress.com
Find
Reply
sebagarayco Offline
Member
***
Posts: 54
Threads: 7
Joined: Dec 2023
Reputation: 0
#6
01-26-2024, 12:29 PM
Hi, trying to set this up  to work in a KC868-Server. I'm having a few issues:

Error:
[09:17:47][D][modbus_controller:043]: Modbus command to device=1 register=0x76 countdown=0 no response received - removed from send queue
[09:17:48][W][modbus_controller:136]: Duplicate modbus command found: type=0x3 address=142 count=4

Config attached: config_modbus.txt

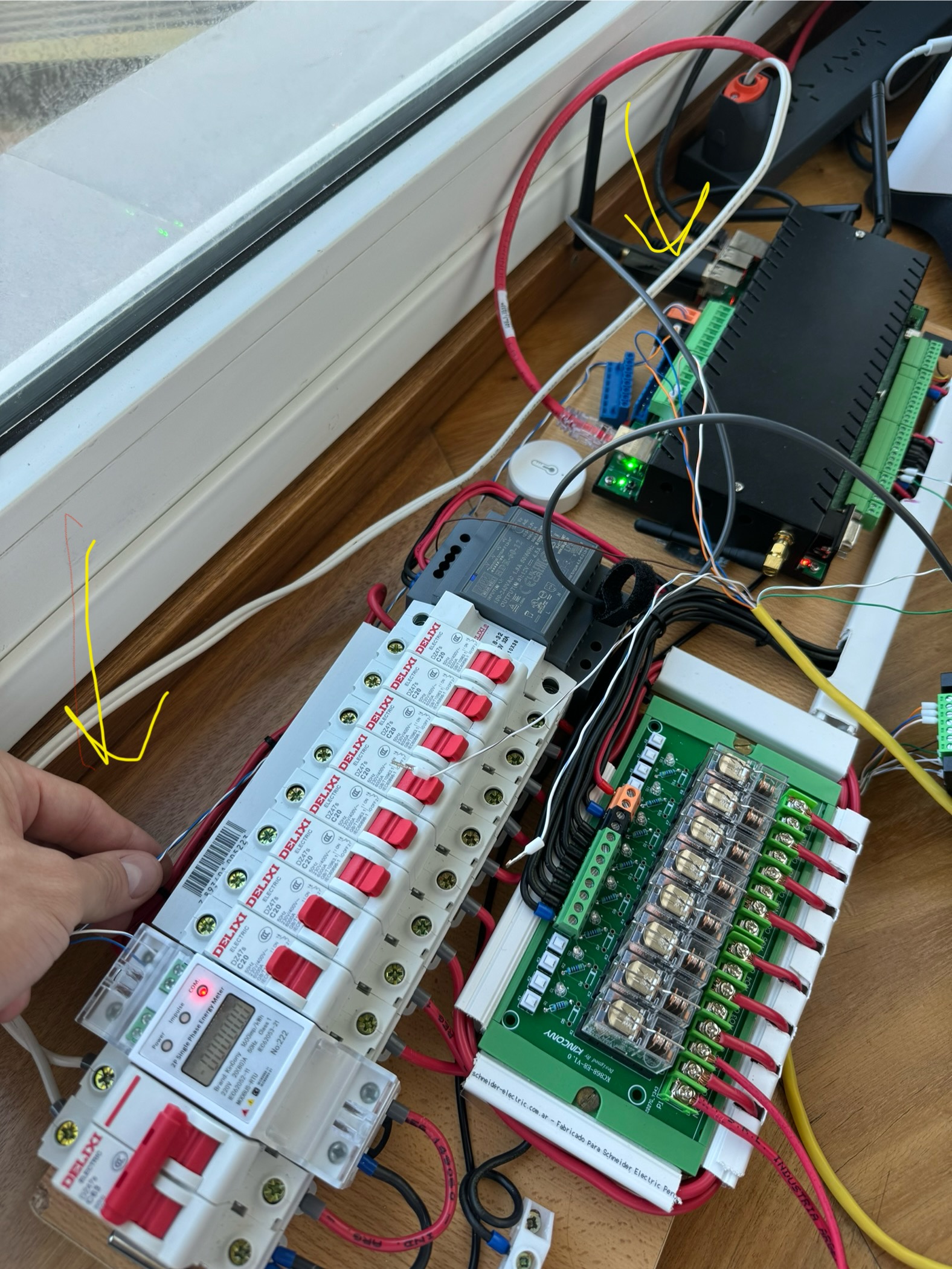

Photo attached of wiring.

Thank you


Attached Files Image(s)


.txt   config_modbus.txt (Size: 1.84 KB / Downloads: 86)
Find
Reply
admin Offline
Administrator
*******
Posts: 6,311
Threads: 808
Joined: Oct 2020
Reputation: 154
#7
01-27-2024, 06:50 AM
because now will begin China new year holidays soon, when we have free time, will test it. maybe can make a YouTube video tour for you.
YouTube: https://www.youtube.com/c/KinCony
Online Store: https://kincony.aliexpress.com
Find
Reply
sebagarayco Offline
Member
***
Posts: 54
Threads: 7
Joined: Dec 2023
Reputation: 0
#8
01-30-2024, 06:03 PM (This post was last modified: 01-30-2024, 06:03 PM by sebagarayco.)
(01-27-2024, 06:50 AM)admin Wrote: because now will begin China new year holidays soon, when we have free time, will test it. maybe can make a YouTube video tour for you.

Tried re-setting the address to 222 (0xDE) but and also inverting tx with rx pins but got the same results ... any help will be much appreciated.
Find
Reply
admin Offline
Administrator
*******
Posts: 6,311
Threads: 808
Joined: Oct 2020
Reputation: 154
#9
02-02-2024, 11:45 AM (This post was last modified: 02-02-2024, 11:46 AM by admin.)
here is my KC868-Server config yaml for KinCony's modbus energy meter:

.txt   KinCony_modbus_meter.txt (Size: 1.43 KB / Downloads: 108)

modbus:
  - name: hub1
    type: serial
    baudrate: 9600
    bytesize: 8
    method: rtu
    parity: E
    port: /dev/ttyS0
    stopbits: 1

    sensors:
    - name: meter-voltage
      slave: 1
      address: 100
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: V
      device_class: voltage

    - name: meter-current
      slave: 1
      address: 106
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: A
      device_class: current

    - name: meter-power
      slave: 1
      address: 118
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: kW
      device_class: power

    - name: meter-factor
      slave: 1
      address: 142
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
    #  unit_of_measurement:
      device_class: power_factor

    - name: meter-frequency
      slave: 1
      address: 144
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: Hz
      device_class: frequency

    - name: meter-consumption
      slave: 1
      address: 0
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: kWh
      device_class: energy_storage
YouTube: https://www.youtube.com/c/KinCony
Online Store: https://kincony.aliexpress.com
Find
Reply
sebagarayco Offline
Member
***
Posts: 54
Threads: 7
Joined: Dec 2023
Reputation: 0
#10
02-02-2024, 04:33 PM (This post was last modified: 02-02-2024, 05:13 PM by sebagarayco.)
(02-02-2024, 11:45 AM)admin Wrote: here is my KC868-Server config yaml for KinCony's modbus energy meter:


modbus:
  - name: hub1
    type: serial
    baudrate: 9600
    bytesize: 8
    method: rtu
    parity: E
    port: /dev/ttyS0
    stopbits: 1

    sensors:
    - name: meter-voltage
      slave: 1
      address: 100
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: V
      device_class: voltage

    - name: meter-current
      slave: 1
      address: 106
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: A
      device_class: current

    - name: meter-power
      slave: 1
      address: 118
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: kW
      device_class: power

    - name: meter-factor
      slave: 1
      address: 142
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
    #  unit_of_measurement:
      device_class: power_factor

    - name: meter-frequency
      slave: 1
      address: 144
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: Hz
      device_class: frequency

    - name: meter-consumption
      slave: 1
      address: 0
      input_type: holding
      data_type: float32
      count: 2
      precision: 2
      unit_of_measurement: kWh
      device_class: energy_storage

I had to remove lines including count: 2 for config to work.

Once valid config I don't see values displayed, see attachment please.

After enabling DEBUG for modbus I see:
2024-02-02 14:06:39.383 ERROR (SyncWorker_10) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 100 -> Modbus Error: [Input/Output] Modbus Error: [Invalid Message] No response received, expected at least 4 bytes (0 received)
2024-02-02 14:07:14.617 DEBUG (SyncWorker_1) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 106 -> Modbus Error: [Input/Output] No Response received from the remote slave/Unable to decode response
2024-02-02 14:07:49.853 DEBUG (SyncWorker_12) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 118 -> Modbus Error: [Input/Output] No Response received from the remote slave/Unable to decode response
2024-02-02 14:08:25.093 DEBUG (SyncWorker_11) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 142 -> Modbus Error: [Input/Output] No Response received from the remote slave/Unable to decode response
2024-02-02 14:09:00.336 DEBUG (SyncWorker_6) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 144 -> Modbus Error: [Input/Output] No Response received from the remote slave/Unable to decode response
2024-02-02 14:09:35.573 DEBUG (SyncWorker_10) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 0 -> Modbus Error: [Input/Output] No Response received from the remote slave/Unable to decode response
2024-02-02 14:10:10.813 DEBUG (SyncWorker_12) [homeassistant.components.modbus.modbus] Pymodbus: hub1: Error: device: 1 address: 100 -> Modbus Error: [Input/Output] No Response received from the remote slave/Unable to decode response
