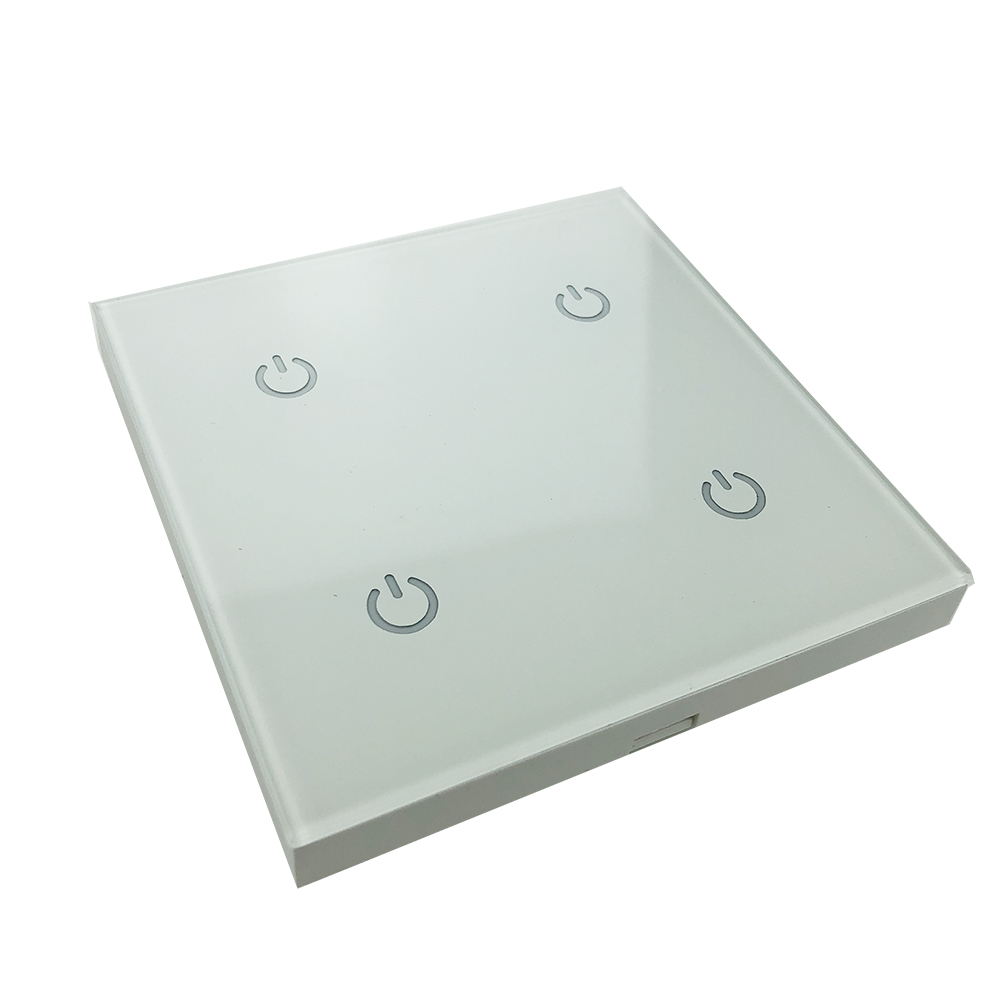

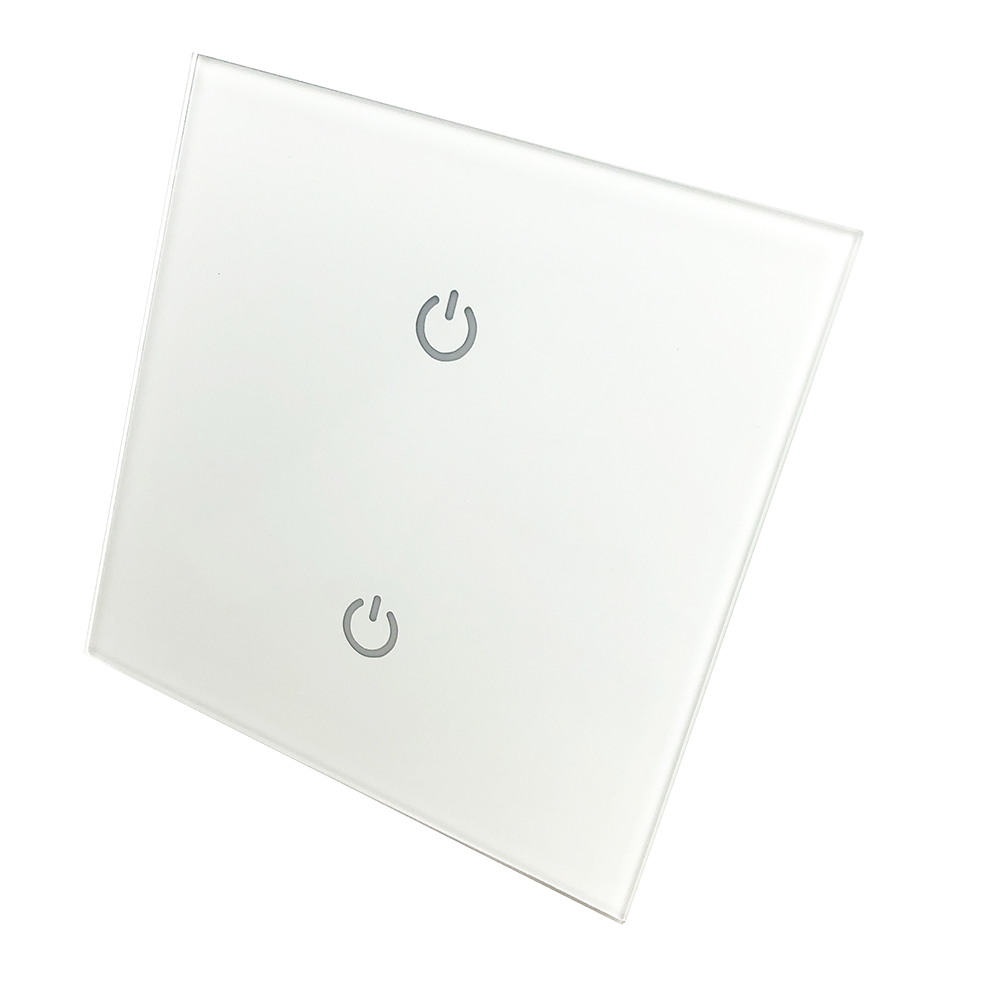

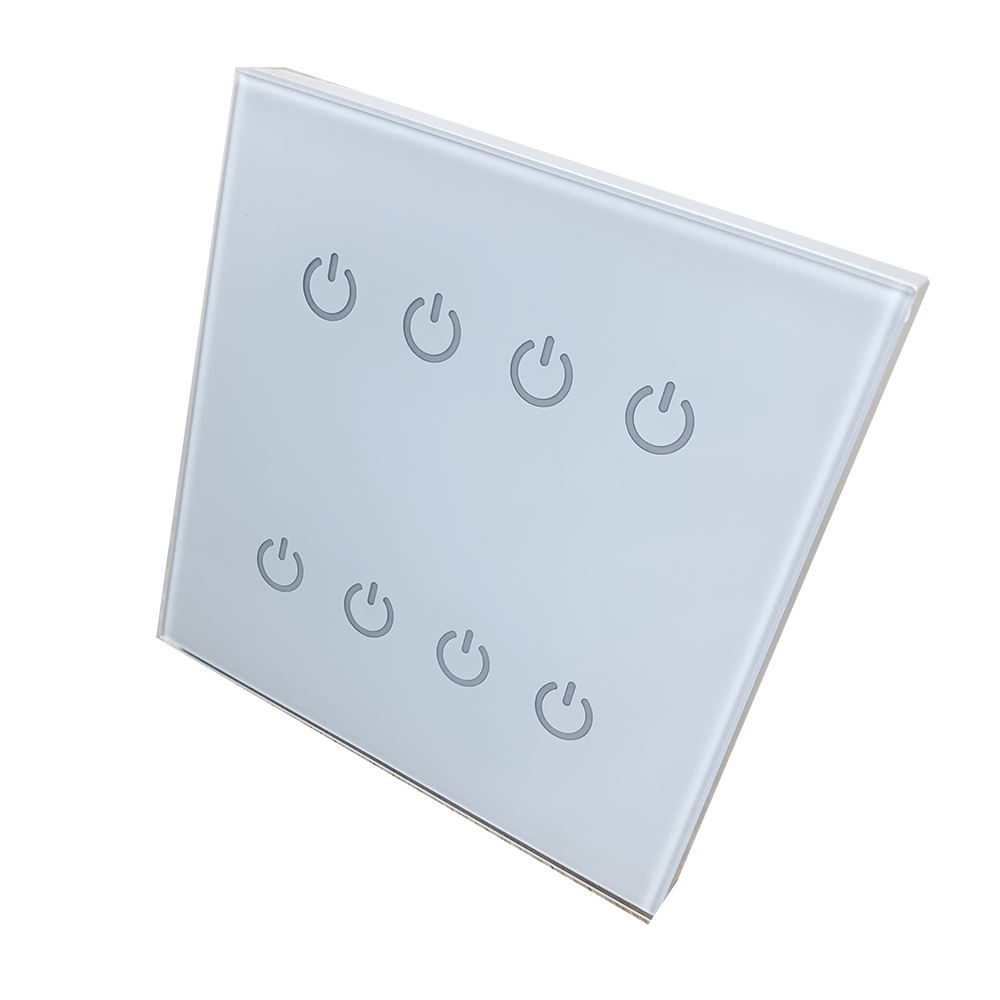

glass touch momentary wall switch panel

momentary wall switch introduce:

LED Supply Power: DC12V

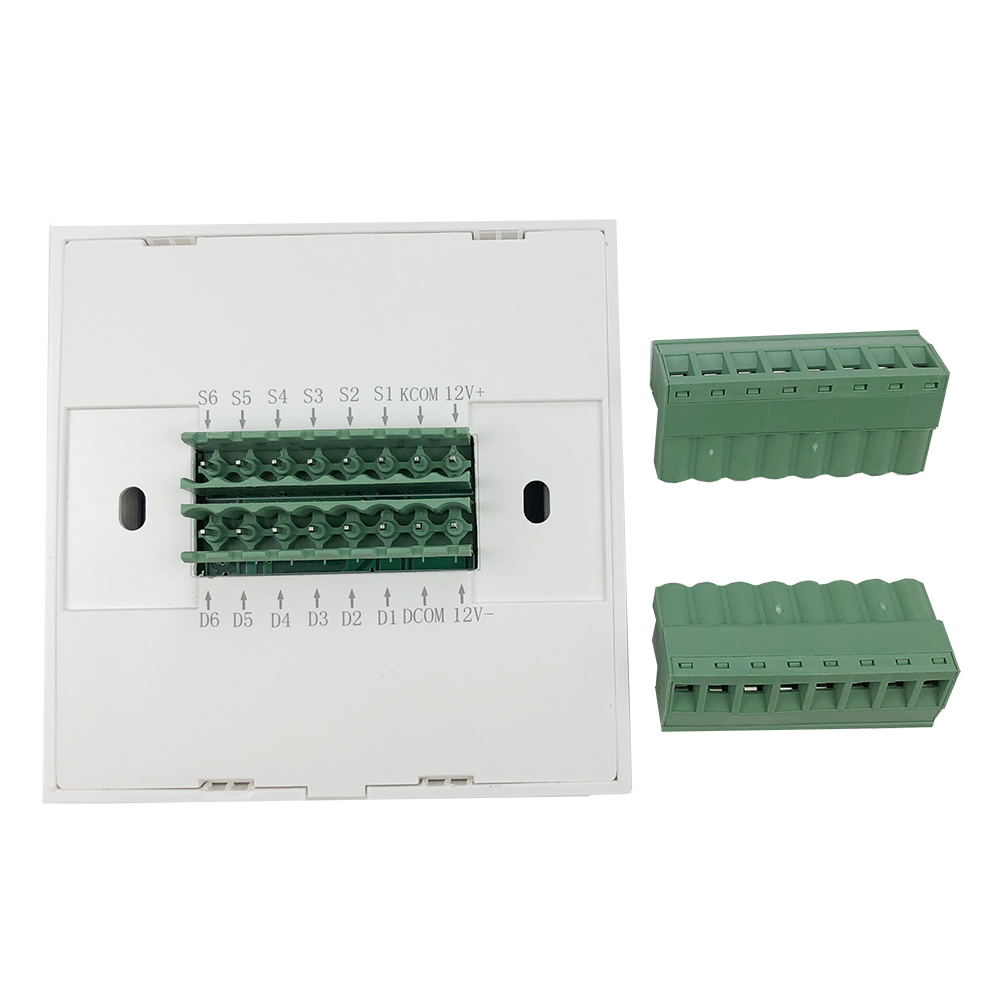

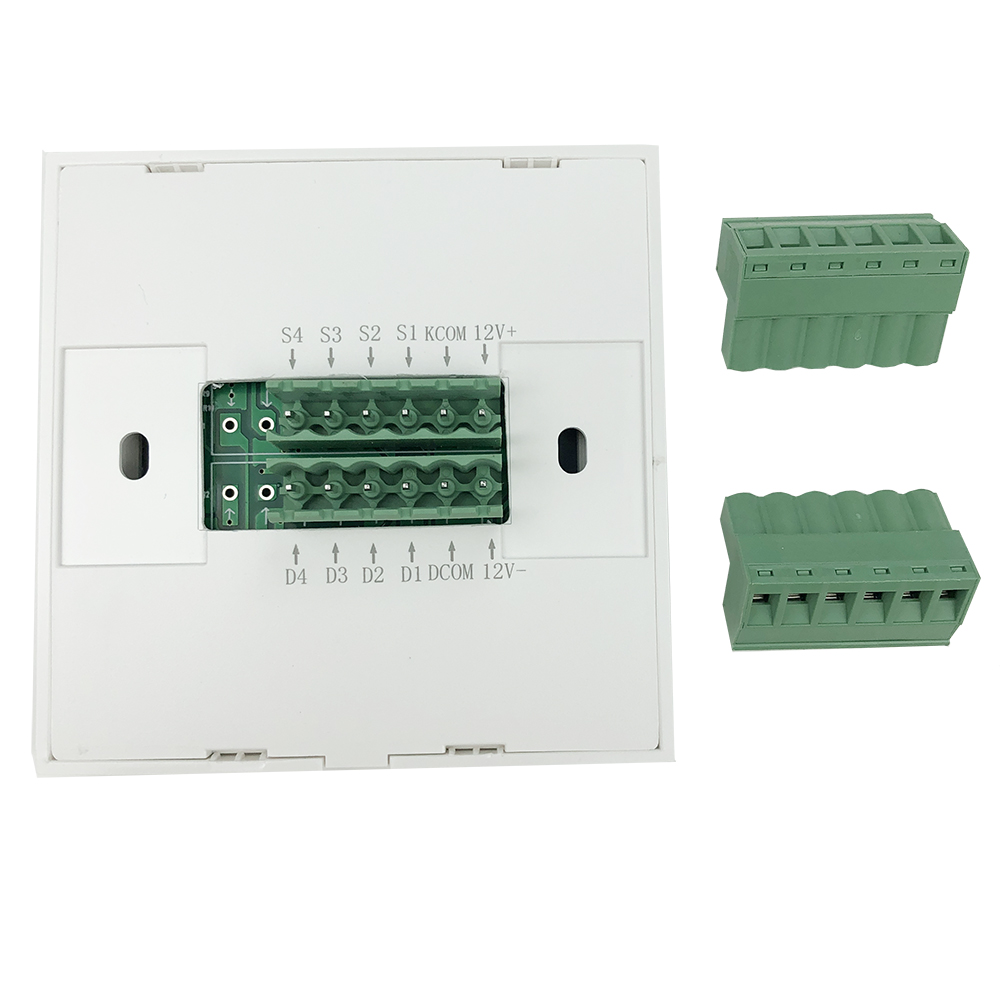

S1/K1–S6/K6:key line
KCOM:key Common
D6–D1:LED display
DCOM:LED Common

Note:”Kx” with “KCOM” is dry contactor.

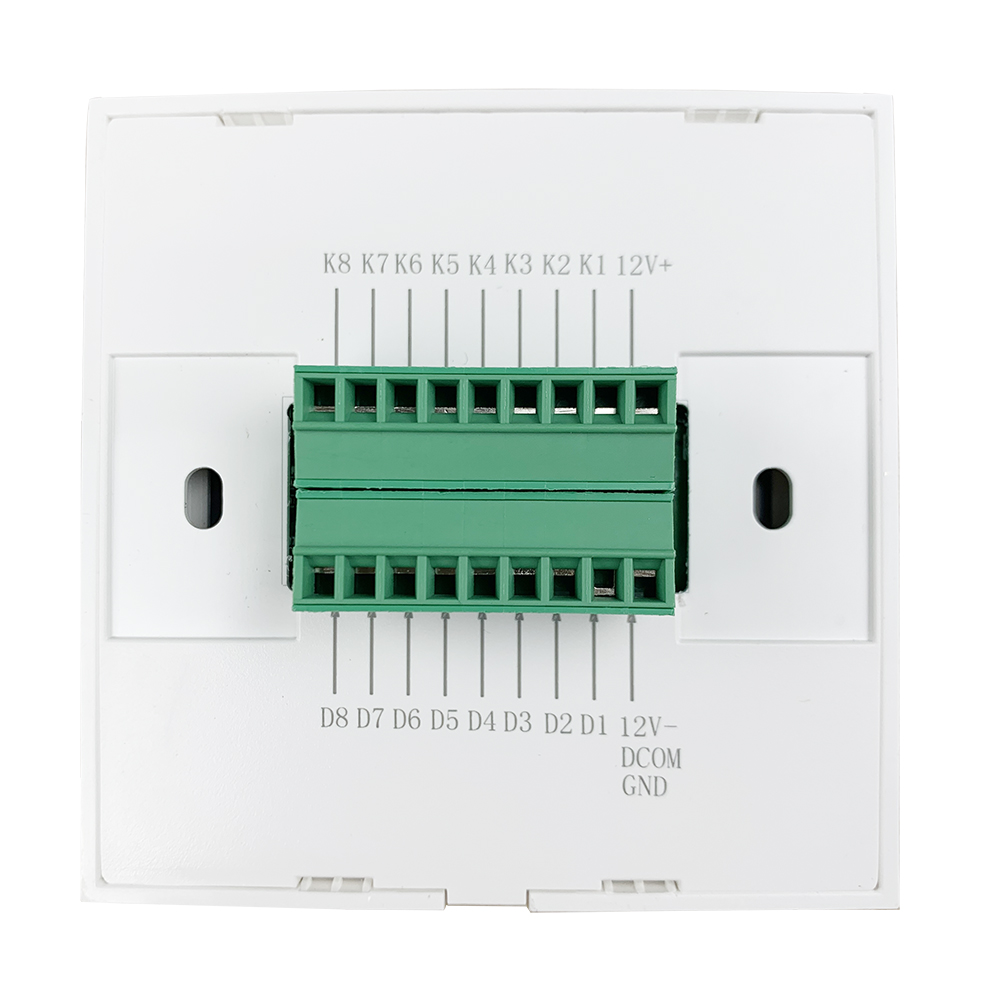

D6–D1:LED display
DCOM:LED Common

Note: D6–D1: input DC12V Then LED ON

DCOM: GND
