KC868-A4 smart controller , many hareware resource for you to use, you can write any code by Arduino IDE to ESP32 wifi/bluetooth module. We will supply demo code for different samples. Everyone can modify and change the code for your own smart home automation system project.
Here is resource list:
WiFi/Bluetooth*1
RS232*1
Relay Output*4
Digital Input*4
433M Transmit PCB port*1
433M Receiver PCB port*1
IR receiver*1
IR sender*1
Analog input (DC0-5V)*2
Analog input (4-20mA)*2
Analog output(DC0-10V)*2
temperature and humidity sensor port*1
Buzzer*1

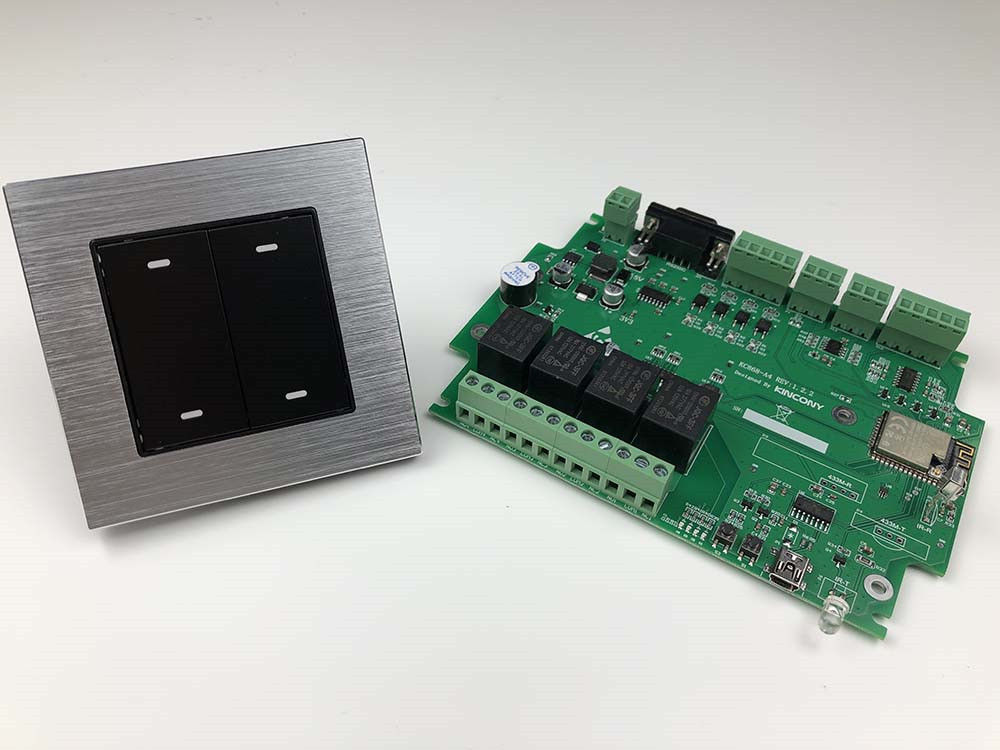

work with wall switch
work with temperature sensor
work with analog input sensor and analog output

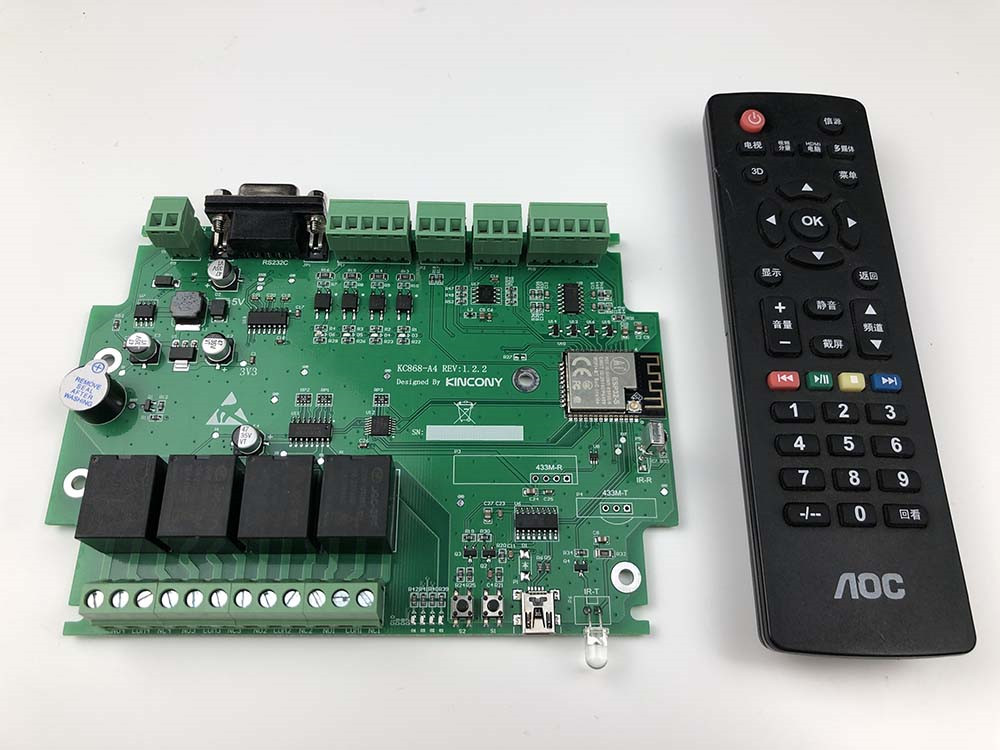

work with IR remoter

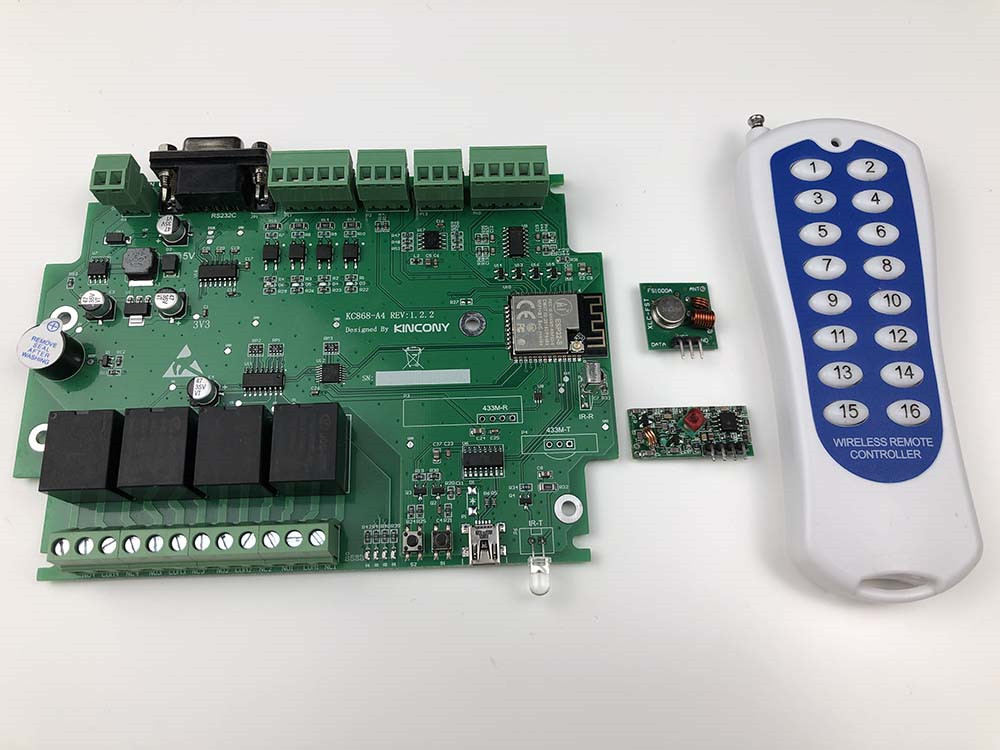

work with RF433MHz wireless remoter

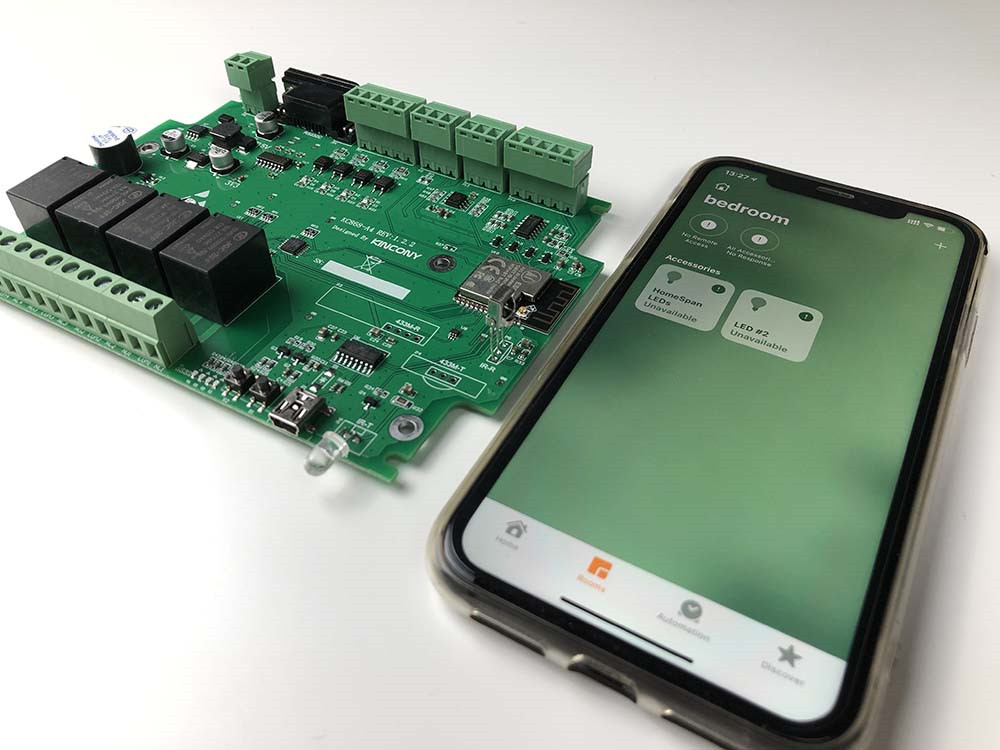

work with Apple Homekit
work with KinCony’s KBOX
