KC868-E8 din rail relay module introduce:
Inside relay model : OMRON G2R-1-E SPDT
every channel output : COM,NO
Coil voltage: 12V
MAX current: 16A at 250VAC
Operation Temperature: -40~55 ℃
Relay consumption: 0.53W/each
Mechanical life: more than 5 million times
Electrical life: (under rated control capacity) more than 100,000 times (ON-OFF frequency 20 times/minute)
Maximum operating frequency: 20 times/minute (under rated control capacity)
8 channel manual control buttons
size: 16cm*8.5cm*5.5cm

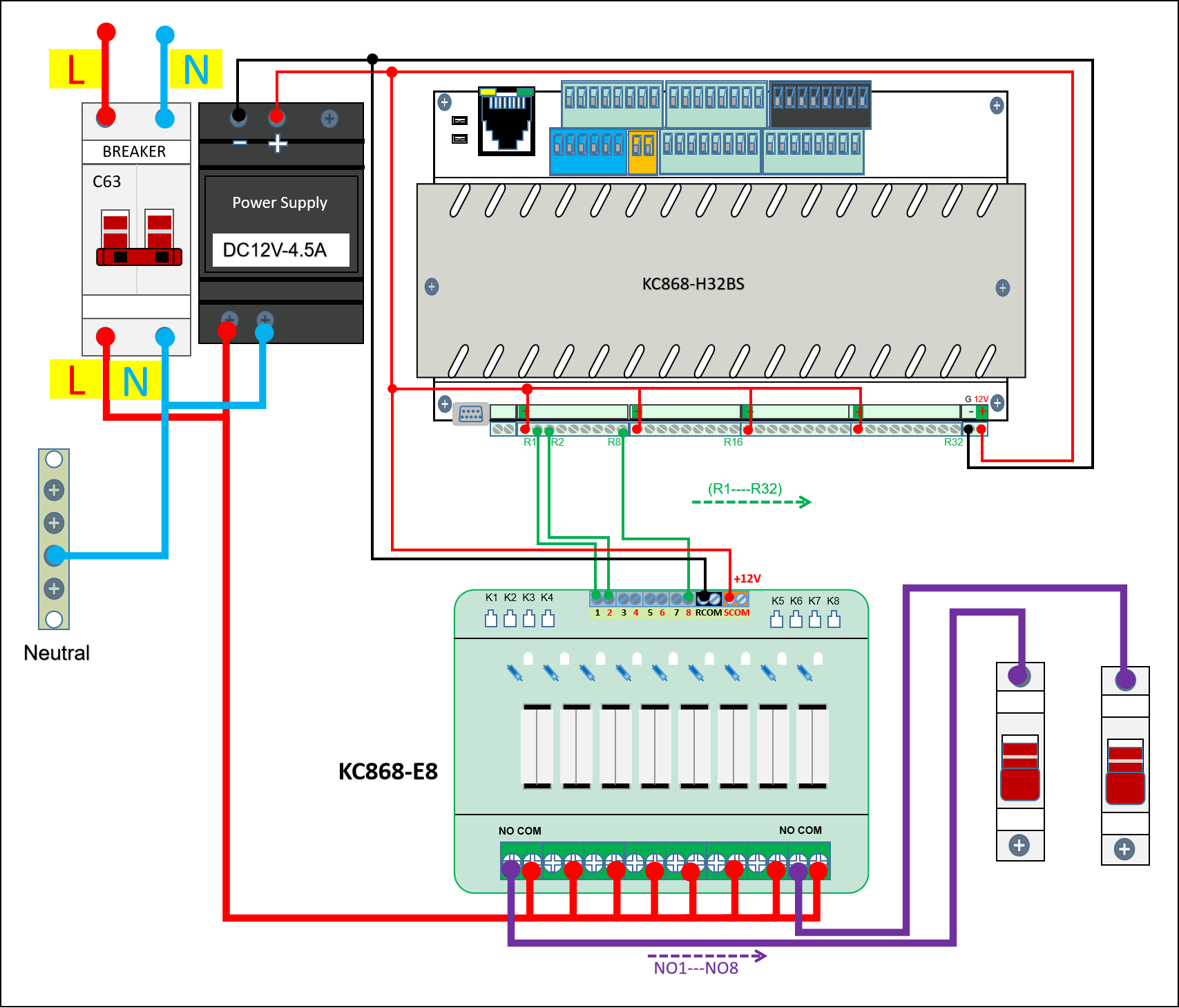

Diagram of KC868 Smart Controller with KC868-E8 extend relay module.
YouTube video tour: https://youtu.be/l4o45oEvymA
