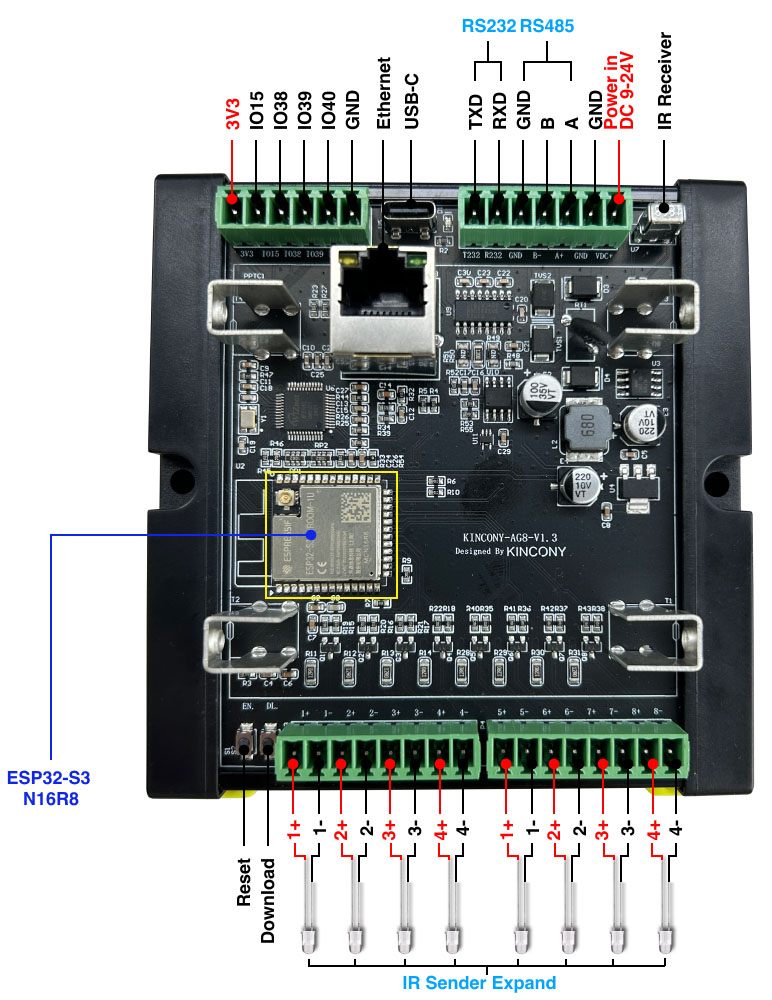

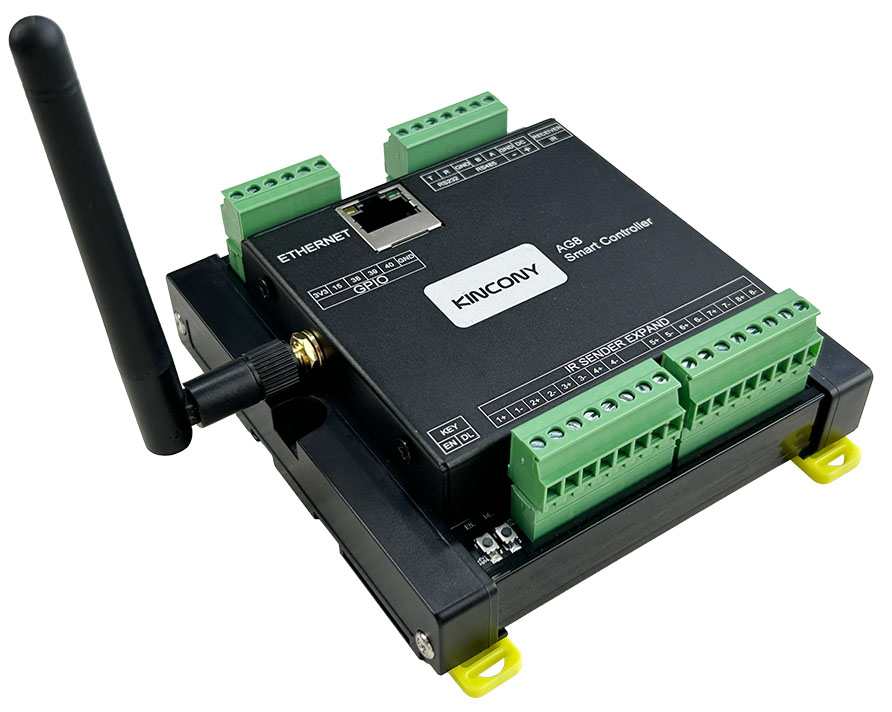

We have designed ESP32-S3 Smart IR Controller – KinCony AG8. it support install by DIN RAIL. it use ESP32-S3-WROOM-1U N16R8 chip. small PCB with RS485, RS232, 1-wire GPIOs, 8 channel IR sender terminal. Support expand infrared emission tube for long distance cable. board support both wifi and ethernet port. It can use for smart home IoT project use by home assistant, you can config ymal by ESPHome. ESP32-S3 also support arduino IDE / MicroPython / ESP-IDF development tool.
note: Node: ESP32-S3 chip support 4 channel IR sender work at the same time. here is details by ESPHome webpage:
https://esphome.io/components/remote_transmitter.html
PCB size: 83mm*100mm
Power supply: DC 9-24V
RS232:1
RS485:1
Free GPIOs:14
IR Receiver:1
IR Sender:8
