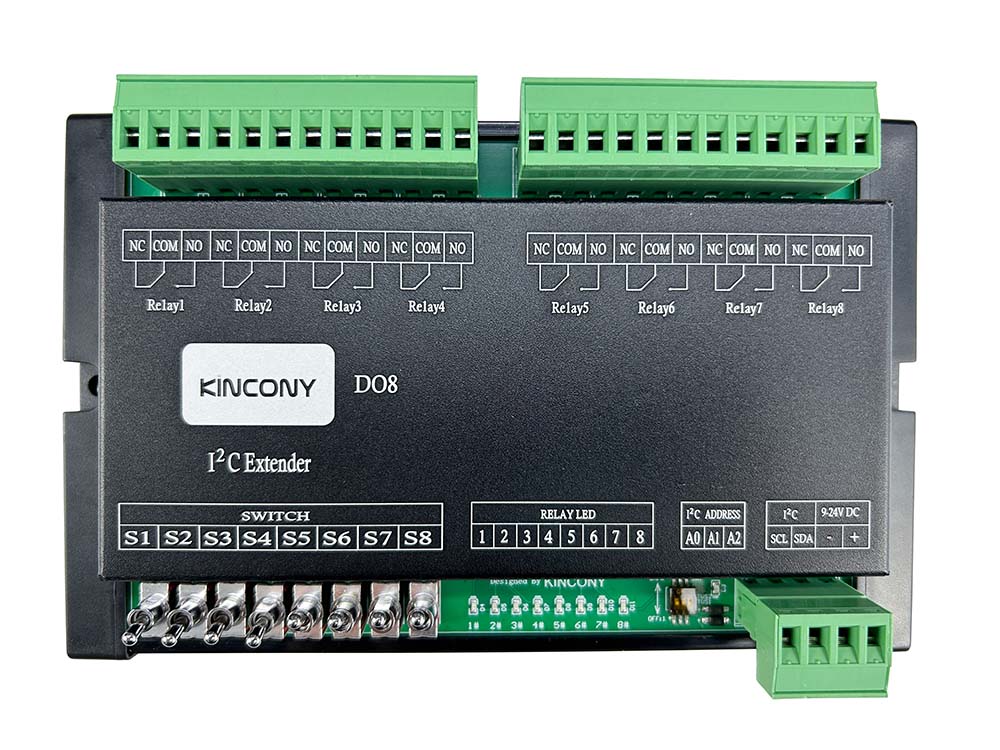

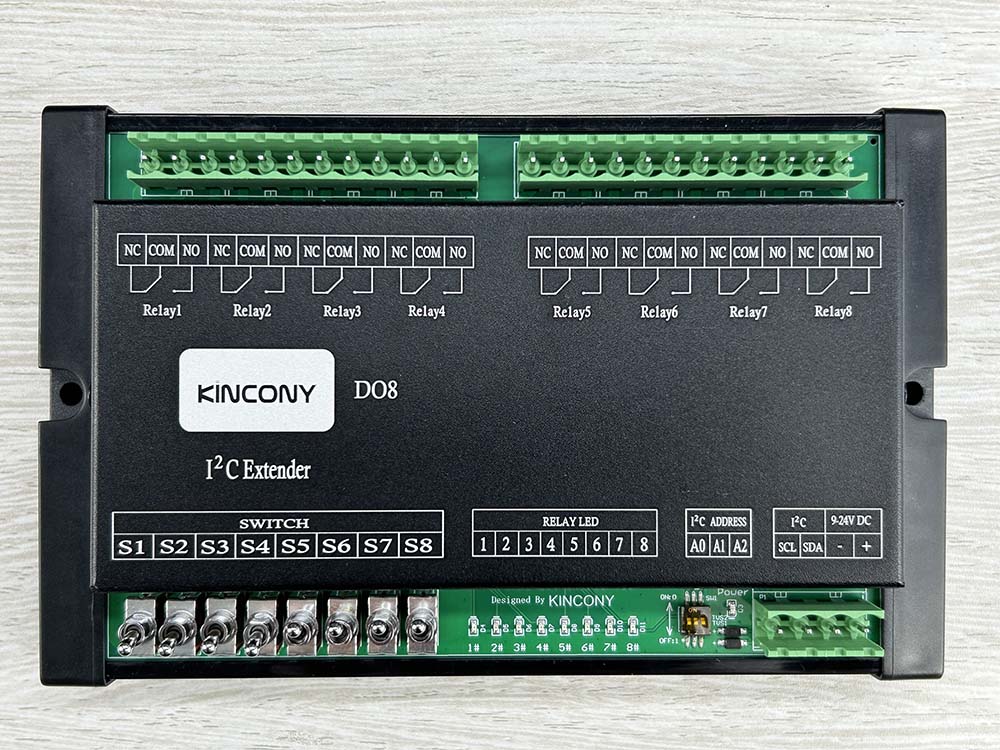

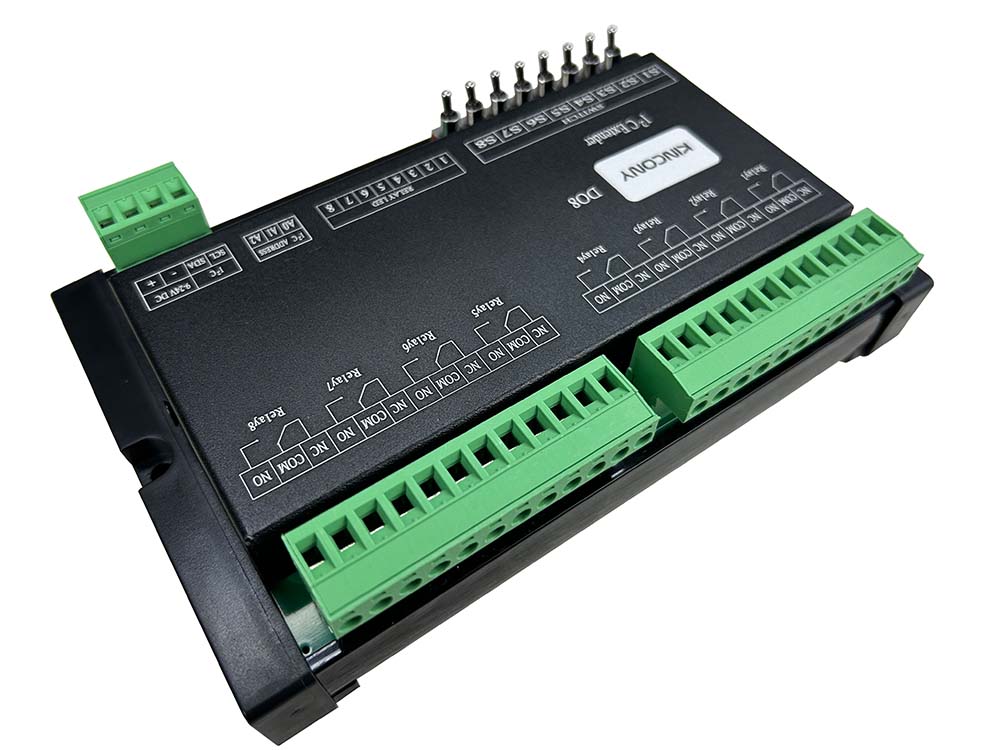

KinCony DO8 is PCF8574 IO Expansion i2c relay board. extend 8 channel 10A relay. manual control buttons on board can control relay ON/OFF directly without any software. manual control buttons control relay’s coin physically. A0,A1,A2 PCF8574 i2c address can set by DIP switch. DO8 support install on DIN RAIL.

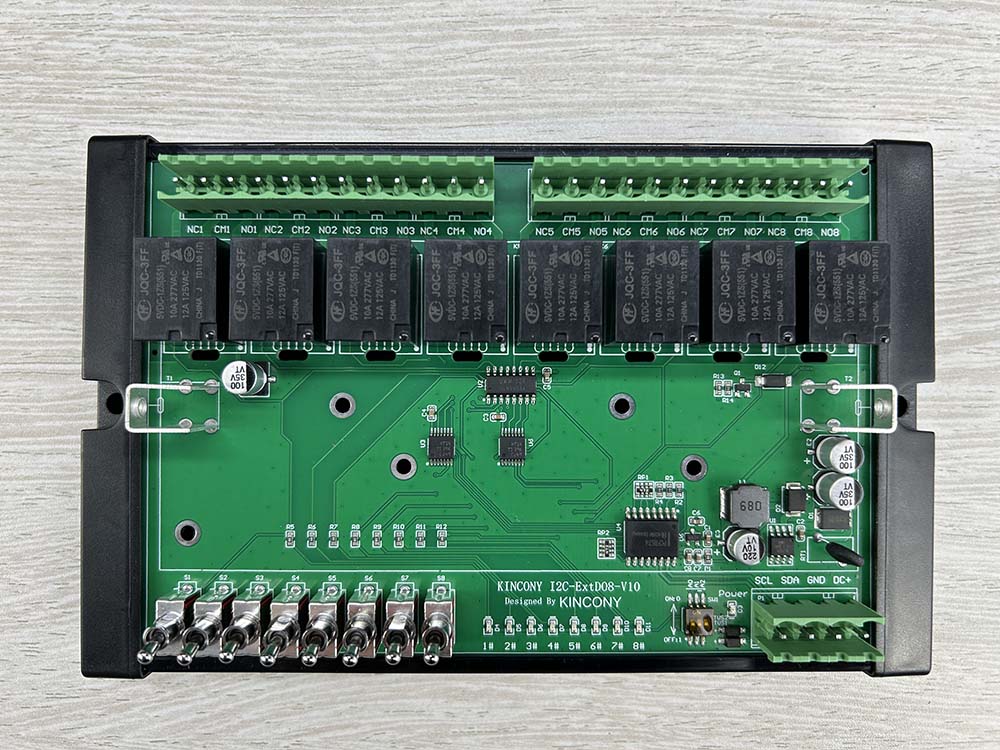

it’s open source board. here is schematic for DO8
it support integrate to home assistant by ESPHome. here is yaml file for ESPHome.
here is arduino demo source code for PCF8574 relay output
Power supply: DC 9-24V
PCB size: 146mm*100mm
relay for load: MAX 277VAC 10A , AC125V 12A
relay output: COM, NO, NC
LEDs on PCB for every relay state.
A0,A1,A2 DIP switch set for PCF8574 i2c address.

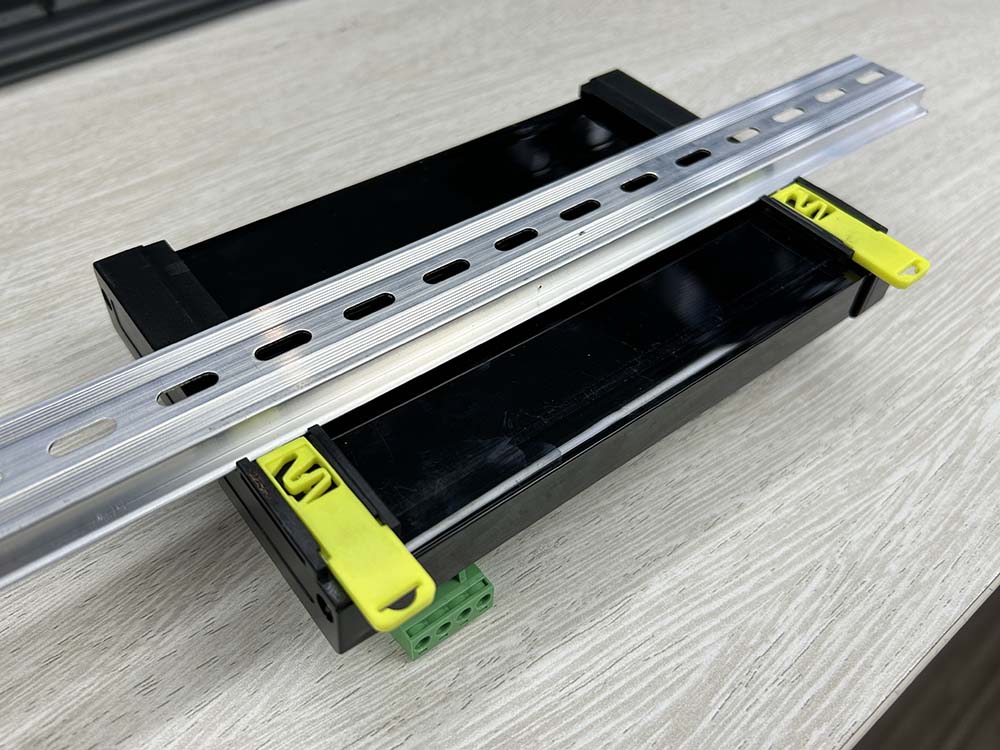

support install on DIN RAIL
all terminal is removable.
use by PCF8574 i2c chip
3 bit DIP switch
metal manual control relay for every relay.
