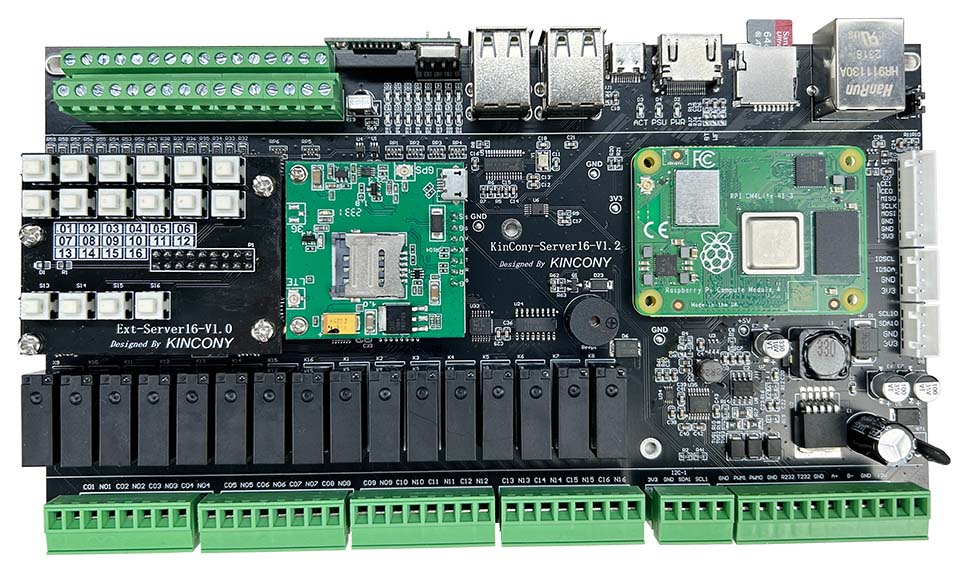

KinCony Server16 is a Raspberry Pi iot gateway for smart home automation and industrial automation control, It have 16 channel relay, many digital input ports with optocoupler isolation. The most important is integrated Raspberry pi CM4 module. CM4 manage relay, digital input ports, PWM, RF 433M reciever, IR receiver, SIM7600 4G module directly, easy use by Node-Red. It also support home assistant software.
Model No. KinCony Server16
Size: 215*117*40mm
Material: Metal shell
Work Temp: -20°C–70°C
Work Humidity: 20%–80%
Power supply: DC12V 2.5A
Output Relay: COM, NO MAX current: AC250V/7A DC30V/7A for every channel
Digital Input: with optocoupler isolation: 16 ports
cable MAX: 500 meter
dry contact signal
if want connect input voltage:
logic “1”: input DC0V
logic “0”: input DC12V
Free GPIOs: 8 ports
free GPIOs from CM4 pins:
GPIO16
GPIO17
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
433MHz RF Receiver: 1 port
IR Receiver: 1 port
PWM Output: 2 ports
Buzzer: 1 port
Manual Control Panel: 16 Buttons
Ethernet: 1 port
USB: 4 ports
HDMI: 1 port
USB-C: 1 port
TF Card: 1 port
SPI Bus:1 port
I2C Bus: 3 ports
RS232: 1 port
RS485: 1 port
use removable relay terminal
16 channel manual control buttons, if server broken , also can manual control relay’s coin without any software.
removable SIM7600 series 4G module, support 4G + GPS
support use 433MHz RF receiver module
we supply Node-Red testing all PCB resource flows example.
