DM16 output not turning off LED fully

[autolifetech]

Hi,

I am using kincony DM16 as controller and Meanwell pwm 200 series for led driver to control my 24V LED strip

I am using the ESPhome code that was provided by you in the forum.
Issue now is I cannot turn the LED off fully when it is at 0%. When I short the wire to GND directly, the light can turn off, but when i use the channel, the light cannot off at 0%. How to solve this issue?

At this moment i cannot afford to buy new LED driver.

[admin]

DM16 is a 0-10v output controller. so you should add 0-10v driver. it's not by PWM.
here is link: https://shop.kincony.com/products/0-10v-...s=e&_v=1.0
if you want buy driver by yourself, just make sure the driver input voltage is dc 0-10v.

[autolifetech]

DM16 is a 0-10v output controller. so you should add 0-10v driver. it's not by PWM.
here is link: https://shop.kincony.com/products/0-10v-...s=e&_v=1.0
if you want buy driver by yourself, just make sure the driver input voltage is dc 0-10v.

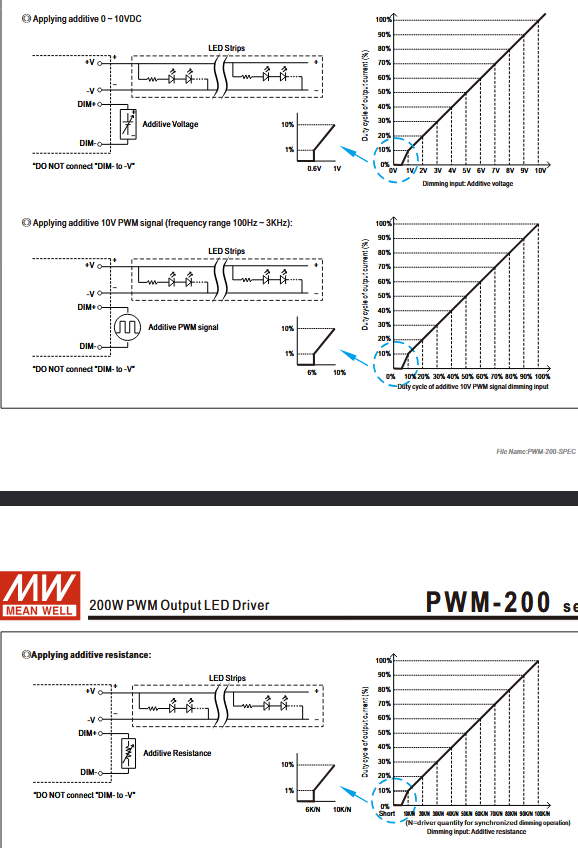

I do not see an issue with the driver because based on the meanwell spec sheet, it is able to take in additive 0-10V, pwm or resistance.
Any other approach that i can do to solve?

[admin]

you can use a adjustable power supply connect to your MW driver, input 0-10v for testing.

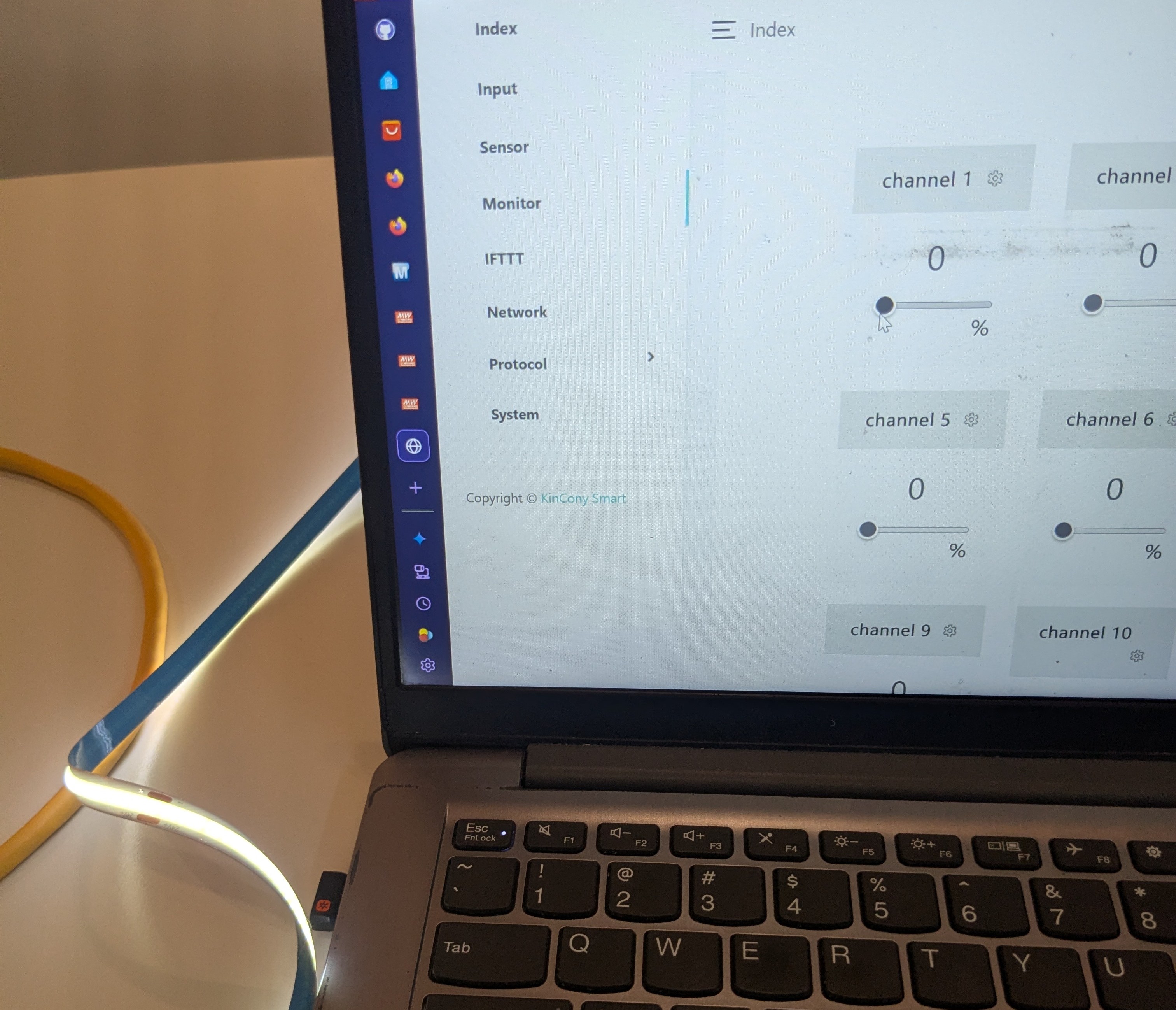

another way, you can download KCS v3 firmware by USB-C cable firstly. test DAC output by monitor webpage.

[autolifetech]

ok i will try kcs v3 firmware first

---

you can use a adjustable power supply connect to your MW driver, input 0-10v for testing.
another way, you can download KCS v3 firmware by USB-C cable firstly. test DAC output by monitor webpage.

Still same issue

[admin]

use multi meter to test output port what voltage when turn off in home assistant.

[autolifetech]

ok i will try later

[autolifetech]

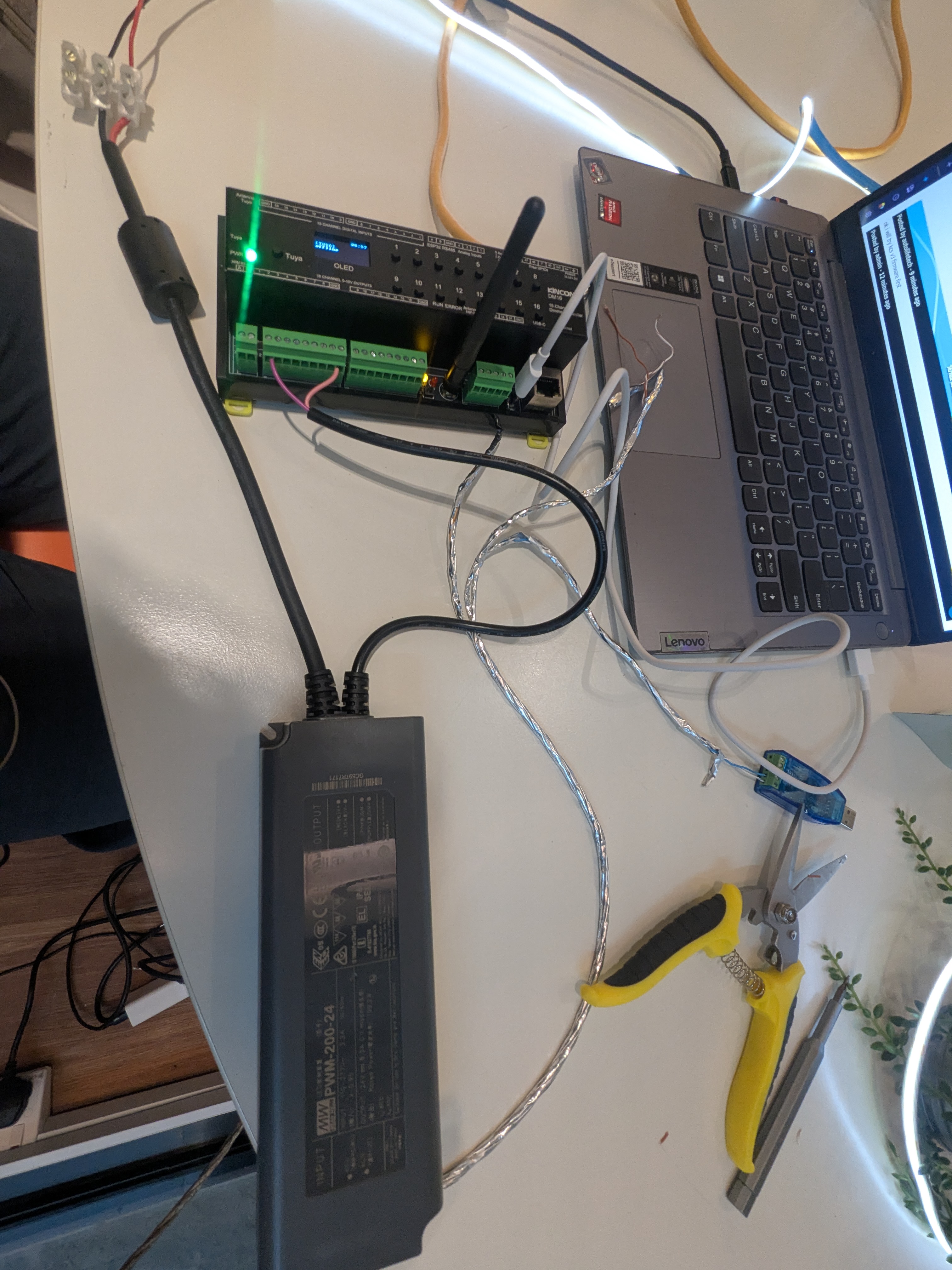

ok here is multimeter reading. When not connected to led driver, it is 0v but when connected, it is 0.7v. Any ideas why?

[admin]

i suggest you replace driver. maybe you can series connect a diode to your driver, that will reduce 0.7v. such as 1N4007 diode.

[autolifetech]

any issues if i connect 1k resistor parallel to the connection? I am currently testing that out and it seems to be able to turn it off, but not sure if it will be problematic in the long run
