KC868-M16v2 configure yaml for ESPhome

[cmeyer5]

because you have only connect L and N with L3 and N3. your yaml file is print voltage channel one.
it.printf(0, 40, id(roboto), "AC:%.1fV", id(voltage_1).state);
you can change to :
it.printf(0, 40, id(roboto), "AC:%.1fV", id(voltage_3).state);

or you can connect L1,L2,L3 together and N1,N2,N3 together.

No luck. Moved my cables to L and N. I also tried by swapping cables from L to N and N to L. Voltage reading stay the same.

[admin]

take a photo how you wire now.

[cmeyer5]

take a photo how you wire now.

i redid everything. studied a spanish bloggers youtube video.

i learned a lot.

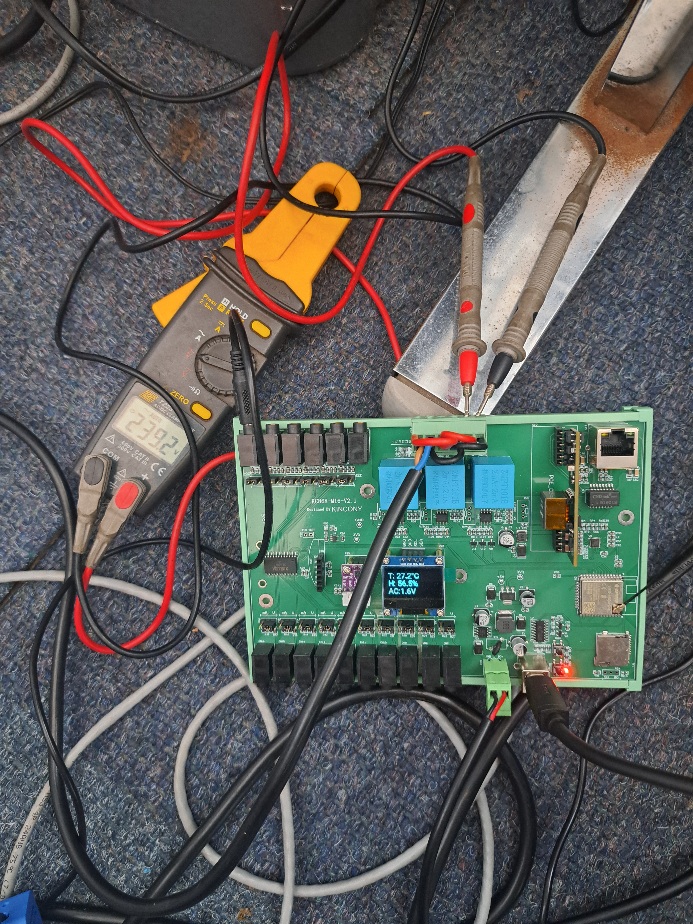

the ctclamp current has been sorted. i'm able to get correct Amps from boiling water in 1800w kettle.

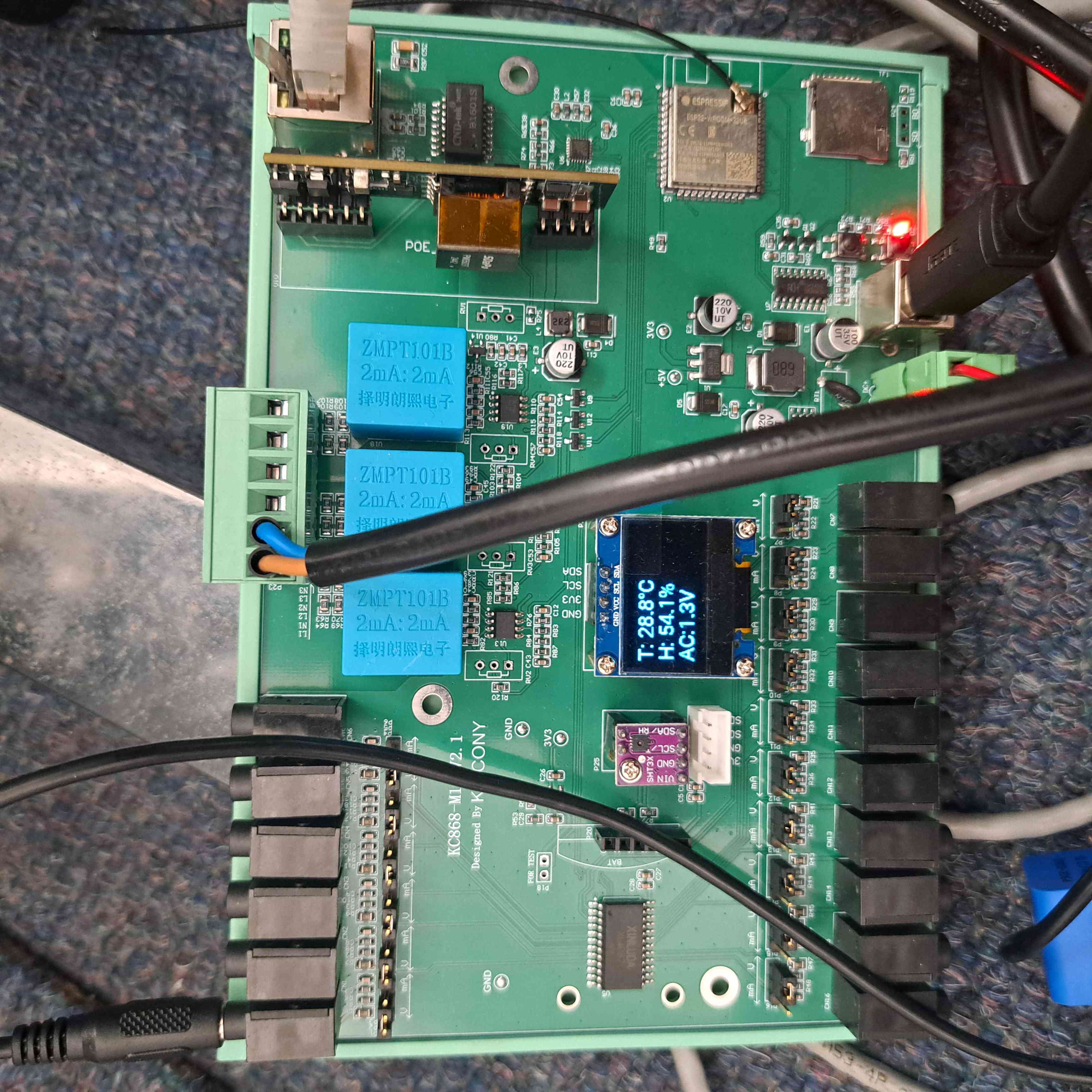

L1 & N1 is still not sending the correct information. i rechecked the cables, to make sure Live and Neutral is correct.
i did the ctclamp calibration using the log files with known device.

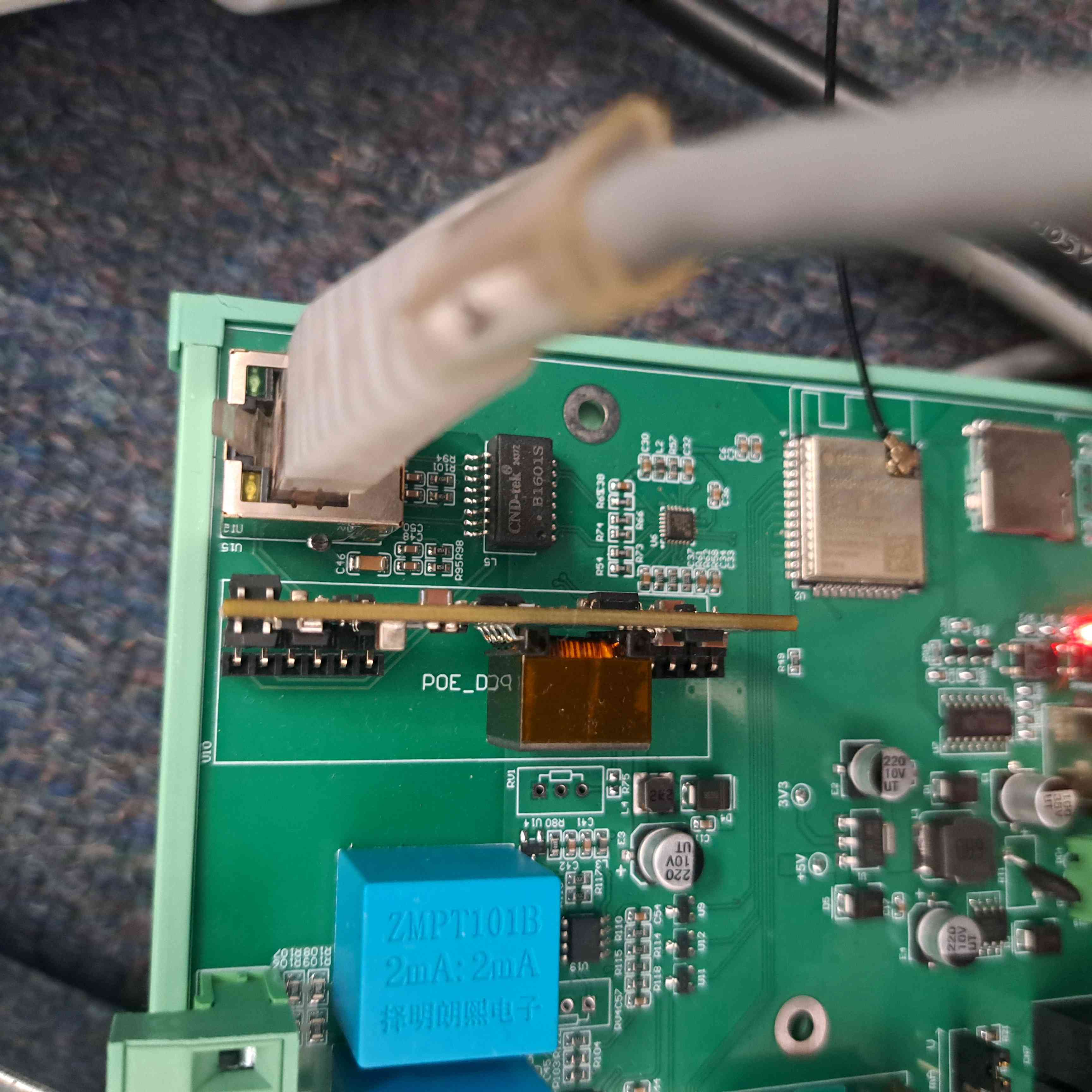

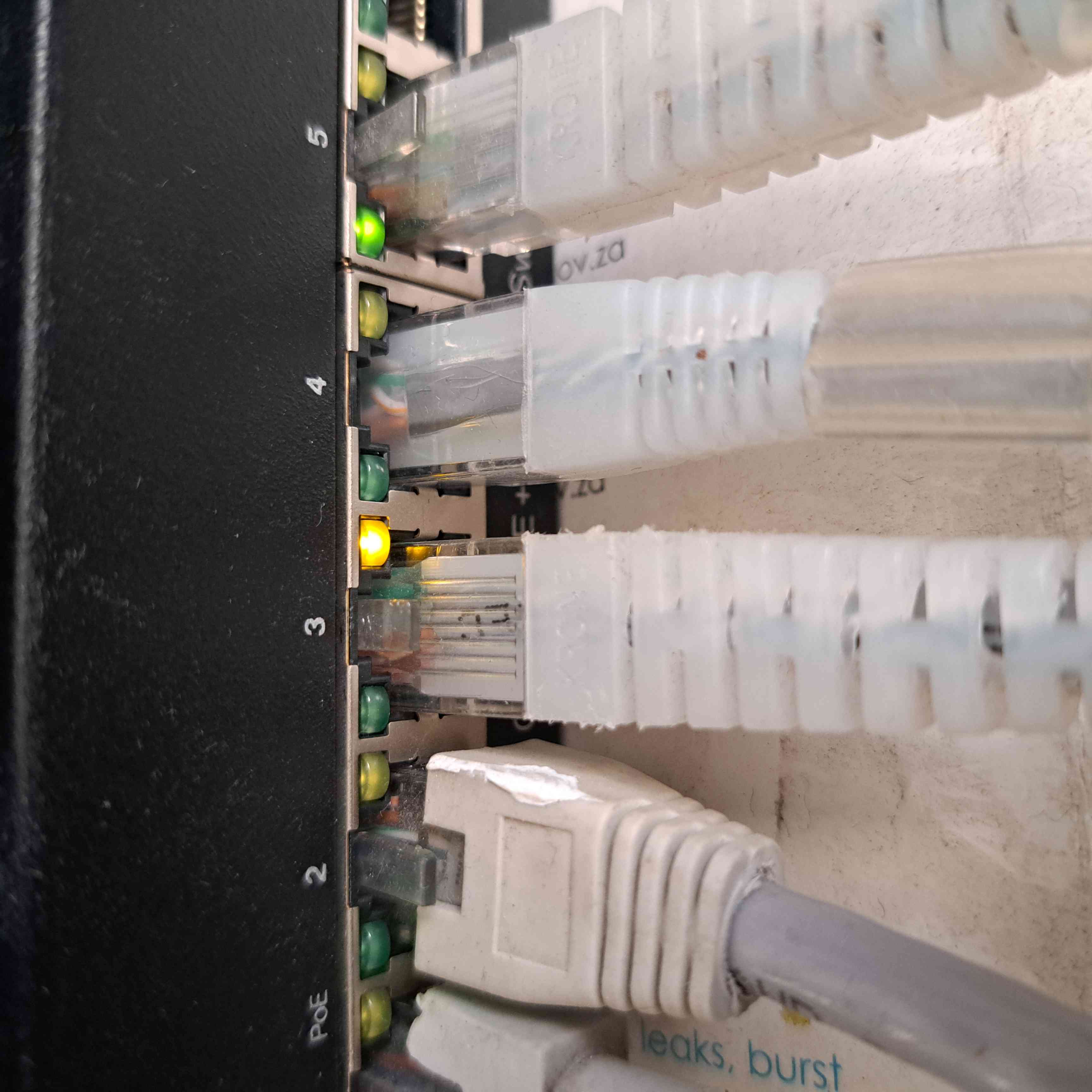

connecting via lan is not working still. i've included some pics.
i've managed to get the wifi antenae. i haven't moved it away from the router yet.
don't know why images are included in the post.

[admin]

see this photo, how to connect L1,L2,L3 and N1,N2,N3 together. Do you understand me?


[cmeyer5]

see this photo, how to connect L1,L2,L3 and N1,N2,N3 together. Do you understand me?

understood.
no change.

[admin]

Code:

#sensor:
#  - platform: zmpt101b
#    name: "m16--AI zmpt 34"
#    adc_pin: 34
#    id: voltage_1
#    unit_of_measurement: V
#    accuracy_decimals: 1
#    state_class: "measurement"
#  - platform: zmpt101b
#    name: "m16--AI zmpt 36"
#    adc_pin: 36
#    id: voltage_2
#    unit_of_measurement: V
#    accuracy_decimals: 1
#    state_class: "measurement"
#  - platform: zmpt101b
#    name: "m16--AI zmpt 39"
#    adc_pin: 39
#    id: voltage_3
#    unit_of_measurement: V
#    accuracy_decimals: 1
#    state_class: "measurement"

please see your yaml file, you have comments to the code. you need remove these "#" for the voltage sensor.

[cmeyer5]

Code:

#sensor:
#  - platform: zmpt101b
#    name: "m16--AI zmpt 34"
#    adc_pin: 34
#    id: voltage_1
#    unit_of_measurement: V
#    accuracy_decimals: 1
#    state_class: "measurement"
#  - platform: zmpt101b
#    name: "m16--AI zmpt 36"
#    adc_pin: 36
#    id: voltage_2
#    unit_of_measurement: V
#    accuracy_decimals: 1
#    state_class: "measurement"
#  - platform: zmpt101b
#    name: "m16--AI zmpt 39"
#    adc_pin: 39
#    id: voltage_3
#    unit_of_measurement: V
#    accuracy_decimals: 1
#    state_class: "measurement"

please see your yaml file, you have comments to the code. you need remove these "#" for the voltage sensor.

i did make the chances. the AC is now showing 0.0V.

[admin]

upload your newest yaml file at here.

[cmeyer5]

upload your newest yaml file at here.

latest

[admin]

i see. esphome have updated. zmpt101b plugin we need to update again. we will update it, when finished, i will tell you, you just re compile code, not need to change yaml file.
