KC868-M16v2 configure yaml for ESPhome

[cmeyer5]

i see. esphome have updated. zmpt101b plugin we need to update again. we will update it, when finished, i will tell you,  you just re compile code, not need to change yaml file.

thanks. much appreciated.

[admin]

zmpt101b plugin have updated. user "sensitivity" to calibration voltage. my test is "sensitivity: 538", you can try , maybe you need change it. Here is my yaml file, it will print 3 voltage values on the SSD1306 OLED. I have connect L1,L2,L3 together and N1,N2,N3 terminal together. Now you can re compile your code.

Code:

esphome:
  name: m16v2

esp32:
  board: esp32dev
  framework:
    type: arduino

external_components:
  - source:
      type: git
      url: https://github.com/hzkincony/esphome-zmpt101b
    refresh: 1min

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "D69bY/GXlmjYkovak6WIhgmbOH8vwyqvMxIHBriYoaY="


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

i2c:
  sda: 4
  scl: 5
  scan: true
  id: bus_a

cd74hc4067:
  - id: cd74hc4067_1
    pin_s0: 32
    pin_s1: 33
    pin_s2: 13
    pin_s3: 16

web_server:
  port: 80

font:

  - file: "gfonts://Roboto"
    id: roboto
    size: 20

display:
  - platform: ssd1306_i2c
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 0, id(roboto), "AC:%.1fV", id(voltage_1).state);
      it.printf(0, 20, id(roboto), "AC:%.1fV", id(voltage_2).state);
      it.printf(0, 40, id(roboto), "AC:%.1fV", id(voltage_3).state);

# Example configuration entry
sensor:
  - platform: zmpt101b
    name: "m16--AI zmpt 34"
    adc_pin: 34
    id: voltage_1
    sensitivity: 538
    unit_of_measurement: V
    accuracy_decimals: 1
    state_class: "measurement"
  - platform: zmpt101b
    name: "m16--AI zmpt 36"
    adc_pin: 36
    id: voltage_2
    sensitivity: 538
    unit_of_measurement: V
    accuracy_decimals: 1
    state_class: "measurement"
  - platform: zmpt101b
    name: "m16--AI zmpt 39"
    adc_pin: 39
    id: voltage_3
    sensitivity: 538
    unit_of_measurement: V
    accuracy_decimals: 1
    state_class: "measurement"


  - platform: sht3xd
    temperature:
      name: "sht Temperature"
      id: temperature
    humidity:
      name: "sht Humidity"
      id: humidity
    address: 0x44
    update_interval: 5s

  - platform: adc
    pin: 35
    id: adc35
    update_interval: never
    attenuation: 11db

  # - platform: adc
  #   name: "m16--AI-1"
  #   pin: 36
  #   id: adc36
  #   update_interval: 60s
  #   attenuation: 11db

  # - platform: adc
  #   pin: 34
  #   name: "m16--AI-2"
  #   id: adc34
  #   update_interval: 60s
  #   attenuation: 11db

  # - platform: adc
  #   pin: 39
  #   name: "m16--AI-3"
  #   id: adc39
  #   update_interval: 60s
  #   attenuation: 11db




  - platform: cd74hc4067
    id: ai1
    number: 0
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai2
    number: 1
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai3
    number: 2
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai4
    number: 3
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai5
    number: 4
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai6
    number: 5
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai7
    number: 6
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai8
    number: 7
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai9
    number: 8
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai10
    number: 9
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai11
    number: 10
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai12
    number: 11
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai13
    number: 12
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai14
    number: 13
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai15
    number: 14
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai16
    number: 15
    sensor: adc35
    update_interval: 60s


  - platform: ct_clamp
    sensor: ai1
    id: Measured_Current_1
    name: "Measured Current-1"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0.0034 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: template
    id: power1
    name: "power1"
    lambda: return id(Measured_Current_1).state * id(voltage_1).state;
    device_class: power
    unit_of_measurement: 'W'
    update_interval: 60s

  - platform: total_daily_energy
    name: "Total Daily Energy1"
    power_id: power1
    filters:
        - multiply: 0.001
    unit_of_measurement: kWh
    accuracy_decimals: 3
    icon: mdi:clock-alert
    device_class: energy


  - platform: ct_clamp
    sensor: ai2
    name: "Measured Current-2"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai3
    name: "Measured Current-3"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai4
    name: "Measured Current-4"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai5
    name: "Measured Current-5"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai6
    name: "Measured Current-6"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai7
    name: "Measured Current-7"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai8
    name: "Measured Current-8"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai9
    name: "Measured Current-9"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai10
    name: "Measured Current-10"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai11
    name: "Measured Current-11"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai12
    name: "Measured Current-12"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai13
    name: "Measured Current-13"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai14
    name: "Measured Current-14"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai15
    name: "Measured Current-15"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai16
    name: "Measured Current-16"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

time:
  - platform: sntp
    id: my_time

[cmeyer5]

Managed to make some progress.

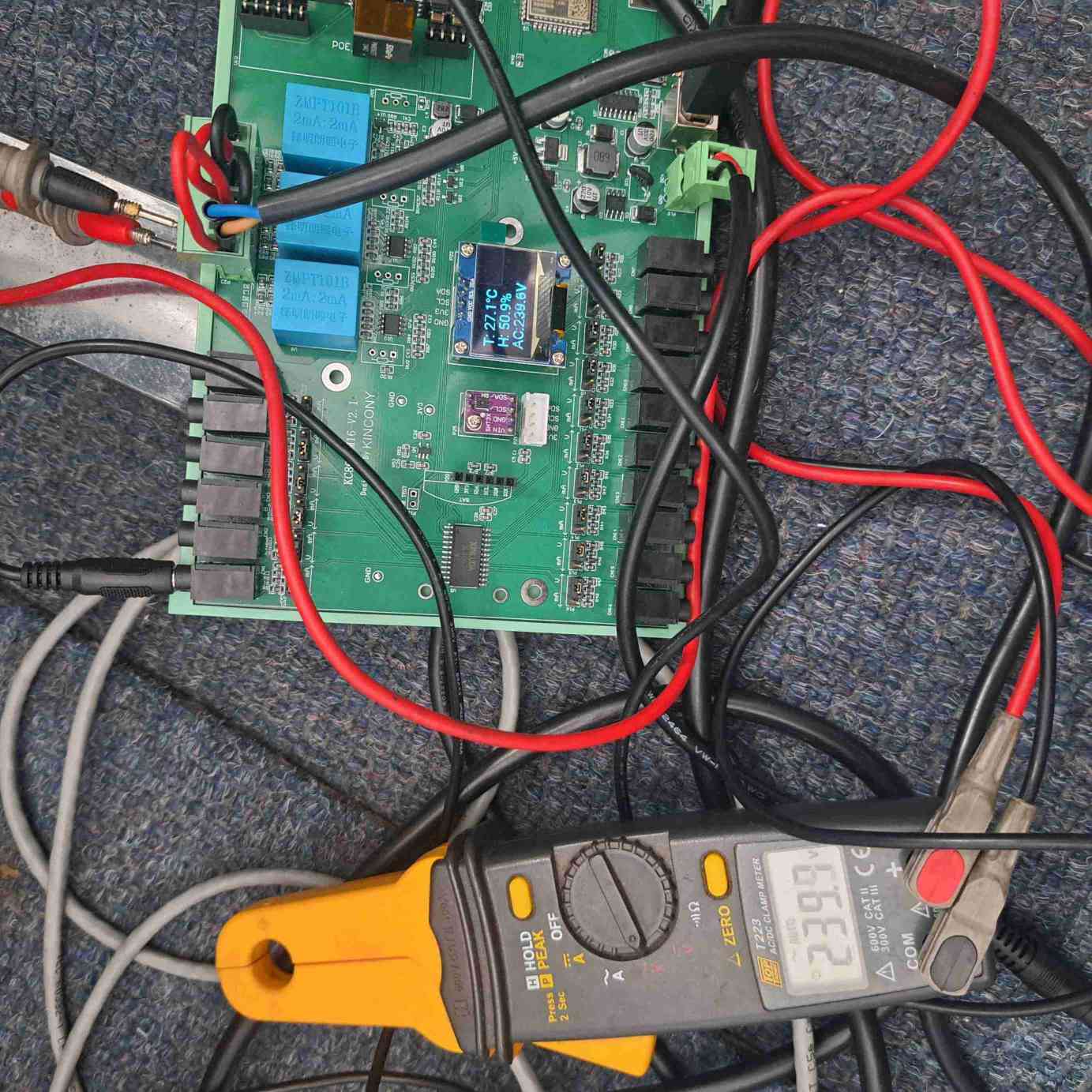

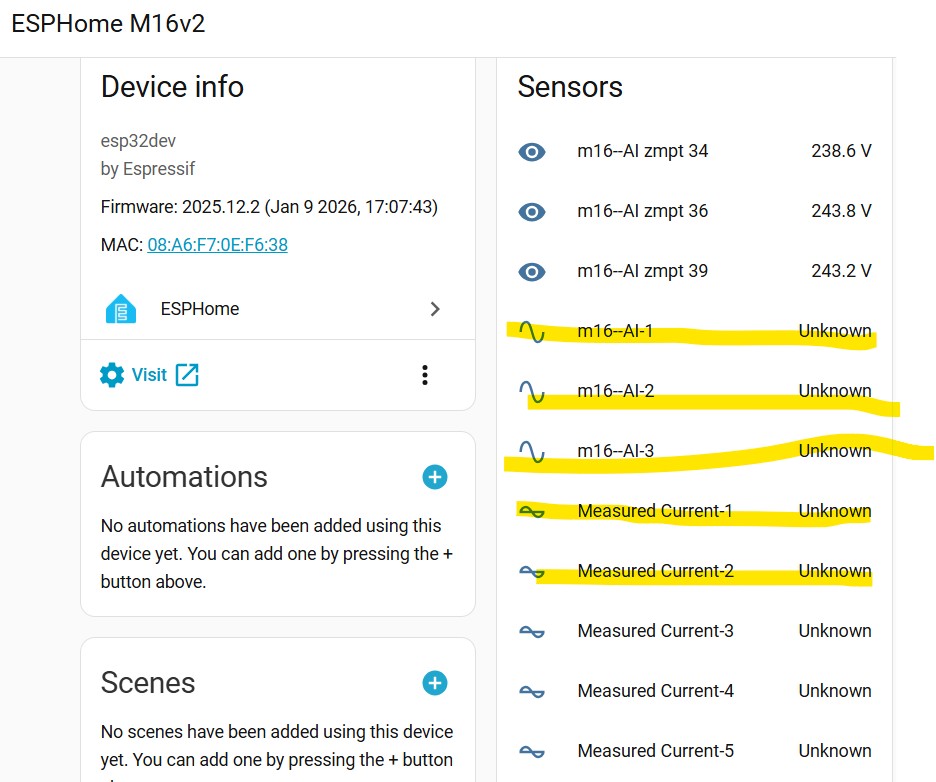

I've lost my current output. it shows Not Available.
My file is now similar to yours.

[admin]

you can also use your yaml file. what problem now? no "current"? take a photo of your issue.

[cmeyer5]

you can also use your yaml file. what problem now? no "current"? take a photo of your issue.

my currents which worked just before the latest esphome changes is now not being recognized.

[admin]

the bug fixed. plugin updated plugin and yaml. you can use this yaml file directly.
The zmpt sensor has been disassembled into two parts: one is the original ADC sensor, and the other is the zmpt sensor.
The configuration parameters for zmpt plugin can be found here:
https://github.com/hzkincony/esphome-zmpt101b
support set parameters : sensitivity/frequency/update_interval

Code:

esphome:
  name: m16v2

esp32:
  board: esp32dev
  framework:
    type: arduino

external_components:
  - source:
      type: git
      url: https://github.com/hzkincony/esphome-zmpt101b
      ref: v2.1.0

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "D69bY/GXlmjYkovak6WIhgmbOH8vwyqvMxIHBriYoaY="


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

i2c:
  sda: 4
  scl: 5
  scan: true
  id: bus_a

cd74hc4067:
  - id: cd74hc4067_1
    pin_s0: 32
    pin_s1: 33
    pin_s2: 13
    pin_s3: 16

web_server:
  port: 80

font:

  - file: "gfonts://Roboto"
    id: roboto
    size: 20

display:
  - platform: ssd1306_i2c
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 0, id(roboto), "AC:%.1fV", id(voltage_1).state);
      it.printf(0, 20, id(roboto), "AC:%.1fV", id(voltage_2).state);
      it.printf(0, 40, id(roboto), "AC:%.1fV", id(voltage_3).state);

# Example configuration entry
sensor:
  - platform: adc
    pin: 34
    id: adc34
    update_interval: never
    attenuation: 12db

  - platform: adc
    pin: 36
    id: adc36
    update_interval: never
    attenuation: 12db

  - platform: adc
    pin: 39
    id: adc39
    update_interval: never
    attenuation: 12db

  - platform: zmpt101b
    name: "m16--AI zmpt 34"
    sensor: adc34
    id: voltage_1
    sensitivity: 538
  - platform: zmpt101b
    name: "m16--AI zmpt 36"
    sensor: adc36
    id: voltage_2
    sensitivity: 538
  - platform: zmpt101b
    name: "m16--AI zmpt 39"
    sensor: adc39
    id: voltage_3
    sensitivity: 538

  - platform: sht3xd
    temperature:
      name: "sht Temperature"
      id: temperature
    humidity:
      name: "sht Humidity"
      id: humidity
    address: 0x44
    update_interval: 5s

  - platform: adc
    pin: 35
    id: adc35
    update_interval: never
    attenuation: 12db

  # - platform: adc
  #   name: "m16--AI-1"
  #   pin: 36
  #   id: adc36
  #   update_interval: 60s
  #   attenuation: 11db

  # - platform: adc
  #   pin: 34
  #   name: "m16--AI-2"
  #   id: adc34
  #   update_interval: 60s
  #   attenuation: 11db

  # - platform: adc
  #   pin: 39
  #   name: "m16--AI-3"
  #   id: adc39
  #   update_interval: 60s
  #   attenuation: 11db




  - platform: cd74hc4067
    id: ai1
    number: 0
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai2
    number: 1
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai3
    number: 2
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai4
    number: 3
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai5
    number: 4
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai6
    number: 5
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai7
    number: 6
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai8
    number: 7
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai9
    number: 8
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai10
    number: 9
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai11
    number: 10
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai12
    number: 11
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai13
    number: 12
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai14
    number: 13
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai15
    number: 14
    sensor: adc35
    update_interval: 60s

  - platform: cd74hc4067
    id: ai16
    number: 15
    sensor: adc35
    update_interval: 60s


  - platform: ct_clamp
    sensor: ai1
    id: Measured_Current_1
    name: "Measured Current-1"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0.0034 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: template
    id: power1
    name: "power1"
    lambda: return id(Measured_Current_1).state * id(voltage_1).state;
    device_class: power
    unit_of_measurement: 'W'
    update_interval: 60s

  - platform: total_daily_energy
    name: "Total Daily Energy1"
    power_id: power1
    filters:
        - multiply: 0.001
    unit_of_measurement: kWh
    accuracy_decimals: 3
    icon: mdi:clock-alert
    device_class: energy


  - platform: ct_clamp
    sensor: ai2
    name: "Measured Current-2"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai3
    name: "Measured Current-3"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai4
    name: "Measured Current-4"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai5
    name: "Measured Current-5"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai6
    name: "Measured Current-6"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai7
    name: "Measured Current-7"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai8
    name: "Measured Current-8"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai9
    name: "Measured Current-9"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai10
    name: "Measured Current-10"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai11
    name: "Measured Current-11"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai12
    name: "Measured Current-12"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai13
    name: "Measured Current-13"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai14
    name: "Measured Current-14"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai15
    name: "Measured Current-15"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai16
    name: "Measured Current-16"
    update_interval: 60s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

time:
  - platform: sntp
    id: my_time

yaml file download:
  M16v2_HA.txt (Size: 9.37 KB / Downloads: 0)
