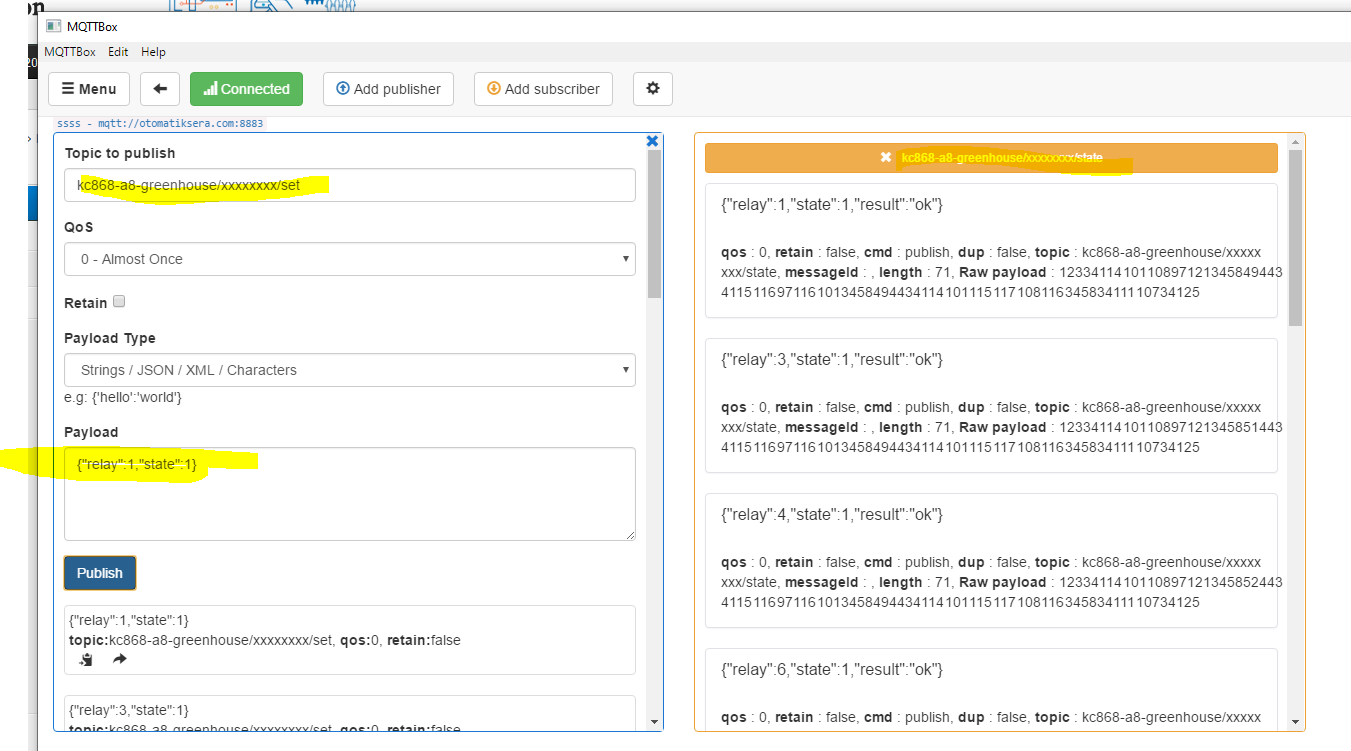

Why my KC868 A4 after 2 days not working or stop working but the power led still on. It's must switch off the power then switch on the power it will work again. after 2 days it will stop working again.

Here are some documents of EC200U 4G module software

Attached Files

  Quectel_EC200U&EG915U_Series_AT_Commands_Manual_V1.0.pdf (Size: 1.23 MB / Downloads: 1869)
  Quectel_EC200U&EG915U_Series_Audio_Application_Note_V1.2.pdf (Size: 280.37 KB / Downloads: 2436)
  Quectel_EC200U&EG915U_Series_Camera_Application_Note_V1.1.pdf (Size: 264.27 KB / Downloads: 1244)
  Quectel_EC200U&EG915U_Series_Dual_SIM_Single_Standby_Application_Note_V1.0.pdf (Size: 200.12 KB / Downloads: 2889)
  Quectel_EC200U&EG915U_Series_Enhanced_Sleep_Mode_Application_Note_V1.1.pdf (Size: 230.53 KB / Downloads: 1509)
  Quectel_EC200U&EG915U_Series_FILE_Application_Note_V1.2.pdf (Size: 331.06 KB / Downloads: 1337)
  Quectel_EC200U&EG915U_Series_Firmware_Download_Guide_V1.0.pdf (Size: 372.14 KB / Downloads: 1564)
  Quectel_EC200U&EG915U_Series_FOTA_Application_Note_V1.0.pdf (Size: 308.05 KB / Downloads: 1638)
  Quectel_EC200U&EG915U_Series_FTM_Application_Note_V1.1.pdf (Size: 169.68 KB / Downloads: 1433)
  Quectel_EC200U&EG915U_Series_FTP(S)_Application_Note_V1.1.pdf (Size: 353.67 KB / Downloads: 1612)
  Quectel_EC200U&EG915U_Series_HTTP(S)_Application_Note_V1.1.pdf (Size: 408.22 KB / Downloads: 1352)
  Quectel_EC200U&EG915U_Series_MMS_Application_Note_V1.0.pdf (Size: 233.05 KB / Downloads: 1260)
  Quectel_EC200U&EG915U_Series_MQTT_Application_Note_V1.1.pdf (Size: 324.23 KB / Downloads: 1332)
  Quectel_EC200U&EG915U_Series_MUX_Application_Note_V1.1.pdf (Size: 276.14 KB / Downloads: 1303)
  Quectel_EC200U&EG915U_Series_PPP_Application_Note_V1.1.pdf (Size: 647.19 KB / Downloads: 1664)
  Quectel_EC200U&EG915U_Series_QuecCell_Application_Note_V1.2.pdf (Size: 238.95 KB / Downloads: 1477)
  Quectel_EC200U&EG915U_Series_QuecLocator_Application_Note_V1.0.pdf (Size: 237.78 KB / Downloads: 2089)
  Quectel_EC200U&EG915U_Series_SSL_Application_Note_V1.1.pdf (Size: 301.48 KB / Downloads: 1276)
  Quectel_EC200U&EG915U_Series_TCP(IP)_Application_Note_V1.1.pdf (Size: 462.73 KB / Downloads: 1305)
  Quectel_EC200U_Series&EG912U-GL_GNSS_Application_Note_V1.1.pdf (Size: 372.95 KB / Downloads: 1574)
  Quectel_EC200U_Series_Dual_SIM_Dual_Standby_Application_Note_V1.0.pdf (Size: 295.66 KB / Downloads: 1928)

KC868-E8T default on PCB board use "EC200U-EU" version 4G module. if you want to customsize define 4G module by "EC200U-CN" or "EC200U-AU", please contact with us.


  Quectel_EC200U_Series_LTE_Standard_Specification_.pdf (Size: 223.23 KB / Downloads: 1822)




1. Set a password
Format: KC + old password + new password
Note: The initial default password is 0000, and the password is 4 digits
Such as sending SMS: kc0000new1234
Reply to SMS: new password is 1234

2. Restore default password
Press the GPIO0 button on the board for more than 5 seconds, the password will be restored to 0000

3. Set the administrator number
If the password is 1234
Send SMS: kc1234set13100000000
Reply to SMS: manager 13100000000 set ok
Up to 6 administrator numbers can be set

The password and administrator number are written into eprom, and they are still valid after power off and on again.

4. Clear the administrator number
If the password is 1234
Send SMS: kc1234clear13100000000
Reply to SMS: clear manager 13100000000 ok

5. Clear all administrator numbers
If the password is 1234
Send SMS: kc1234clearall
Reply to SMS: clear all manager ok

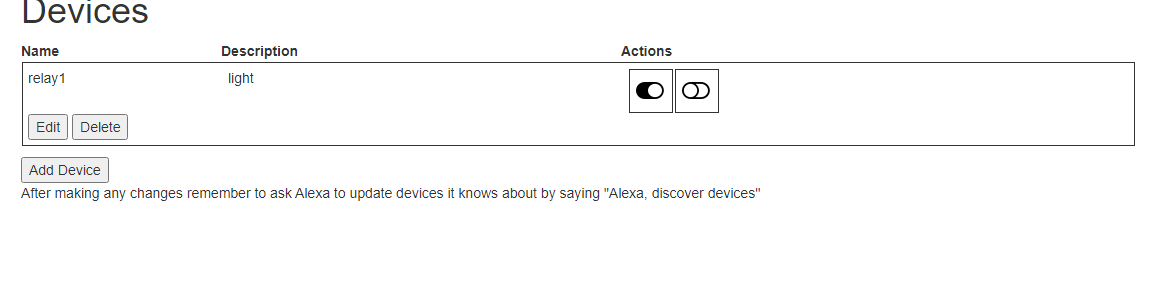

6. Turn on one relay
Send SMS: kc1234relay1on
Reply to SMS: relay 1 is ON

ID:1-8 represent 1-8 relays

7. Turn off one relay
Send SMS: kc1234relay1off
Reply to SMS: relay 1 is OFF

ID:1-8 represent 1-8 relays

8. Turn on all relays
Send SMS: kc1234allon
Reply to SMS: ALL relay are ON

9. Turn off all relays
Send SMS: kc1234alloff
Reply to SMS: ALL relay are OFF

10. Jog control one relay

Jog control means that relay is turned on first, and after 1 second, it will be automatically turned off.

Send SMS: kc1234inching1
Reply to SMS: relay 1 is inching control ok

ID:1-8 represent 1-8 relays

11. Read the current state of the relay

Send SMS: kc1234state
Reply to SMS: relay 1=ON 2=ON 3=OFF 4=ON 5=OFF 6=ON 7=ON



  KC868-E8T-Home assistant.txt (Size: 4.81 KB / Downloads: 696)

esphome:
  name: e8t
  platform: ESP32
  board: esp32dev
  on_boot:  #Power chip BL0939 initialization
    priority: 600
    then:
      - uart.write:
          id: uart_1
          data: [0xA5, 0x39, 0x42, 0x00, 0x00, 0xDF]
      - delay: 1ms
      - uart.write:
          id: uart_1
          data: [0xA5, 0x38, 0x3C, 0x00, 0x00, 0xE6]
      - delay: 1ms
      - uart.write:
          id: uart_1
          data: [0xA5, 0x39, 0x42, 0x00, 0x00, 0xDF]
      - delay: 1ms
      - uart.write:
          id: uart_1
          data: [0xA5, 0x3A, 0x01, 0x00, 0x00, 0x1F]
      - delay: 1ms
      - uart.write:
          id: uart_1
          data: [0xA5, 0x39, 0x00, 0x00, 0x00, 0x21]
uart:
  - id: uart_1
    tx_pin: GPIO12
    rx_pin: GPIO39
    baud_rate: 4800
    parity: NONE
    stop_bits: 2

  - id: uart_2
    tx_pin: GPIO33
    rx_pin: GPIO36
    baud_rate: 4800
    parity: NONE
    stop_bits: 2

# Enable logging
logger:

# Enable Home Assistant API
api:

ota:
  password: "d83d604e4f0ae287fb041dbaf31524d9"


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0



sensor:
  - platform: bl0939
    uart_id: uart_1
    update_interval: 10s
    voltage:
      name: 'BL0939A Voltage'
    current_1:
      name: 'BL0939A Current 1'
    current_2:
      name: 'BL0939A Current 2'
    active_power_1:
      name: 'BL0939A Active Power 1'
    active_power_2:
      name: 'BL0939A Active Power 2'
    energy_1:
      name: 'BL0939A Energy 1'
    energy_2:
      name: 'BL0939A Energy 2'
    energy_total:
      name: 'BL0939A Energy Total'



  - platform: bl0939
    uart_id: uart_2
    update_interval: 10s
    voltage:
      name: 'BL0939B Voltage'
    current_1:
      name: 'BL0939B Current 1'
    current_2:
      name: 'BL0939B Current 2'
    active_power_1:
      name: 'BL0939B Active Power 1'
    active_power_2:
      name: 'BL0939B Active Power 2'
    energy_1:
      name: 'BL0939B Energy 1'
    energy_2:
      name: 'BL0939B Energy 2'
    energy_total:
      name: 'BL0939B Energy Total'


# Example configuration entry for ESP32
i2c:
  sda: 4
  scl: 5
  scan: true
  id: bus_a

pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    address: 0x24

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    address: 0x22


# Individual outputs
switch:
  - platform: gpio
    name: "e8t-light1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "e8t-light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

binary_sensor:
  - platform: gpio
    name: "e8t-input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "e8t-input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

IIC SDA:4
IIC SCL:5

Relay_IIC_address 0x24

Input_IIC_address 0x22

OLED address: 0x78

DS3231 RTC address: 0x68

DS18B20/DHT11/DHT21/LED strip : 14

RF433MHz wireless RXD: 32

4G module RXD: 35
4G module TXD: 15

TUYA module RXD: 16
TUYA module TXD: 13

RS485 RXD: 34
RS485 TXD: 2

energy meter 1-2 channel RXD: 39
energy meter 1-2 channel TXD: 12

energy meter 3-4 channel RXD: 36
energy meter 3-4 channel TXD: 33

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

Hi there

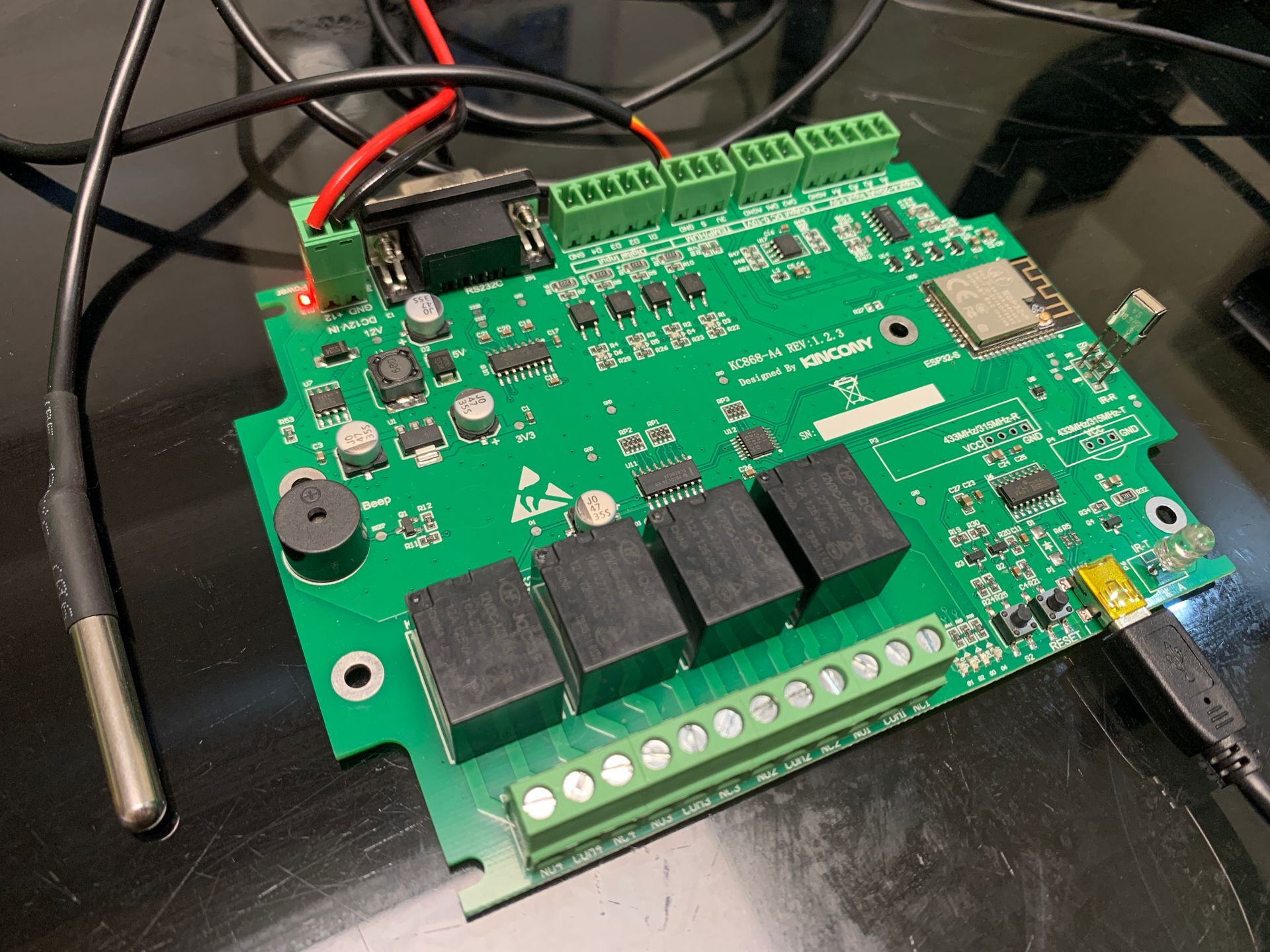

I'm having an issue with getting the KC868-A6 RTC working.

I've taken the example code in the A6 thread as per below, and it returns an error of "Couldn't find RTC".

I've made sure that the I2C SDA and SCL pins are set correctly in the NodeMCU-32S config file.

The RTClib I've used is the Adafruit library below:
https://github.com/adafruit/RTClib

The battery has been installed into the socket on the board.  I've successfully coded up things so that the PCF8574 outputs and inputs to work so I know that the I2C SDA and SCL are working.

The comments in the example code mention the Wire lib, so I've tried including this as well, but it didn't fix the problem.

Any thoughts would be appreciated.


/*KC868-A6 DS1307 CODE*/
// Date and time functions using a DS1307 RTC connected via I2C and Wire lib
#include "RTClib.h"

RTC_DS1307 rtc;

char daysOfTheWeek[7][12] = {"Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"};

void setup () {
  Serial.begin(115200);

#ifndef ESP8266
  while (!Serial); // wait for serial port to connect. Needed for native USB
#endif

  if (! rtc.begin()) {
    Serial.println("Couldn't find RTC");
    Serial.flush();
    while (1) delay(10);
  }

  if (! rtc.isrunning()) {
    Serial.println("RTC is NOT running, let's set the time!");
    // When time needs to be set on a new device, or after a power loss, the
    // following line sets the RTC to the date & time this sketch was compiled
    rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
    // This line sets the RTC with an explicit date & time, for example to set
    // January 21, 2014 at 3am you would call:
    // rtc.adjust(DateTime(2014, 1, 21, 3, 0, 0));
  }

  // When time needs to be re-set on a previously configured device, the
  // following line sets the RTC to the date & time this sketch was compiled
  // rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
  // This line sets the RTC with an explicit date & time, for example to set
  // January 21, 2014 at 3am you would call:
  // rtc.adjust(DateTime(2014, 1, 21, 3, 0, 0));
}

void loop () {
    DateTime now = rtc.now();

    Serial.print(now.year(), DEC);
    Serial.print('/');
    Serial.print(now.month(), DEC);
    Serial.print('/');
    Serial.print(now.day(), DEC);
    Serial.print(" (");
    Serial.print(daysOfTheWeek[now.dayOfTheWeek()]);
    Serial.print(") ");
    Serial.print(now.hour(), DEC);
    Serial.print(':');
    Serial.print(now.minute(), DEC);
    Serial.print(':');
    Serial.print(now.second(), DEC);
    Serial.println();

    Serial.print(" since midnight 1/1/1970 = ");
    Serial.print(now.unixtime());
    Serial.print("s = ");
    Serial.print(now.unixtime() / 86400L);
    Serial.println("d");

    // calculate a date which is 7 days, 12 hours, 30 minutes, and 6 seconds into the future
    DateTime future (now + TimeSpan(7,12,30,6));

    Serial.print(" now + 7d + 12h + 30m + 6s: ");
    Serial.print(future.year(), DEC);
    Serial.print('/');
    Serial.print(future.month(), DEC);
    Serial.print('/');
    Serial.print(future.day(), DEC);
    Serial.print(' ');
    Serial.print(future.hour(), DEC);
    Serial.print(':');
    Serial.print(future.minute(), DEC);
    Serial.print(':');
    Serial.print(future.second(), DEC);
    Serial.println();

    Serial.println();
    delay(3000);
}

We have designed KC868-E8T with Tuya module , 4G LTE module and ESP32, the 8 channel removable relay board.

You can integrate KC868-E8T to home assistant by ESPHome use follow resource:

a. 8 relay relay, 8 channel digital input for switch panel. 4 channel AC220V energy meter (BL0939 energy chip) for load's voltage, current, power, power consumption. DS18B20 temperature sensor.

b. support use Tuya mobile phone application remote control 8 relay by internet , monitor 4 channel load's energy meter and temperature by DS18B20 sensor.

Hello.

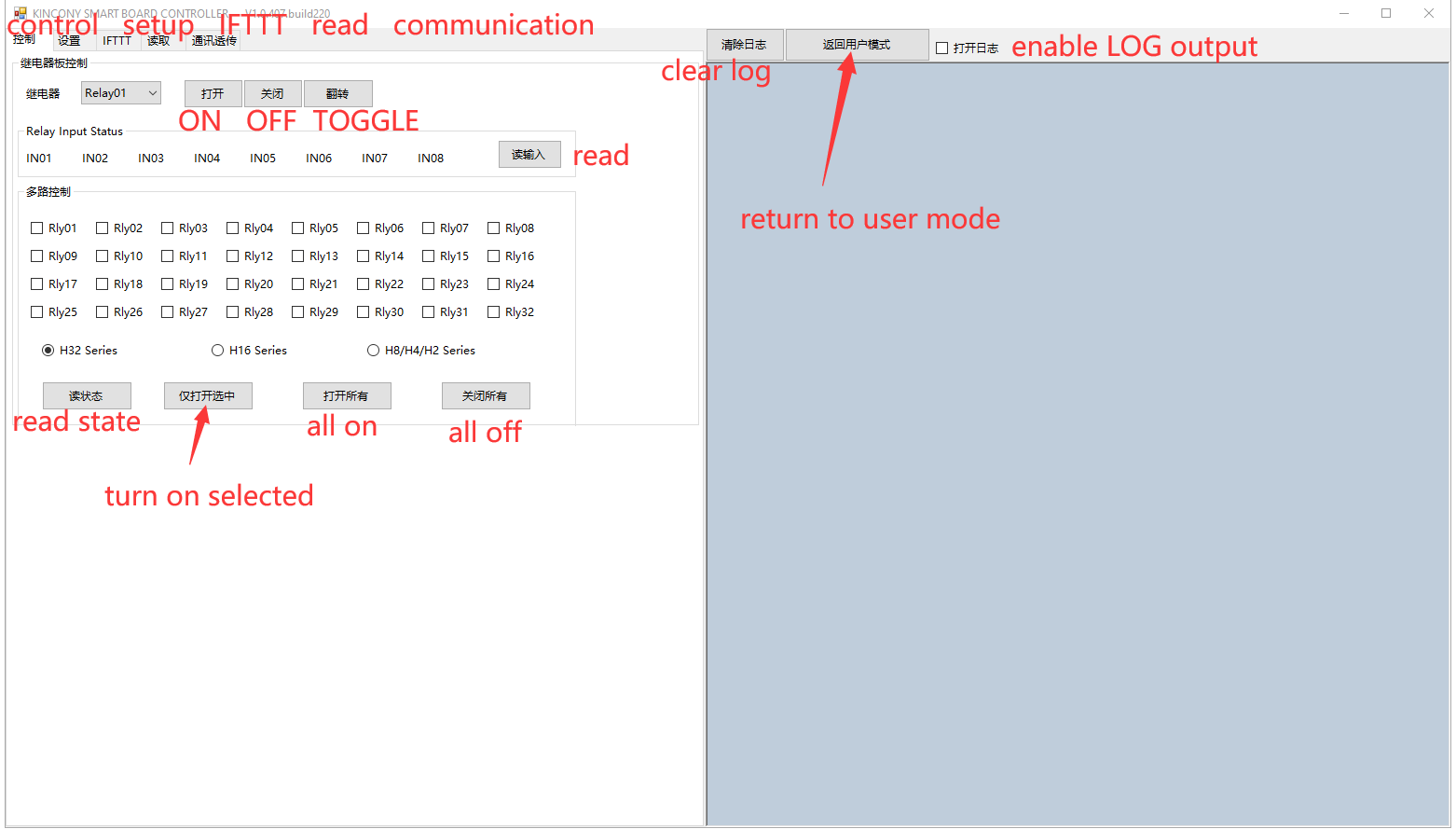

I need to know how to completely reset the H23B, Seria number H32B200812520, I don´t have access to it and I can´t configure it for WEB access.
It´s very old firmware, and never been done, which if you have i want update.
I couldn´t find the manual or the PC software on the website kincony.
Thanks

Hi there

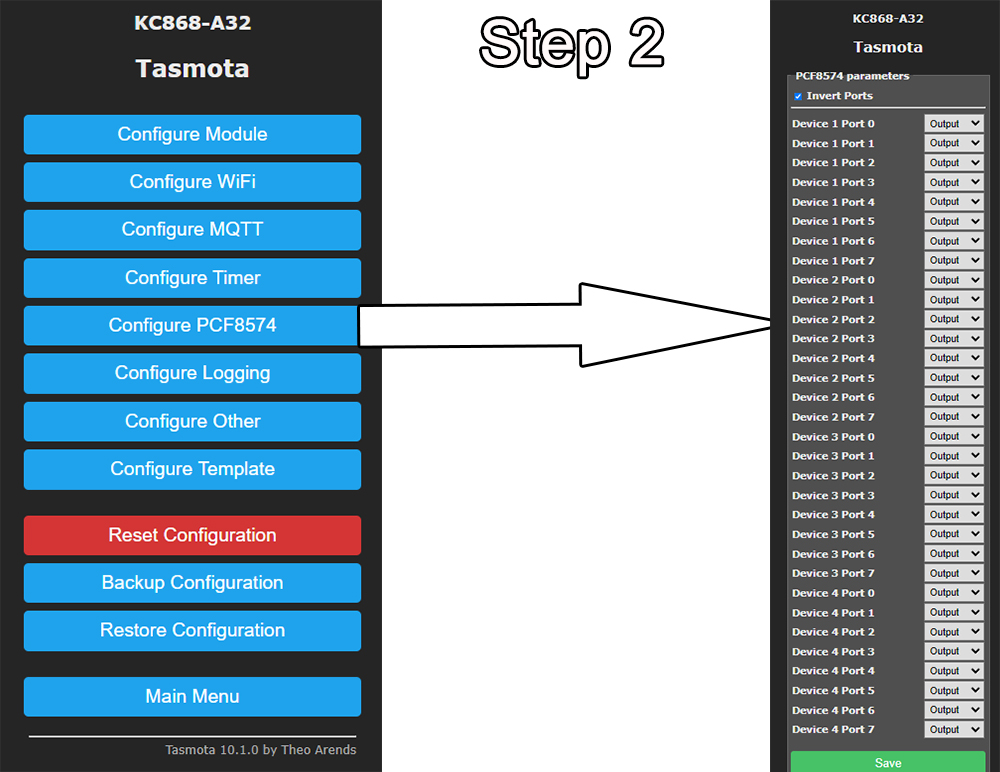

I'm trying to get the relays to work on a KC868-A6.
I'm using the KC868-A8 example source code as the basis for this and modified it as shown below:

#include “Arduino.h”
#include “PCF8574.h”

#define I2C_RELAYS_ADR 0x24
PCF8574 pcf(I2C_RELAYS_ADR);

void setup() {
Serial.begin(115200);
Serial.println(F(“Start Kincony KC868-A6 Relays example…”));
pcf.pinMode(P0, OUTPUT);
pcf.pinMode(P1, OUTPUT);
pcf.pinMode(P2, OUTPUT);
pcf.pinMode(P3, OUTPUT);
pcf.pinMode(P4, OUTPUT);
pcf.pinMode(P5, OUTPUT);
Serial.print(“Init PCF8574… “);
if (pcf.begin()){Serial.println(F(“Ok”));}
else {Serial.println(F(“Error”));}
}

void loop() {
pcf.digitalWrite(P0, HIGH);
Serial.print(F(“Relay #”)); Serial.print(P0); Serial.println(F(” ON”));
delay(10000);
pcf.digitalWrite(P0, LOW);
Serial.print(F(“Relay #”)); Serial.print(P0); Serial.println(F(” OFF”));
delay(10000);
}


Using this example, the pcf.begin statement fails and returns "Error".

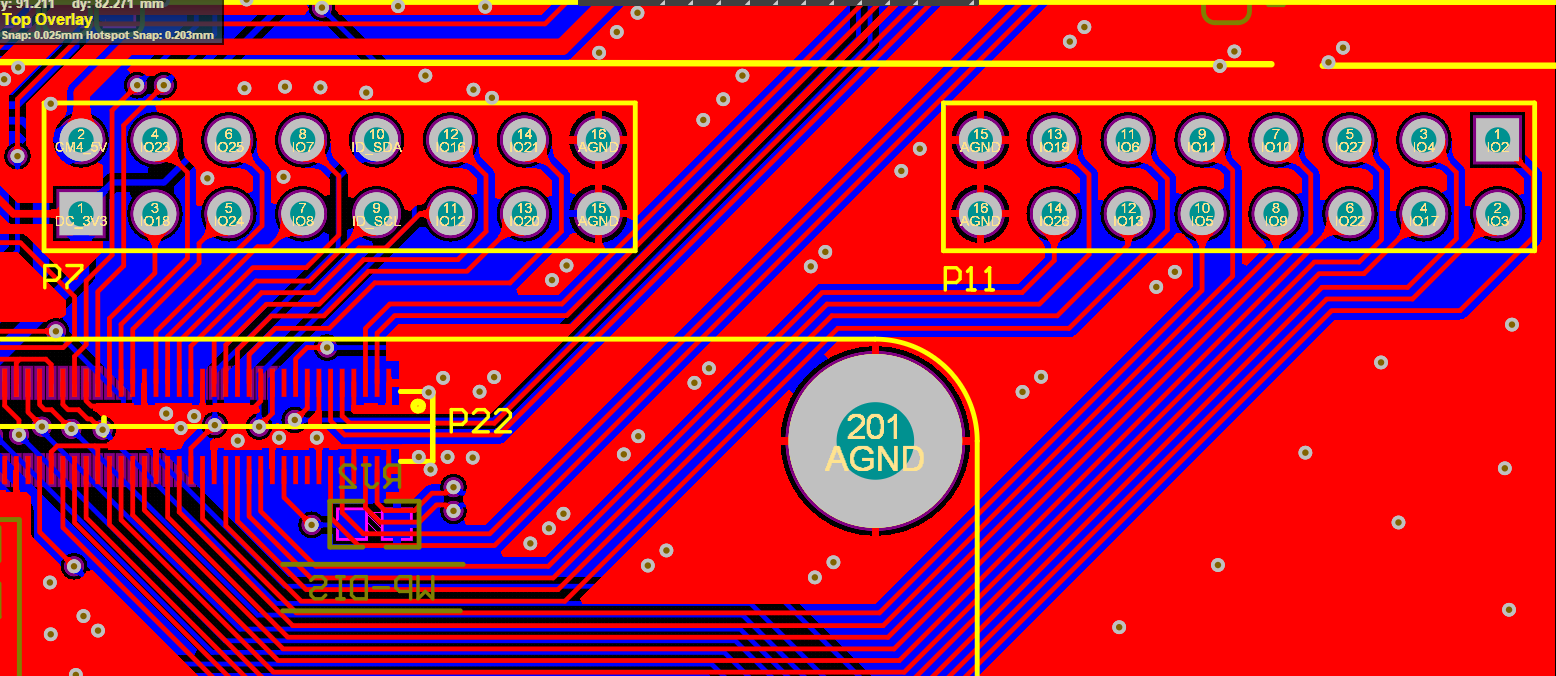

Looking at the schematic diagram for the KC868-A6, the I2C SDA is set to pin 26, and the SCL is set to pin 23.  By default the PCF8574 library will default to other values, so I tried changing the statement below to the following which matches the format noted in the readme file for the PCF8574 library
 PCF8574 pcf(0x24, 26, 23);

This didn't work either and so I tried the various I2C scanners and they don't find any I2C device.

I've also ensured that the relevant pins_arduino.h file has been edited to reflect the correct SDA and SCL pin values.

One other thing I have noticed is on startup there is a strange error, see below:

ets Jun  8 2016 00:22:57
rst:0x1 (POWERON_RESET),boot:0x17 (SPI_FAST_FLASH_BOOT)
configsip: 0, SPIWP:0xee
clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0x00
modeIO, clock div:1
load:0x3fff0030,len:1184
load:0x40078000,len:13160
load:0x40080400,len:3036
entry 0x400805e4
E (309) i2c: i2c_set_pin(873): scl an⸮4⸮⸮⸮gpio numbers are the same


The highlighted line in red looks odd but I can't find anything online to help.

Any assistance would be appreciated.
