DS1820 temperature sensor on KC868-A16 - marius - 10-30-2022
Hello,
I connected DS1820 temperature sensor to KC868-A16 GPIO pins and running Tasmota, but in Tasmota interface module configuration there is no option to select DS1820 sensor or any other similar type (like AM2301A) sensor.
Can someone advice on how to make this thing working?
Evrything else working perfectly
RE: DS1820 temperature sensor on KC868-A16 - admin - 10-30-2022
maybe i think you need to download another tasmota firmware version.
RE: DS1820 temperature sensor on KC868-A16 - marius - 10-30-2022
(10-30-2022, 12:31 PM)admin Wrote: maybe i think you need to download another tasmota firmware version.
So I thought, but not sure where to get different version from what I got.
RE: DS1820 temperature sensor on KC868-A16 - admin - 10-30-2022
do you have used this tasmota firmware?
https://www.kincony.com/forum/showthread.php?tid=1715
RE: DS1820 temperature sensor on KC868-A16 - marius - 10-31-2022
(10-30-2022, 10:31 PM)admin Wrote: do you have used this tasmota firmware?
https://www.kincony.com/forum/showthread.php?tid=1715
Yes I did and evrything works ok, but there is no option to add DS1820 sensor. Many other imput devices but nothing like this type of temperature sensors.
On my other Tasmota devices I have this option but not on A16 this with this version of Tasmota.
RE: DS1820 temperature sensor on KC868-A16 - marius - 10-31-2022
(10-31-2022, 08:42 AM)marius Wrote:(10-30-2022, 10:31 PM)admin Wrote: do you have used this tasmota firmware?
https://www.kincony.com/forum/showthread.php?tid=1715
Yes I did and evrything works ok, but there is no option to add DS1820 sensor. Many other imput devices but nothing like this type of temperature sensors.
On my other Tasmota devices I have this option but not on A16 this with this version of Tasmota.
To be exact there is no such option like this: https://im.ge/i/2WC6CP
Lots of other imput options but no DS1820 or AM2301A.
RE: DS1820 temperature sensor on KC868-A16 - marius - 11-10-2022
Hello, any help?
RE: DS1820 temperature sensor on KC868-A16 - admin - 11-23-2022
sorry, last week very busy, these days we will do it for you.
RE: DS1820 temperature sensor on KC868-A16 - admin - 11-23-2022
here is KC868-A16 firmware, it can work with DS18B20 temperature sensor.
KC868-A16-DS18B20.zip (Size: 1,001.06 KB / Downloads: 212)
you can use three GPIOs for DS18B20:
DS18B20/DHT11/DHT21/LED strip -1: 32
DS18B20/DHT11/DHT21/LED strip -2: 33
DS18B20/DHT11/DHT21/LED strip -2: 14

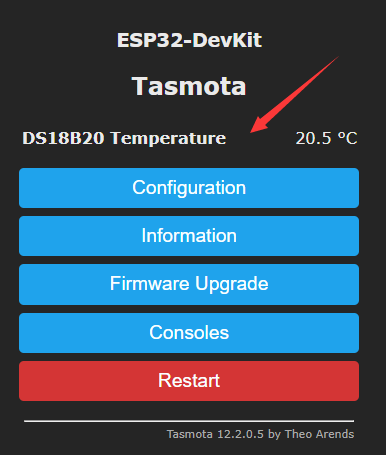

the demo photo I have used GPIO32, actually you can use any of GPIO32, GPIO33, GPIO14
RE: DS1820 temperature sensor on KC868-A16 - admin - 11-23-2022
if you want to enable Ethernet for KC868-A16, just click "Configure Other" -- paste "Template" as follows:
{"NAME":"KC868-A16","GPIO":[32,0,1120,0,640,608,0,0,0,1,1,1152,0,0,5600,0,0,0,0,5568,0,0,0,0,0,0,0,0,1,1,0,0,1,0,0,1],"FLAG":0,"BASE":1,"CMND":"EthClockMode 3 | EthAddress 0 | EthType 0 | I2CDriver2 1"}
check "Activate" , then press "Save". after restart, ethernet cable can be used.
