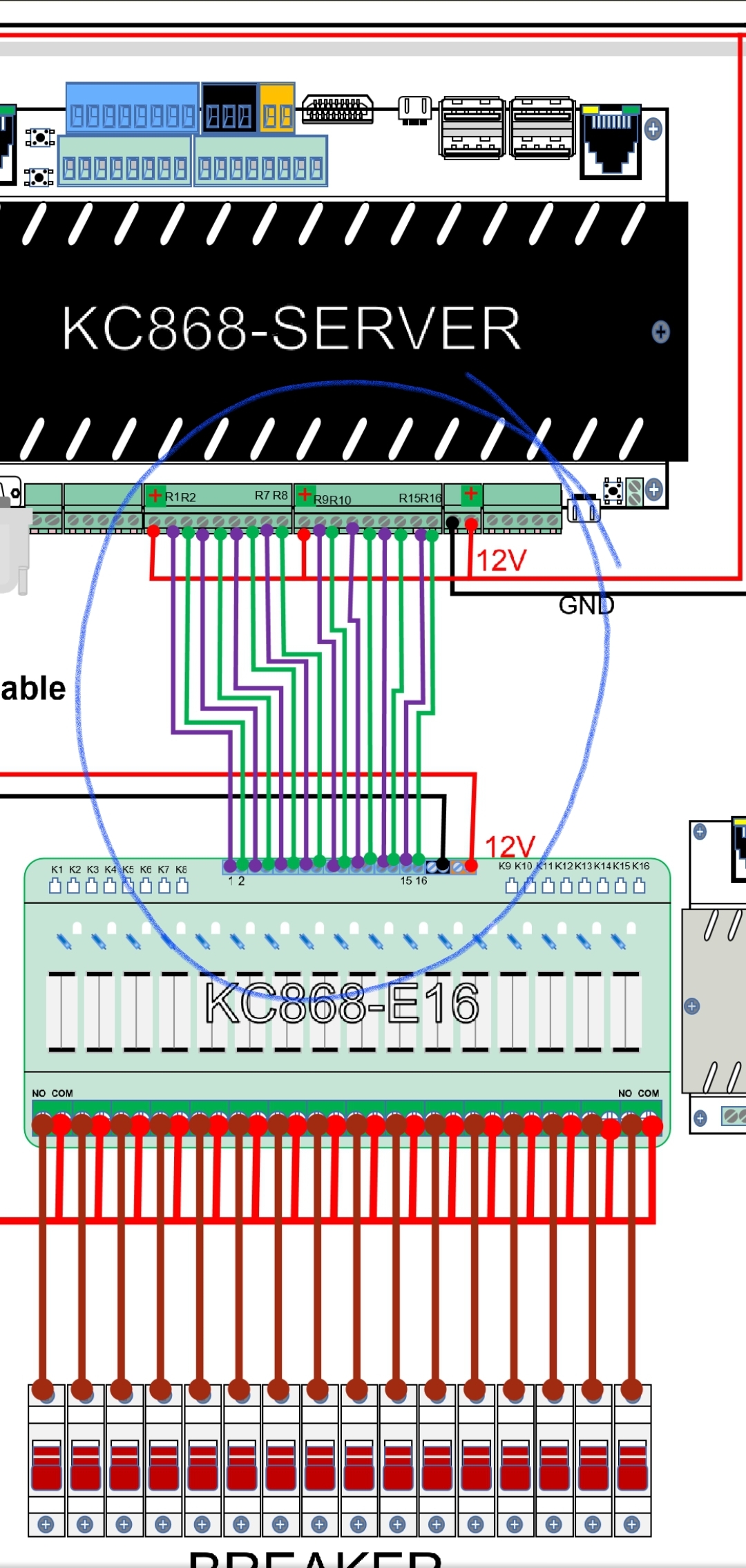

Picture 01    KC868-SERER and KC868-A16 and KC868-E16(KC868-E8 is the same)

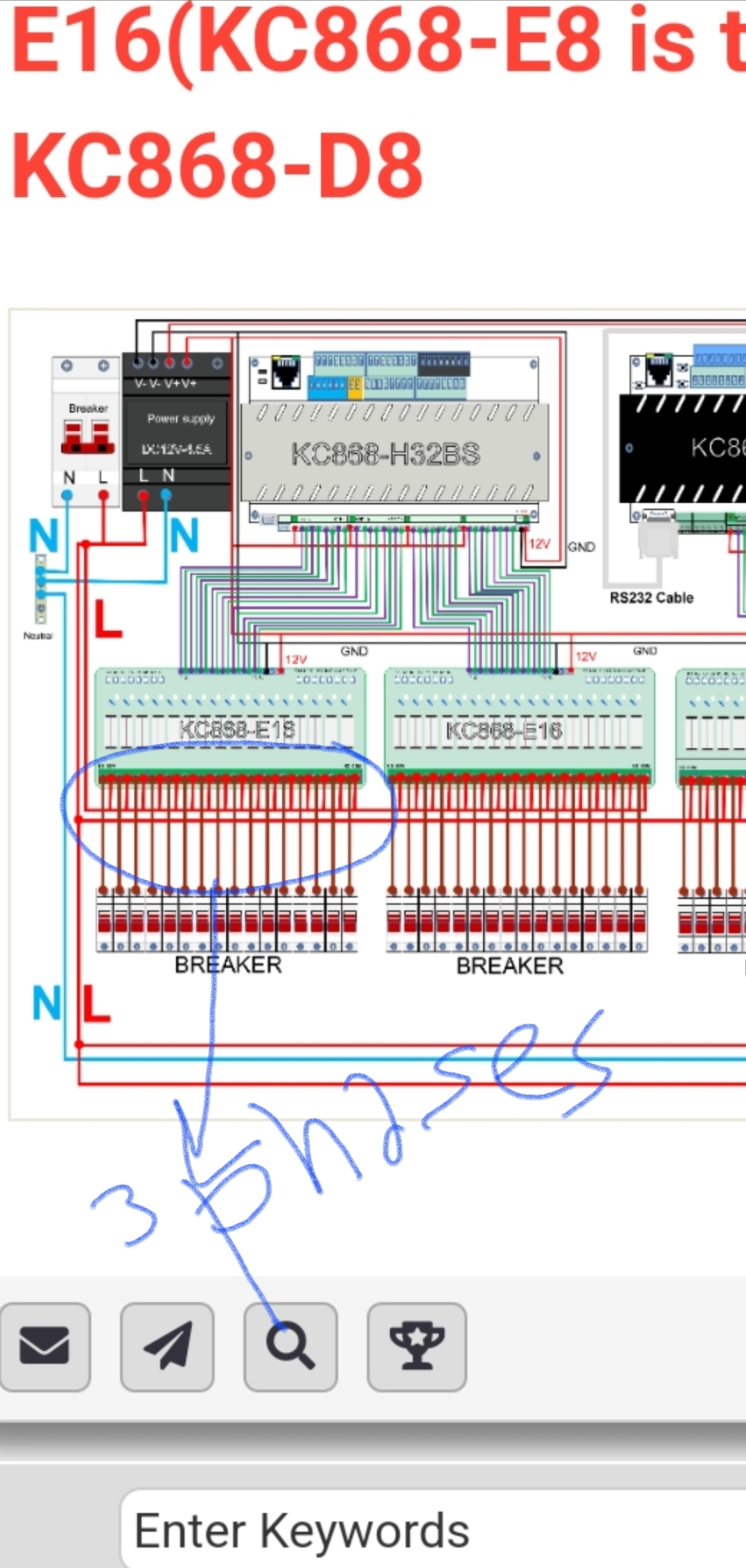

Picture 02    KC868-SERER and KC868-BS and KC868-E16(KC868-E8 is the same) and KC868-D8


Thanks for wiring diagram photos.
Important questions:-
1. Lighting on/off load connected to H32BS , dimming lighting load connected to D8.

what type of loads that need to connect to the server and A16 assuming all types of load above and other DB that has H32B will be working through home asistance with 4 Kc868-AG?

2. Can i use from the 220 volt liad side of E16 and SSR a different single phases ?
For example E8 can be used 3 output on phas R, 3 output on Phase Y  2 on phase B
For Example
The D8 connected to 8 SSR 10 A can i connect 3 of them on phase R, 3 on phase Y, 2 on phase B?

Thank you
ElecServ
Eng. Ahmed Abdelkarim
