do you want input click one time, light ON, click one time, light OFF?
|
KC868-AP
|
05-07-2023, 05:50 AM
05-07-2023, 09:04 AM
I would like to connect a Nextion HMI to a KC868 AIO All in One Controller.
Please advise on best pins to use.
05-07-2023, 09:53 AM
05-08-2023, 12:49 AM

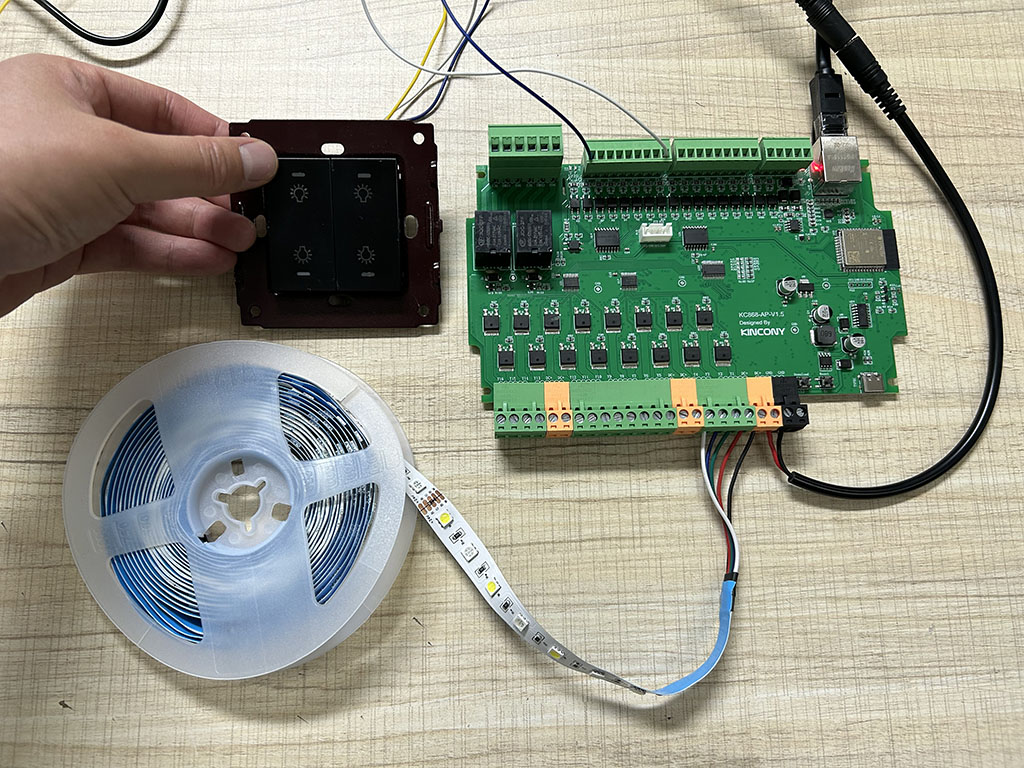

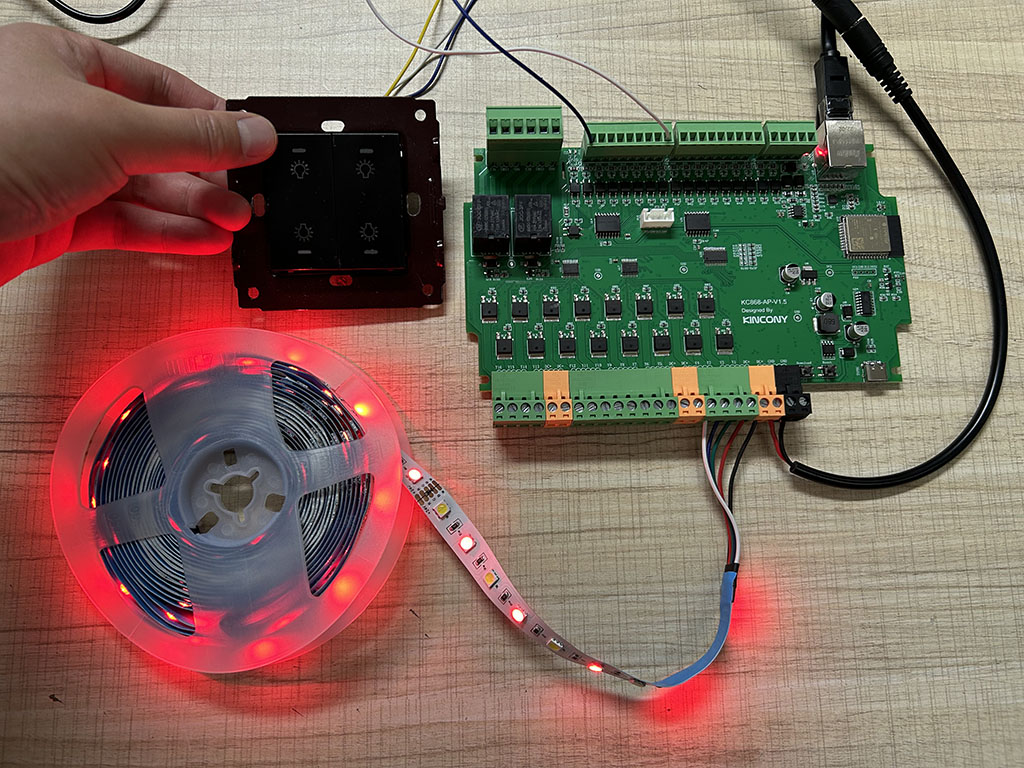

this is config file for digital input1 with button control KC868-AP output1:
click for ON/OFF LED, hold on for change brightness.
AP_esphome_eth - INPUT-OUTPUT.txt (Size: 7.16 KB / Downloads: 169)
esphome: name: ap esp32: board: esp32dev framework: type: arduino # Enable logging logger: # Enable Home Assistant API api: encryption: key: "hx8eSqbwjWs9/2bK0qK55QfTIOpI4gCfzLOeaOXZMaU=" # Example configuration entry ethernet: type: LAN8720 mdc_pin: GPIO23 mdio_pin: GPIO18 clk_mode: GPIO17_OUT phy_addr: 0 # Example configuration entry for ESP32 i2c: sda: 4 scl: 16 scan: true id: bus_a pcf8574: - id: 'pcf8574_hub_in_1' # for input channel 1-8 maybe 0x22 / 0x3A address: 0x22 - id: 'pcf8574_hub_in_2' # for input channel 9-16 address: 0x21 binary_sensor: - platform: gpio name: "ap-input1" pin: pcf8574: pcf8574_hub_in_1 number: 0 mode: INPUT inverted: true id: light_1_touch on_click: then: - if: condition: light.is_off: light_1 then: light.turn_on: id: light_1 brightness: 1.0 else: light.turn_off: light_1 on_press: then: - if: condition: light.is_off: light_1 then: - delay: 0.5s - while: condition: binary_sensor.is_on: light_1_touch then: - light.dim_relative: id: light_1 relative_brightness: 5% transition_length: 0.1s - delay: 0.1s else: - delay: 0.5s - while: condition: and: - binary_sensor.is_on: light_1_touch - light.is_on: light_1 then: - light.dim_relative: id: light_1 relative_brightness: -5% transition_length: 0.1s - delay: 0.1s - platform: gpio name: "ap-input2" pin: pcf8574: pcf8574_hub_in_1 number: 1 mode: INPUT inverted: true - platform: gpio name: "ap-input3" pin: pcf8574: pcf8574_hub_in_1 number: 2 mode: INPUT inverted: true - platform: gpio name: "ap-input4" pin: pcf8574: pcf8574_hub_in_1 number: 3 mode: INPUT inverted: true - platform: gpio name: "ap-input5" pin: pcf8574: pcf8574_hub_in_1 number: 4 mode: INPUT inverted: true - platform: gpio name: "ap-input6" pin: pcf8574: pcf8574_hub_in_1 number: 5 mode: INPUT inverted: true - platform: gpio name: "ap-input7" pin: pcf8574: pcf8574_hub_in_1 number: 6 mode: INPUT inverted: true - platform: gpio name: "ap-input8" pin: pcf8574: pcf8574_hub_in_1 number: 7 mode: INPUT inverted: true - platform: gpio name: "ap-input9" pin: pcf8574: pcf8574_hub_in_2 number: 0 mode: INPUT inverted: true - platform: gpio name: "ap-input10" pin: pcf8574: pcf8574_hub_in_2 number: 1 mode: INPUT inverted: true - platform: gpio name: "ap-input11" pin: pcf8574: pcf8574_hub_in_2 number: 2 mode: INPUT inverted: true - platform: gpio name: "ap-input12" pin: pcf8574: pcf8574_hub_in_2 number: 3 mode: INPUT inverted: true - platform: gpio name: "ap-input13" pin: pcf8574: pcf8574_hub_in_2 number: 4 mode: INPUT inverted: true - platform: gpio name: "ap-input14" pin: pcf8574: pcf8574_hub_in_2 number: 5 mode: INPUT inverted: true - platform: gpio name: "ap-input15" pin: pcf8574: pcf8574_hub_in_2 number: 6 mode: INPUT inverted: true - platform: gpio name: "ap-input16" pin: pcf8574: pcf8574_hub_in_2 number: 7 mode: INPUT inverted: true - platform: gpio name: "ap-input17" pin: number: 34 inverted: true - platform: gpio name: "ap-input18" pin: number: 35 inverted: true pca9685: id: 'pca9685_hub' frequency: 500 output: - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM0" channel: 0 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM1" channel: 1 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM2" channel: 2 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM3" channel: 3 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM4" channel: 4 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM5" channel: 5 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM6" channel: 6 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM7" channel: 7 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM8" channel: 8 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM9" channel: 9 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM10" channel: 10 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM11" channel: 11 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM12" channel: 12 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM13" channel: 13 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM14" channel: 14 - platform: pca9685 pca9685_id: 'pca9685_hub' id: "PWM15" channel: 15 light: - platform: monochromatic name: "Color-LED-1" id: light_1 output: PWM0 - platform: monochromatic name: "Color-LED-2" output: PWM1 - platform: monochromatic name: "Color-LED-3" output: PWM2 - platform: monochromatic name: "Color-LED-4" output: PWM3 - platform: monochromatic name: "Color-LED-5" output: PWM4 - platform: monochromatic name: "Color-LED-6" output: PWM5 - platform: monochromatic name: "Color-LED-7" output: PWM6 - platform: monochromatic name: "Color-LED-8" output: PWM7 - platform: monochromatic name: "Color-LED-9" output: PWM8 - platform: monochromatic name: "Color-LED-10" output: PWM9 - platform: monochromatic name: "Color-LED-11" output: PWM10 - platform: monochromatic name: "Color-LED-12" output: PWM11 - platform: monochromatic name: "Color-LED-13" output: PWM12 - platform: monochromatic name: "Color-LED-14" output: PWM13 - platform: monochromatic name: "Color-LED-15" output: PWM14 - platform: monochromatic name: "Color-LED-16" output: PWM15 - platform: rgbw name: "ap-rgbw" red: PWM1 green: PWM2 blue: PWM3 white: PWM4 switch: - platform: gpio name: "ap-light1" pin: 13 inverted: false - platform: gpio name: "ap-light2" pin: 2 inverted: false
05-08-2023, 05:53 PM
(05-08-2023, 12:49 AM)admin Wrote: this is config file for digital input1 with button control KC868-AP output1: Maybe you can make it save the lighting settings when I turn off the light, because now it lights up at 100% even though it was at 50%?
- if:
condition: light.is_off: light_1 then: light.turn_on: id: light_1 brightness: 1.0 you can change the brightness "1.0" with a low percent value. such as 50% or 30% .... because "1.0" = 100%
05-10-2023, 10:51 AM
and it is possible to do all this with a button to save the value, for example, which was set last time?
05-10-2023, 10:58 AM
i have not tested it. you can check whether esphome support save variable value. if esphome support, will be no problem do that.
this works the value changes but it can be done with the computer and i want to do it with the button so that it keeps the value that was set with the button.
“SHORT CLICK” button : if your lamp is ON (1%–99%), then will be turn OFF. If your lamp is OFF (0%) , then will be turn ON (set to last time brightness have saved on memory). I need to act like this |
|
