Hi

Sorry for the stupid question,

What is the purpose and way to use (in esphome) the D1 and D2 dry contacts ?

thank you

Hello,

at first i want to point out that i already have some of your boards used in my automation but not for the dimming.

The goal is to be able to dim these lights:
- 1 LED ceiling lamp, which is actually LED panel inside and it can work with 230V, or 24V DC but this lamp needs 100W power supply. It is dimmable with PMW(12/24V DC).
  https://shop.ledco.sk/loxone-svietidla-2...-2700k-65/  - you can check it here
- 4 LED ceiling lamp which are basically the same as the previous one but smaller and hence it needs only 60W power supply.
- 20 LED spot light GU10, 24V DC and needs 5W power supply.
- also a few LED strips will be there but those are irrelevant for now

When i was checking your boards only KC868-AP looked like a match but i was not sure if it can handle what i described. KC868-D16 is no go because it is without ESP32 and i want to be able to ESPHOME to be able to configure momentary switches clicks as i want.

Also i saw that you mentioned that you are developing a new board as ESP32 dimmer.

Can you please help me with this? What could work with the lights which i described?

Thanks in advance

hello engneer
now i will start my project.Its villa buldig.
I already get the material from aliexpress
so when i try to test first H32bs .when connect tcp server the connection still 4 or 5 minuts  then  loss onnection
can you help me

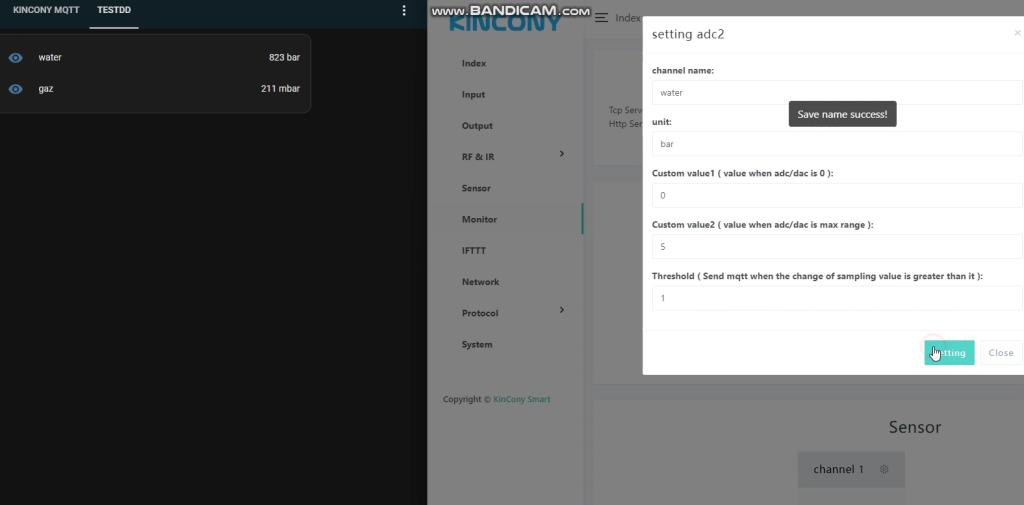

And tell me how to write a config for the A64 board for the new mqtt ?




  KC868-M16-ESPHome.txt (Size: 7.98 KB / Downloads: 601)

esphome:
  name: m16

esp32:
  board: esp32dev
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:
  encryption:
    key: "D69bY/GXlmjYkovak6WIhgmbOH8vwyqvMxIHBriYoaY="


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  manual_ip:
    static_ip: 192.168.1.186
    gateway: 192.168.1.1
    subnet: 255.255.255.0

cd74hc4067:
  - id: cd74hc4067_1
    pin_s0: 32
    pin_s1: 33
    pin_s2: 13
    pin_s3: 16



# Example configuration entry
sensor:

  - platform: adc
    pin: 35
    id: adc35
    update_interval: never
    attenuation: 11db

  - platform: adc
    name: "m16--AI-1"
    pin: 36
    id: adc36
    update_interval: 15s
    attenuation: 11db

  - platform: adc
    pin: 34
    name: "m16--AI-2"
    id: adc34
    update_interval: 15s
    attenuation: 11db

  - platform: adc
    pin: 39
    name: "m16--AI-3"
    id: adc39
    update_interval: 15s
    attenuation: 11db




  - platform: cd74hc4067
    id: ai1
    number: 0
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai2
    number: 1
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai3
    number: 2
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai4
    number: 3
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai5
    number: 4
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai6
    number: 5
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai7
    number: 6
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai8
    number: 7
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai9
    number: 8
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai10
    number: 9
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai11
    number: 10
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai12
    number: 11
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai13
    number: 12
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai14
    number: 13
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai15
    number: 14
    sensor: adc35
    update_interval: 5s

  - platform: cd74hc4067
    id: ai16
    number: 15
    sensor: adc35
    update_interval: 5s

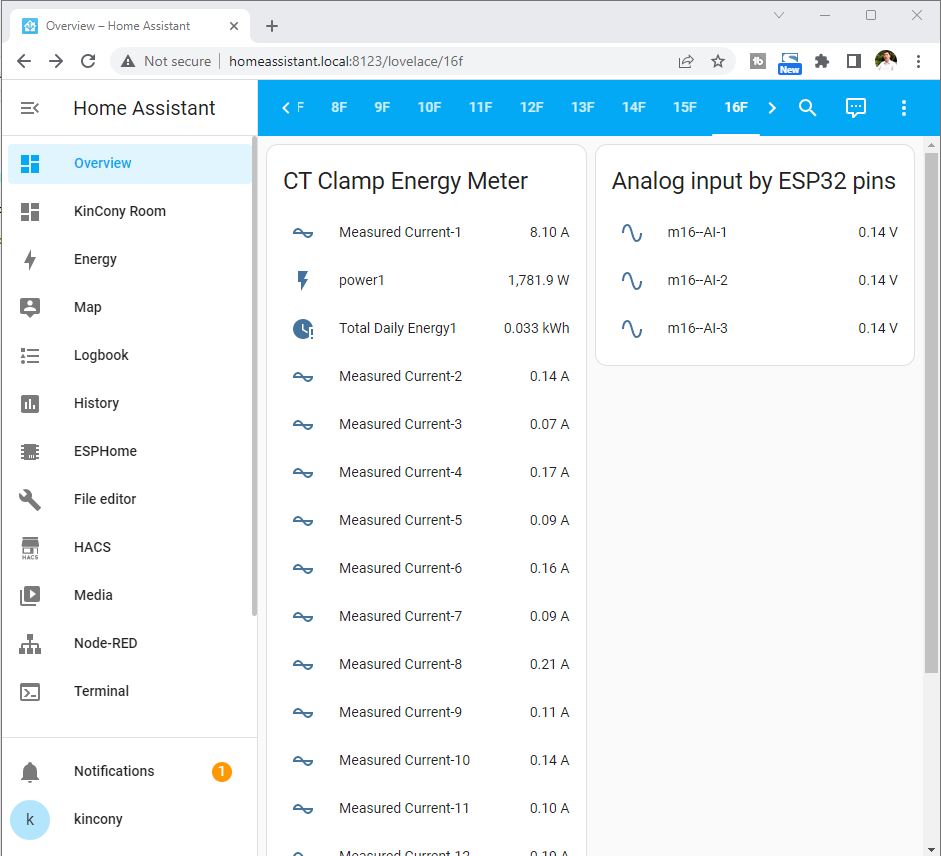

  - platform: ct_clamp
    sensor: ai1
    id: Measured_Current_1
    name: "Measured Current-1"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0.0034 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: template
    id: power1
    name: "power1"
    lambda: return id(Measured_Current_1).state * 220;
    device_class: power
    unit_of_measurement: 'W'
    update_interval: 5s

  - platform: total_daily_energy
    name: "Total Daily Energy1"
    power_id: power1
    filters:
        - multiply: 0.001
    unit_of_measurement: kWh
    accuracy_decimals: 3
    icon: mdi:clock-alert
    device_class: energy


  - platform: ct_clamp
    sensor: ai2
    name: "Measured Current-2"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai3
    name: "Measured Current-3"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai4
    name: "Measured Current-4"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai5
    name: "Measured Current-5"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai6
    name: "Measured Current-6"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai7
    name: "Measured Current-7"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai8
    name: "Measured Current-8"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai9
    name: "Measured Current-9"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai10
    name: "Measured Current-10"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai11
    name: "Measured Current-11"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai12
    name: "Measured Current-12"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai13
    name: "Measured Current-13"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai14
    name: "Measured Current-14"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai15
    name: "Measured Current-15"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

  - platform: ct_clamp
    sensor: ai16
    name: "Measured Current-16"
    update_interval: 5s
    filters:
      - calibrate_linear:
          # Measured value of 0 maps to 0A
          - 0 -> 0
          # Known load: 4.0A
          # Value shown in logs: 0.1333A
          - 0.31749 -> 8.95608

time:
  - platform: sntp
    id: my_time

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

IIC BUS:
SDA:4
SCL:5

SD card:
MISO: 2
MOSI: 15
SCK: 14


analog input1 (CH1) 36
analog input1 (CH2) 34
analog input1 (CH3) 39

74HC4067:
S0:32
S1:33
S2:13
S3:16

GPIO35 use for 74HC4067 extend 16 channel analog input



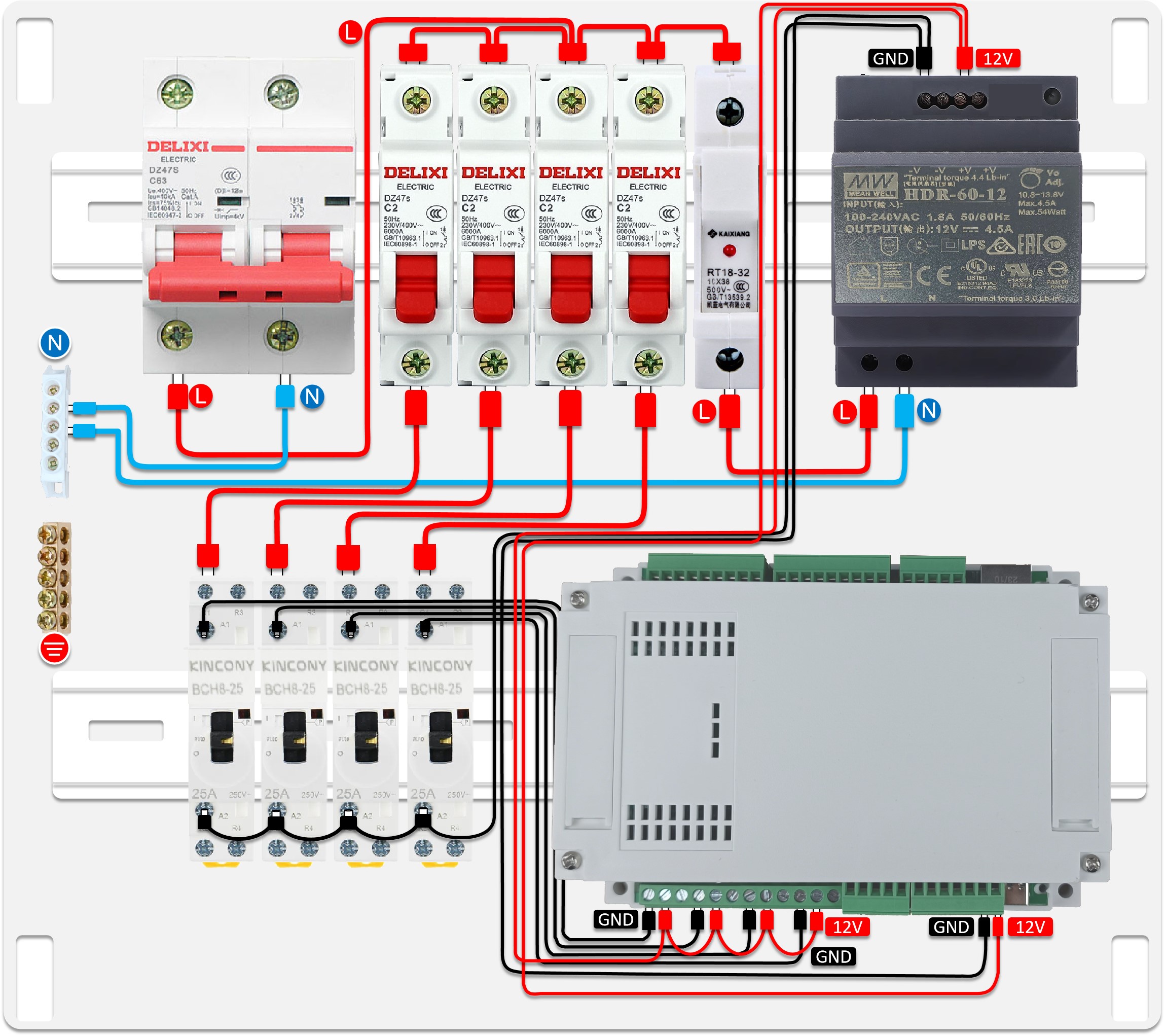

  HA_A32M.txt (Size: 6.07 KB / Downloads: 495)

esphome:
  name: a32m
  platform: ESP32
  board: esp32dev


# Enable logging
logger:

# Enable Home Assistant API
api:


# Example configuration entry
i2c:
  - id: bus_a
    sda: 4
    scl: 5
    scan: true



# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    i2c_id: bus_a
    address: 0x23

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16
    i2c_id: bus_a
    address: 0x24

  - id: 'pcf8574_hub_out_3'  # for output channel 17-24
    i2c_id: bus_a
    address: 0x25

  - id: 'pcf8574_hub_out_4'  # for output channel 25-32
    i2c_id: bus_a
    address: 0x26



# Individual outputs
switch:
  - platform: gpio
    name: "a32m-light1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "a32m-light9"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light10"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light11"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light12"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light13"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light14"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light15"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light16"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true


  - platform: gpio
    name: "a32m-light17"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light18"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light19"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light20"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light21"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light22"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light23"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light24"
    pin:
      pcf8574: pcf8574_hub_out_3
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light25"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light26"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light27"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light28"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light29"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light30"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light31"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a32m-light32"
    pin:
      pcf8574: pcf8574_hub_out_4
      number: 7
      mode: OUTPUT
      inverted: true



# Example configuration entry
sensor:
  - platform: adc
    pin: 34
    name: "a32m-analog-1"
    update_interval: 10s
    attenuation: 11db

  - platform: adc
    pin: 35
    name: "a32m-analog-2"
    update_interval: 10s
    attenuation: 11db

  - platform: adc
    pin: 39
    name: "a32m-analog-3"
    update_interval: 10s
    attenuation: 11db

  - platform: adc
    pin: 36
    name: "a32m-analog-4"
    update_interval: 10s
    attenuation: 11db

#define ANALOG_A1  GPIO34
#define ANALOG_A2  GPIO35
#define ANALOG_A3  GPIO39
#define ANALOG_A4  GPIO36

SDA:GPIO4
SCL:GPIO5

PCF8574:U6 (output1-8): 100 011 = 0x23
PCF8574:U12 (output9-16): 100 100 = 0x24
PCF8574:U50 (output17-24): 100 101 = 0x25
PCF8574:U51 (output25-32): 100 110 = 0x26


-----------------

Ethernet (LAN8720) I/O define:

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN  18
#define ETH_TYPE      ETH_PHY_LAN8720
#define ETH_CLK_MODE  ETH_CLOCK_GPIO17_OUT

--------------------

RS485:
RXD:GPIO15
TXD:GPIO13

GSM:
RXD:GPIO33
TXD:GPIO32

433MHz RF receiver: GPIO14
IR receiver: GPIO16

Hi...
I am curious about why all of your I/O expander ports are using PCF8574. Why did you choose PCF8574 instead of MCP23XXX series/MCP23017 ? (some more advantages over the pcf8574)

Добрый день!
Подскажите пожалуйста, приобрел у вас KC868-Server Ethernet WiFi CM4 + KC868-H32B Pro-2. По вашим видеоурокам собрал KC868-Server Ethernet Домашний помощник освещение, все работает. Как подключить к серверу KC868-Server надежный способ, проводным или MQTT какой лучше, чтобы Работала безотказно KC868-H32B Pro-2. Можете отправить послання. Спасибо!
