PCF8574 IO Expansion i2c digital input board -DI8 ESPHome config yaml demo

Posted by: admin - 02-23-2024, 04:21 AM - Forum: Extender module - Replies (2)

i2c:
sda: 4 #replace by your board's pin define
scl: 5 #replace by your board's pin define
scan: true
id: bus_a

pcf8574:
- id: 'pcf8574_hub_in_1' # for input channel 1-8
address: 0x22 #replace by your PCF8574 address

binary_sensor:
- platform: gpio
name: "a8-input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "a8-input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true

download yaml demo for ESPHome:

.txt DI8_config_yaml.txt (Size: 1.53 KB / Downloads: 678)
about A0,A1,A2 i2c address setting:
A0 A1 A2
0 0 0 =0x20
0 0 1 =0x21
0 1 0 =0x22
0 1 1 =0x23
1 0 0 =0x24
1 0 1 =0x25
1 1 0 =0x26
1 1 1 =0x27

PCF8574 IO Expansion i2c relay board -DO8 ESPHome config yaml demo

Posted by: admin - 02-23-2024, 04:17 AM - Forum: Extender module - Replies (4)

i2c:
sda: 4 #replace by your board's pin define
scl: 5 #replace by your board's pin define
scan: true
id: bus_a

pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-8
address: 0x24 #replace by your PCF8574 address

switch:
- platform: gpio
name: "a8-light1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "a8-light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true

download yaml demo for ESPHome:

.txt DO8_config_yaml.txt (Size: 1.58 KB / Downloads: 744)

about A0,A1,A2 i2c address setting:
A0 A1 A2
0 0 0 =0x20
0 0 1 =0x21
0 1 0 =0x22
0 1 1 =0x23
1 0 0 =0x24
1 0 1 =0x25
1 1 0 =0x26
1 1 1 =0x27

PCF8574 IO Expansion i2c digital input board -DI8 arduino demo code

Posted by: admin - 02-23-2024, 04:12 AM - Forum: Extender module - No Replies

Code:
#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574(0x27,4,5); //4 is SDA 5 is SCL need replace by your board's pin define

/*

A0  A1  A2

0    0    0    =0x20

0    0    1    =0x21

0    1    0    =0x22

0    1    1    =0x23

1    0    0    =0x24

1    0    1    =0x25

1    1    0    =0x26

1    1    1    =0x27

*/

unsigned long timeElapsed;

void setup()

{

    Serial.begin(115200);

    delay(1000);

//    pcf8574.pinMode(P0, OUTPUT);

 pcf8574.pinMode(P0, INPUT);

 pcf8574.pinMode(P1, INPUT);

 pcf8574.pinMode(P2, INPUT);

 pcf8574.pinMode(P3, INPUT);

 pcf8574.pinMode(P4, INPUT);

 pcf8574.pinMode(P5, INPUT);

 pcf8574.pinMode(P6, INPUT);

 pcf8574.pinMode(P7, INPUT);

    Serial.print("Init pcf8574...");

    if (pcf8574.begin()){

        Serial.println("OK");

    }else{

        Serial.println("KO");

    }

}

void loop()

{

 uint8_t val1 = pcf8574.digitalRead(P0);

 uint8_t val2 = pcf8574.digitalRead(P1);

 uint8_t val3 = pcf8574.digitalRead(P2);

 uint8_t val4 = pcf8574.digitalRead(P3);

 uint8_t val5 = pcf8574.digitalRead(P4);

 uint8_t val6 = pcf8574.digitalRead(P5);

 uint8_t val7 = pcf8574.digitalRead(P6);

 uint8_t val8 = pcf8574.digitalRead(P7);

 if (val1==LOW) Serial.println("KEY1 PRESSED");

 if (val2==LOW) Serial.println("KEY2 PRESSED");

 if (val3==LOW) Serial.println("KEY3 PRESSED");

 if (val4==LOW) Serial.println("KEY4 PRESSED");

 if (val5==LOW) Serial.println("KEY5 PRESSED");

 if (val6==LOW) Serial.println("KEY6 PRESSED");

 if (val7==LOW) Serial.println("KEY7 PRESSED");

 if (val8==LOW) Serial.println("KEY8 PRESSED");

    delay(300);

}

arduino code download:

.zip

DI8.zip (Size: 594 bytes / Downloads: 841)

PCF8574 arduino library ZIP file download:

.zip

PCF8574_library.zip (Size: 23.8 MB / Downloads: 994)

PCF8574 IO Expansion i2c relay board -DO8 arduino demo code

Posted by: admin - 02-23-2024, 04:08 AM - Forum: Extender module - Replies (2)

Code:
#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574(0x27,4,5);  //4 is SDA  5 is SCL  need replace by your board's pin define

/*

A0  A1  A2

0    0    0    =0x20

0    0    1    =0x21

0    1    0    =0x22

0    1    1    =0x23

1    0    0    =0x24

1    0    1    =0x25

1    1    0    =0x26

1    1    1    =0x27

*/

void setup()

{

    Serial.begin(115200);

//    delay(1000);

    // Set pinMode to OUTPUT

    pcf8574.pinMode(P0, OUTPUT);

  pcf8574.pinMode(P1, OUTPUT);

  pcf8574.pinMode(P2, OUTPUT);

  pcf8574.pinMode(P3, OUTPUT);

  pcf8574.pinMode(P4, OUTPUT);

  pcf8574.pinMode(P5, OUTPUT);

  pcf8574.pinMode(P6, OUTPUT);

  pcf8574.pinMode(P7, OUTPUT);

//    pcf8574.pinMode(P1, INPUT);

    Serial.print("Init pcf8574...");

    if (pcf8574.begin()){

        Serial.println("OK");

    }else{

        Serial.println("KO");

    }

}

void loop()

{

    pcf8574.digitalWrite(P0, HIGH);

  delay(300);

  pcf8574.digitalWrite(P0, LOW);

  delay(300);

}

arduino code download

.zip

DO8.zip (Size: 485 bytes / Downloads: 935)
PCF8574 arduino library ZIP file download:

.zip

PCF8574_library.zip (Size: 23.8 MB / Downloads: 1083)

how to set KC868-H32B Pro relay inching mode with push buttons

Posted by: admin - 02-23-2024, 03:39 AM - Forum: KC868-HxB series Smart Controller - Replies (4)

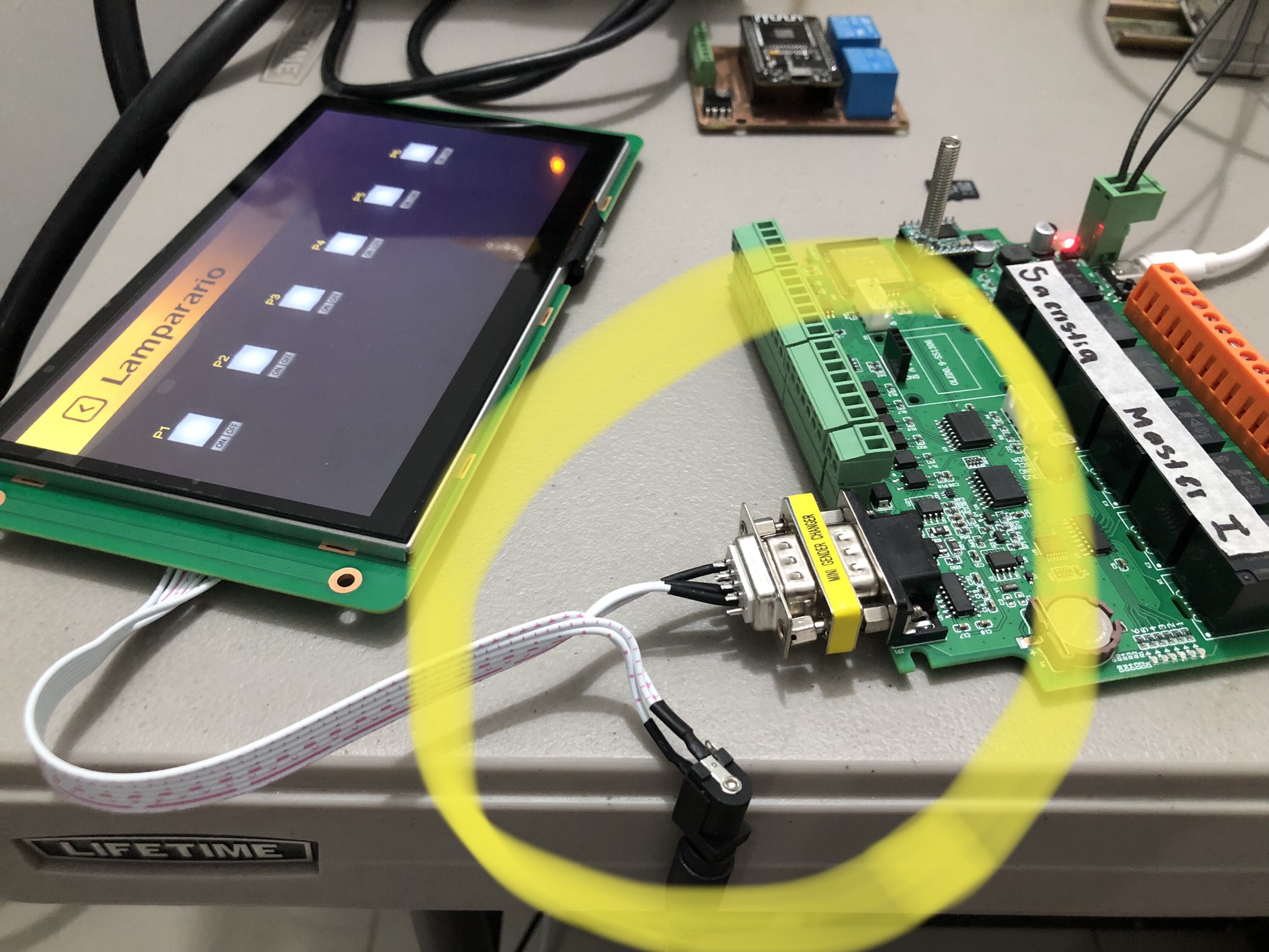

	for example: H32B Pro relay1 ON RS485 modbus command is: 01050000FF008C3A H32B Pro relay1 OFF RS485 modbus command is: 010500000000CDCA so you can create all custom RS485 protocol command for any buttons.

Updating ESPHome By Windows OS Command Line

Posted by: admin - 02-22-2024, 08:27 AM - Forum: Getting Started with ESPHome and Home Assistant - No Replies

	windows command line: pip3 install esphome --upgrade Or pip3 install esphome -U

how to use ESPHome dashboard in Windows OS

Posted by: admin - 02-20-2024, 11:50 AM - Forum: Getting Started with ESPHome and Home Assistant - No Replies

	(You have installed Python and ESPHome component, we have another lesson for it) 1. create folder called "config". 2. windows CMD mode , input command: esphome dashboard config/ 3. use web browser login with "localhost:6052"

KC868-A8M SIM7600 GPRS Disconnected

Posted by: deepthasm - 02-19-2024, 04:29 PM - Forum: KC868-A8M - Replies (11)

Hi,
Recently I bought KC868-A8M with SIM7600 module and Installed the latest KCS firmware (KCS_KC868_A8M_V2.1.9). I enabled the GSM on the network settings page. But, I'm getting "GPRS : disconnected" on monitor page. Try to clicking "Phone test" but I'm getting "error".

Following are the logs for reference.

[1B][0;32mI (2958) phy_init: phy_version 4670,719f9f6,Feb 18 2021,17:07:07[1B][0m
I (3046) wifi:mode : softAP (08:f9:e0:8a:ee:29)
I (3047) wifi:Total power save buffer number: 16
I (3047) wifi:Init max length of beacon: 752/752
I (3049) wifi:Init max length of beacon: 752/752
[1B][0;32mI (3054) web_server: Starting HTTP Server on port: '80'[1B][0m
[1B][0;32mI (3061) gpio: GPIO[0]| InputEn: 1| OutputEn: 0| OpenDrain: 0| Pullup: 1| Pulldown: 1| Intr:0 [1B][0m
[1B][0;32mI (3069) ntp: tz:UTC+0[1B][0m
[1B][0;32mI (3069) UDP SERVER: Socket created[1B][0m
[1B][0;32mI (3075) UDP SERVER: Socket bound, port 4001[1B][0m
[1B][0;32mI (3069) RF: RCSwitch->nReceiverInterrupt=16 gpio_pin_sel=65536[1B][0m
[1B][0;32mI (3087) gpio: GPIO[16]| InputEn: 1| OutputEn: 0| OpenDrain: 0| Pullup: 1| Pulldown: 0| Intr:3 [1B][0m
[1B][0;32mI (3097) RF: Start RF receiver[1B][0m
[1B][0;32mI (3097) uart: queue free spaces: 20[1B][0m
[1B][0;32mI (3104) gprs: gprs init success.[1B][0m
[1B][0;32mI (3115) pcf857x: pcf857x init.[1B][0m
eFuse Two Point: NOT supported
eFuse Vref: Supported
[1B][0;32mI (3117) analog: ---->adc1 thresholdd : 0[1B][0m

So on,

I checked SIM7600 module connecting directly to the Computer using USB. Module is working perfectly and can send and receive both SMS and Voice call.

Please help.

Attached Files Thumbnail(s)

Image(s)

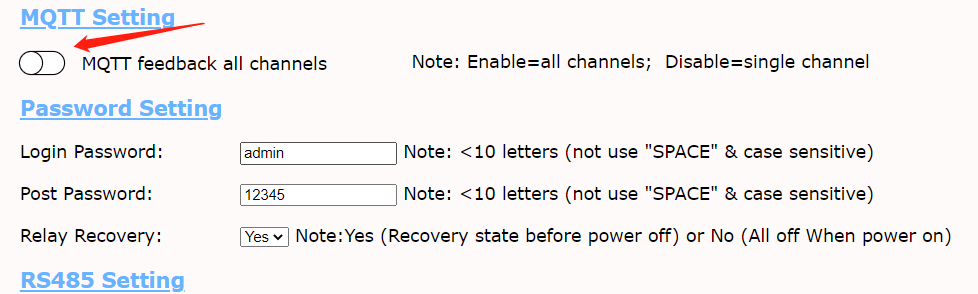

Filename: Settings 1.png Size: 18.05 KB 02-19-2024, 04:28 PM

Filename: error.png Size: 6.76 KB 02-19-2024, 04:28 PM

How expand input using I2C bus?

Posted by: DaddyLee76 - 02-19-2024, 12:08 PM - Forum: KC868-A8 - Replies (9)

Hello!
I bought two kc868-a8 and configured them via esphome.
For the moment I'm using 8 digital input + 2 analog input as binary sensor and all 8 output.
I have 2 question.
- Does it possible toggle one or more relays of the first card when I press one button of the second card? i know that I can use Home assistant for that but I'd like to know if there is a another way to do that.
- how can I expand input ports using IIC?
Regards

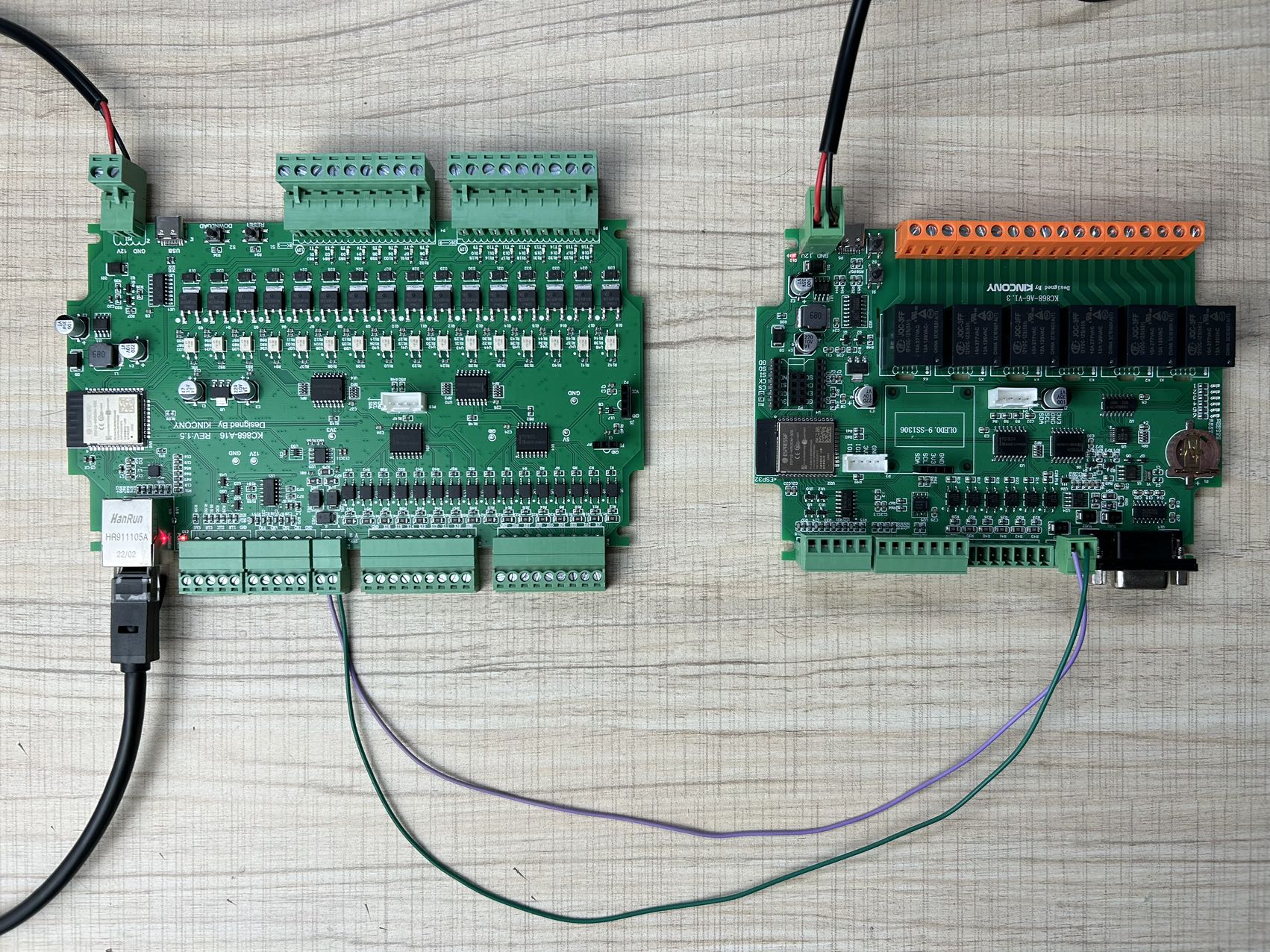

KC868-A16 expansion

Posted by: KP9 - 02-19-2024, 11:02 AM - Forum: KC868-A16 - Replies (4)

	Hello, how can I extend inputs and outputs? Can I use KC868-HA V2?
