  [arduino code examples for A2v3]-11 Digital input trigger relay output
Posted by: admin - 04-20-2025, 06:07 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Example to control relays based on digital input states using ESP32
* @details This program reads the states of two digital inputs (GPIO16, GPIO17)
*          and controls two relays (GPIO40, GPIO39) accordingly.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for digital inputs
#define INPUT1_PIN 16  // GPIO16 for Digital Input 1
#define INPUT2_PIN 17  // GPIO17 for Digital Input 2

// Define the GPIO pins for relays
#define RELAY1_PIN 40  // GPIO40 for Relay 1
#define RELAY2_PIN 39  // GPIO39 for Relay 2

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Input-Controlled Relay Example");

    // Set the input pins as INPUT
    pinMode(INPUT1_PIN, INPUT);
    pinMode(INPUT2_PIN, INPUT);

    // Set the relay pins as OUTPUT
    pinMode(RELAY1_PIN, OUTPUT);
    pinMode(RELAY2_PIN, OUTPUT);

    // Turn off both relays at startup (assuming active LOW relays)
    digitalWrite(RELAY1_PIN, HIGH);
    digitalWrite(RELAY2_PIN, HIGH);
}

void loop() {
    // Read the state of the digital inputs
    int state1 = digitalRead(INPUT1_PIN);
    int state2 = digitalRead(INPUT2_PIN);

    // Control the relays based on input states
    digitalWrite(RELAY1_PIN, state1 == HIGH ? LOW : HIGH); // Activate relay if input is HIGH
    digitalWrite(RELAY2_PIN, state2 == HIGH ? LOW : HIGH); // Activate relay if input is HIGH

    // Print the states to the Serial Monitor
    Serial.print("Digital Input 1 State: ");
    Serial.println(state1);
    Serial.print("Digital Input 2 State: ");
    Serial.println(state2);

    // Wait for 100 milliseconds before reading again
    delay(100);
}
arduino ino file download:

.zip   11-input-trigger-output.zip (Size: 866 bytes / Downloads: 376)

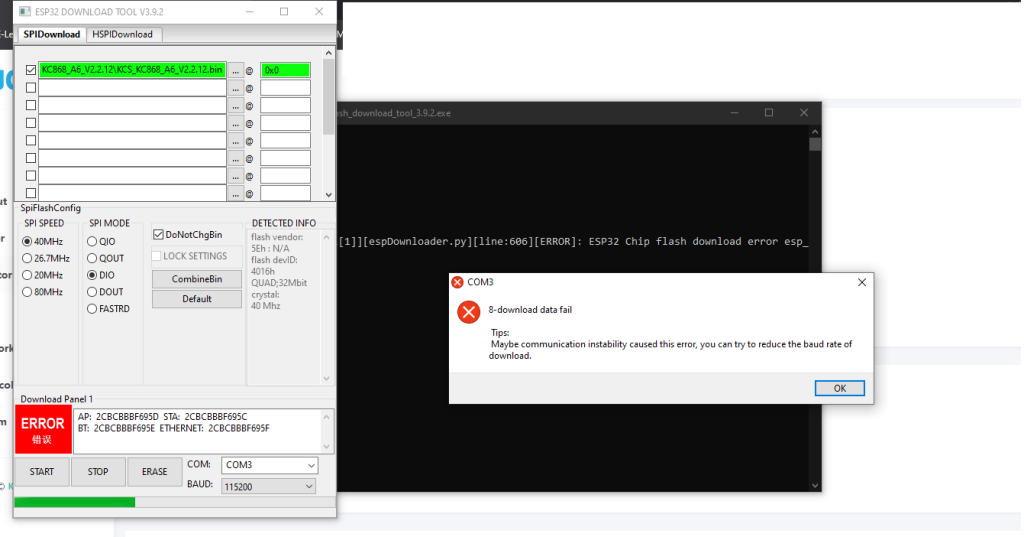

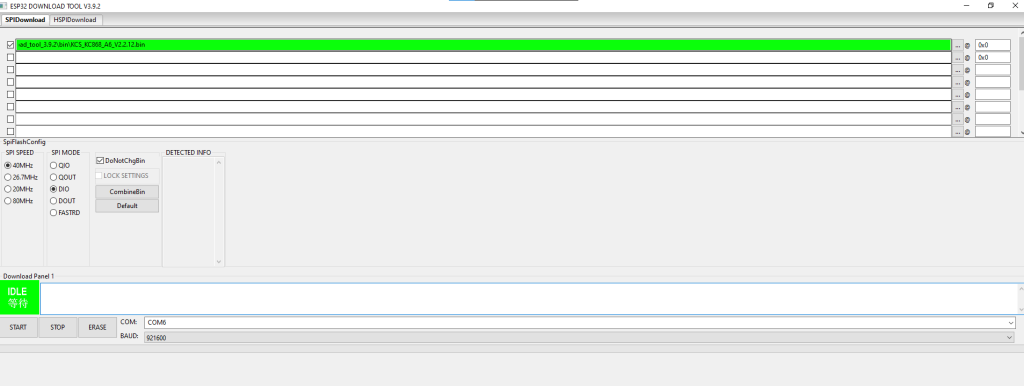

BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   11-input-trigger-output.ino.merged.zip (Size: 179.47 KB / Downloads: 326)

Print this item

  [arduino code examples for A2v3]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 04-20-2025, 06:04 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO47
* - SDA (data) on pin IO48
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO47, SDA = IO48)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  47, 48, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.12 KB / Downloads: 339)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 201.24 KB / Downloads: 345)

Print this item

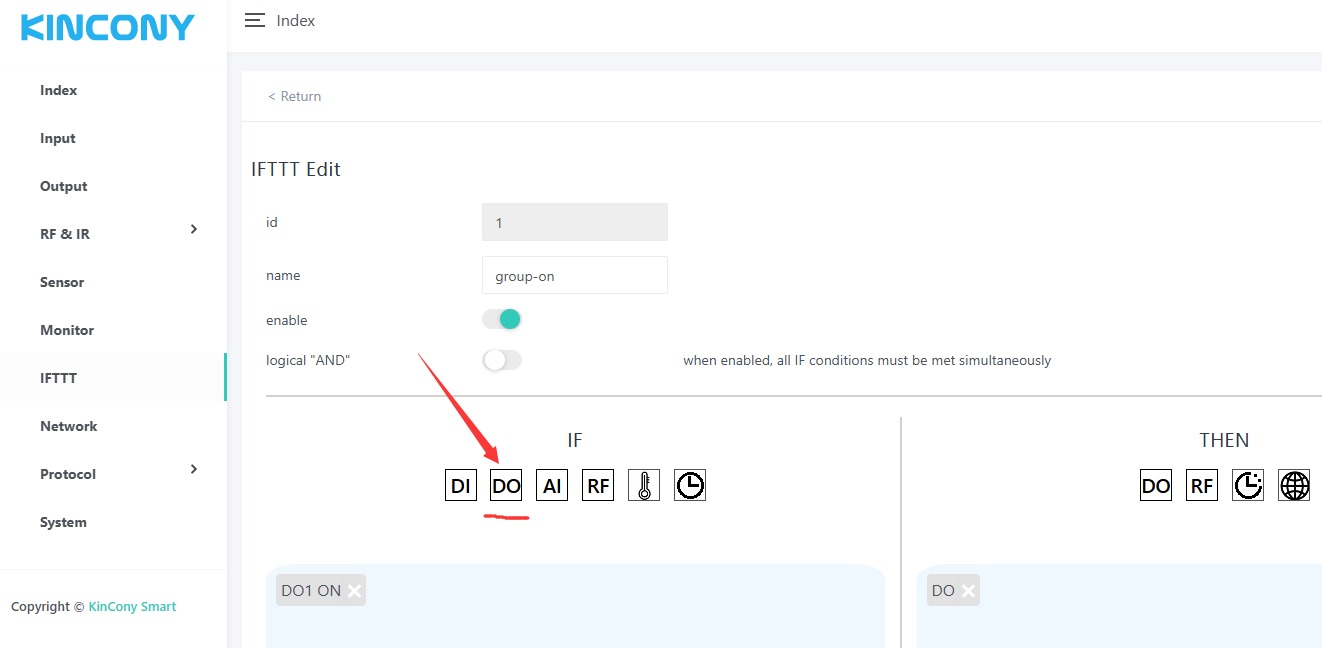

Photo KCSv3 ADC threshold does nothing with Home Assistant MQTT
Posted by: riri0 - 04-20-2025, 06:03 AM - Forum: "KCS" v3 firmware - Replies (3)

Hi. Does the ADC threshold not apply to Home Assistant MQTT? For testing, my CH1 is around 1430 to 1450, value does not go above 1450. I put 100 so it should update in MQTT the value when it go above 1500 correct? But in Home Assistant MQTT the value still update every 2 second between 1430 to 1450.
The drop in the graph is when I try reboot the board to see if threshold apply after reboot. Still same.


Print this item

  [arduino code examples for A2v3]-08 Ethernet W5500 chip work with TCP Server mode
Posted by: admin - 04-20-2025, 06:01 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program sets up an ESP32-S3 with a W5500 Ethernet module
* as a TCP server. It listens on port 4196 and echoes back any string
* received from a client.
*
* Hardware connections:
* - CLK: GPIO42
* - MOSI: GPIO43
* - MISO: GPIO44
* - CS: GPIO41
* - RST: GPIO1
* - INT: GPIO2
*
* Static IP address: 192.168.3.55
* Subnet Mask: 255.255.255.0
* Gateway: 192.168.3.1
* DNS: 192.168.3.1
*/

#include <SPI.h>
#include <Ethernet.h>

// Define the W5500 Ethernet module pins
#define W5500_CS_PIN  41
#define W5500_RST_PIN 1
#define W5500_INT_PIN 2
#define W5500_CLK_PIN 42
#define W5500_MOSI_PIN 43
#define W5500_MISO_PIN 44

// MAC address for your Ethernet shield (must be unique on your network)
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// Static IP address configuration
IPAddress ip(192, 168, 3, 55);       // Static IP address
IPAddress subnet(255, 255, 255, 0);   // Subnet mask
IPAddress gateway(192, 168, 3, 1);    // Default gateway
IPAddress dns(192, 168, 3, 1);        // DNS server address

// Create an EthernetServer object to handle TCP connections
EthernetServer server(4196);

void setup() {
  // Initialize serial communication
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for serial port to connect
  }

  // Initialize the W5500 module
  pinMode(W5500_RST_PIN, OUTPUT);
  pinMode(W5500_INT_PIN, INPUT);
  digitalWrite(W5500_RST_PIN, LOW);  // Reset the W5500 module
  delay(100);                       // Wait for reset to complete
  digitalWrite(W5500_RST_PIN, HIGH); // Release reset

  // Initialize SPI with the correct pin definitions
  SPI.begin(W5500_CLK_PIN, W5500_MISO_PIN, W5500_MOSI_PIN);

  // Set up the Ethernet library with W5500-specific pins
  Ethernet.init(W5500_CS_PIN);

  // Start the Ethernet connection with static IP configuration
  Ethernet.begin(mac, ip, dns, gateway, subnet);

  // Print the IP address to the serial monitor
  Serial.print("IP Address: ");
  Serial.println(Ethernet.localIP());

  // Start listening for incoming TCP connections
  server.begin();
}

void loop() {
  // Check for incoming client connections
  EthernetClient client = server.available();
  if (client) {
    Serial.println("New client connected");

    // Read data from the client and echo it back
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        server.write(c);
      }
    }

    // Close the connection when done
    client.stop();
    Serial.println("Client disconnected");
  }
}
arduino ino file download:

.zip   8-Ethernet-W5500.zip (Size: 1.23 KB / Downloads: 348)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   8-Ethernet-W5500.ino.merged.zip (Size: 188.93 KB / Downloads: 351)

Print this item

  [arduino code examples for A2v3]-07 how to DS3231 RTC clock
Posted by: admin - 04-20-2025, 06:00 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* DS3231 RTC with Arduino
*
* This program demonstrates how to use the DS3231 RTC (Real-Time Clock) module with the Arduino.
* It includes functionality to:
* - Initialize the DS3231 RTC module
* - Read the current date and time from the RTC
* - Set the RTC time based on a serial command:Command format: DYYYY-MM-DDTHH:MM:SS
*    Set date and time command example: D2024-09-19T11:50:22
*    print current date and time command: current time
*
*
* Hardware Connections:
* - SDA: GPIO 48
* - SCL: GPIO 47
*/

#include <DS3231.h>
#include <Wire.h>

String serial_cmd_rcv = ""; // Serial port receiver

typedef struct
{
  byte year;    // Last two digits of the year, library adds 2000.
  byte month;
  byte day;
  byte hour;
  byte minute;
  byte second;
} MY_DATE_STR;

MY_DATE_STR my_date_str = {0};

// Define constants for relay control
#define OPEN_RLY_DATA    26
#define OPEN_RLY_MONTH   4
#define CLOSE_RLY_DATA   2
#define CLOSE_RLY_MONTH  5

// Define pin connections
#define SDA_PIN   48
#define SCL_PIN   47

DS3231 rtc; // Create an instance of the DS3231 RTC
bool h12Flag;
bool pmFlag;
static bool bCentury = false;
static bool old_level_high = false;
static bool old_level_low = false;


/**
* @brief Print the current time from the RTC to the Serial Monitor.
*/
static void PrintfCurTime()
{
  Serial.print("Current time is: ");
  int year = rtc.getYear() + 2000;
  Serial.print(year);
  Serial.print("-");

  Serial.print(rtc.getMonth(bCentury), DEC);
  Serial.print("-");

  Serial.print(rtc.getDate(), DEC);
  Serial.print(" ");

  Serial.print(rtc.getHour(h12Flag, pmFlag), DEC);
  Serial.print(":");
  Serial.print(rtc.getMinute(), DEC);
  Serial.print(":");
  Serial.println(rtc.getSecond(), DEC);
}

/**
* @brief Process serial commands to set the RTC time.
* Command format: DYYYY-MM-DDTHH:MM:SS
*/
static void GetSerialCmd()
{
  if (Serial.available() > 0)
  {
    delay(100);
    int num_read = Serial.available();
    while (num_read--)
      serial_cmd_rcv += char(Serial.read());
  }
  else return;

  serial_cmd_rcv.trim();

  if (serial_cmd_rcv == "current time")
  {
    PrintfCurTime();
    serial_cmd_rcv = "";
    return;
  }

  Serial.print("Received length: ");
  Serial.println(serial_cmd_rcv.length());

  int indexof_d = serial_cmd_rcv.indexOf('D');
  int indexof_t = serial_cmd_rcv.indexOf('T');

  Serial.print("D index: ");
  Serial.print(indexof_d);
  Serial.print(" T index: ");
  Serial.println(indexof_t);

  if (serial_cmd_rcv.length() != 20 ||
      serial_cmd_rcv.substring(0, 1) != "D" ||
      serial_cmd_rcv.substring(11, 12) != "T")
  {
    Serial.println(serial_cmd_rcv);
    serial_cmd_rcv = "";
    return;
  }

  Serial.println("Setting time...");

  my_date_str.year = (byte)serial_cmd_rcv.substring(3, 5).toInt();
  my_date_str.month = (byte)serial_cmd_rcv.substring(6, 8).toInt();
  my_date_str.day = (byte)serial_cmd_rcv.substring(9, 11).toInt();
  my_date_str.hour = (byte)serial_cmd_rcv.substring(12, 14).toInt();
  my_date_str.minute = (byte)serial_cmd_rcv.substring(15, 17).toInt();
  my_date_str.second = (byte)serial_cmd_rcv.substring(18).toInt();

  rtc.setYear(my_date_str.year);
  rtc.setMonth(my_date_str.month);
  rtc.setDate(my_date_str.day);
  rtc.setHour(my_date_str.hour);
  rtc.setMinute(my_date_str.minute);
  rtc.setSecond(my_date_str.second);

  serial_cmd_rcv = "";

  Serial.println("Time set.");
}

void setup() {
  // Initialize the I2C interface
  Wire.begin(SDA_PIN, SCL_PIN, 40000);

  // Initialize Serial communication
  Serial.begin(115200);
  // Set the RTC to 24-hour mode
  rtc.setClockMode(false); // 24-hour format

  // Print current time to Serial Monitor
  PrintfCurTime();

  // Clear any remaining serial data
  while (Serial.read() >= 0) {}
}

void loop() {
  // Process incoming serial commands
  GetSerialCmd();
  delay(1000); // Delay for 1 second
}
arduino ino file download:

.zip   7-DS3231-RTC.zip (Size: 1.56 KB / Downloads: 329)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   7-DS3231-RTC.ino.merged.zip (Size: 191.09 KB / Downloads: 328)

Print this item

  [arduino code examples for A2v3]-06 How to use SD Card
Posted by: admin - 04-20-2025, 05:58 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* SD Card File Operations
*
* This program demonstrates basic file operations on an SD card using the ESP32.
* It includes functionality to:
* - Initialize and test the SD card
* - Read from, write to, append to, and delete files on the SD card
* - Measure file read and write performance
*
* Hardware Connections:
* - SCK: GPIO 13
* - MISO: GPIO 14
* - MOSI: GPIO 12
* - CS: GPIO 11
*/

#include "FS.h"
#include "SD.h"
#include "SPI.h"

// Pin definitions for SD card
#define SCK  13
#define MISO 14
#define MOSI 12
#define CS   11

/**
* @brief Reads the contents of a file from the SD card and prints it to the serial monitor.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to read.
*/
void readFile(fs::FS &fs, const char * path) {
  Serial.printf("Reading file: %s\n", path);

  File file = fs.open(path);
  if (!file) {
    Serial.println("Failed to open file for reading");
    return;
  }

  Serial.print("Read from file: ");
  while (file.available()) {
    Serial.print((char)file.read());
  }
  file.close();
}

/**
* @brief Writes a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to write.
* @param message Message to write to the file.
*/
void writeFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Writing file: %s\n", path);

  File file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }
  if (file.print(message)) {
    Serial.println("File written");
  } else {
    Serial.println("Write failed");
  }
  file.close();
}

/**
* @brief Appends a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to append.
* @param message Message to append to the file.
*/
void appendFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Appending to file: %s\n", path);

  File file = fs.open(path, FILE_APPEND);
  if (!file) {
    Serial.println("Failed to open file for appending");
    return;
  }
  if (file.print(message)) {
    Serial.println("Message appended");
  } else {
    Serial.println("Append failed");
  }
  file.close();
}

/**
* @brief Deletes a file from the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to delete.
*/
void deleteFile(fs::FS &fs, const char * path) {
  Serial.printf("Deleting file: %s\n", path);
  if (fs.remove(path)) {
    Serial.println("File deleted");
  } else {
    Serial.println("Delete failed");
  }
}

/**
* @brief Tests file read and write performance.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to test.
*/
void testFileIO(fs::FS &fs, const char * path) {
  File file = fs.open(path);
  static uint8_t buf[512];
  size_t len = 0;
  uint32_t start = millis();
  uint32_t end = start;

  if (file) {
    len = file.size();
    size_t flen = len;
    start = millis();
    while (len) {
      size_t toRead = len;
      if (toRead > 512) {
        toRead = 512;
      }
      file.read(buf, toRead);
      len -= toRead;
    }
    end = millis() - start;
    Serial.printf("%u bytes read for %u ms\n", flen, end);
    file.close();
  } else {
    Serial.println("Failed to open file for reading");
  }

  file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }

  size_t i;
  start = millis();
  for (i = 0; i < 2048; i++) {
    file.write(buf, 512);
  }
  end = millis() - start;
  Serial.printf("%u bytes written for %u ms\n", 2048 * 512, end);
  file.close();
}

void setup() {
  // Initialize serial communication
  Serial.begin(115200);

  // Initialize SPI and SD card
  SPIClass spi = SPIClass(HSPI);
  spi.begin(SCK, MISO, MOSI, CS);

  if (!SD.begin(CS, spi, 80000000)) {
    Serial.println("Card Mount Failed");
    return;
  }

  uint8_t cardType = SD.cardType();

  if (cardType == CARD_NONE) {
    Serial.println("No SD card attached");
    return;
  }

  Serial.print("SD Card Type: ");
  if (cardType == CARD_MMC) {
    Serial.println("MMC");
  } else if (cardType == CARD_SD) {
    Serial.println("SDSC");
  } else if (cardType == CARD_SDHC) {
    Serial.println("SDHC");
  } else {
    Serial.println("UNKNOWN");
  }

  uint64_t cardSize = SD.cardSize() / (1024 * 1024);
  Serial.printf("SD Card Size: %lluMB\n", cardSize);
  delay(2000);

  // Perform file operations
  deleteFile(SD, "/hello.txt");
  writeFile(SD, "/hello.txt", "Hello ");
  appendFile(SD, "/hello.txt", "World!\n");
  readFile(SD, "/hello.txt");
  testFileIO(SD, "/test.txt");
  Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
  Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
}

void loop() {
  // No operation in loop
}
arduino ino file download:

.zip   6-SD.zip (Size: 1.53 KB / Downloads: 341)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   6-SD.ino.merged.zip (Size: 221.25 KB / Downloads: 316)

Print this item

  [arduino code examples for A2v3]-05 Read free GPIO state
Posted by: admin - 04-20-2025, 05:57 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Simple example to read multiple digital inputs using ESP32
* @details This program demonstrates how to read digital input states
*          from GPIO18, GPIO8, GPIO4, GPIO5, GPIO6, and GPIO38 of an ESP32 development board.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for digital inputs
#define INPUT1_PIN 18  // GPIO18
#define INPUT2_PIN 8   // GPIO8
#define INPUT3_PIN 4   // GPIO4
#define INPUT4_PIN 5   // GPIO5
#define INPUT5_PIN 6   // GPIO6
#define INPUT6_PIN 38  // GPIO38

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Digital Input Read Example");

    // Set the input pins as INPUT
    pinMode(INPUT1_PIN, INPUT);
    pinMode(INPUT2_PIN, INPUT);
    pinMode(INPUT3_PIN, INPUT);
    pinMode(INPUT4_PIN, INPUT);
    pinMode(INPUT5_PIN, INPUT);
    pinMode(INPUT6_PIN, INPUT);
}

void loop() {
    // Read the state of the digital inputs
    int state1 = digitalRead(INPUT1_PIN);
    int state2 = digitalRead(INPUT2_PIN);
    int state3 = digitalRead(INPUT3_PIN);
    int state4 = digitalRead(INPUT4_PIN);
    int state5 = digitalRead(INPUT5_PIN);
    int state6 = digitalRead(INPUT6_PIN);

    // Print the states to the Serial Monitor
    Serial.print("GPIO18 State: ");
    Serial.println(state1);
    Serial.print("GPIO8 State: ");
    Serial.println(state2);
    Serial.print("GPIO4 State: ");
    Serial.println(state3);
    Serial.print("GPIO5 State: ");
    Serial.println(state4);
    Serial.print("GPIO6 State: ");
    Serial.println(state5);
    Serial.print("GPIO38 State: ");
    Serial.println(state6);

    // Wait for 500 milliseconds before reading again
    delay(500);
}
arduino ino file download:

.zip   5-free-gpio-state.zip (Size: 773 bytes / Downloads: 331)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   5-free-gpio-state.ino.merged.zip (Size: 179.48 KB / Downloads: 345)

Print this item

  [arduino code examples for A2v3]-04 RS485 communication test
Posted by: admin - 04-20-2025, 05:54 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 15
#define RS485_TXD 7

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony A2v3!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 763 bytes / Downloads: 351)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 184.35 KB / Downloads: 334)

Print this item

  [arduino code examples for A2v3]-02 Read digital input ports state
Posted by: admin - 04-20-2025, 05:50 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Simple example to read two digital inputs using ESP32
* @details This program demonstrates how to read two digital input states
*          from GPIO16 and GPIO17 of an ESP32 development board.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for digital inputs
#define INPUT1_PIN 16  // GPIO16 for Digital Input 1
#define INPUT2_PIN 17  // GPIO17 for Digital Input 2

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Digital Input Read Example");

    // Set the input pins as INPUT
    pinMode(INPUT1_PIN, INPUT);
    pinMode(INPUT2_PIN, INPUT);
}

void loop() {
    // Read the state of the digital inputs
    int state1 = digitalRead(INPUT1_PIN);
    int state2 = digitalRead(INPUT2_PIN);

    // Print the states to the Serial Monitor
    Serial.print("Digital Input 1 State: ");
    Serial.println(state1);
    Serial.print("Digital Input 2 State: ");
    Serial.println(state2);

    // Wait for 500 milliseconds before reading again
    delay(500);
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 667 bytes / Downloads: 327)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 179.35 KB / Downloads: 306)

Print this item

  [arduino code examples for A2v3]-01 Turn ON/OFF OUTPUT
Posted by: admin - 04-20-2025, 05:48 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Simple example to control two relays using ESP32
* @details This program demonstrates how to control two relays connected to GPIO40 and GPIO39
*          of an ESP32 development board.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for the relays
#define RELAY1_PIN 40  // GPIO40 for Relay 1
#define RELAY2_PIN 39  // GPIO39 for Relay 2

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Relay Control Example");

    // Set the relay pins as output
    pinMode(RELAY1_PIN, OUTPUT);
    pinMode(RELAY2_PIN, OUTPUT);

    // Turn off both relays at startup (assuming active LOW relays)
    digitalWrite(RELAY1_PIN, HIGH);
    digitalWrite(RELAY2_PIN, HIGH);
}

void loop() {
    Serial.println("Turning ON Relay 1");
    digitalWrite(RELAY1_PIN, LOW); // Activate relay 1
    delay(1000); // Wait for 1 second

    Serial.println("Turning OFF Relay 1");
    digitalWrite(RELAY1_PIN, HIGH); // Deactivate relay 1
    delay(1000);

    Serial.println("Turning ON Relay 2");
    digitalWrite(RELAY2_PIN, LOW); // Activate relay 2
    delay(1000);

    Serial.println("Turning OFF Relay 2");
    digitalWrite(RELAY2_PIN, HIGH); // Deactivate relay 2
    delay(1000);
}
arduino ino file download:

.zip   1-output.zip (Size: 683 bytes / Downloads: 317)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   1-output.ino.merged.zip (Size: 179.19 KB / Downloads: 338)

Print this item
