  KC868-A16 ethernet work with home assistant by ESPHome configure
Posted by: admin - 01-06-2022, 02:04 AM - Forum: KC868-A16 - Replies (14)

esphome:
  name: a16
  platform: ESP32
  board: esp32dev


# Example configuration entry for ESP32
i2c:
  sda: 4
  scl: 5
  scan: true
  id: bus_a


# Example configuration entry
ethernet:
  type: LAN8720
  mdc_pin: GPIO23
  mdio_pin: GPIO18
  clk_mode: GPIO17_OUT
  phy_addr: 0

  # Optional manual IP
  manual_ip:
    static_ip: 192.168.1.199
    gateway: 192.168.1.1
    subnet: 255.255.255.0


# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    address: 0x24

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16
    address: 0x25

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    address: 0x21

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    address: 0x22

# Individual outputs
switch:
  - platform: gpio
    name: "light1"
    pin:
      pcf8574: pcf8574_hub_out_1
      # Use pin number 0
      number: 0
      # One of INPUT or OUTPUT
      mode: OUTPUT
      inverted: false

  - platform: gpio
    name: "light9"
    pin:
      pcf8574: pcf8574_hub_out_2
      # Use pin number 0
      number: 0
      # One of INPUT or OUTPUT
      mode: OUTPUT
      inverted: false

binary_sensor:
  - platform: gpio
    name: "input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      # Use pin number 0
      number: 0
      # One of INPUT or OUTPUT
      mode: INPUT
      inverted: false

  - platform: gpio
    name: "input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      # Use pin number 0
      number: 0
      # One of INPUT or OUTPUT
      mode: INPUT
      inverted: false

# Enable logging
logger:

# Enable Home Assistant API
api:



Print this item

  Controlling all wall sockets using Kincony products
Posted by: viktor - 01-05-2022, 09:23 PM - Forum: KC868-HxB series Smart Controller - Replies (5)

Hi guys,
I follow Kincony products for some time and really like all the features they bring. I'm not electrician, have no experience with smart installations yet, but have master's from computer networks. As we are moving to a new flat that requires complete re-construction, I'm playing with an idea to buy Kincony products and turn that place into a smart one. I'm not fan of wireless connections due to security, so was thinking about wiring everything - around 10 lights, 15 wall switches, 30 wall sockets and 4 external curtains. LAN network would be OK for me. I struggle with few things and maybe somebody in this forum can help me to answer them? Sorry If my questions are lame...

1. Is above described scenario OK for Kincony products?
2. I'm located in Europe and our sockets have max load of 16A. I see that KC868-H output ports have max load of 10A. So how can this control 16A sockets? Should I use those Omron relays that support 16A? If so how to chain them?
3. If I want to be able to turn on/off each wall socket separately, what products should I use and how to wire them? Max output ports I see in the list is 32, so seems like I need to do some chaining? Also, when it comes to connection, do I need to run separate L wire between relay appliance and sockets? When it comes to N and GND wires, those can be chained from one socket to another?
4. I understand that wall switches will only use 12V. Initially I thought they only use some simple data bus wire to send signal about pushed button to controller. But looking at the pictures of some Kincony switches in articles posted here, there are many ports on the back side. So how does this actually work and how many wires do I need to run to each wall switch?
5. Finally, which products should I buy to achieve all of this? It is clear that I will need to ask electrician for installation. But I would like to understand this myself as well.

Thank you.

Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#08-PCF8574-DO
Posted by: KinCony Support - 01-05-2022, 08:27 AM - Forum: KC868-A16 - Replies (17)

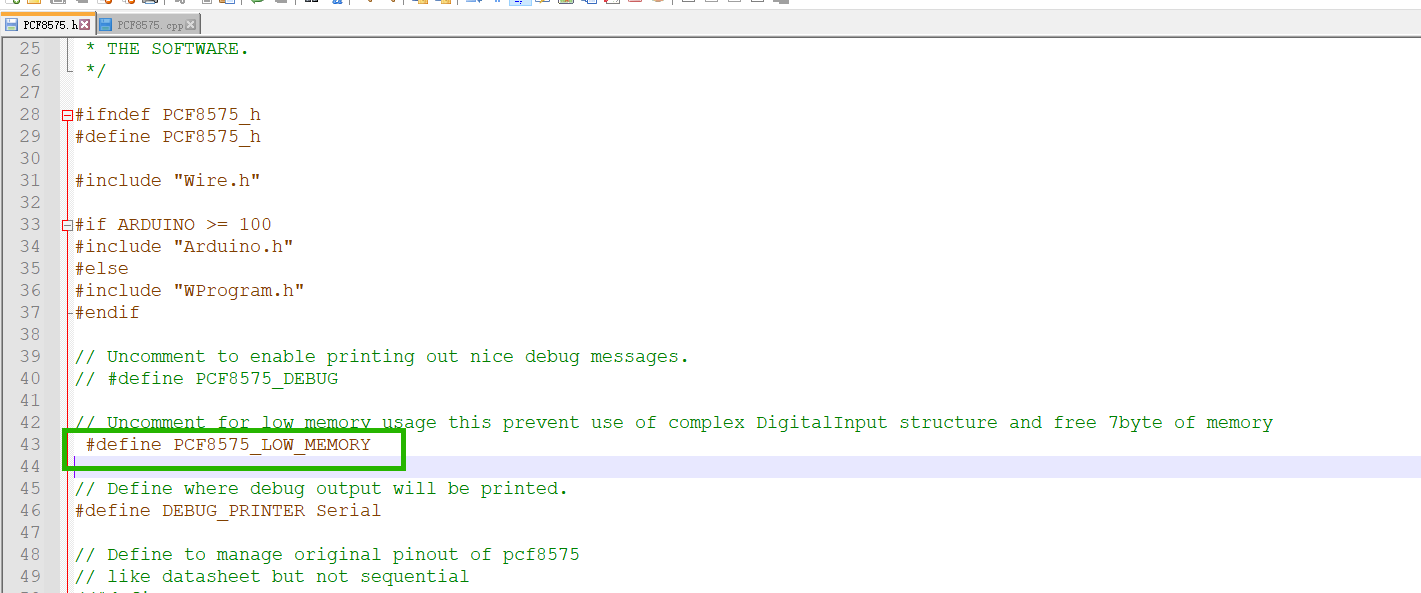

Code 7: //The demo code is PCF8574-DO    You can copy the code to your Arduino IDE.


Code:
#include "Arduino.h"
#include "PCF8574.h"

// Set i2c address
PCF8574 pcf8574_1(0x24,4,5);
PCF8574 pcf8574_2(0x25,4,5);

void setup()
{
  Serial.begin(115200);

  pcf8574_1.pinMode(P0, OUTPUT);
  pcf8574_1.pinMode(P1, OUTPUT);
  pcf8574_1.pinMode(P2, OUTPUT);
  pcf8574_1.pinMode(P3, OUTPUT);
  pcf8574_1.pinMode(P4, OUTPUT);
  pcf8574_1.pinMode(P5, OUTPUT);
  pcf8574_1.pinMode(P6, OUTPUT);
  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);
  pcf8574_2.pinMode(P1, OUTPUT);
  pcf8574_2.pinMode(P2, OUTPUT);
  pcf8574_2.pinMode(P3, OUTPUT);
  pcf8574_2.pinMode(P4, OUTPUT);
  pcf8574_2.pinMode(P5, OUTPUT);
  pcf8574_2.pinMode(P6, OUTPUT);
  pcf8574_2.pinMode(P7, OUTPUT);


    Serial.print("Init pcf8574_1...");
    if (pcf8574_1.begin()){
        Serial.println("PCF8574_1_OK");
    }else{
        Serial.println("PCF8574_1_KO");
    }

  Serial.print("Init pcf8574_2...");
  if (pcf8574_2.begin()){
    Serial.println("PCF8574_2_OK");
  }else{
    Serial.println("PCF8574_2_KO");
  }


}

void loop()
{
  pcf8574_1.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_1.digitalWrite(P7, HIGH);
  delay(1000);

  pcf8574_2.digitalWrite(P7, LOW);
  delay(1000);
  pcf8574_2.digitalWrite(P7, HIGH);
  delay(1000);
}



Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#07-PCF8574-DI
Posted by: KinCony Support - 01-05-2022, 08:26 AM - Forum: KC868-A16 - Replies (4)

Code 6: //The demo code is PCF8574-DI    You can copy the code to your Arduino IDE

Code:
#include "Arduino.h"
#include "PCF8574.h"

// Set i2c input address
PCF8574 pcf8574_1(0x22,4,5);  // channel 1-8    address: 100010
PCF8574 pcf8574_2(0x21,4,5);  //channel 9-16    address: 100001



unsigned long timeElapsed;
void setup()
{
    Serial.begin(115200);
    delay(1000);
pcf8574_1.pinMode(P0, INPUT);
pcf8574_1.pinMode(P1, INPUT);
pcf8574_1.pinMode(P2, INPUT);
pcf8574_1.pinMode(P3, INPUT);
pcf8574_1.pinMode(P4, INPUT);
pcf8574_1.pinMode(P5, INPUT);
pcf8574_1.pinMode(P6, INPUT);
pcf8574_1.pinMode(P7, INPUT);

pcf8574_2.pinMode(P0, INPUT);
pcf8574_2.pinMode(P1, INPUT);
pcf8574_2.pinMode(P2, INPUT);
pcf8574_2.pinMode(P3, INPUT);
pcf8574_2.pinMode(P4, INPUT);
pcf8574_2.pinMode(P5, INPUT);
pcf8574_2.pinMode(P6, INPUT);
pcf8574_2.pinMode(P7, INPUT);

    Serial.print("Init pcf8574...");
    if (pcf8574_1.begin()){
        Serial.println("pcf8574_1_OK");
    }else{
        Serial.println("pcf8574_1_KO");
    }

  Serial.print("Init pcf8574...");
  if (pcf8574_2.begin()){
    Serial.println("pcf8574_2_OK");
  }else{
    Serial.println("pcf8574_2_KO");
  }


}

void loop()
{
uint8_t val1 = pcf8574_1.digitalRead(P0);
uint8_t val2 = pcf8574_1.digitalRead(P1);
uint8_t val3 = pcf8574_1.digitalRead(P2);
uint8_t val4 = pcf8574_1.digitalRead(P3);
uint8_t val5 = pcf8574_1.digitalRead(P4);
uint8_t val6 = pcf8574_1.digitalRead(P5);
uint8_t val7 = pcf8574_1.digitalRead(P6);
uint8_t val8 = pcf8574_1.digitalRead(P7);

uint8_t val9 = pcf8574_2.digitalRead(P0);
uint8_t val10 = pcf8574_2.digitalRead(P1);
uint8_t val11 = pcf8574_2.digitalRead(P2);
uint8_t val12 = pcf8574_2.digitalRead(P3);
uint8_t val13 = pcf8574_2.digitalRead(P4);
uint8_t val14 = pcf8574_2.digitalRead(P5);
uint8_t val15 = pcf8574_2.digitalRead(P6);
uint8_t val16 = pcf8574_2.digitalRead(P7);

if (val1==LOW) Serial.println("KEY1 PRESSED");
if (val2==LOW) Serial.println("KEY2 PRESSED");
if (val3==LOW) Serial.println("KEY3 PRESSED");
if (val4==LOW) Serial.println("KEY4 PRESSED");
if (val5==LOW) Serial.println("KEY5 PRESSED");
if (val6==LOW) Serial.println("KEY6 PRESSED");
if (val7==LOW) Serial.println("KEY7 PRESSED");
if (val8==LOW) Serial.println("KEY8 PRESSED");

if (val9==LOW) Serial.println("KEY1 PRESSED");
if (val10==LOW) Serial.println("KEY2 PRESSED");
if (val11==LOW) Serial.println("KEY3 PRESSED");
if (val12==LOW) Serial.println("KEY4 PRESSED");
if (val13==LOW) Serial.println("KEY5 PRESSED");
if (val14==LOW) Serial.println("KEY6 PRESSED");
if (val15==LOW) Serial.println("KEY7 PRESSED");
if (val16==LOW) Serial.println("KEY8 PRESSED");
delay(300);
}



Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#06-LAN8720-UDP
Posted by: KinCony Support - 01-05-2022, 08:06 AM - Forum: KC868-A16 - No Replies

Code 5: //The demo code is LAN8720-UDP    You can copy the code to your Arduino IDE

Code:
#include <ETH.h>
#include <WiFiUdp.h>

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN   18
#define ETH_TYPE       ETH_PHY_LAN8720
#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object
unsigned int localUdpPort = 4196; //local port
IPAddress local_ip(192, 168, 1, 200);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 255, 0);
IPAddress dns(192, 168, 1, 1);

void setup()
{
  Serial.begin(115200);
  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2
  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {
    Serial.println("LAN8720 Configuration failed.");
  }else{Serial.println("LAN8720 Configuration success.");}

/* while(!((uint32_t)ETH.localIP())) //wait for IP
  {

  }*/
  Serial.println("Connected");
  Serial.print("IP Address:");
  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener
}

void loop()
{
  int packetSize = Udp.parsePacket(); //get package size
  if (packetSize)                     //if have received data
  {
    char buf[packetSize];
    Udp.read(buf, packetSize); //read current data

    Serial.println();
    Serial.print("Received: ");
    Serial.println(buf);
    Serial.print("From IP: ");
    Serial.println(Udp.remoteIP());
    Serial.print("From Port: ");
    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data
    Udp.print("Received: ");
    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer
    Udp.endPacket();            //send data
  }
}


Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#05-DS18B20
Posted by: KinCony Support - 01-05-2022, 08:04 AM - Forum: KC868-A16 - No Replies

Code4: //The demo code is DS18B20    You can copy the code to your Arduino IDE

Code:
#include <DS18B20.h>

#define LOW_ALARM 10
#define HIGH_ALARM 15

DS18B20 ds(33);   //PIN #33
uint8_t address[] = {40, 168, 111, 11, 44, 32, 1, 185};
uint8_t selected;

void setup() {
  Serial.begin(9600);
  selected = ds.select(address);

  if (selected) {
    ds.setAlarms(LOW_ALARM, HIGH_ALARM);
  } else {
    Serial.println("Device not found!");
  }
}

void loop() {
  if (selected) {
    if (ds.hasAlarm()) {
      Serial.print("Warning! Temperature is ");
      Serial.print(ds.getTempC());
      Serial.println(" C");
    }
  } else {
    Serial.println("Device not found!");
  }

  //delay(10000);
}


Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#04-ADC INPUT
Posted by: KinCony Support - 01-05-2022, 08:01 AM - Forum: KC868-A16 - Replies (2)

Code 3: //The demo code is ADC INPUT    You can copy the code to your Arduino IDE

Code:
#include "Arduino.h"

#define ANALOG_A1   36
#define ANALOG_A2   34
#define ANALOG_A1   35
#define ANALOG_A2   39

void setup()
{
    Serial.begin(115200);
    delay(1000);

  pinMode(ANALOG_A1,INPUT);
  pinMode(ANALOG_A2,INPUT);
  pinMode(ANALOG_A3,INPUT);
  pinMode(ANALOG_A4,INPUT);
}

void loop()
{
  delay(500);
  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));
  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));
  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));
  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));
}

Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#03-RF receive
Posted by: KinCony Support - 01-05-2022, 07:58 AM - Forum: KC868-A16 - No Replies

Code 2: //The demo code is RF-receive    You can copy the code to your Arduino IDE

Code:
#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {
  Serial.begin(9600);
  mySwitch.enableReceive(digitalPinToInterrupt(2));   //Receive pin IO02
}

void loop() {
  if (mySwitch.available()) {

    Serial.print("Received ");
    Serial.print( mySwitch.getReceivedValue() );
    Serial.print(" / ");
    Serial.print( mySwitch.getReceivedBitlength() );
    Serial.print("bit ");
    Serial.print("Protocol: ");
    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();
  }
}



Attached Files Thumbnail(s)

Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#02-RF send
Posted by: KinCony Support - 01-05-2022, 07:53 AM - Forum: KC868-A16 - No Replies

Code 1: //The demo code is RF-send  You can copy the code to your Arduino IDE

Code:
#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {

  Serial.begin(9600);

  // Transmitter is connected to Arduino Pin #15
  mySwitch.enableTransmit(15);
}

void loop() {

  /* See Example: TypeA_WithDIPSwitches */
  mySwitch.switchOn("11111", "00010");
  delay(1000);
  mySwitch.switchOff("11111", "00010");
  delay(1000);

  /* Same switch as above, but using decimal code */
  mySwitch.send(5393, 24);
  delay(1000);
  mySwitch.send(5396, 24);
  delay(1000);

  /* Same switch as above, but using binary code */
  mySwitch.send("000000000001010100010001");
  delay(1000);
  mySwitch.send("000000000001010100010100");
  delay(1000);

  /* Same switch as above, but tri-state code */
  mySwitch.sendTriState("00000FFF0F0F");
  delay(1000);
  mySwitch.sendTriState("00000FFF0FF0");
  delay(1000);
}


Print this item

Rainbow [Arduino IDE demo source code for KC868-A16]--#01-config Arduino IDE for ESP32 module
Posted by: KinCony Support - 01-05-2022, 07:47 AM - Forum: KC868-A16 - Replies (9)

 Before using KC868-A16, you need to set the parameters of the preference
Copy the following URL: https://dl.espressif.com/dl/package_esp32_index.json






.pdf   KC868-A16-schematic.pdf (Size: 794.92 KB / Downloads: 1293)

Print this item
