  Board for window contact sensors
Posted by: threadstone - 12-07-2023, 08:53 PM - Forum: Development - Replies (15)

Dear Kincony-Team,

I'm currently looking for a suitable circuit board to realize a new project. At my search I found your website and some boards that could be the right one (for example the KC868-AI) but I’m not sure which one is the right one. Can you possibly tell me if the KC868-AI is the right one respectively which of your boards would be suitable?

I have 13 windows in my house and every window has an sensor for the status (open, closed and tilted). I want to integrate these sensors in my already existing Home Assistant installation. I think the integration via ESP could be one solution.
Here the information about the sensors:


  • 7-wire cable
    • 2 wires for the sabotage loop / sabotage line
    • 2 wires for the signaling contact (generally open/closed)
    • 3 wires for the open/tilted state (common "ground")

According to the instructions, there are also the following technical data:
  • General:
    • Switch voltage max. 48V DC
    • Contact resistance max. 150mOhm
  • Surveillance:
    • Switching current max. 0.5A
    • Transport current max. 1.0A
    • Switch performance max. 10W pure ohmic load
  • or for the tilt status query:
    • Switching current max. 0.25A
    • Transport current max. 1.2A
    • Switch performance max. 3W pure ohmic load

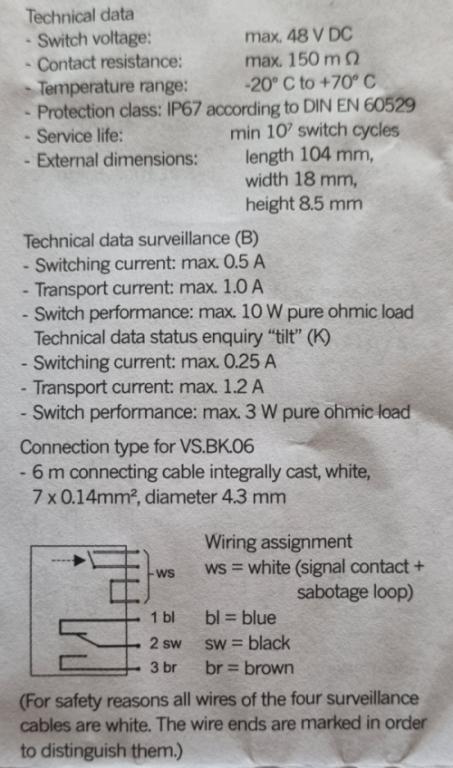

Attached you can find an extrude of the installation instructions.

It would be nice if you could tell me if the KC868-AI is suitable. If it is not, which of your boards would be suitable? Is there eventually already a program / yaml for ESP or Home Assistant is existing?

Thank you in advance.



Attached Files Thumbnail(s)

Print this item

  TDS Sensor
Posted by: suliman0007 - 12-07-2023, 03:42 PM - Forum: KC868-A8 - Replies (3)

Hello
I Want conncetd TDS Sensor
Model SEN0244   to KC868-A8
I tride this  example :
#define TdsSensorPin 34
#define VREF 3.3              // analog reference voltage(Volt) of the ADC
#define SCOUNT  30            // sum of sample point

int analogBuffer[SCOUNT];    // store the analog value in the array, read from ADC
int analogBufferTemp[SCOUNT];
int analogBufferIndex = 0;
int copyIndex = 0;

float averageVoltage = 0;
float tdsValue = 0;
float temperature = 23;      // current temperature for compensation

// median filtering algorithm
int getMedianNum(int bArray[], int iFilterLen){
  int bTab[iFilterLen];
  for (byte i = 0; i<iFilterLen; i++)
  bTab[i] = bArray[i];
  int i, j, bTemp;
  for (j = 0; j < iFilterLen - 1; j++) {
    for (i = 0; i < iFilterLen - j - 1; i++) {
      if (bTab[i] > bTab[i + 1]) {
        bTemp = bTab[i];
        bTab[i] = bTab[i + 1];
        bTab[i + 1] = bTemp;
      }
    }
  }
  if ((iFilterLen & 1) > 0){
    bTemp = bTab[(iFilterLen - 1) / 2];
  }
  else {
    bTemp = (bTab[iFilterLen / 2] + bTab[iFilterLen / 2 - 1]) / 2;
  }
  return bTemp;
}

void setup(){
  Serial.begin(115200);
  pinMode(TdsSensorPin,INPUT);
}

void loop(){
  static unsigned long analogSampleTimepoint = millis();
  if(millis()-analogSampleTimepoint > 40U){    //every 40 milliseconds,read the analog value from the ADC
    analogSampleTimepoint = millis();
    analogBuffer[analogBufferIndex] = analogRead(TdsSensorPin);    //read the analog value and store into the buffer
    analogBufferIndex++;
    if(analogBufferIndex == SCOUNT){
      analogBufferIndex = 0;
    }
  }

  static unsigned long printTimepoint = millis();
  if(millis()-printTimepoint > 800U){
    printTimepoint = millis();
    for(copyIndex=0; copyIndex<SCOUNT; copyIndex++){
      analogBufferTemp[copyIndex] = analogBuffer[copyIndex];

      // read the analog value more stable by the median filtering algorithm, and convert to voltage value
      averageVoltage = getMedianNum(analogBufferTemp,SCOUNT) * (float)VREF / 1024.0;

      //temperature compensation formula: fFinalResult(25^C) = fFinalResult(current)/(1.0+0.02*(fTP-25.0));
      float compensationCoefficient = 1.0+0.02*(temperature-25.0);
      //temperature compensation
      float compensationVoltage=averageVoltage/compensationCoefficient;

      //convert voltage value to tds value
      tdsValue=(133.42*compensationVoltage*compensationVoltage*compensationVoltage - 255.86*compensationVoltage*compensationVoltage + 857.39*compensationVoltage)*0.5;

      //Serial.print("voltage:");
      //Serial.print(averageVoltage,2);
      //Serial.print("V  ");
      Serial.print("TDS Value:");
      Serial.print(tdsValue,0);
      Serial.println("ppm");
    }
  }
}


the result ppm 0

I Need Help

Print this item

  A24 arduino demo source code-06- Ethernet LAN8720 by UDP
Posted by: KinCony Support - 12-07-2023, 02:39 AM - Forum: KinCony A24 - No Replies

Code:
#include <ETH.h>
#include <WiFiUdp.h>

#define ETH_ADDR        0
#define ETH_POWER_PIN  -1
#define ETH_MDC_PIN    23
#define ETH_MDIO_PIN   18
#define ETH_TYPE       ETH_PHY_LAN8720
#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object
unsigned int localUdpPort = 4196; //local port

// Set it based on the IP address of the router
IPAddress local_ip(192, 168, 1, 200);
IPAddress gateway(192, 168, 1, 1);
IPAddress subnet(255, 255, 255, 0);
IPAddress dns(192, 168, 1, 1);

void setup()
{
  Serial.begin(115200);
  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2
  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {
    Serial.println("LAN8720 Configuration failed.");
  }else{Serial.println("LAN8720 Configuration success.");}
  Serial.println("Connected");
  Serial.print("IP Address:");
  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener
}

void loop()
{
  int packetSize = Udp.parsePacket(); //get package size
  if (packetSize)                     //if have received data
  {
    char buf[packetSize];
    Udp.read(buf, packetSize); //read current data

    Serial.println();
    Serial.print("Received: ");
    Serial.println(buf);
    Serial.print("From IP: ");
    Serial.println(Udp.remoteIP());
    Serial.print("From Port: ");
    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data
    Udp.print("Received: ");
    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer
    Udp.endPacket();            //send data
  }
}


Print this item

  A24 arduino demo source code-05-read DS18B20 temperature sensor
Posted by: KinCony Support - 12-07-2023, 02:32 AM - Forum: KinCony A24 - No Replies

Code:
#include <DS18B20.h>
DS18B20 ds1(15);  //channel-1-DS18b20


void setup()
{
  Serial.begin(115200);
}

void loop()
{
  Serial.print("Temperature1:");
  Serial.print(ds1.getTempC());
  Serial.print(" C /");
  delay(500);
}


Print this item

  A24 arduino demo source code-04-read K-type thermocouple by MAX31855
Posted by: KinCony Support - 12-07-2023, 02:24 AM - Forum: KinCony A24 - No Replies

Code:
#include <my_max31855.h>
#include <arduino.h>
#include <EasyPCF8575.h>
#include "HardwareSerial.h"

EasyPCF8575 pcf8575_dev;
HardwareSerial my485Serial(2);
MY_MAX31855_Class mx31855_dev1;
MY_MAX31855_Class mx31855_dev2;
MY_MAX31855_Class mx31855_dev3;

int32_t result_value1 = 0;
int32_t result_value2 = 0;
int32_t result_value3 = 0;
void setup() {

  my485Serial.begin(38400,SERIAL_8N1,32,33);
  while(my485Serial.read()>0){}

  pcf8575_dev.startI2C(16,5,0x21);

  my485Serial.print("try Find8575:addr is ");
  my485Serial.print(pcf8575_dev.findPCFaddr(),HEX);

  mx31855_dev1.begin(1,12,14,false);  //1 is CH1
  mx31855_dev2.begin(2,12,14,false);  //2 is CH2
  mx31855_dev3.begin(3,12,14,false);  //3 is CH3

}

void loop() {
result_value1 = mx31855_dev1.readProbe();
result_value2 = mx31855_dev2.readProbe();
result_value3 = mx31855_dev3.readProbe();
my485Serial.printf("current1 temp:%d C||current2 temp:%d C||current3 temp:%d C\n",result_value1/1000,result_value2/1000,result_value3/1000);
delay(1000);
}
Install  easypcf8575  library

Unzip max31855.zip file and copy the file to arduino librarys

.zip   MAX31855.zip (Size: 4.54 KB / Downloads: 781)


Print this item

  A24 arduino demo source code-03-anlog input (ADC)
Posted by: KinCony Support - 12-07-2023, 02:07 AM - Forum: KinCony A24 - No Replies

Code:
#include "Arduino.h"

#define ANALOG_A1   35
#define ANALOG_A2   34
#define ANALOG_A3   39
#define ANALOG_A4   36
void setup()
{
Serial.begin(115200);
delay(1000);

  pinMode(ANALOG_A1,INPUT);
  pinMode(ANALOG_A2,INPUT);
  pinMode(ANALOG_A3,INPUT);
  pinMode(ANALOG_A4,INPUT);
}

void loop()
{
  if(analogRead(ANALOG_A1)!=0)
    {  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));delay(500);}
  if(analogRead(ANALOG_A2)!=0)
    {  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));delay(500);}
  if(analogRead(ANALOG_A3)!=0)
    {  Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));delay(500);}
  if(analogRead(ANALOG_A4)!=0)
    {  Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));delay(500);}

}



Print this item

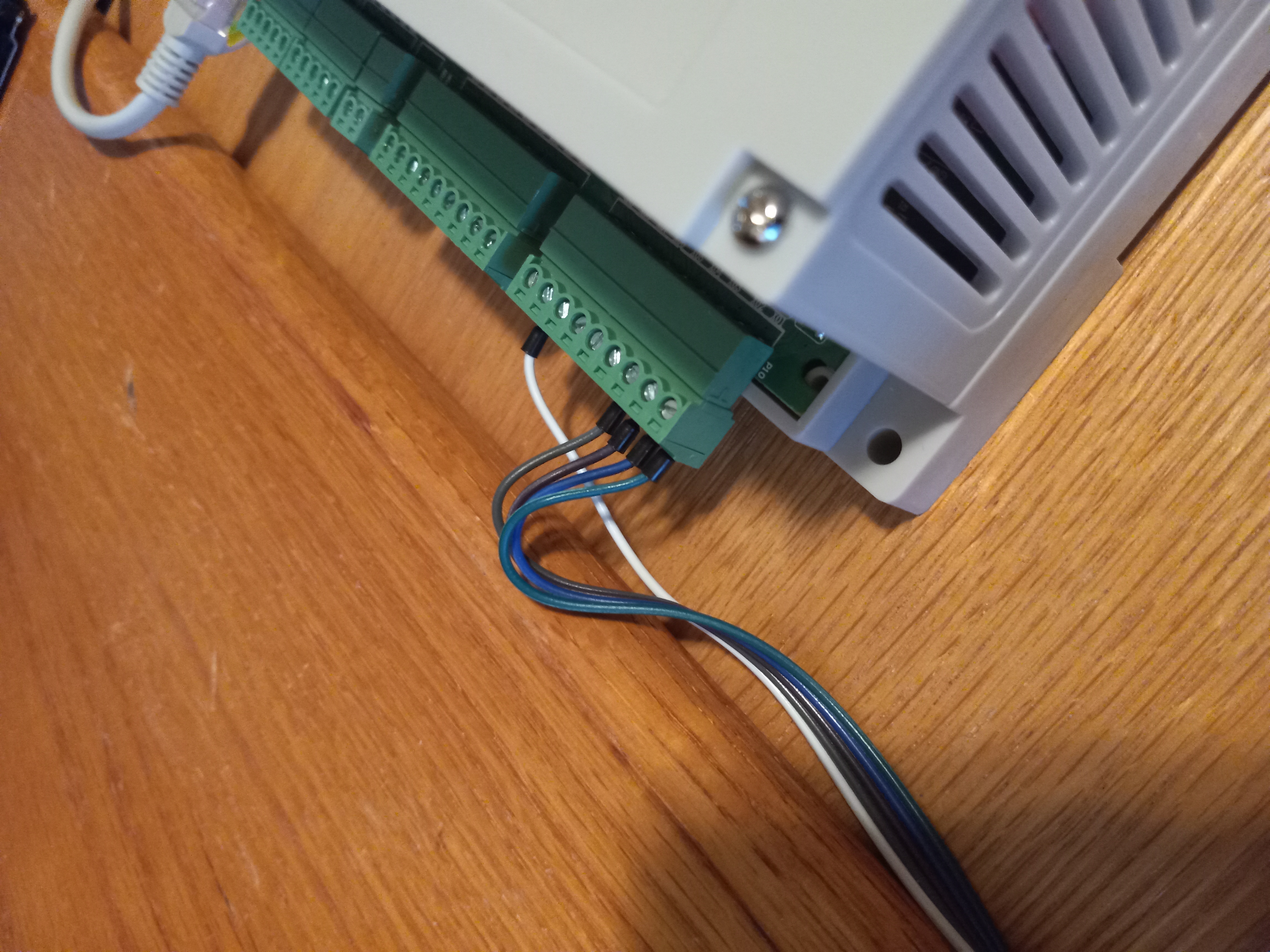

  A24 arduino demo source code-02-digital input
Posted by: KinCony Support - 12-07-2023, 02:00 AM - Forum: KinCony A24 - No Replies

Code:
#include "Arduino.h"
#include "PCF8575.h"
#define delaytime    200
PCF8575 pcf8575_IN1(0x24,16,5);
PCF8575 pcf8575_IN2(0x25,16,5);
void setup()
{
  Serial.begin(115200);
  delay(100);
/**************************************************************/
pcf8575_IN1.begin();
pcf8575_IN2.begin();
  for (int a=0;a<=15;a++)
    {
      pcf8575_IN1.pinMode(a,INPUT);

    }
     for (int a=0;a<=7;a++)
    {
     pcf8575_IN2.pinMode(a,INPUT);
    }
/*************************************/
}
void loop()
{
  delay(delaytime);
  for(int a=0;a<=15;a++){
     if (pcf8575_IN1.digitalRead(a)==0) Serial.printf(("KEY %d PRESSED\n"),a+1);
  }
  for(int a=0;a<=7;a++){
     if (pcf8575_IN2.digitalRead(a)==0) Serial.printf(("KEY %d PRESSED\n"),a+17);
  }

}



Print this item

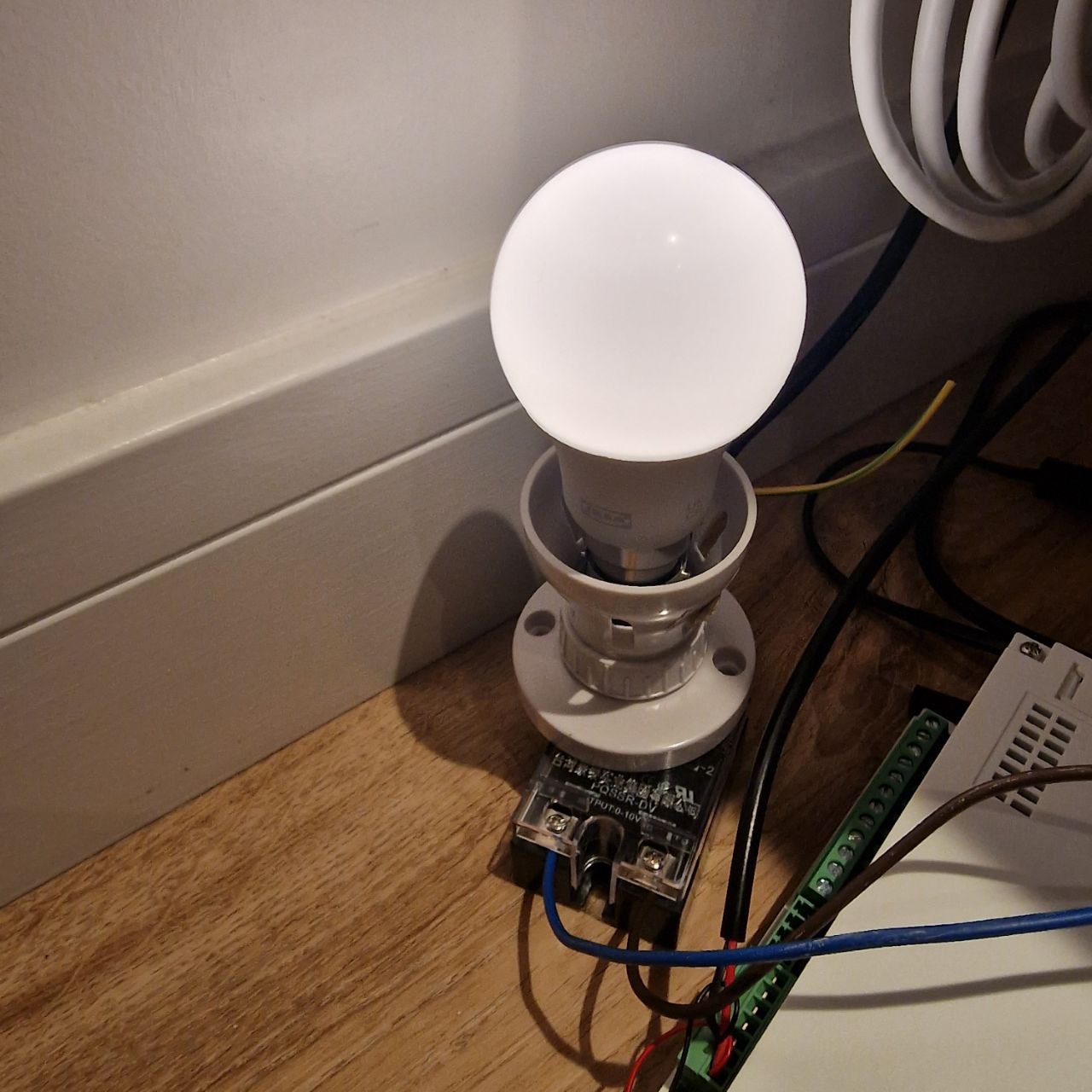

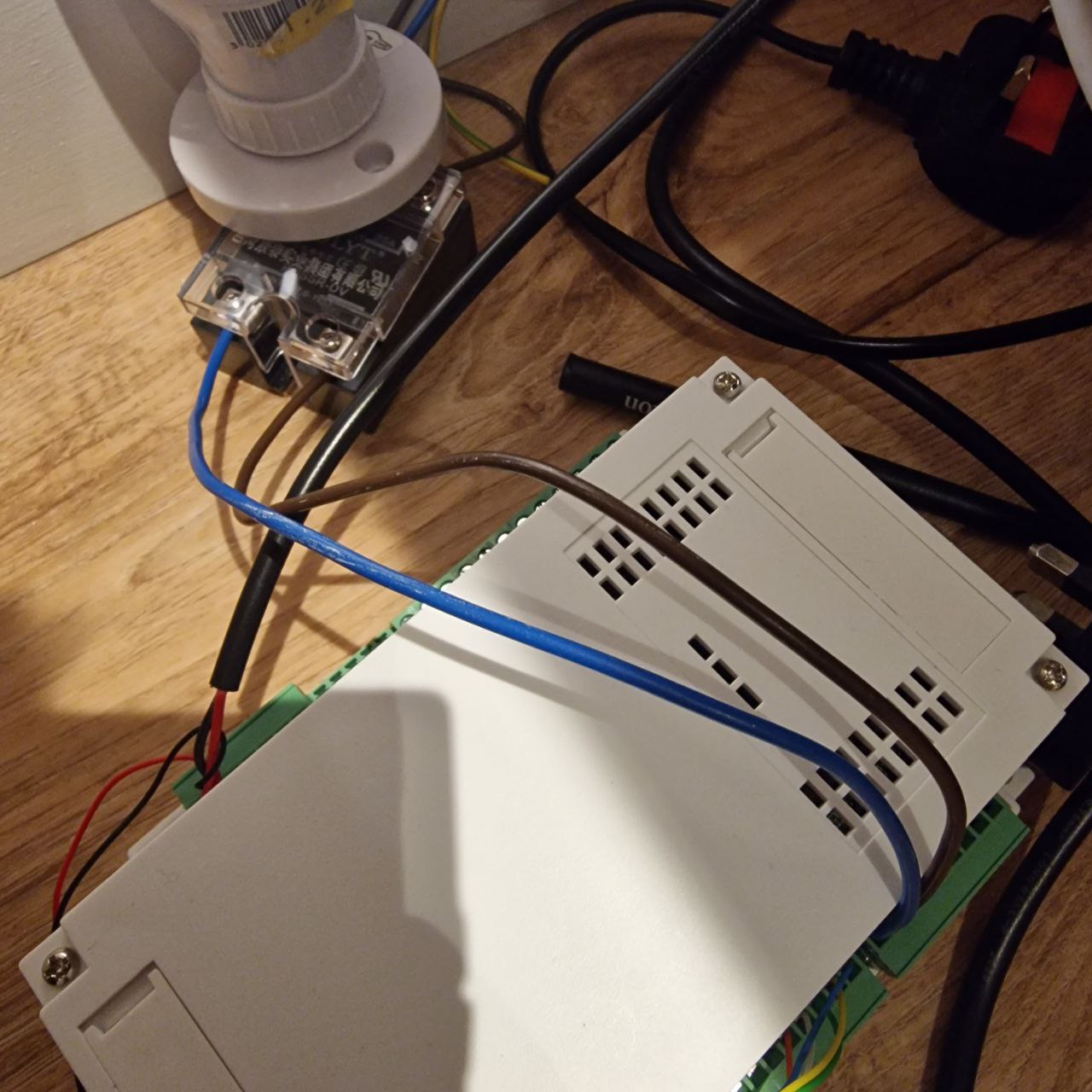

  A24 arduino demo source code-01-relay output
Posted by: KinCony Support - 12-07-2023, 01:52 AM - Forum: KinCony A24 - No Replies

Code:
#include "Arduino.h"
#include "PCF8575.h"
// Set i2c address
PCF8575 pcf8575_R1(0x21,16,5);
PCF8575 pcf8575_R2(0x22,16,5);
unsigned long timeElapsed;
void setup()
{
  Serial.begin(115200);
  Serial.println(__FILE__);
pcf8575_R1.pinMode(P0,OUTPUT);
pcf8575_R1.pinMode(P1,OUTPUT);
pcf8575_R1.pinMode(P2,OUTPUT);
pcf8575_R1.pinMode(P3,OUTPUT);
pcf8575_R1.pinMode(P4,OUTPUT);
pcf8575_R1.pinMode(P5,OUTPUT);
pcf8575_R1.pinMode(P6,OUTPUT);
pcf8575_R1.pinMode(P7,OUTPUT);
pcf8575_R1.pinMode(P8,OUTPUT);
pcf8575_R1.pinMode(P9,OUTPUT);
pcf8575_R1.pinMode(P10,OUTPUT);
pcf8575_R1.pinMode(P11,OUTPUT);
pcf8575_R2.pinMode(P0,OUTPUT);
pcf8575_R2.pinMode(P1,OUTPUT);
pcf8575_R2.pinMode(P2,OUTPUT);
pcf8575_R2.pinMode(P3,OUTPUT);
pcf8575_R2.pinMode(P4,OUTPUT);
pcf8575_R2.pinMode(P5,OUTPUT);
pcf8575_R2.pinMode(P6,OUTPUT);
pcf8575_R2.pinMode(P7,OUTPUT);
pcf8575_R2.pinMode(P8,OUTPUT);
pcf8575_R2.pinMode(P9,OUTPUT);
pcf8575_R2.pinMode(P10,OUTPUT);
pcf8575_R2.pinMode(P11,OUTPUT);
  pcf8575_R1.begin();
  pcf8575_R2.begin();
}
void loop()
{
pcf8575_R1.digitalWrite(P0,HIGH);delay(500);
pcf8575_R1.digitalWrite(P1,HIGH);delay(500);
pcf8575_R1.digitalWrite(P2,HIGH);delay(500);
pcf8575_R1.digitalWrite(P3,HIGH);delay(500);
pcf8575_R1.digitalWrite(P4,HIGH);delay(500);
pcf8575_R1.digitalWrite(P5,HIGH);delay(500);
pcf8575_R1.digitalWrite(P6,HIGH);delay(500);
pcf8575_R1.digitalWrite(P7,HIGH);delay(500);
pcf8575_R1.digitalWrite(P8,HIGH);delay(500);
pcf8575_R1.digitalWrite(P9,HIGH);delay(500);
pcf8575_R1.digitalWrite(P10,HIGH);delay(500);
pcf8575_R1.digitalWrite(P11,HIGH);delay(500);
pcf8575_R2.digitalWrite(P0,HIGH);delay(500);
pcf8575_R2.digitalWrite(P1,HIGH);delay(500);
pcf8575_R2.digitalWrite(P2,HIGH);delay(500);
pcf8575_R2.digitalWrite(P3,HIGH);delay(500);
pcf8575_R2.digitalWrite(P4,HIGH);delay(500);
pcf8575_R2.digitalWrite(P5,HIGH);delay(500);
pcf8575_R2.digitalWrite(P6,HIGH);delay(500);
pcf8575_R2.digitalWrite(P7,HIGH);delay(500);
pcf8575_R2.digitalWrite(P8,HIGH);delay(500);
pcf8575_R2.digitalWrite(P9,HIGH);delay(500);
pcf8575_R2.digitalWrite(P10,HIGH);delay(500);
pcf8575_R2.digitalWrite(P11,HIGH);delay(500);
pcf8575_R1.digitalWrite(P0,LOW);delay(500);
pcf8575_R1.digitalWrite(P1,LOW);delay(500);
pcf8575_R1.digitalWrite(P2,LOW);delay(500);
pcf8575_R1.digitalWrite(P3,LOW);delay(500);
pcf8575_R1.digitalWrite(P4,LOW);delay(500);
pcf8575_R1.digitalWrite(P5,LOW);delay(500);
pcf8575_R1.digitalWrite(P6,LOW);delay(500);
pcf8575_R1.digitalWrite(P7,LOW);delay(500);
pcf8575_R1.digitalWrite(P8,LOW);delay(500);
pcf8575_R1.digitalWrite(P9,LOW);delay(500);
pcf8575_R1.digitalWrite(P10,LOW);delay(500);
pcf8575_R1.digitalWrite(P11,LOW);delay(500);
pcf8575_R2.digitalWrite(P0,LOW);delay(500);
pcf8575_R2.digitalWrite(P1,LOW);delay(500);
pcf8575_R2.digitalWrite(P2,LOW);delay(500);
pcf8575_R2.digitalWrite(P3,LOW);delay(500);
pcf8575_R2.digitalWrite(P4,LOW);delay(500);
pcf8575_R2.digitalWrite(P5,LOW);delay(500);
pcf8575_R2.digitalWrite(P6,LOW);delay(500);
pcf8575_R2.digitalWrite(P7,LOW);delay(500);
pcf8575_R2.digitalWrite(P8,LOW);delay(500);
pcf8575_R2.digitalWrite(P9,LOW);delay(500);
pcf8575_R2.digitalWrite(P10,LOW);delay(500);
pcf8575_R2.digitalWrite(P11,LOW);delay(500);
}




Print this item

  "KCS" v2.2.2 firmware BIN file download
Posted by: admin - 12-07-2023, 01:31 AM - Forum: "KCS" v2 firmware system - Replies (73)

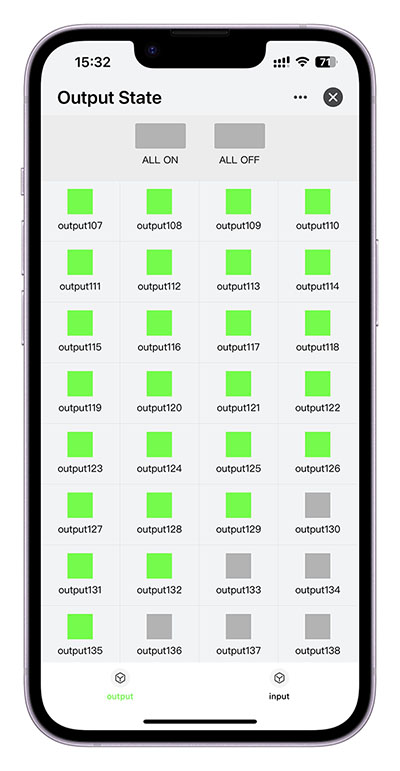

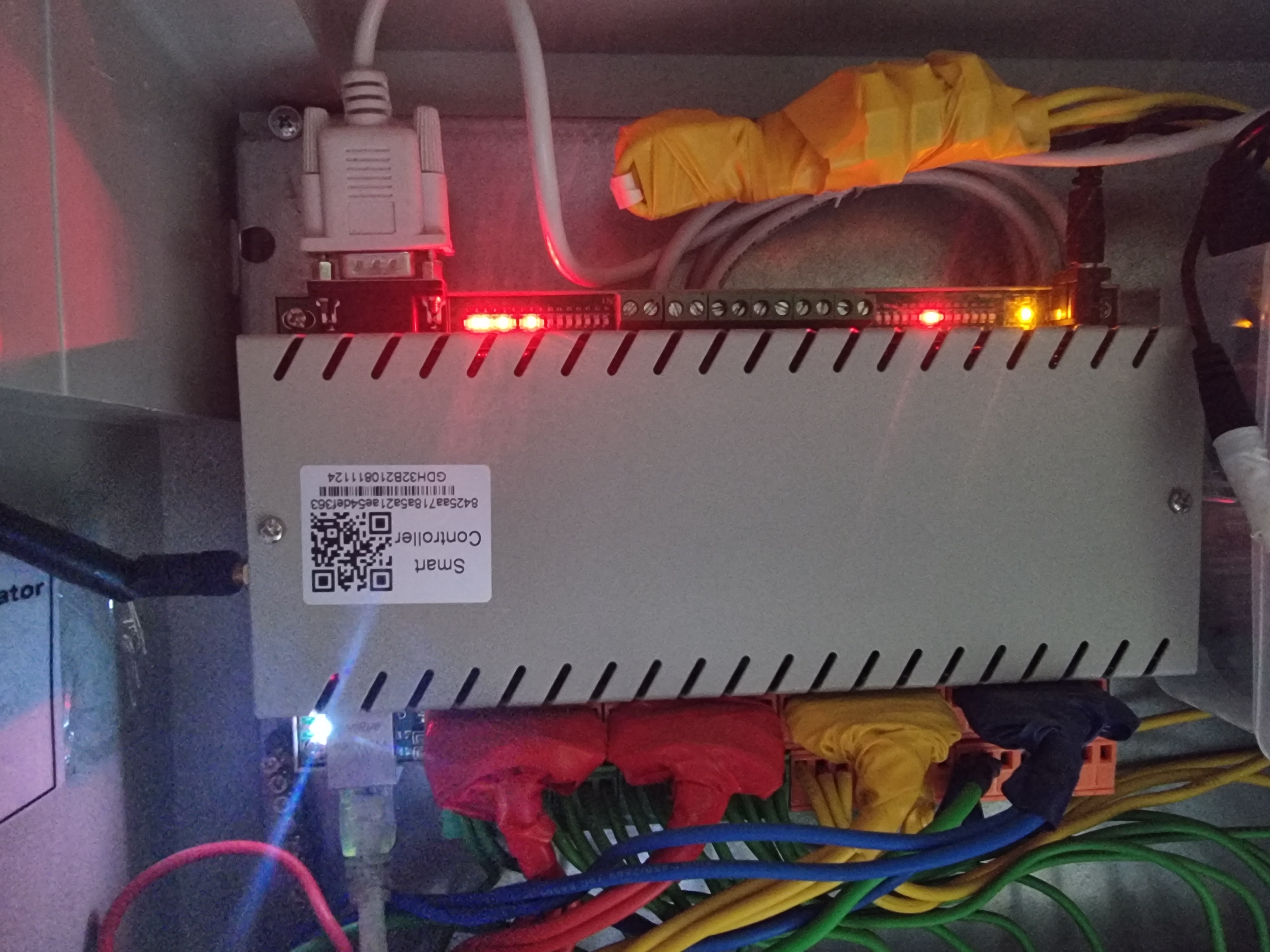

Here is "KCS" firmware for KinCony KC868-A series (ESP32) board.
How to download and use, online guide: https://www.kincony.com/esp32-kcsv2-firmware.html

v2.2.2 improment:
1. fixed bug can't show negative temperature with DS18B20



Attached Files
.zip   KCS_KC868_A8M_V2.2.2.zip (Size: 796.94 KB / Downloads: 1248)
.zip   KCS_KC868_A8S_V2.2.2.zip (Size: 798.07 KB / Downloads: 1057)
.zip   KCS_KC868_A16_V2.2.2.zip (Size: 787.79 KB / Downloads: 2010)
.zip   KCS_KC868_A16S_V2.2.2.zip (Size: 798.17 KB / Downloads: 1089)
.zip   KCS_KC868_A4S_V2.2.2.zip (Size: 797.08 KB / Downloads: 1034)
.zip   KCS_KC868_A4_V2.2.2.zip (Size: 776.82 KB / Downloads: 1277)
.zip   KCS_KC868_UAIR_V2.2.2.zip (Size: 763.55 KB / Downloads: 1041)
.zip   KCS_KC868_A2_V2.2.2.zip (Size: 786.48 KB / Downloads: 1033)
.zip   KCS_KC868_AG_V2.2.2.zip (Size: 760.46 KB / Downloads: 1075)
.zip   KCS_KC868_AI_V2.2.2.zip (Size: 784.33 KB / Downloads: 970)
.zip   KCS_KC868_AIO_V2.2.2.zip (Size: 797.63 KB / Downloads: 915)
.zip   KCS_KC868_AK_V2.2.2.zip (Size: 762.76 KB / Downloads: 906)
.zip   KCS_KC868_AM_V2.2.2.zip (Size: 773.67 KB / Downloads: 1002)
.zip   KCS_KC868_AP_V2.2.2.zip (Size: 779.5 KB / Downloads: 837)
.zip   KCS_KC868_ASR_V2.2.2.zip (Size: 751.31 KB / Downloads: 864)
.zip   KCS_KC868_E16S_V2.2.2.zip (Size: 785.8 KB / Downloads: 943)
.zip   KCS_KC868_A32M_V2.2.2.zip (Size: 799.77 KB / Downloads: 977)
.zip   KCS_KC868_A64_V2.2.2.zip (Size: 781.64 KB / Downloads: 979)
.zip   KCS_KC868_A128_V2.2.2.zip (Size: 781.35 KB / Downloads: 857)
.zip   KCS_KC868_A8_V2.2.2.zip (Size: 780.49 KB / Downloads: 1458)
.zip   KCS_KC868_A6_V2.2.2.zip (Size: 772.55 KB / Downloads: 1172)
.zip   KCS_KC868_A32_V2.2.2.zip (Size: 781.38 KB / Downloads: 968)
.zip   KCS_A24_V2.2.2.zip (Size: 747.66 KB / Downloads: 779)
Print this item

  KC868_AG with Tuya license
Posted by: Sameh - 12-06-2023, 09:26 PM - Forum: KC868-AG / AG Pro / AG8 / Z1 - Replies (1)

Does the Tuya license allow me to control IR devices?

Print this item
