  B8 ADS1115 current inputs

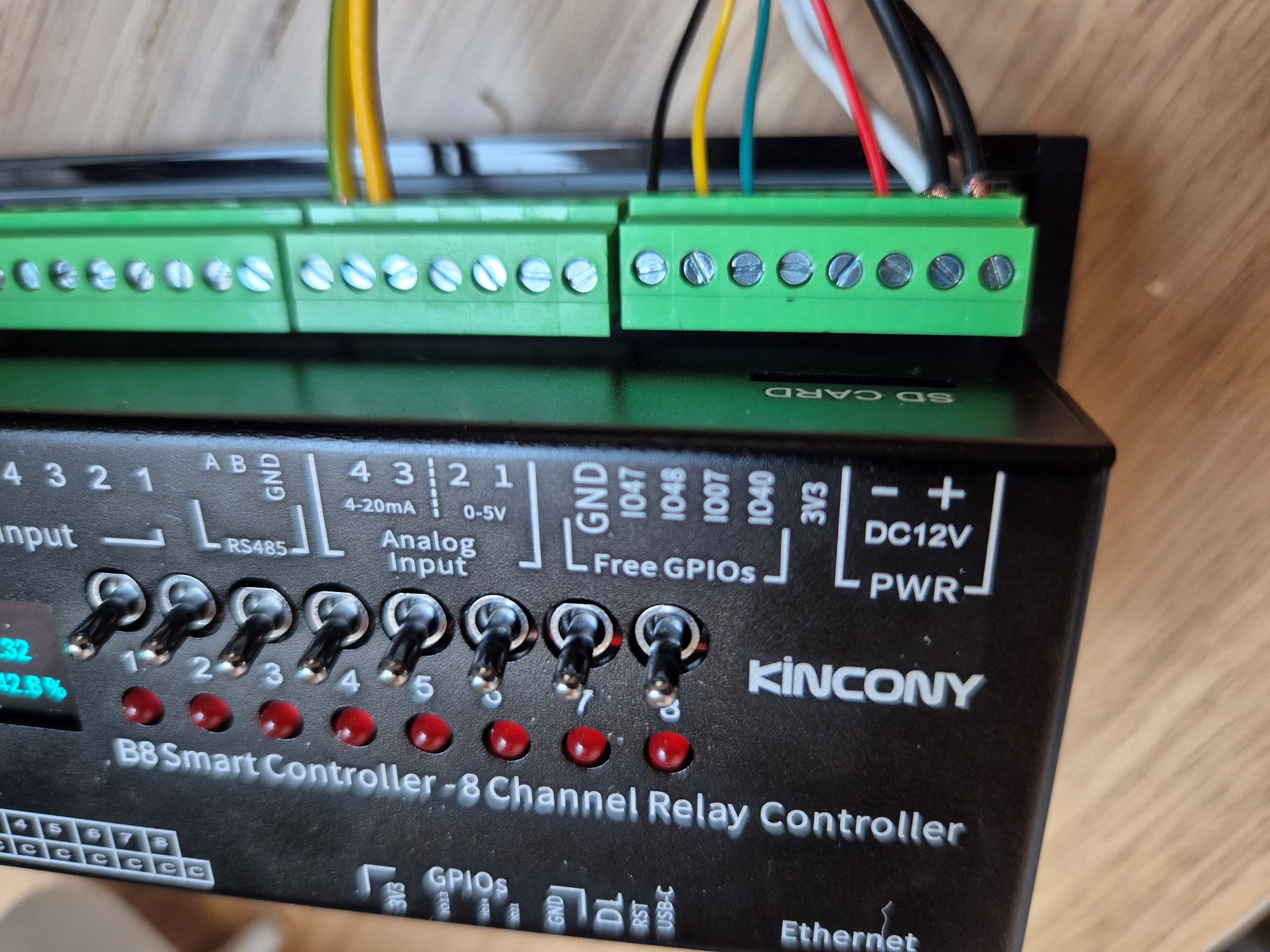

Posted by: jw1971 - 07-28-2026, 06:12 PM - Forum: B8 - Replies (6)

Hello,

I am using Analog 1 and 2 for voltage inputs (A0_gnd and A1_gnd on the ADS1115) and these are working well.

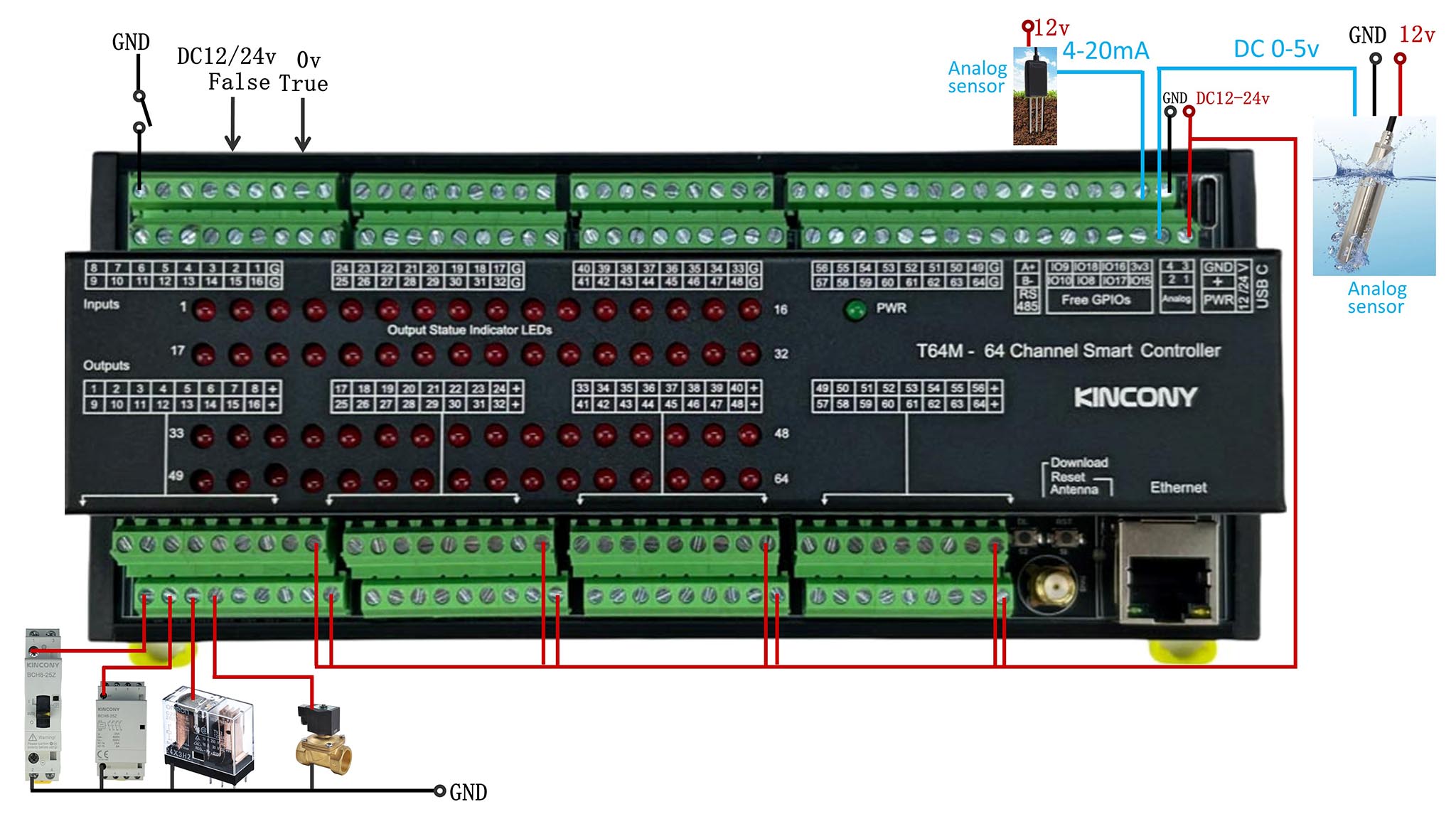

I am trying to add a 4-20ma sensor to Analog 3 or 4.  It is a 12VDC sensor with 2 wires.  Red to +12VDC power, and black to current sense.  This 12VDC supply is the same supply that powers the B8.

The B8 on either Analog 3 or 4 doesn't show the current consumption - just sits at 1.49mA which is what it shows with nothing connected either.

If I use a DMM on 20mA range between the black wire and 12VDC GND I get 9.9mA which is reasonable.

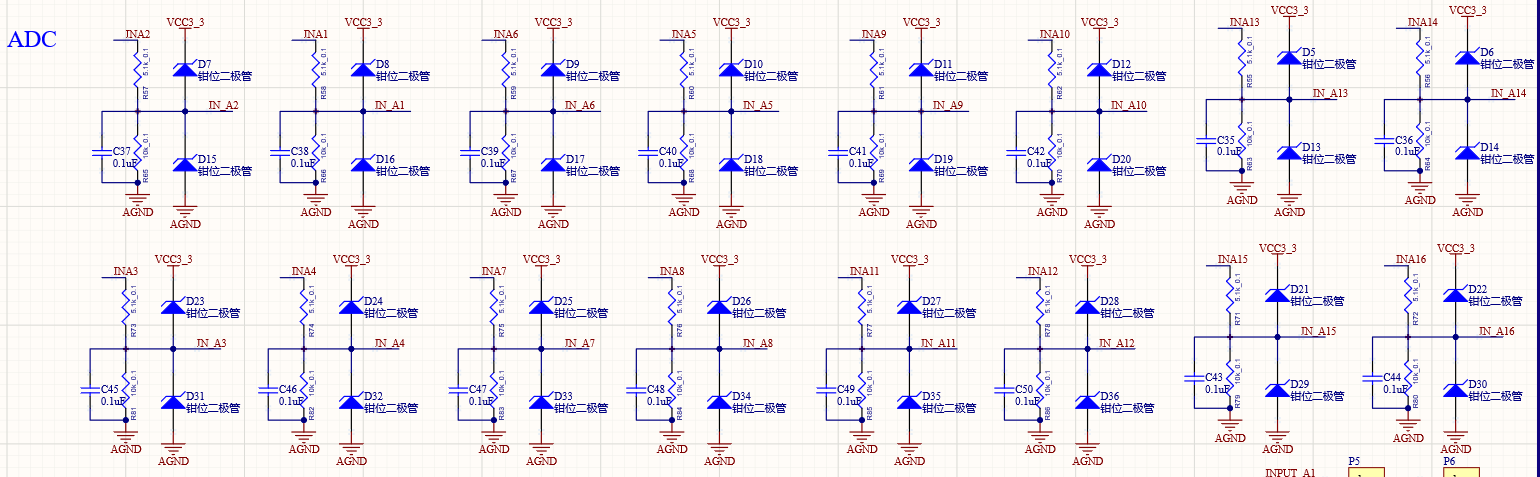

Does the ADS1115 need some sort of ground bond to work in current mode?  What is the gnd return path for Analog 3 or 4?

Print this item

  E8v3 E16v3 E24v3 relay module ARM CPU firmware
Posted by: admin - 07-27-2026, 01:00 AM - Forum: Extender module - No Replies

bootloader.exe tool:
[Image: zip.png]   KC868 Controller Bootloader.zip
[Image: attachment.php?aid=8891]
1. set baud rate=38400bps.
2. open com port.
3. power on Nx board, during LED fast blink when the "bootloader Detect" button right now. Then board will go to bootloader mode.
4. open BIN file
5. press "Download" button, begin download firmware, after finished, press "Run" button, ARM CPU begin work.
[Image: attachment.php?aid=8892]
E8v3 , E16v3, E24v3 BIN file download:

.zip   E8V3_KU_V102Build20260725.zip (Size: 6.87 KB / Downloads: 22)

.zip   E16V3_KU_V102Build20260725.zip (Size: 6.99 KB / Downloads: 18)

.zip   E24V3_KU_V102Build20260725.zip (Size: 7.14 KB / Downloads: 27)

Print this item

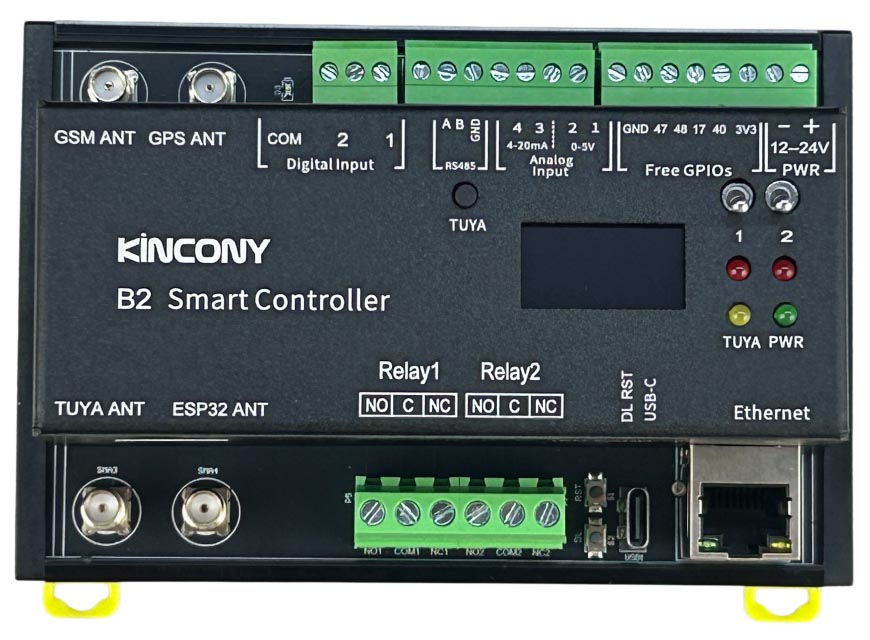

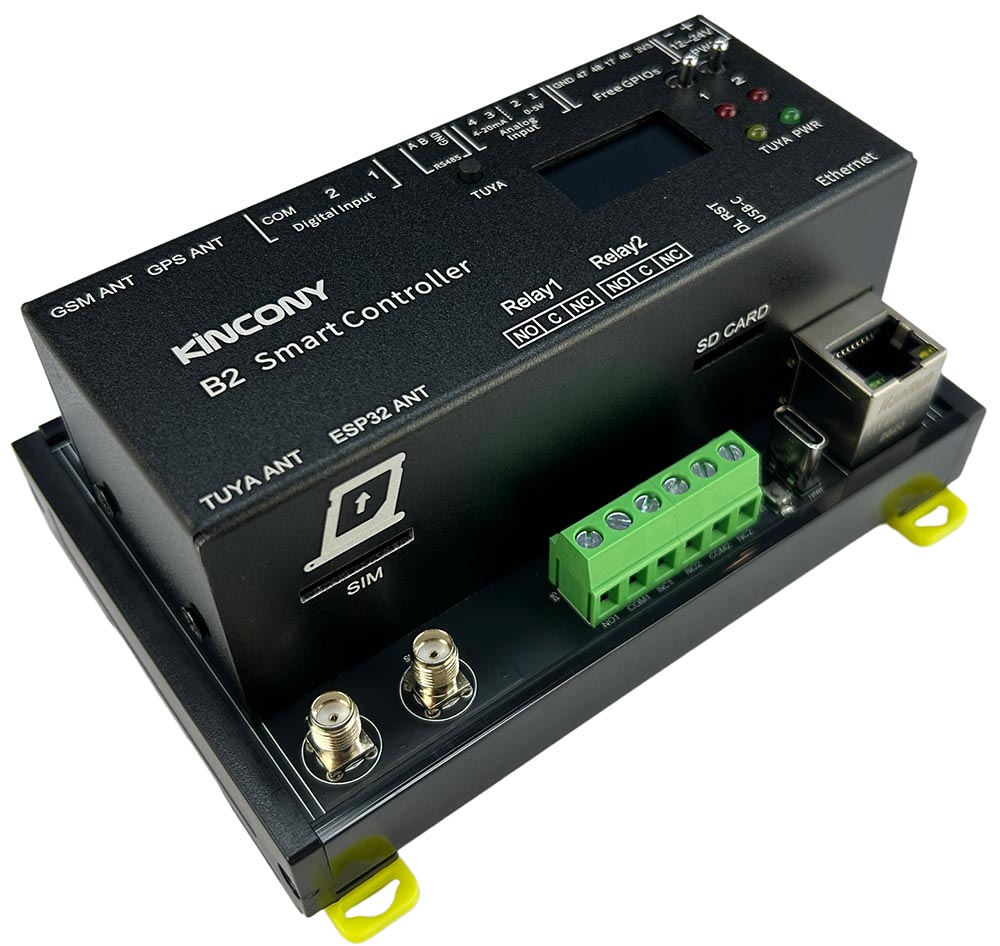

  [arduino code examples for B2]-11 digital INPUT trigger OUTPUT directly
Posted by: admin - 07-25-2026, 06:40 AM - Forum: B2 - No Replies

Code:
/*
   Made by KinCony IoT
   https://www.kincony.com

   Demo: KinCony B2 DI Control Relay
   Board: KinCony B2 (ESP32)

   Digital Input 1 -> GPIO6
   Digital Input 2 -> GPIO7

   Relay 1 -> GPIO4
   Relay 2 -> GPIO46
*/

// Digital Inputs
#define DI1_PIN 6
#define DI2_PIN 7

// Relay Outputs
#define RELAY1_PIN 4
#define RELAY2_PIN 46

// Relay logic (Active LOW)
#define RELAY_ON  LOW
#define RELAY_OFF HIGH

// Store previous DI states
int lastDI1State;
int lastDI2State;

void setup()
{
  // Configure digital inputs
  pinMode(DI1_PIN, INPUT);
  pinMode(DI2_PIN, INPUT);

  // Configure relay outputs
  pinMode(RELAY1_PIN, OUTPUT);
  pinMode(RELAY2_PIN, OUTPUT);

  // Turn OFF relays at startup
  digitalWrite(RELAY1_PIN, RELAY_OFF);
  digitalWrite(RELAY2_PIN, RELAY_OFF);

  // Read initial input states
  lastDI1State = digitalRead(DI1_PIN);
  lastDI2State = digitalRead(DI2_PIN);

}

void loop()
{
  // Read current DI states
  int di1State = digitalRead(DI1_PIN);
  int di2State = digitalRead(DI2_PIN);

  // DI1 changed
  if (di1State != lastDI1State)
  {
    lastDI1State = di1State;

    if (di1State == HIGH)
    {
      digitalWrite(RELAY1_PIN, RELAY_ON);
    }
    else
    {
      digitalWrite(RELAY1_PIN, RELAY_OFF);
    }
  }

  // DI2 changed
  if (di2State != lastDI2State)
  {
    lastDI2State = di2State;

    if (di2State == HIGH)
    {
      digitalWrite(RELAY2_PIN, RELAY_ON);
    }
    else
    {
      digitalWrite(RELAY2_PIN, RELAY_OFF);
    }
  }

  // Small delay for stability
  delay(10);
}
arduino ino file download:

.zip   11-input-trigger-output.zip (Size: 728 bytes / Downloads: 31)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   11-input-trigger-output.ino.merged.zip (Size: 180 KB / Downloads: 27)

Print this item

  [arduino code examples for B2]-10 Print TEXT on SSD1306 OLED displayer
Posted by: admin - 07-25-2026, 06:39 AM - Forum: B2 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program demonstrates how to display text on an SSD1306 128x64 OLED display using the U8g2 library.
* The program draws two lines of text on the display:
* - The first line is "KINCONY" in a larger font.
* - The second line is "www.kincony.com" in a smaller font.
*
* The display is connected via I2C (software implementation) with:
* - SCL (clock) on pin IO18
* - SDA (data) on pin IO8
*
* The display's I2C address is set to 0x3C.
*/

#include <U8g2lib.h>  // Include the U8g2 library for controlling the OLED display
#include <Wire.h>     // Include the Wire library for I2C communication

// Initialize the display using the software I2C method (SCL = IO18, SDA = IO8)
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  18, 8, U8X8_PIN_NONE);  // Screen rotation: U8G2_R0

// Function to display page 1 content
void page1() {
  // Set font size 18 for the larger "KINCONY" text
  u8g2.setFont(u8g2_font_timR18_tf);  // Use the Times Roman font, size 18
  u8g2.setFontPosTop();               // Set the text position at the top of the display
  u8g2.setCursor(5, 0);               // Position the cursor at coordinates (5, 0)
  u8g2.print("KINCONY");              // Display the text "KINCONY" on the screen

  // Set font size 12 for the smaller "www.kincony.com" text
  u8g2.setFont(u8g2_font_timR12_tf);  // Use the Times Roman font, size 12
  u8g2.setCursor(0, 40);              // Position the cursor at coordinates (0, 40)
  u8g2.print("www.kincony.com");      // Display the text "www.kincony.com"
}

// Setup function, runs once when the program starts
void setup() {
  // Set the I2C address for the display to 0x3C
  u8g2.setI2CAddress(0x3C*2);  // I2C address shift for 8-bit format

  // Initialize the display
  u8g2.begin();

  // Enable UTF-8 character printing for the display
  u8g2.enableUTF8Print();  // Allow UTF-8 encoded text to be printed
}

// Main loop function, continuously runs after setup()
void loop() {
  // Begin the display drawing process
  u8g2.firstPage();  // Prepare the first page for drawing
  do {
    // Call the page1() function to draw content on the display
    page1();
  } while (u8g2.nextPage());  // Continue to the next page until all pages are drawn
}
arduino ino file download:

.zip   10-oled-ssd1306.zip (Size: 1.11 KB / Downloads: 33)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   10-oled-ssd1306.ino.merged.zip (Size: 202.58 KB / Downloads: 29)

Print this item

  [arduino code examples for B2]-09 how to communication with Tuya WiFi module
Posted by: admin - 07-25-2026, 06:38 AM - Forum: B2 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program implements communication between ESP32 and the Tuya module
* via UART (serial communication). It listens for specific packets from the Tuya module
* and responds according to the predefined commands.
*
* Functionality:
* 1. When the ESP32 receives a heartbeat packet (55 AA 00 00 00 00 FF),
*    it sends a heartbeat response (55 AA 03 00 00 01 00 03).
* 2. When the ESP32 receives a product information request (55 AA 00 01 00 00 00),
*    it sends a product information response (55 AA 03 01 ...).
* 3. When the ESP32 receives a work mode request (55 AA 00 02 00 00 01),
*    it sends a work mode response (55 AA 03 02 00 03 10 1C 14 47).
* 4. When the ESP32 receives a network status request (55 AA 00 03 00 01 00 03),
*    it sends a network status response (55 AA 03 03 00 00 05).
* 5. Subsequent heartbeat packets (55 AA 00 00 00 00 FF) are responded to with
*    (55 AA 03 00 00 01 01 04).
*/

#include <HardwareSerial.h>

// Create a HardwareSerial object for UART communication on ESP32
HardwareSerial tuyaSerial(1);

// Define the GPIO pins for TXD and RXD used for serial communication
#define TXD_PIN 15
#define RXD_PIN 16

// Set the baud rate for Tuya module communication to 9600
#define BAUD_RATE 9600

// Define the response packets for different commands from the Tuya module

// Heartbeat response: 55 AA 03 00 00 01 00 03
uint8_t heartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x00, 0x03};

// Product info response with a detailed payload (e.g., firmware version, product name, etc.)
uint8_t productInfoResponse[] = {
  0x55, 0xAA, 0x03, 0x01, 0x00, 0x2A, 0x7B, 0x22, 0x70, 0x22, 0x3A, 0x22,
  0x63, 0x68, 0x6D, 0x7A, 0x6C, 0x67, 0x6A, 0x70, 0x61, 0x64, 0x70, 0x71,
  0x78, 0x64, 0x6B, 0x6F, 0x22, 0x2C, 0x22, 0x76, 0x22, 0x3A, 0x22, 0x31,
  0x2E, 0x30, 0x2E, 0x30, 0x22, 0x2C, 0x22, 0x6D, 0x22, 0x3A, 0x30, 0x7D, 0xAA
};

// Work mode response: 55 AA 03 02 00 03 10 1C 14 47
uint8_t workModeResponse[] = {0x55, 0xAA, 0x03, 0x02, 0x00, 0x03, 0x10, 0x1C, 0x14, 0x47};

// Network status response: 55 AA 03 03 00 00 05
uint8_t netStatusResponse[] = {0x55, 0xAA, 0x03, 0x03, 0x00, 0x00, 0x05};

// Subsequent heartbeat response: 55 AA 03 00 00 01 01 04
uint8_t secondHeartBeatResponse[] = {0x55, 0xAA, 0x03, 0x00, 0x00, 0x01, 0x01, 0x04};

void setup() {
  // Initialize the serial communication for debugging at 115200 baud rate
  Serial.begin(115200);

  // Initialize the serial communication with Tuya module at 9600 baud rate
  tuyaSerial.begin(BAUD_RATE, SERIAL_8N1, RXD_PIN, TXD_PIN);

  // Debug message to indicate that the serial communication has been initialized
  Serial.println("ESP32-Tuya serial communication initialized.");
}

void loop() {
  // Check if data is available from the Tuya module
  if (tuyaSerial.available()) {
    uint8_t incomingPacket[7];  // Array to store the received packet
    size_t bytesRead = tuyaSerial.readBytes(incomingPacket, 7); // Read 7 bytes from Tuya

    // Check if the packet has a valid header (0x55, 0xAA)
    if (bytesRead >= 2 && incomingPacket[0] == 0x55 && incomingPacket[1] == 0xAA) {
      // If less than 7 bytes were received, wait for more data
      if (bytesRead < 7) {
        Serial.println("Incomplete packet received. Waiting for remaining bytes...");
        delay(50); // Delay to allow more data to be received
        while (tuyaSerial.available()) {
          incomingPacket[bytesRead++] = tuyaSerial.read(); // Continue reading remaining bytes
          if (bytesRead >= 7) break;
        }
      }

      // If still less than 7 bytes, discard the incomplete packet
      if (bytesRead < 7) {
        Serial.println("Error: Incomplete packet discarded.");
        return;
      }

      // Debug: Print the received packet for logging
      Serial.print("Received packet: ");
      for (size_t i = 0; i < 7; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();

      // Call the function to process the received packet
      processTuyaPacket(incomingPacket, 7);

    } else {
      // If the header is invalid, discard the packet and flush the buffer
      Serial.print("Error: Invalid packet header. Data received: ");
      for (size_t i = 0; i < bytesRead; i++) {
        Serial.print(incomingPacket[i], HEX);
        Serial.print(" ");
      }
      Serial.println();
      tuyaSerial.flush(); // Clear the serial buffer
    }
  }

  // Delay to avoid CPU overuse
  delay(100);
}

// Function to process the received packet and send the appropriate response
void processTuyaPacket(uint8_t* packet, size_t size) {
  // Ensure the packet size is 7 and the header is valid
  if (size == 7 && packet[0] == 0x55 && packet[1] == 0xAA) {
    // Determine the command in the packet (packet[2])
    switch(packet[2]) {
      case 0x00:
        if (packet[3] == 0x00 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0xFF) {
          Serial.println("Heartbeat received.");
          sendPacket(heartBeatResponse, sizeof(heartBeatResponse));
        } else if (packet[3] == 0x01 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x00) {
          Serial.println("Product info request received.");
          sendPacket(productInfoResponse, sizeof(productInfoResponse));
        } else if (packet[3] == 0x02 && packet[4] == 0x00 && packet[5] == 0x00 && packet[6] == 0x01) {
          Serial.println("Work mode request received.");
          sendPacket(workModeResponse, sizeof(workModeResponse));
        } else if (packet[3] == 0x03 && packet[4] == 0x00 && packet[5] == 0x01 && packet[6] == 0x00) {
          Serial.println("Network status request received.");
          sendPacket(netStatusResponse, sizeof(netStatusResponse));
        }
        break;

      default:
        Serial.println("Error: Unhandled command received.");
        break;
    }
  }
}

// Function to send the response packet to the Tuya module
void sendPacket(uint8_t* packet, size_t size) {
  // Send the packet via UART to Tuya module
  tuyaSerial.write(packet, size);

  // Debug: Print the sent packet for logging
  Serial.print("Sent packet: ");
  for (size_t i = 0; i < size; i++) {
    Serial.print(packet[i], HEX);
    Serial.print(" ");
  }
  Serial.println();
}
arduino ino file download:

.zip   9-tuya-wifi-config.zip (Size: 2 KB / Downloads: 23)

Print this item

  [arduino code examples for B2]-08 Ethernet W5500 chip work with TCP Server mode
Posted by: admin - 07-25-2026, 06:37 AM - Forum: B2 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program sets up an ESP32-S3 with a W5500 Ethernet module
* as a TCP server. It listens on port 4196 and echoes back any string
* received from a client.
*
* Hardware connections:
* - CLK: GPIO42
* - MOSI: GPIO43
* - MISO: GPIO44
* - CS: GPIO41
* - RST: GPIO1
* - INT: GPIO2
*
* Static IP address: 192.168.3.55
* Subnet Mask: 255.255.255.0
* Gateway: 192.168.3.1
* DNS: 192.168.3.1
*/

#include <SPI.h>
#include <Ethernet.h>

// Define the W5500 Ethernet module pins
#define W5500_CS_PIN  42
#define W5500_RST_PIN 44
#define W5500_INT_PIN 43
#define W5500_CLK_PIN 1
#define W5500_MOSI_PIN 2
#define W5500_MISO_PIN 41

// MAC address for your Ethernet shield (must be unique on your network)
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// Static IP address configuration
IPAddress ip(192, 168, 3, 55);       // Static IP address
IPAddress subnet(255, 255, 255, 0);   // Subnet mask
IPAddress gateway(192, 168, 3, 1);    // Default gateway
IPAddress dns(192, 168, 3, 1);        // DNS server address

// Create an EthernetServer object to handle TCP connections
EthernetServer server(4196);

void setup() {
  // Initialize serial communication
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for serial port to connect
  }

  // Initialize the W5500 module
  pinMode(W5500_RST_PIN, OUTPUT);
  pinMode(W5500_INT_PIN, INPUT);
  digitalWrite(W5500_RST_PIN, LOW);  // Reset the W5500 module
  delay(100);                       // Wait for reset to complete
  digitalWrite(W5500_RST_PIN, HIGH); // Release reset

  // Initialize SPI with the correct pin definitions
  SPI.begin(W5500_CLK_PIN, W5500_MISO_PIN, W5500_MOSI_PIN);

  // Set up the Ethernet library with W5500-specific pins
  Ethernet.init(W5500_CS_PIN);

  // Start the Ethernet connection with static IP configuration
  Ethernet.begin(mac, ip, dns, gateway, subnet);

  // Print the IP address to the serial monitor
  Serial.print("IP Address: ");
  Serial.println(Ethernet.localIP());

  // Start listening for incoming TCP connections
  server.begin();
}

void loop() {
  // Check for incoming client connections
  EthernetClient client = server.available();
  if (client) {
    Serial.println("New client connected");

    // Read data from the client and echo it back
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        server.write(c);
      }
    }

    // Close the connection when done
    client.stop();
    Serial.println("Client disconnected");
  }
}
arduino ino file download:

.zip   8-Ethernet-W5500.zip (Size: 1.23 KB / Downloads: 34)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   8-Ethernet-W5500.ino.merged.zip (Size: 191.06 KB / Downloads: 27)

Print this item

  [arduino code examples for B2]-07 how to DS3231 RTC clock
Posted by: admin - 07-25-2026, 06:36 AM - Forum: B2 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* DS3231 RTC with Arduino
*
* This program demonstrates how to use the DS3231 RTC (Real-Time Clock) module with the Arduino.
* It includes functionality to:
* - Initialize the DS3231 RTC module
* - Read the current date and time from the RTC
* - Set the RTC time based on a serial command:Command format: DYYYY-MM-DDTHH:MM:SS
*    Set date and time command example: D2024-09-19T11:50:22
*    print current date and time command: current time
*
*
* Hardware Connections:
* - SDA: GPIO 8
* - SCL: GPIO 18
*/

#include <DS3231.h>
#include <Wire.h>

String serial_cmd_rcv = ""; // Serial port receiver

typedef struct
{
  byte year;    // Last two digits of the year, library adds 2000.
  byte month;
  byte day;
  byte hour;
  byte minute;
  byte second;
} MY_DATE_STR;

MY_DATE_STR my_date_str = {0};

// Define constants for relay control
#define OPEN_RLY_DATA    26
#define OPEN_RLY_MONTH   4
#define CLOSE_RLY_DATA   2
#define CLOSE_RLY_MONTH  5

// Define pin connections
#define SDA_PIN   8
#define SCL_PIN   18

DS3231 rtc; // Create an instance of the DS3231 RTC
bool h12Flag;
bool pmFlag;
static bool bCentury = false;
static bool old_level_high = false;
static bool old_level_low = false;


/**
* @brief Print the current time from the RTC to the Serial Monitor.
*/
static void PrintfCurTime()
{
  Serial.print("Current time is: ");
  int year = rtc.getYear() + 2000;
  Serial.print(year);
  Serial.print("-");

  Serial.print(rtc.getMonth(bCentury), DEC);
  Serial.print("-");

  Serial.print(rtc.getDate(), DEC);
  Serial.print(" ");

  Serial.print(rtc.getHour(h12Flag, pmFlag), DEC);
  Serial.print(":");
  Serial.print(rtc.getMinute(), DEC);
  Serial.print(":");
  Serial.println(rtc.getSecond(), DEC);
}

/**
* @brief Process serial commands to set the RTC time.
* Command format: DYYYY-MM-DDTHH:MM:SS
*/
static void GetSerialCmd()
{
  if (Serial.available() > 0)
  {
    delay(100);
    int num_read = Serial.available();
    while (num_read--)
      serial_cmd_rcv += char(Serial.read());
  }
  else return;

  serial_cmd_rcv.trim();

  if (serial_cmd_rcv == "current time")
  {
    PrintfCurTime();
    serial_cmd_rcv = "";
    return;
  }

  Serial.print("Received length: ");
  Serial.println(serial_cmd_rcv.length());

  int indexof_d = serial_cmd_rcv.indexOf('D');
  int indexof_t = serial_cmd_rcv.indexOf('T');

  Serial.print("D index: ");
  Serial.print(indexof_d);
  Serial.print(" T index: ");
  Serial.println(indexof_t);

  if (serial_cmd_rcv.length() != 20 ||
      serial_cmd_rcv.substring(0, 1) != "D" ||
      serial_cmd_rcv.substring(11, 12) != "T")
  {
    Serial.println(serial_cmd_rcv);
    serial_cmd_rcv = "";
    return;
  }

  Serial.println("Setting time...");

  my_date_str.year = (byte)serial_cmd_rcv.substring(3, 5).toInt();
  my_date_str.month = (byte)serial_cmd_rcv.substring(6, 8).toInt();
  my_date_str.day = (byte)serial_cmd_rcv.substring(9, 11).toInt();
  my_date_str.hour = (byte)serial_cmd_rcv.substring(12, 14).toInt();
  my_date_str.minute = (byte)serial_cmd_rcv.substring(15, 17).toInt();
  my_date_str.second = (byte)serial_cmd_rcv.substring(18).toInt();

  rtc.setYear(my_date_str.year);
  rtc.setMonth(my_date_str.month);
  rtc.setDate(my_date_str.day);
  rtc.setHour(my_date_str.hour);
  rtc.setMinute(my_date_str.minute);
  rtc.setSecond(my_date_str.second);

  serial_cmd_rcv = "";

  Serial.println("Time set.");
}

void setup() {
  // Initialize the I2C interface
  Wire.begin(SDA_PIN, SCL_PIN, 40000);

  // Initialize Serial communication
  Serial.begin(115200);

  // Set the RTC to 24-hour mode
  rtc.setClockMode(false); // 24-hour format

  // Print current time to Serial Monitor
  PrintfCurTime();

  // Clear any remaining serial data
  while (Serial.read() >= 0) {}
}

void loop() {
  // Process incoming serial commands
  GetSerialCmd();
  delay(1000); // Delay for 1 second
}
arduino ino file download:

.zip   7-DS3231-RTC.zip (Size: 1.56 KB / Downloads: 24)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   7-DS3231-RTC.ino.merged.zip (Size: 193.65 KB / Downloads: 28)

Print this item

  [arduino code examples for B2]-06 How to use SD Card
Posted by: admin - 07-25-2026, 06:35 AM - Forum: B2 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* SD Card File Operations
*
* This program demonstrates basic file operations on an SD card using the ESP32.
* It includes functionality to:
* - Initialize and test the SD card
* - Read from, write to, append to, and delete files on the SD card
* - Measure file read and write performance
*
* Hardware Connections:
* - SCK: GPIO 11
* - MISO: GPIO 12
* - MOSI: GPIO 10
* - CS: GPIO 9
*/

#include "FS.h"
#include "SD.h"
#include "SPI.h"

// Pin definitions for SD card
#define SCK  11
#define MISO 12
#define MOSI 10
#define CS   9

/**
* @brief Reads the contents of a file from the SD card and prints it to the serial monitor.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to read.
*/
void readFile(fs::FS &fs, const char * path) {
  Serial.printf("Reading file: %s\n", path);

  File file = fs.open(path);
  if (!file) {
    Serial.println("Failed to open file for reading");
    return;
  }

  Serial.print("Read from file: ");
  while (file.available()) {
    Serial.print((char)file.read());
  }
  file.close();
}

/**
* @brief Writes a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to write.
* @param message Message to write to the file.
*/
void writeFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Writing file: %s\n", path);

  File file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }
  if (file.print(message)) {
    Serial.println("File written");
  } else {
    Serial.println("Write failed");
  }
  file.close();
}

/**
* @brief Appends a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to append.
* @param message Message to append to the file.
*/
void appendFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Appending to file: %s\n", path);

  File file = fs.open(path, FILE_APPEND);
  if (!file) {
    Serial.println("Failed to open file for appending");
    return;
  }
  if (file.print(message)) {
    Serial.println("Message appended");
  } else {
    Serial.println("Append failed");
  }
  file.close();
}

/**
* @brief Deletes a file from the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to delete.
*/
void deleteFile(fs::FS &fs, const char * path) {
  Serial.printf("Deleting file: %s\n", path);
  if (fs.remove(path)) {
    Serial.println("File deleted");
  } else {
    Serial.println("Delete failed");
  }
}

/**
* @brief Tests file read and write performance.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to test.
*/
void testFileIO(fs::FS &fs, const char * path) {
  File file = fs.open(path);
  static uint8_t buf[512];
  size_t len = 0;
  uint32_t start = millis();
  uint32_t end = start;

  if (file) {
    len = file.size();
    size_t flen = len;
    start = millis();
    while (len) {
      size_t toRead = len;
      if (toRead > 512) {
        toRead = 512;
      }
      file.read(buf, toRead);
      len -= toRead;
    }
    end = millis() - start;
    Serial.printf("%u bytes read for %u ms\n", flen, end);
    file.close();
  } else {
    Serial.println("Failed to open file for reading");
  }

  file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }

  size_t i;
  start = millis();
  for (i = 0; i < 2048; i++) {
    file.write(buf, 512);
  }
  end = millis() - start;
  Serial.printf("%u bytes written for %u ms\n", 2048 * 512, end);
  file.close();
}

void setup() {
  // Initialize serial communication
  Serial.begin(115200);

  // Initialize SPI and SD card
  SPIClass spi = SPIClass(HSPI);
  spi.begin(SCK, MISO, MOSI, CS);

  if (!SD.begin(CS, spi, 80000000)) {
    Serial.println("Card Mount Failed");
    return;
  }

  uint8_t cardType = SD.cardType();

  if (cardType == CARD_NONE) {
    Serial.println("No SD card attached");
    return;
  }

  Serial.print("SD Card Type: ");
  if (cardType == CARD_MMC) {
    Serial.println("MMC");
  } else if (cardType == CARD_SD) {
    Serial.println("SDSC");
  } else if (cardType == CARD_SDHC) {
    Serial.println("SDHC");
  } else {
    Serial.println("UNKNOWN");
  }

  uint64_t cardSize = SD.cardSize() / (1024 * 1024);
  Serial.printf("SD Card Size: %lluMB\n", cardSize);
  delay(2000);

  // Perform file operations
  deleteFile(SD, "/hello.txt");
  writeFile(SD, "/hello.txt", "Hello ");
  appendFile(SD, "/hello.txt", "World!\n");
  readFile(SD, "/hello.txt");
  testFileIO(SD, "/test.txt");
  Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
  Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
}

void loop() {
  // No operation in loop
}
arduino ino file download:

.zip   6-SD.zip (Size: 1.53 KB / Downloads: 41)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   6-SD.ino.merged.zip (Size: 219.15 KB / Downloads: 39)

Print this item

  [arduino code examples for B2]-05 Read free GPIO state
Posted by: admin - 07-25-2026, 06:33 AM - Forum: B2 - No Replies

Code:
/*
   Made by KinCony IoT
   https://www.kincony.com

   Demo: KinCony B2 GPIO State Monitor
   Board: KinCony B2 (ESP32)

   1-Wire-1 -> GPIO47
   1-Wire-2 -> GPIO48
   1-Wire-3 -> GPIO17
   1-Wire-4 -> GPIO40
*/

#define GPIO1_PIN 47
#define GPIO2_PIN 48
#define GPIO3_PIN 17
#define GPIO4_PIN 40

// Store previous GPIO states
int lastState1;
int lastState2;
int lastState3;
int lastState4;

void setup()
{
  // Initialize serial monitor
  Serial.begin(115200);
  Serial.println("KinCony B2 GPIO State Monitor");

  // Configure GPIOs as inputs
  // Change INPUT to INPUT_PULLUP if required by your hardware
  pinMode(GPIO1_PIN, INPUT);
  pinMode(GPIO2_PIN, INPUT);
  pinMode(GPIO3_PIN, INPUT);
  pinMode(GPIO4_PIN, INPUT);

  // Read initial states
  lastState1 = digitalRead(GPIO1_PIN);
  lastState2 = digitalRead(GPIO2_PIN);
  lastState3 = digitalRead(GPIO3_PIN);
  lastState4 = digitalRead(GPIO4_PIN);

  // Print initial states
  Serial.printf("GPIO47 Initial: %d\n", lastState1);
  Serial.printf("GPIO48 Initial: %d\n", lastState2);
  Serial.printf("GPIO17 Initial: %d\n", lastState3);
  Serial.printf("GPIO40 Initial: %d\n", lastState4);
}

void loop()
{
  int state;

  // Check GPIO47
  state = digitalRead(GPIO1_PIN);
  if (state != lastState1)
  {
    lastState1 = state;
    Serial.printf("GPIO47 Changed: %d\n", state);
  }

  // Check GPIO48
  state = digitalRead(GPIO2_PIN);
  if (state != lastState2)
  {
    lastState2 = state;
    Serial.printf("GPIO48 Changed: %d\n", state);
  }

  // Check GPIO17
  state = digitalRead(GPIO3_PIN);
  if (state != lastState3)
  {
    lastState3 = state;
    Serial.printf("GPIO17 Changed: %d\n", state);
  }

  // Check GPIO40
  state = digitalRead(GPIO4_PIN);
  if (state != lastState4)
  {
    lastState4 = state;
    Serial.printf("GPIO40 Changed: %d\n", state);
  }

  // Small delay for stability
  delay(10);
}
arduino ino file download:

.zip   5-free-gpio-state.zip (Size: 757 bytes / Downloads: 30)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   5-free-gpio-state.ino.merged.zip (Size: 180.31 KB / Downloads: 25)

Print this item

  [arduino code examples for B2]-04 RS485 communication test
Posted by: admin - 07-25-2026, 06:32 AM - Forum: B2 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 39
#define RS485_TXD 38

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 758 bytes / Downloads: 36)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 185.84 KB / Downloads: 26)

Print this item
