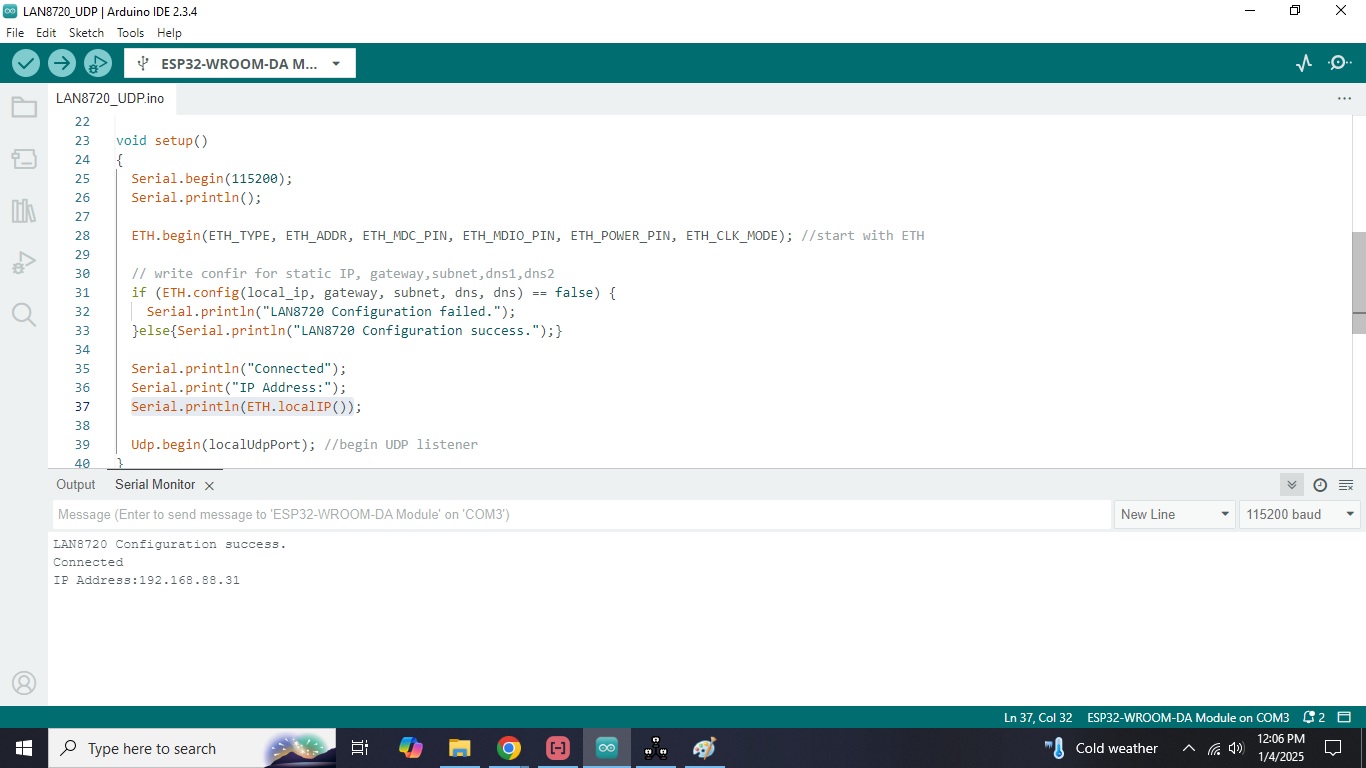

[Arduino source code for KC868-A4S]-06 LAN8720

Posted by: KinCony Support - 03-02-2023, 05:29 AM - Forum: KC868-A4S - No Replies

Code:
#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

// Set it based on the IP address of the router

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

 /* while(!((uint32_t)ETH.localIP())) //wait for IP

  {

  }*/

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

Attached Files
.zip

A4S_Lan8720.zip (Size: 1.07 KB / Downloads: 201)

[Arduino source code for KC868-A4S]-05 DS18B20

Posted by: KinCony Support - 03-02-2023, 05:29 AM - Forum: KC868-A4S - No Replies

Code:
/*KC868-A4S DS18B20 CODE*/

#include <DS18B20.h>

DS18B20 ds1(5);  //channel-1-DS18b20

DS18B20 ds2(14);  //channel-2-DS18b20

void setup()

{

  Serial.begin(115200);

}

void loop()

{

  Serial.print("Temperature1:");

  Serial.print(ds1.getTempC());

  Serial.println(" C /");

  delay(100);

  Serial.print("Temperature2:");

  Serial.print(ds2.getTempC());

  Serial.println(" C /\n");

  delay(100);

}

Attached Files
.zip

A4S_DS18B20.zip (Size: 529 bytes / Downloads: 211)

[Arduino source code for KC868-A4S]-04 DO

Posted by: KinCony Support - 03-02-2023, 05:28 AM - Forum: KC868-A4S - No Replies

Code:
#include "Arduino.h"

#include "PCF8574.h"

#define A4S_SDA 4

#define A4S_SCL 16

TwoWire I2Cone = TwoWire(0);

TwoWire I2Ctwo = TwoWire(1);

PCF8574 pcf8574_RE1(&I2Cone,0x24,A4S_SDA,A4S_SCL);//DO

/*PCF8574 pcf8574_RE2(&I2Cone,0x21,A4S_SDA,A4S_SCL);//DO

PCF8574 pcf8574_IN1(&I2Ctwo,0x22,A4S_SDA,A4S_SCL);//DI

PCF8574 pcf8574_IN2(&I2Ctwo,0x24,A4S_SDA,A4S_SCL);//DI*/

void setup()

{

    Serial.begin(115200);

    pcf8574_RE1.pinMode(P0, OUTPUT);

    pcf8574_RE1.pinMode(P1, OUTPUT);

    pcf8574_RE1.pinMode(P2, OUTPUT);

    pcf8574_RE1.pinMode(P3, OUTPUT);

    pcf8574_RE1.pinMode(P4, INPUT);

    pcf8574_RE1.pinMode(P5, INPUT);

    pcf8574_RE1.pinMode(P6, INPUT);

    pcf8574_RE1.pinMode(P7, INPUT);

    pcf8574_RE1.begin();

}

void loop()

{

 /* pcf8574_RE1.digitalWrite(P0, HIGH);delay(1000);

  pcf8574_RE1.digitalWrite(P1, HIGH);delay(1000);

  pcf8574_RE1.digitalWrite(P2, HIGH);delay(1000);

  pcf8574_RE1.digitalWrite(P3, HIGH);delay(1000);

  pcf8574_RE1.digitalWrite(P0, LOW);delay(1000);

  pcf8574_RE1.digitalWrite(P1, LOW);delay(1000);

  pcf8574_RE1.digitalWrite(P2, LOW);delay(1000);

  pcf8574_RE1.digitalWrite(P3, LOW);delay(1000);*/

  if(pcf8574_RE1.digitalRead(P4)==LOW)

  {

    Serial.println("D09 PRESSED");

    pcf8574_RE1.digitalWrite(P0, LOW);

    }else pcf8574_RE1.digitalWrite(P0, HIGH);

    delay (100);

  if(pcf8574_RE1.digitalRead(P5)==LOW)

  {

    Serial.println("D10 PRESSED");

    pcf8574_RE1.digitalWrite(P1, LOW);

    }else pcf8574_RE1.digitalWrite(P1, HIGH);

    delay (100);

  if(pcf8574_RE1.digitalRead(P6)==LOW)

  {

    Serial.println("D11 PRESSED");

    pcf8574_RE1.digitalWrite(P2, LOW);

    }else pcf8574_RE1.digitalWrite(P2, HIGH);

    delay (100);

  if(pcf8574_RE1.digitalRead(P7)==LOW)

  {

    Serial.println("D12 PRESSED");

    pcf8574_RE1.digitalWrite(P3, LOW);

    }else pcf8574_RE1.digitalWrite(P3, HIGH);

    delay (100);

  delay(20);

}

Attached Files
.zip

A4S_DO.zip (Size: 737 bytes / Downloads: 193)

[Arduino source code for KC868-A4S]-03 DI

Posted by: KinCony Support - 03-02-2023, 05:27 AM - Forum: KC868-A4S - No Replies

Code:
#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574_IN1(0x22,4,16);

unsigned long timeElapsed;

void setup()

{

    Serial.begin(115200);

    delay(1000);

pcf8574_IN1.pinMode(P0, INPUT);

pcf8574_IN1.pinMode(P1, INPUT);

pcf8574_IN1.pinMode(P2, INPUT);

pcf8574_IN1.pinMode(P3, INPUT);

pcf8574_IN1.pinMode(P4, INPUT);

pcf8574_IN1.pinMode(P5, INPUT);

pcf8574_IN1.pinMode(P6, INPUT);

pcf8574_IN1.pinMode(P7, INPUT);

pcf8574_IN1.begin();

}

void loop()

{

uint8_t val1 = pcf8574_IN1.digitalRead(P0);

uint8_t val2 = pcf8574_IN1.digitalRead(P1);

uint8_t val3 = pcf8574_IN1.digitalRead(P2);

uint8_t val4 = pcf8574_IN1.digitalRead(P3);

uint8_t val5 = pcf8574_IN1.digitalRead(P4);

uint8_t val6 = pcf8574_IN1.digitalRead(P5);

uint8_t val7 = pcf8574_IN1.digitalRead(P6);

uint8_t val8 = pcf8574_IN1.digitalRead(P7);

if (val1==LOW) {Serial.println("Key1 Pressed");}

if (val2==LOW) {Serial.println("Key2 Pressed");}

if (val3==LOW) {Serial.println("Key3 Pressed");}

if (val4==LOW) {Serial.println("Key4 Pressed");}

if (val5==LOW) {Serial.println("Key5 Pressed");}

if (val6==LOW) {Serial.println("Key6 Pressed");}

if (val7==LOW) {Serial.println("Key7 Pressed");}

if (val8==LOW) {Serial.println("Key8 Pressed");}

delay(20);

}

Attached Files
.zip

A4S_DI.zip (Size: 651 bytes / Downloads: 174)

[Arduino source code for KC868-A4S]-02 ADC

Posted by: KinCony Support - 03-02-2023, 05:25 AM - Forum: KC868-A4S - No Replies

Code:
#include "Arduino.h"

#define ANALOG_A1   36        // IO36

#define ANALOG_A2   39        // IO39

#define ANALOG_A3   34        // IO34

#define ANALOG_A4   35        // IO35

void setup()

{

    Serial.begin(115200);

    delay(1000);

  pinMode(ANALOG_A1,INPUT);

  pinMode(ANALOG_A2,INPUT);

  pinMode(ANALOG_A3,INPUT);

  pinMode(ANALOG_A4,INPUT);

}

void loop()

{

  delay(500);

  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));

  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));

  Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));

  Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));

}

Attached Files
.zip

A4S_ADC.zip (Size: 567 bytes / Downloads: 169)

[Arduino source code for KC868-A4S]-01 RS485

Posted by: KinCony Support - 03-02-2023, 05:23 AM - Forum: KC868-A4S - No Replies

Code:
/*********************************

**********************************/

#define A4S_RS485_RX 33

#define A4S_RS485_TX 32

void setup() {

  Serial.begin(115200);

  pinMode(0,INPUT);

  Serial2.begin(115200,SERIAL_8N1,A4S_RS485_RX,A4S_RS485_TX);//A4S

  Serial2.println("A4S  485 TEST");

}

void loop() {

   if(digitalRead(0)==LOW)

  {

    delay(20);

     if(digitalRead(0)==LOW)

  {

    Serial2.println("Download key ok");

  }

  }

  while(Serial2.available()>0)

   {

    Serial2.print((char)Serial2.read());//print rs485 receive

   }

  delay(200);

}

Attached Files
.zip

A4S_485.zip (Size: 582 bytes / Downloads: 189)

A32 Input voltage range

Posted by: Shaps77 - 03-02-2023, 05:16 AM - Forum: KC868-A32/A32 Pro - Replies (5)

	What is the acceptable tolerance of the input voltage for the KC868-A32?

lesson34 - how to install Zigbee 3.0 gateway to home assistant

Posted by: admin - 03-02-2023, 02:25 AM - Forum: Home automation training courses - Replies (5)

	1. install zigbee2mqtt https://github.com/zigbee2mqtt/hassio-zigbee2mqtt 2. add config zigbee2mqtt serial: port: tcp://192.168.1.201:6638 adapter: ezsp 3. config (Zigbee Home Automation) ZHA socket://192.168.1.201:6638 band: 115200

upgrade firmware v1.39 kc868-h32bs

Posted by: mutaz - 03-01-2023, 08:00 AM - Forum: KC868-HxB series Smart Controller - Replies (3)

	hi i have kc868-h32bs v1.39 . i'm trying to upgrade the firmware . i downloaded KC868 Controller Bootloader and used serial to usb cable to upgrade but every time i run it i get error is there a way to upgrade using ethernet? if not what's the solution Attached Files Thumbnail(s)

KC868-A4S 4G esp32 arduino relay board Released

Posted by: admin - 03-01-2023, 06:15 AM - Forum: News - No Replies

KC868-A4S esp32 arduino board based on ESP32 wifi chip, many hardware resource for you to use. it support GSM module for SMS, voice call, GPRS communication. Use SMS or call to turn ON/OFF relay will be very easy for home automation DIY. It also have 8 channel dimmer output and PWM output extender. You can write any code by Arduino IDE to ESP32 wifi/bluetooth/ethernet RS485 module. We will supply demo code for different samples. Everyone can modify and change the code for your own smart home automation system project. it support use by ESPHome for home assistant or tasmota firmware for smart home automation DIY.
[Image: KC868-A4S-1_01.jpg]
[Image: KC868-A4S-1_02.jpg]
[Image: KC868-A4S-1_03.jpg]
[Image: KC868-A4S-1_04.jpg]
