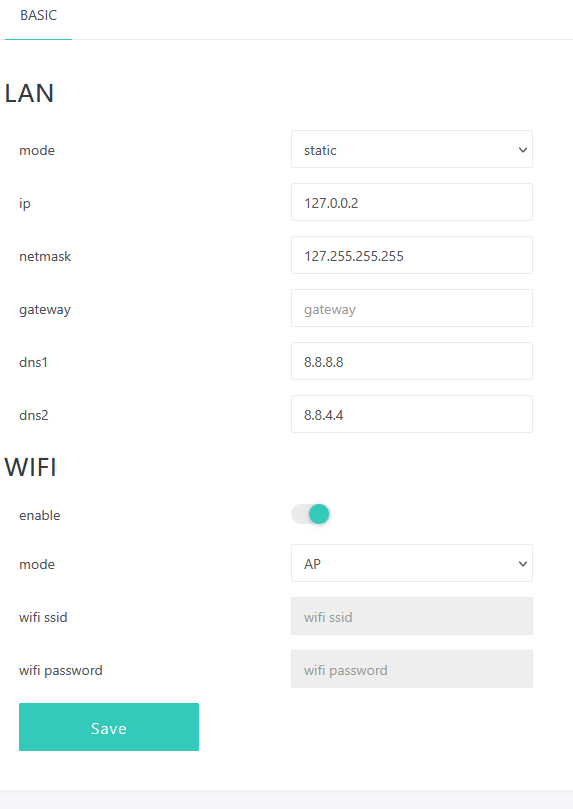

  [arduino code examples for A2v3]-08 Ethernet W5500 chip work with TCP Server mode
Posted by: admin - 04-20-2025, 06:01 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* This Arduino program sets up an ESP32-S3 with a W5500 Ethernet module
* as a TCP server. It listens on port 4196 and echoes back any string
* received from a client.
*
* Hardware connections:
* - CLK: GPIO42
* - MOSI: GPIO43
* - MISO: GPIO44
* - CS: GPIO41
* - RST: GPIO1
* - INT: GPIO2
*
* Static IP address: 192.168.3.55
* Subnet Mask: 255.255.255.0
* Gateway: 192.168.3.1
* DNS: 192.168.3.1
*/

#include <SPI.h>
#include <Ethernet.h>

// Define the W5500 Ethernet module pins
#define W5500_CS_PIN  41
#define W5500_RST_PIN 1
#define W5500_INT_PIN 2
#define W5500_CLK_PIN 42
#define W5500_MOSI_PIN 43
#define W5500_MISO_PIN 44

// MAC address for your Ethernet shield (must be unique on your network)
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// Static IP address configuration
IPAddress ip(192, 168, 3, 55);       // Static IP address
IPAddress subnet(255, 255, 255, 0);   // Subnet mask
IPAddress gateway(192, 168, 3, 1);    // Default gateway
IPAddress dns(192, 168, 3, 1);        // DNS server address

// Create an EthernetServer object to handle TCP connections
EthernetServer server(4196);

void setup() {
  // Initialize serial communication
  Serial.begin(115200);
  while (!Serial) {
    ; // Wait for serial port to connect
  }

  // Initialize the W5500 module
  pinMode(W5500_RST_PIN, OUTPUT);
  pinMode(W5500_INT_PIN, INPUT);
  digitalWrite(W5500_RST_PIN, LOW);  // Reset the W5500 module
  delay(100);                       // Wait for reset to complete
  digitalWrite(W5500_RST_PIN, HIGH); // Release reset

  // Initialize SPI with the correct pin definitions
  SPI.begin(W5500_CLK_PIN, W5500_MISO_PIN, W5500_MOSI_PIN);

  // Set up the Ethernet library with W5500-specific pins
  Ethernet.init(W5500_CS_PIN);

  // Start the Ethernet connection with static IP configuration
  Ethernet.begin(mac, ip, dns, gateway, subnet);

  // Print the IP address to the serial monitor
  Serial.print("IP Address: ");
  Serial.println(Ethernet.localIP());

  // Start listening for incoming TCP connections
  server.begin();
}

void loop() {
  // Check for incoming client connections
  EthernetClient client = server.available();
  if (client) {
    Serial.println("New client connected");

    // Read data from the client and echo it back
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();
        server.write(c);
      }
    }

    // Close the connection when done
    client.stop();
    Serial.println("Client disconnected");
  }
}
arduino ino file download:

.zip   8-Ethernet-W5500.zip (Size: 1.23 KB / Downloads: 798)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   8-Ethernet-W5500.ino.merged.zip (Size: 188.93 KB / Downloads: 723)

Print this item

  [arduino code examples for A2v3]-07 how to DS3231 RTC clock
Posted by: admin - 04-20-2025, 06:00 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* DS3231 RTC with Arduino
*
* This program demonstrates how to use the DS3231 RTC (Real-Time Clock) module with the Arduino.
* It includes functionality to:
* - Initialize the DS3231 RTC module
* - Read the current date and time from the RTC
* - Set the RTC time based on a serial command:Command format: DYYYY-MM-DDTHH:MM:SS
*    Set date and time command example: D2024-09-19T11:50:22
*    print current date and time command: current time
*
*
* Hardware Connections:
* - SDA: GPIO 48
* - SCL: GPIO 47
*/

#include <DS3231.h>
#include <Wire.h>

String serial_cmd_rcv = ""; // Serial port receiver

typedef struct
{
  byte year;    // Last two digits of the year, library adds 2000.
  byte month;
  byte day;
  byte hour;
  byte minute;
  byte second;
} MY_DATE_STR;

MY_DATE_STR my_date_str = {0};

// Define constants for relay control
#define OPEN_RLY_DATA    26
#define OPEN_RLY_MONTH   4
#define CLOSE_RLY_DATA   2
#define CLOSE_RLY_MONTH  5

// Define pin connections
#define SDA_PIN   48
#define SCL_PIN   47

DS3231 rtc; // Create an instance of the DS3231 RTC
bool h12Flag;
bool pmFlag;
static bool bCentury = false;
static bool old_level_high = false;
static bool old_level_low = false;


/**
* @brief Print the current time from the RTC to the Serial Monitor.
*/
static void PrintfCurTime()
{
  Serial.print("Current time is: ");
  int year = rtc.getYear() + 2000;
  Serial.print(year);
  Serial.print("-");

  Serial.print(rtc.getMonth(bCentury), DEC);
  Serial.print("-");

  Serial.print(rtc.getDate(), DEC);
  Serial.print(" ");

  Serial.print(rtc.getHour(h12Flag, pmFlag), DEC);
  Serial.print(":");
  Serial.print(rtc.getMinute(), DEC);
  Serial.print(":");
  Serial.println(rtc.getSecond(), DEC);
}

/**
* @brief Process serial commands to set the RTC time.
* Command format: DYYYY-MM-DDTHH:MM:SS
*/
static void GetSerialCmd()
{
  if (Serial.available() > 0)
  {
    delay(100);
    int num_read = Serial.available();
    while (num_read--)
      serial_cmd_rcv += char(Serial.read());
  }
  else return;

  serial_cmd_rcv.trim();

  if (serial_cmd_rcv == "current time")
  {
    PrintfCurTime();
    serial_cmd_rcv = "";
    return;
  }

  Serial.print("Received length: ");
  Serial.println(serial_cmd_rcv.length());

  int indexof_d = serial_cmd_rcv.indexOf('D');
  int indexof_t = serial_cmd_rcv.indexOf('T');

  Serial.print("D index: ");
  Serial.print(indexof_d);
  Serial.print(" T index: ");
  Serial.println(indexof_t);

  if (serial_cmd_rcv.length() != 20 ||
      serial_cmd_rcv.substring(0, 1) != "D" ||
      serial_cmd_rcv.substring(11, 12) != "T")
  {
    Serial.println(serial_cmd_rcv);
    serial_cmd_rcv = "";
    return;
  }

  Serial.println("Setting time...");

  my_date_str.year = (byte)serial_cmd_rcv.substring(3, 5).toInt();
  my_date_str.month = (byte)serial_cmd_rcv.substring(6, 8).toInt();
  my_date_str.day = (byte)serial_cmd_rcv.substring(9, 11).toInt();
  my_date_str.hour = (byte)serial_cmd_rcv.substring(12, 14).toInt();
  my_date_str.minute = (byte)serial_cmd_rcv.substring(15, 17).toInt();
  my_date_str.second = (byte)serial_cmd_rcv.substring(18).toInt();

  rtc.setYear(my_date_str.year);
  rtc.setMonth(my_date_str.month);
  rtc.setDate(my_date_str.day);
  rtc.setHour(my_date_str.hour);
  rtc.setMinute(my_date_str.minute);
  rtc.setSecond(my_date_str.second);

  serial_cmd_rcv = "";

  Serial.println("Time set.");
}

void setup() {
  // Initialize the I2C interface
  Wire.begin(SDA_PIN, SCL_PIN, 40000);

  // Initialize Serial communication
  Serial.begin(115200);
  // Set the RTC to 24-hour mode
  rtc.setClockMode(false); // 24-hour format

  // Print current time to Serial Monitor
  PrintfCurTime();

  // Clear any remaining serial data
  while (Serial.read() >= 0) {}
}

void loop() {
  // Process incoming serial commands
  GetSerialCmd();
  delay(1000); // Delay for 1 second
}
arduino ino file download:

.zip   7-DS3231-RTC.zip (Size: 1.56 KB / Downloads: 748)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   7-DS3231-RTC.ino.merged.zip (Size: 191.09 KB / Downloads: 740)

Print this item

  [arduino code examples for A2v3]-06 How to use SD Card
Posted by: admin - 04-20-2025, 05:58 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* SD Card File Operations
*
* This program demonstrates basic file operations on an SD card using the ESP32.
* It includes functionality to:
* - Initialize and test the SD card
* - Read from, write to, append to, and delete files on the SD card
* - Measure file read and write performance
*
* Hardware Connections:
* - SCK: GPIO 13
* - MISO: GPIO 14
* - MOSI: GPIO 12
* - CS: GPIO 11
*/

#include "FS.h"
#include "SD.h"
#include "SPI.h"

// Pin definitions for SD card
#define SCK  13
#define MISO 14
#define MOSI 12
#define CS   11

/**
* @brief Reads the contents of a file from the SD card and prints it to the serial monitor.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to read.
*/
void readFile(fs::FS &fs, const char * path) {
  Serial.printf("Reading file: %s\n", path);

  File file = fs.open(path);
  if (!file) {
    Serial.println("Failed to open file for reading");
    return;
  }

  Serial.print("Read from file: ");
  while (file.available()) {
    Serial.print((char)file.read());
  }
  file.close();
}

/**
* @brief Writes a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to write.
* @param message Message to write to the file.
*/
void writeFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Writing file: %s\n", path);

  File file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }
  if (file.print(message)) {
    Serial.println("File written");
  } else {
    Serial.println("Write failed");
  }
  file.close();
}

/**
* @brief Appends a message to a file on the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to append.
* @param message Message to append to the file.
*/
void appendFile(fs::FS &fs, const char * path, const char * message) {
  Serial.printf("Appending to file: %s\n", path);

  File file = fs.open(path, FILE_APPEND);
  if (!file) {
    Serial.println("Failed to open file for appending");
    return;
  }
  if (file.print(message)) {
    Serial.println("Message appended");
  } else {
    Serial.println("Append failed");
  }
  file.close();
}

/**
* @brief Deletes a file from the SD card.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to delete.
*/
void deleteFile(fs::FS &fs, const char * path) {
  Serial.printf("Deleting file: %s\n", path);
  if (fs.remove(path)) {
    Serial.println("File deleted");
  } else {
    Serial.println("Delete failed");
  }
}

/**
* @brief Tests file read and write performance.
*
* @param fs File system to use (in this case, SD).
* @param path Path of the file to test.
*/
void testFileIO(fs::FS &fs, const char * path) {
  File file = fs.open(path);
  static uint8_t buf[512];
  size_t len = 0;
  uint32_t start = millis();
  uint32_t end = start;

  if (file) {
    len = file.size();
    size_t flen = len;
    start = millis();
    while (len) {
      size_t toRead = len;
      if (toRead > 512) {
        toRead = 512;
      }
      file.read(buf, toRead);
      len -= toRead;
    }
    end = millis() - start;
    Serial.printf("%u bytes read for %u ms\n", flen, end);
    file.close();
  } else {
    Serial.println("Failed to open file for reading");
  }

  file = fs.open(path, FILE_WRITE);
  if (!file) {
    Serial.println("Failed to open file for writing");
    return;
  }

  size_t i;
  start = millis();
  for (i = 0; i < 2048; i++) {
    file.write(buf, 512);
  }
  end = millis() - start;
  Serial.printf("%u bytes written for %u ms\n", 2048 * 512, end);
  file.close();
}

void setup() {
  // Initialize serial communication
  Serial.begin(115200);

  // Initialize SPI and SD card
  SPIClass spi = SPIClass(HSPI);
  spi.begin(SCK, MISO, MOSI, CS);

  if (!SD.begin(CS, spi, 80000000)) {
    Serial.println("Card Mount Failed");
    return;
  }

  uint8_t cardType = SD.cardType();

  if (cardType == CARD_NONE) {
    Serial.println("No SD card attached");
    return;
  }

  Serial.print("SD Card Type: ");
  if (cardType == CARD_MMC) {
    Serial.println("MMC");
  } else if (cardType == CARD_SD) {
    Serial.println("SDSC");
  } else if (cardType == CARD_SDHC) {
    Serial.println("SDHC");
  } else {
    Serial.println("UNKNOWN");
  }

  uint64_t cardSize = SD.cardSize() / (1024 * 1024);
  Serial.printf("SD Card Size: %lluMB\n", cardSize);
  delay(2000);

  // Perform file operations
  deleteFile(SD, "/hello.txt");
  writeFile(SD, "/hello.txt", "Hello ");
  appendFile(SD, "/hello.txt", "World!\n");
  readFile(SD, "/hello.txt");
  testFileIO(SD, "/test.txt");
  Serial.printf("Total space: %lluMB\n", SD.totalBytes() / (1024 * 1024));
  Serial.printf("Used space: %lluMB\n", SD.usedBytes() / (1024 * 1024));
}

void loop() {
  // No operation in loop
}
arduino ino file download:

.zip   6-SD.zip (Size: 1.53 KB / Downloads: 741)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   6-SD.ino.merged.zip (Size: 221.25 KB / Downloads: 718)

Print this item

  [arduino code examples for A2v3]-05 Read free GPIO state
Posted by: admin - 04-20-2025, 05:57 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Simple example to read multiple digital inputs using ESP32
* @details This program demonstrates how to read digital input states
*          from GPIO18, GPIO8, GPIO4, GPIO5, GPIO6, and GPIO38 of an ESP32 development board.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for digital inputs
#define INPUT1_PIN 18  // GPIO18
#define INPUT2_PIN 8   // GPIO8
#define INPUT3_PIN 4   // GPIO4
#define INPUT4_PIN 5   // GPIO5
#define INPUT5_PIN 6   // GPIO6
#define INPUT6_PIN 38  // GPIO38

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Digital Input Read Example");

    // Set the input pins as INPUT
    pinMode(INPUT1_PIN, INPUT);
    pinMode(INPUT2_PIN, INPUT);
    pinMode(INPUT3_PIN, INPUT);
    pinMode(INPUT4_PIN, INPUT);
    pinMode(INPUT5_PIN, INPUT);
    pinMode(INPUT6_PIN, INPUT);
}

void loop() {
    // Read the state of the digital inputs
    int state1 = digitalRead(INPUT1_PIN);
    int state2 = digitalRead(INPUT2_PIN);
    int state3 = digitalRead(INPUT3_PIN);
    int state4 = digitalRead(INPUT4_PIN);
    int state5 = digitalRead(INPUT5_PIN);
    int state6 = digitalRead(INPUT6_PIN);

    // Print the states to the Serial Monitor
    Serial.print("GPIO18 State: ");
    Serial.println(state1);
    Serial.print("GPIO8 State: ");
    Serial.println(state2);
    Serial.print("GPIO4 State: ");
    Serial.println(state3);
    Serial.print("GPIO5 State: ");
    Serial.println(state4);
    Serial.print("GPIO6 State: ");
    Serial.println(state5);
    Serial.print("GPIO38 State: ");
    Serial.println(state6);

    // Wait for 500 milliseconds before reading again
    delay(500);
}
arduino ino file download:

.zip   5-free-gpio-state.zip (Size: 773 bytes / Downloads: 715)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   5-free-gpio-state.ino.merged.zip (Size: 179.48 KB / Downloads: 759)

Print this item

  [arduino code examples for A2v3]-04 RS485 communication test
Posted by: admin - 04-20-2025, 05:54 AM - Forum: KC868-A2v3 - No Replies

Code:
/*
* Made by KinCony IoT: https://www.kincony.com
*
* RS485 Communication Test
*
* This program is a simple test for RS485 communication using ESP32-S3.
* It will send a message over RS485 and then read incoming messages.
* The TXD pin is defined as GPIO 18 and RXD pin is defined as GPIO 8.
*/

#include <HardwareSerial.h>

// Define RS485 pins
#define RS485_RXD 15
#define RS485_TXD 7

// Create a hardware serial object
HardwareSerial rs485Serial(1);

void setup() {
  // Start serial communication for debugging
  Serial.begin(115200);
  while (!Serial);

  // Initialize RS485 Serial communication
  rs485Serial.begin(9600, SERIAL_8N1, RS485_RXD, RS485_TXD);

  Serial.println("RS485 Test Start");
}

void loop() {
  // Send a test message
  rs485Serial.println("Hello from KinCony A2v3!");

  // Wait for a short period
  delay(1000);

  // Check if data is available to read
  if (rs485Serial.available()) {
    String receivedMessage = "";
    while (rs485Serial.available()) {
      char c = rs485Serial.read();
      receivedMessage += c;
    }
    // Print the received message
    Serial.print("Received: ");
    Serial.println(receivedMessage);
  }

  // Wait before sending the next message
  delay(2000);
}
arduino ino file download:

.zip   4-RS485-Test.zip (Size: 763 bytes / Downloads: 792)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   4-RS485-Test.ino.merged.zip (Size: 184.35 KB / Downloads: 725)

Print this item

  [arduino code examples for A2v3]-02 Read digital input ports state
Posted by: admin - 04-20-2025, 05:50 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Simple example to read two digital inputs using ESP32
* @details This program demonstrates how to read two digital input states
*          from GPIO16 and GPIO17 of an ESP32 development board.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for digital inputs
#define INPUT1_PIN 16  // GPIO16 for Digital Input 1
#define INPUT2_PIN 17  // GPIO17 for Digital Input 2

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Digital Input Read Example");

    // Set the input pins as INPUT
    pinMode(INPUT1_PIN, INPUT);
    pinMode(INPUT2_PIN, INPUT);
}

void loop() {
    // Read the state of the digital inputs
    int state1 = digitalRead(INPUT1_PIN);
    int state2 = digitalRead(INPUT2_PIN);

    // Print the states to the Serial Monitor
    Serial.print("Digital Input 1 State: ");
    Serial.println(state1);
    Serial.print("Digital Input 2 State: ");
    Serial.println(state2);

    // Wait for 500 milliseconds before reading again
    delay(500);
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 667 bytes / Downloads: 707)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 179.35 KB / Downloads: 712)

Print this item

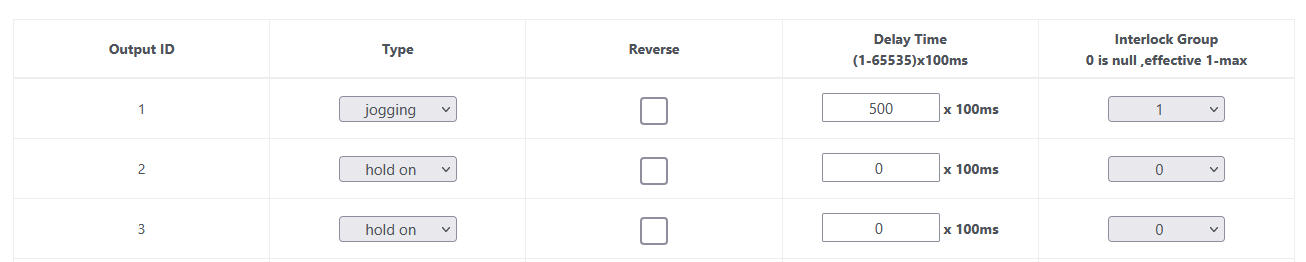

  [arduino code examples for A2v3]-01 Turn ON/OFF OUTPUT
Posted by: admin - 04-20-2025, 05:48 AM - Forum: KC868-A2v3 - No Replies

Code:
/**
* @brief Simple example to control two relays using ESP32
* @details This program demonstrates how to control two relays connected to GPIO40 and GPIO39
*          of an ESP32 development board.
*
* Made by KinCony IoT: https://www.kincony.com
*/

// Define the GPIO pins for the relays
#define RELAY1_PIN 40  // GPIO40 for Relay 1
#define RELAY2_PIN 39  // GPIO39 for Relay 2

void setup() {
    // Initialize the serial communication for debugging
    Serial.begin(115200);
    Serial.println("ESP32 Relay Control Example");

    // Set the relay pins as output
    pinMode(RELAY1_PIN, OUTPUT);
    pinMode(RELAY2_PIN, OUTPUT);

    // Turn off both relays at startup (assuming active LOW relays)
    digitalWrite(RELAY1_PIN, HIGH);
    digitalWrite(RELAY2_PIN, HIGH);
}

void loop() {
    Serial.println("Turning ON Relay 1");
    digitalWrite(RELAY1_PIN, LOW); // Activate relay 1
    delay(1000); // Wait for 1 second

    Serial.println("Turning OFF Relay 1");
    digitalWrite(RELAY1_PIN, HIGH); // Deactivate relay 1
    delay(1000);

    Serial.println("Turning ON Relay 2");
    digitalWrite(RELAY2_PIN, LOW); // Activate relay 2
    delay(1000);

    Serial.println("Turning OFF Relay 2");
    digitalWrite(RELAY2_PIN, HIGH); // Deactivate relay 2
    delay(1000);
}
arduino ino file download:

.zip   1-output.zip (Size: 683 bytes / Downloads: 722)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   1-output.ino.merged.zip (Size: 179.19 KB / Downloads: 769)

Print this item

  KC868-A2v3 ESPHome yaml for home assistant
Posted by: admin - 04-20-2025, 05:46 AM - Forum: KC868-A2v3 - Replies (2)



Code:
esphome:
  name: a2v3
  friendly_name: a2v3

esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:

ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO43
  miso_pin: GPIO44
  cs_pin: GPIO41
  interrupt_pin: GPIO2
  reset_pin: GPIO1

i2c:
   - id: bus_a
     sda: 48
     scl: 47
     scan: true
     frequency: 400kHz

uart:
  - id: uart_1
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 7
    rx_pin: 15

  - id: uart_sim7600
    baud_rate: 115200
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
      sequence:
        - lambda: UARTDebug::log_string(direction, bytes);
    tx_pin: 10
    rx_pin: 9

switch:

  - platform: gpio
    pin: 40
    name: "A2v3-Relay1"

  - platform: gpio
    pin: 39
    name: "A2v3-Relay2"

  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]

  - platform: uart
    uart_id: uart_sim7600
    name: "UART 4G"
    data: "AT+CGSN\r\n" # read 4G SIM7600 ID

binary_sensor:
  - platform: gpio
    name: "A2v3-input1"
    pin:
      number: 16
      inverted: true

  - platform: gpio
    name: "A2v3-input2"
    pin:
      number: 17
      inverted: true

  - platform: gpio
    name: "IO18"
    pin:
      number: 18
      inverted: true

  - platform: gpio
    name: "IO8"
    pin:
      number: 8
      inverted: true

  - platform: gpio
    name: "IO4"
    pin:
      number: 4
      mode:
        input: true
        pullup: true
      inverted: true

  - platform: gpio
    name: "IO5"
    pin:
      number: 5
      mode:
        input: true
        pullup: true
      inverted: true

  - platform: gpio
    name: "IO6"
    pin:
      number: 6
      mode:
        input: true
        pullup: true
      inverted: true

  - platform: gpio
    name: "IO38"
    pin:
      number: 38
      mode:
        input: true
        pullup: true
      inverted: true

web_server:
  port: 80

font:
  - file: "gfonts://Roboto"
    id: roboto
    size: 20

display:
  - platform: ssd1306_i2c
    i2c_id: bus_a
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 0, id(roboto), "A2v3");
esphome yaml file download:

.txt   A2v3-HA.txt (Size: 2.39 KB / Downloads: 580)

Print this item

  KC868-A2v3 ESP32-S3 IO pins define
Posted by: admin - 04-20-2025, 05:44 AM - Forum: KC868-A2v3 - No Replies

IIC Bus:

SDA:GPIO48
SCL:GPIO47

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68
SSD1306 display: i2c address:0x3c
-----------------

1-wire (pull-up resistance on PCB):
1-wire(TMP1):GPIO18
1-wire(TMP2):GPIO8


free GPIOs (without pull-up resistance on PCB):
free gpio-1:GPIO4
free gpio-2:GPIO5
free gpio-3:GPIO6
free gpio-4:GPIO38
-----------------

Ethernet (W5500) I/O define:

clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO41

interrupt_pin: GPIO2
reset_pin: GPIO1

--------------------
RS485:
RXD:GPIO15
TXD:GPIO7

4G module:
RXD:GPIO9
TXD:GPIO10

--------------------
SD Card:
SPI-MOSI:GPIO12
SPI-SCK:GPIO13
SPI-MISO:GPIO14
SPI-CS:GPIO11
SPI-CD:GPIO21

--------------------
Relay1:GPIO40
Relay2:GPIO39

--------------------
digital input-1:GPIO16
digital input-2:GPIO17

Print this item

  KC868-A16 IR Input
Posted by: cyberrailpete - 04-20-2025, 05:33 AM - Forum: KC868-A16 - Replies (11)

Hello.

I have a KC868-A16 - Great board. I have a number of IR sensors that need to send back state via MQTT to different topics so have had to write custom sketch in Aurdino IDE.

Problem is the sensor never goes inactive. I have tested the IR with a meter and voltage drop on digital out when active and high when inactive.

KC868-A16 seems to be 12v on the input which is weird. Help please!

Print this item
