  DM32 ESP32-S3 IO pins define
Posted by: admin - 02-03-2026, 12:35 AM - Forum: DM32 (under designing) - No Replies

SDA:GPIO8
SCL:GPIO18

PCF8575: (input1-16): i2c address:0x22 by B16-core

P8:input1
P9:input2
P10:input3
P11:input4
P12:input5
P13:input6
P14:input7
P15:input8

P0:input9
P1:input10
P2:input11
P3:input12
P4:input13
P5:input14
P6:input15
P7:input16

PCF8575: (input17-32): i2c address:0x24

P0:input17
P1:input18
P2:input19
P3:input20
P4:input21
P5:input22
P6:input23
P7:input24

P8:input25
P9:input26
P10:input27
P11:input28
P12:input29
P13:input30
P14:input31
P15:input32

ADS1115 (4CH ADC): i2c address:0x48
Analog input (A1: DC 0-5v)
Analog input (A2: DC 0-5v)
Analog input (A3: DC 4-20mA)
Analog input (A4: DC 4-20mA)

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68

1-wire (pull-up resistance on PCB):
1-wire1:GPIO47
1-wire2:GPIO48
1-wire3:GPIO7
1-wire4:GPIO40

free GPIOs:
GPIO13
GPIO14
GPIO21

-----------------------
Ethernet (W5500) I/O define:

clk_pin: GPIO1
mosi_pin: GPIO2
miso_pin: GPIO41
cs_pin: GPIO42

interrupt_pin: GPIO43
reset_pin: GPIO44

--------------------
RS485:
RXD:GPIO38
TXD:GPIO39

Tuya module:
RXD:GPIO17
TXD:GPIO16

Tuya network button: Tuya module's P28
Tuya network LED: Tuya module's P16

ARM CPU TXD:GPIO4
ARM CPU RXD:GPIO6


SD Card:
SPI-MOSI:GPIO10
SPI-SCK:GPIO11
SPI-MISO:GPIO12
SPI-CS:GPIO9
SD-Detect: GPIO5

Print this item

  [arduino code examples for DM32]-02 Read digital input ports state
Posted by: admin - 02-03-2026, 12:31 AM - Forum: DM32 (under designing) - No Replies

Code:
#include <Wire.h>
#include "PCF8575.h"

#define I2C_SDA 8
#define I2C_SCL 18

PCF8575 pcf8575_IN1(0x22); // DI1–DI16
PCF8575 pcf8575_IN2(0x24); // DI17–DI32

uint8_t pin_order_dm16[16] = {
    8, 9, 10, 11, 12, 13, 14, 15,
    0, 1, 2, 3, 4, 5, 6, 7
};

uint8_t pin_order_ext[16] = {
    0, 1, 2, 3, 4, 5, 6, 7,
    8, 9, 10, 11, 12, 13, 14, 15
};

void setup() {
    Serial.begin(115200);
    Wire.begin(I2C_SDA, I2C_SCL);

    pcf8575_IN1.begin();
    pcf8575_IN2.begin();

    Serial.println("DI1–DI32 (0=ON 1=OFF)");
}

void loop() {
    Serial.print("DI1–DI32: ");

    // DI1–DI16
    for (int i = 0; i < 16; i++) {
        Serial.print(pcf8575_IN1.read(pin_order_dm16[i]));
        Serial.print(" ");
    }

    // DI17–DI32
    for (int i = 0; i < 16; i++) {
        Serial.print(pcf8575_IN2.read(pin_order_ext[i]));
        Serial.print(" ");
    }

    Serial.println();
    delay(500);
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 547 bytes / Downloads: 34)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 197.89 KB / Downloads: 35)

Print this item

  [arduino code examples for DM32]-01 32 Channel DAC output by digital input buttons
Posted by: admin - 02-03-2026, 12:30 AM - Forum: DM32 (under designing) - No Replies

Code:
#include <Adafruit_PCF8575.h>
#include <HardwareSerial.h>

// Define Modbus RTU frame format constants
#define MODBUS_READ_COILS 0x01
#define MODBUS_READ_REGISTERS 0x03
#define MODBUS_WRITE_SINGLE_REGISTER 0x06
#define MODBUS_WRITE_MULTIPLE_REGISTERS 0x10

/* Example for 16 input buttons that are connected from the GPIO expander pins to ground.
* Note the buttons must be connected with the other side of the switch to GROUND. There is
* a built in pull-up 'resistor' on each input, but no pull-down resistor capability.
*/

#define DM_NUMS 32 // change for 16, 32 for KinCony DM16, DM32 Smart Dimmer Controller


#define SDA_PIN 8
#define SCL_PIN 18
#define ADDRESS_PCF8575     0x22
#define ADDRESS_PCF8575_2   0x24

#define ST_RX   4 ////ESP32_RCV
#define ST_TX   6 ///ESP32_SEND
typedef enum{KEY_RELEASE=0,KEY_SHORT_PRESSED,KEY_LONG_PRESSED}KEY_STATUS;

typedef struct{
  uint8_t key_index;
  KEY_STATUS key_status;
  long key_time_start;
  long key_time_rec;
  long key_press_time;
  int16_t key_press_cnt; ////Send serial data once every 100 ms
  int16_t key_press_cnt_old;
  float current_light; ///Percentage of 0–4095
}KEY_PRESS_PROP;

KEY_PRESS_PROP key_press_prop[32] = {0};


Adafruit_PCF8575 pcf,pcf2;
HardwareSerial myst_serial(1);

TwoWire myI2c = TwoWire(0);
ushort dm_num = DM_NUMS;

// Modbus CRC16 Calculation function
uint16_t modbus_crc16(uint8_t *data, uint16_t length) {
  uint16_t crc = 0xFFFF;

  for (uint16_t i = 0; i < length; i++) {
    crc ^= data[i];
    for (uint8_t j = 0; j < 8; j++) {
      if (crc & 0x0001) {
        crc = (crc >> 1) ^ 0xA001;
      } else {
        crc = crc >> 1;
      }
    }
  }
  return crc;
}

/**
* Send a Modbus RTU frame
*
* @param serial HardwareSerial object
* @param address Slave address (1-247)
* @param function function code
* @param data
* @param dataLen
*/
void send_modbus_frame(HardwareSerial &serial, uint8_t address, uint8_t function,
                      const uint8_t *data, uint16_t dataLen) {
  // Create a transmit buffer
  uint16_t totalLen = 1 + 1 + dataLen + 2; // address + function code + data + CRC
  uint8_t buffer[totalLen];

  buffer[0] = address;
  buffer[1] = function;

  memcpy(&buffer[2], data, dataLen);

  uint16_t crc = modbus_crc16(buffer, 2 + dataLen);

  // Add CRC (low byte first)
  buffer[2 + dataLen] = crc & 0xFF;      // CRC low byte
  buffer[3 + dataLen] = (crc >> 8) & 0xFF; // CRC high byte

  // Send the complete frame
  for (uint16_t i = 0; i < totalLen; i++) {
    serial.write(buffer[i]);
  }

  // Flush the transmit buffer to ensure all data is sent
  serial.flush();
}

// Encapsulate commonly used Modbus functions

/**
* Send a Read Holding Registers request
*
* @param serial
* @param address
* @param startReg
* @param numRegs
*/
void modbus_read_registers(HardwareSerial &serial, uint8_t address,
                          uint16_t startReg, uint16_t numRegs) {
  uint8_t data[4];


  data[0] = (startReg >> 8) & 0xFF; // High byte of the register address
  data[1] = startReg & 0xFF;        // Low byte of the register address
  data[2] = (numRegs >> 8) & 0xFF;  // High byte of the register count
  data[3] = numRegs & 0xFF;         // Low byte of the register count

  send_modbus_frame(serial, address, MODBUS_READ_REGISTERS, data, sizeof(data));
}

/**
*
* @param serial
* @param address
* @param regAddress
* @param value
*/
void modbus_write_single_register(HardwareSerial &serial, uint8_t address,
                                uint16_t regAddress, uint16_t value) {
  uint8_t data[4];

  data[0] = (regAddress >> 8) & 0xFF; // High byte of the register address
  data[1] = regAddress & 0xFF;        // Low byte of the register address
  data[2] = (value >> 8) & 0xFF;      // High byte of the data
  data[3] = value & 0xFF;             // Low byte of the

  send_modbus_frame(serial, address, MODBUS_WRITE_SINGLE_REGISTER, data, sizeof(data));
}

/**
*
* @param serial
* @param address
* @param startReg
* @param values
* @param numRegs
*/
void modbus_write_multiple_registers(HardwareSerial &serial, uint8_t address,
                                   uint16_t startReg, const uint16_t *values,
                                   uint16_t numRegs) {

  uint8_t byteCount = numRegs * 2;
  uint8_t data[5 + byteCount];


  data[0] = (startReg >> 8) & 0xFF;
  data[1] = startReg & 0xFF;
  data[2] = (numRegs >> 8) & 0xFF;
  data[3] = numRegs & 0xFF;
  data[4] = byteCount;


  for (uint8_t i = 0; i < numRegs; i++) {
    data[5 + i*2] = (values[i] >> 8) & 0xFF;
    data[6 + i*2] = values[i] & 0xFF;
  }

  send_modbus_frame(serial, address, MODBUS_WRITE_MULTIPLE_REGISTERS, data, sizeof(data));
}

void setup() {
  Serial.begin(115200);
  myI2c.begin(SDA_PIN,SCL_PIN,100000);
  myst_serial.begin(115200,SERIAL_8N1,ST_RX,ST_TX);///RXPIN FIRST

  while (!Serial) { delay(10); }
  Serial.println("Adafruit PCF8575 button read test");

  if (!pcf.begin(ADDRESS_PCF8575, &myI2c)) {
    Serial.println("err:DMxx Couldn't find 1_PCF8575!");
    while (1);
  }
  else Serial.println("Find 1_PCF8575!");

  if(dm_num==32)
  {
    if (!pcf2.begin(ADDRESS_PCF8575_2, &myI2c)) {
    Serial.println("DM32 Couldn't find 2_PCF8575");
    }
    else Serial.println("Find 2_PCF8575!");
  }


  for (uint8_t p=0; p<DM_NUMS; p++) {
    pcf.pinMode(p, INPUT_PULLUP);
    if(dm_num==32) pcf2.pinMode(p-16, INPUT_PULLUP);

    key_press_prop[p].key_index = p+1;
    key_press_prop[p].key_status = KEY_RELEASE;
    key_press_prop[p].key_press_time = 0;
  }

  Serial.println("Now, starting!");


}



static uint16_t input_value_old[2] = {0xffff,0xffff};
uint16_t input_value[2] = {0} ;
int8_t current_operator_key = -1;
int8_t key_index = -1,key_index_last = -1;
int16_t key_press_cnt_old = 0;
uint16_t write_value=0;

static int8_t get_key_press(int8_t chip,uint16_t key_value)
{
  if(key_value == 0xffff || key_value == 0) return -1;

  for(int16_t i=0;i<16;i++)
  {
    if((key_value & (1<<i) ) == 0)  return (chip==0)?i:i+16;
  }
}

static uint16_t getKeycode()
{
  uint16_t input_value = 0,tmp_value;
  uint8_t h_value = 0 ,l_value = 0;
  tmp_value = pcf.digitalReadWord();
  h_value = tmp_value>>8;
  l_value = tmp_value&0xff;
  input_value = (l_value<<8 ) | h_value;

  return input_value;
}

static uint16_t getKeycode2()
{
  uint16_t input_value = 0,tmp_value;
  uint8_t h_value = 0 ,l_value = 0;
  tmp_value = pcf2.digitalReadWord();
  h_value = tmp_value>>8;
  l_value = tmp_value&0xff;
  input_value = (l_value ) | (h_value<<8);

  return input_value;
}

static void checkKeyPress(int8_t chip);

static uint16_t key_old_arr[2] = {0};

void loop() {

  input_value[0] = getKeycode();
  /*if(key_old_arr[0] != input_value[0] )
  {
    key_old_arr[0] = input_value[0];
    Serial.printf("input0:%d\r\n",input_value[0]);
  }*/

  checkKeyPress(0);

  if(dm_num == 32)
  {
    delay(10);
    input_value[1] = getKeycode2();
    checkKeyPress(1);
    /*if(key_old_arr[1] != input_value[1] )
    {
      key_old_arr[1] = input_value[1];
      Serial.printf("input1:%d\r\n",input_value[1]);
    }*/
  }



  delay(10); // a short debounce delay
}

static void checkKeyPress(int8_t chip)
{
  uint8_t start_index = (chip==0)?0:16;
  if(input_value_old[chip] != input_value[chip])
  {
    input_value_old[chip] = input_value[chip];
    if(input_value[chip] == 0xffff)
    {
      Serial.printf("key is released!");

      current_operator_key = -1;
      key_index_last = key_index = -1;

      for (uint8_t p=start_index; p<16+start_index; p++) ///all key status init.
      {
        key_press_prop[p].key_index = p+1;
        key_press_prop[p].key_status = KEY_RELEASE;
        key_press_prop[p].key_time_start = 0;
        key_press_prop[p].key_press_time = 0;
        key_press_prop[p].key_time_rec = 0;
        key_press_prop[p].key_press_cnt = 0;
        key_press_prop[p].key_press_cnt_old = 0;
      }
    }
    else ///key press
    {
      //Serial.printf("input_value = %04X \r\n",input_value);
      key_index = get_key_press(chip,input_value[chip]);
      if(key_index >= 0)
      {
        key_index_last = key_index;
        Serial.printf("key %02d # is pressed! \r\n",key_index+1);
        current_operator_key = key_index;
        key_press_prop[current_operator_key].key_status = KEY_SHORT_PRESSED;
        key_press_prop[current_operator_key].key_time_start = millis();
        key_press_prop[current_operator_key].key_press_time = 0;
      }
    }
  }
  else
  {
    if(input_value[chip] != 0xffff) ///LONG PRESS!
    {
      //Serial.printf("key long pressed! \r\n");

      key_index = get_key_press(chip,input_value[chip]);
      if(key_index >= 0 && key_index_last == key_index)
      {
        //Serial.printf("key long pressed! key_index = %d\r\n",key_index);

        current_operator_key = key_index;
        key_press_prop[current_operator_key].key_status = KEY_LONG_PRESSED;
        key_press_prop[current_operator_key].key_time_rec = millis();
        key_press_prop[current_operator_key].key_press_time = key_press_prop[current_operator_key].key_time_rec - key_press_prop[current_operator_key].key_time_start;
        key_press_prop[current_operator_key].key_press_cnt = (key_press_prop[current_operator_key].key_press_time % 4080 ) / 100; ////100MS发一次

        //Serial.printf("key long time = %d, cnt = %d \r\n",key_press_prop[current_operator_key].key_press_time,key_press_prop[current_operator_key].key_press_cnt);

        if(key_press_prop[current_operator_key].key_press_cnt_old != key_press_prop[current_operator_key].key_press_cnt)
        {
          key_press_prop[current_operator_key].key_press_cnt_old = key_press_prop[current_operator_key].key_press_cnt;
          /////send st_tx information.
          key_press_prop[current_operator_key].current_light = (float)key_press_prop[current_operator_key].key_press_cnt * 100.0f;
          write_value = (uint16_t) key_press_prop[current_operator_key].current_light;

          Serial.printf("key_long_press_time = %d, current_light = %d \r\n",key_press_prop[current_operator_key].key_press_time,write_value);

          modbus_write_multiple_registers(myst_serial,1,4000+current_operator_key,&write_value,1);


        }
      }
    }
  }

}
arduino ino file download:

.zip   1-dac-32ch.zip (Size: 2.95 KB / Downloads: 45)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   1-dac-32ch.ino.merged.zip (Size: 205.71 KB / Downloads: 30)

Print this item

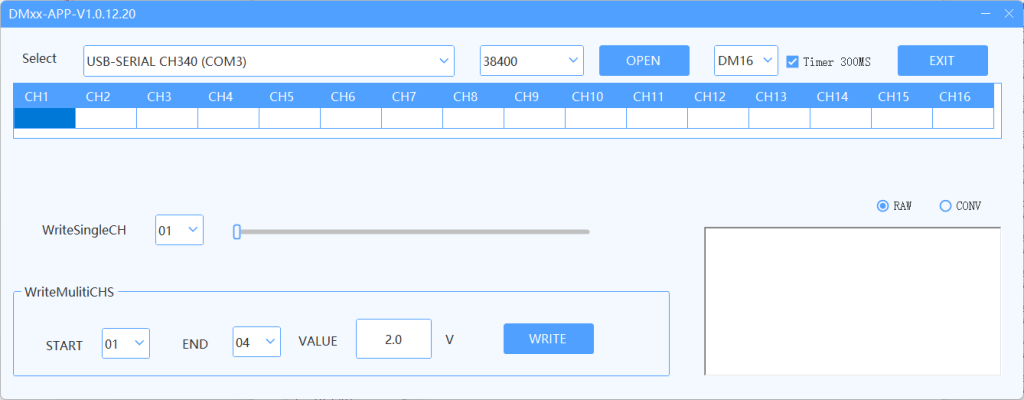

  DM8 DM16 DM32 PC software using USB-RS485 adapter
Posted by: admin - 02-03-2026, 12:27 AM - Forum: DM16 - No Replies


PC software download:
.zip   DMxx_SIMPLE1220.zip (Size: 1.66 MB / Downloads: 45)

Print this item

  DM8 DM16 DM32 PC software using USB-RS485 adapter
Posted by: admin - 02-03-2026, 12:27 AM - Forum: DM8 (under designing) - No Replies


PC software download:
.zip   DMxx_SIMPLE1220.zip (Size: 1.66 MB / Downloads: 52)

Print this item

  DM8 DM16 DM32 PC software using USB-RS485 adapter
Posted by: admin - 02-03-2026, 12:27 AM - Forum: DM32 (under designing) - No Replies


PC software download:
.zip   DMxx_SIMPLE1220.zip (Size: 1.66 MB / Downloads: 34)

Print this item

  DM8 ESP32-S3 IO pins define
Posted by: admin - 02-03-2026, 12:23 AM - Forum: DM8 (under designing) - No Replies

SDA:GPIO8
SCL:GPIO18

PCF8574: (input1-8): i2c address:0x24

P0:input1
P1:input2
P2:input3
P3:input4
P4:input5
P5:input6
P6:input7
P7:input8

ADS1115 (4CH ADC): i2c address:0x48
Analog input (A1: DC 0-5v)
Analog input (A2: DC 0-5v)
Analog input (A3: DC 4-20mA)
Analog input (A4: DC 4-20mA)

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68



1-wire (pull-up resistance on PCB):
1-wire1:GPIO47
1-wire2:GPIO48
1-wire3:GPIO17
1-wire4:GPIO40

free GPIOs:
GPIO13
GPIO14
GPIO21

-----------------------
Ethernet (W5500) I/O define:

clk_pin: GPIO1
mosi_pin: GPIO2
miso_pin: GPIO41
cs_pin: GPIO42

interrupt_pin: GPIO43
reset_pin: GPIO44

--------------------
RS485:
RXD:GPIO38
TXD:GPIO39

Tuya module:
RXD:GPIO15
TXD:GPIO16

Tuya network button: Tuya module's P28
Tuya network LED: Tuya module's P16

SD Card:
SPI-MOSI:GPIO10
SPI-SCK:GPIO11
SPI-MISO:GPIO12
SPI-CS:GPIO9
SD-Detect: GPIO5

ARM CPU TXD:GPIO4
ARM CPU RXD:GPIO6

Print this item

  [arduino code examples for DM8]-02 Read digital input ports state
Posted by: admin - 02-03-2026, 12:21 AM - Forum: DM8 (under designing) - No Replies

Code:
/*
KeyPressed on PIN1
by Mischianti Renzo <http://www.mischianti.org>

https://www.mischianti.org/2019/01/02/pcf8574-i2c-digital-i-o-expander-fast-easy-usage/
*/

#include "Arduino.h"
#include "PCF8574.h"

// Define I2C pins
#define I2C_SDA 8   // SDA pin
#define I2C_SCL 18  // SCL pin

// Set i2c address
PCF8574 pcf8574(0x24);
unsigned long timeElapsed;
void setup()
{
    Wire.begin(I2C_SDA, I2C_SCL);
    Serial.begin(115200);
    delay(1000);

//    pcf8574.pinMode(P0, OUTPUT);
pcf8574.pinMode(P0, INPUT);
pcf8574.pinMode(P1, INPUT);
pcf8574.pinMode(P2, INPUT);
pcf8574.pinMode(P3, INPUT);
pcf8574.pinMode(P4, INPUT);
pcf8574.pinMode(P5, INPUT);
pcf8574.pinMode(P6, INPUT);
pcf8574.pinMode(P7, INPUT);

    Serial.print("Init pcf8574...");
    if (pcf8574.begin()){
        Serial.println("OK");
    }else{
        Serial.println("KO");
    }
}

void loop()
{
uint8_t val1 = pcf8574.digitalRead(P0);
uint8_t val2 = pcf8574.digitalRead(P1);
uint8_t val3 = pcf8574.digitalRead(P2);
uint8_t val4 = pcf8574.digitalRead(P3);
uint8_t val5 = pcf8574.digitalRead(P4);
uint8_t val6 = pcf8574.digitalRead(P5);
uint8_t val7 = pcf8574.digitalRead(P6);
uint8_t val8 = pcf8574.digitalRead(P7);
if (val1==LOW) Serial.println("KEY1 PRESSED");
if (val2==LOW) Serial.println("KEY2 PRESSED");
if (val3==LOW) Serial.println("KEY3 PRESSED");
if (val4==LOW) Serial.println("KEY4 PRESSED");
if (val5==LOW) Serial.println("KEY5 PRESSED");
if (val6==LOW) Serial.println("KEY6 PRESSED");
if (val7==LOW) Serial.println("KEY7 PRESSED");
if (val8==LOW) Serial.println("KEY8 PRESSED");
    delay(300);
}
arduino ino file download:

.zip   2-digital-input.zip (Size: 719 bytes / Downloads: 34)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   2-digital-input.ino.merged.zip (Size: 199.51 KB / Downloads: 43)

Print this item

  [arduino code examples for DM8]-01 8 Channel DAC output by digital input buttons
Posted by: admin - 02-03-2026, 12:19 AM - Forum: DM8 (under designing) - No Replies

Code:
#include <Adafruit_PCF8574.h>
#include <HardwareSerial.h>

// Define Modbus RTU frame format constants
#define MODBUS_READ_COILS 0x01
#define MODBUS_READ_REGISTERS 0x03
#define MODBUS_WRITE_SINGLE_REGISTER 0x06
#define MODBUS_WRITE_MULTIPLE_REGISTERS 0x10

/* Example for 16 input buttons that are connected from the GPIO expander pins to ground.
* Note the buttons must be connected with the other side of the switch to GROUND. There is
* a built in pull-up 'resistor' on each input, but no pull-down resistor capability.
*/

#define DM_NUMS 8


#define SDA_PIN 8
#define SCL_PIN 18
#define ADDRESS_PCF8574     0x24   ////A2 A1 A0 :100 = 0x20+4

#define ST_RX   4 ////ESP32_RCV
#define ST_TX   6 ///ESP32_SEND
typedef enum{KEY_RELEASE=0,KEY_SHORT_PRESSED,KEY_LONG_PRESSED}KEY_STATUS;

typedef struct{
  uint8_t key_index;
  KEY_STATUS key_status;
  long key_time_start;
  long key_time_rec;
  long key_press_time;
  int16_t key_press_cnt; ////Send serial data once every 100 ms
  int16_t key_press_cnt_old;
  float current_light; ///Percentage of 0–4095
}KEY_PRESS_PROP;

KEY_PRESS_PROP key_press_prop[16] = {0};


Adafruit_PCF8574 pcf;
HardwareSerial myst_serial(1);

TwoWire myI2c = TwoWire(0);
ushort dm_num = DM_NUMS;

// Modbus CRC16 Calculation function
uint16_t modbus_crc16(uint8_t *data, uint16_t length) {
  uint16_t crc = 0xFFFF;

  for (uint16_t i = 0; i < length; i++) {
    crc ^= data[i];
    for (uint8_t j = 0; j < 8; j++) {
      if (crc & 0x0001) {
        crc = (crc >> 1) ^ 0xA001;
      } else {
        crc = crc >> 1;
      }
    }
  }
  return crc;
}

/**
* Send a Modbus RTU frame
*
* @param serial HardwareSerial object
* @param address Slave address (1-247)
* @param function function code
* @param data
* @param dataLen
*/
void send_modbus_frame(HardwareSerial &serial, uint8_t address, uint8_t function,
                      const uint8_t *data, uint16_t dataLen) {
  // Create a transmit buffer
  uint16_t totalLen = 1 + 1 + dataLen + 2; // address + function code + data + CRC
  uint8_t buffer[totalLen];

  buffer[0] = address;
  buffer[1] = function;

  memcpy(&buffer[2], data, dataLen);

  uint16_t crc = modbus_crc16(buffer, 2 + dataLen);

  // Add CRC (low byte first)
  buffer[2 + dataLen] = crc & 0xFF;      // CRC low byte
  buffer[3 + dataLen] = (crc >> 8) & 0xFF; // CRC high byte

  // Send the complete frame
  for (uint16_t i = 0; i < totalLen; i++) {
    serial.write(buffer[i]);
  }

  // Flush the transmit buffer to ensure all data is sent
  serial.flush();
}

// Encapsulate commonly used Modbus functions

/**
* Send a Read Holding Registers request
*
* @param serial
* @param address
* @param startReg
* @param numRegs
*/
void modbus_read_registers(HardwareSerial &serial, uint8_t address,
                          uint16_t startReg, uint16_t numRegs) {
  uint8_t data[4];


  data[0] = (startReg >> 8) & 0xFF; // High byte of the register address
  data[1] = startReg & 0xFF;        // Low byte of the register address
  data[2] = (numRegs >> 8) & 0xFF;  // High byte of the register count
  data[3] = numRegs & 0xFF;         // Low byte of the register count

  send_modbus_frame(serial, address, MODBUS_READ_REGISTERS, data, sizeof(data));
}

/**
*
* @param serial
* @param address
* @param regAddress
* @param value
*/
void modbus_write_single_register(HardwareSerial &serial, uint8_t address,
                                uint16_t regAddress, uint16_t value) {
  uint8_t data[4];

  data[0] = (regAddress >> 8) & 0xFF; // High byte of the register address
  data[1] = regAddress & 0xFF;        // Low byte of the register address
  data[2] = (value >> 8) & 0xFF;      // High byte of the data
  data[3] = value & 0xFF;             // Low byte of the

  send_modbus_frame(serial, address, MODBUS_WRITE_SINGLE_REGISTER, data, sizeof(data));
}

/**
*
* @param serial
* @param address
* @param startReg
* @param values
* @param numRegs
*/
void modbus_write_multiple_registers(HardwareSerial &serial, uint8_t address,
                                   uint16_t startReg, const uint16_t *values,
                                   uint16_t numRegs) {

  uint8_t byteCount = numRegs * 2;
  uint8_t data[5 + byteCount];


  data[0] = (startReg >> 8) & 0xFF;
  data[1] = startReg & 0xFF;
  data[2] = (numRegs >> 8) & 0xFF;
  data[3] = numRegs & 0xFF;
  data[4] = byteCount;


  for (uint8_t i = 0; i < numRegs; i++) {
    data[5 + i*2] = (values[i] >> 8) & 0xFF;
    data[6 + i*2] = values[i] & 0xFF;
  }

  send_modbus_frame(serial, address, MODBUS_WRITE_MULTIPLE_REGISTERS, data, sizeof(data));
}

void setup() {
  Serial.begin(115200);
  myI2c.begin(SDA_PIN,SCL_PIN,100000);
  myst_serial.begin(115200,SERIAL_8N1,ST_RX,ST_TX);///RXPIN FIRST

  while (!Serial) { delay(10); }
  Serial.println("Adafruit PCF8574 button read test");

  if (!pcf.begin(ADDRESS_PCF8574, &myI2c)) {
    Serial.println("err:DMxx Couldn't find PCF8574!");
    while (1);
  }
  else Serial.println("Find PCF8574!");



  for (uint8_t p=0; p<DM_NUMS; p++) {
    pcf.pinMode(p, INPUT_PULLUP);

    key_press_prop[p].key_index = p+1;
    key_press_prop[p].key_status = KEY_RELEASE;
    key_press_prop[p].key_press_time = 0;
  }

  Serial.println("Now, starting!");


}



static uint16_t input_value_old[2] = {0xff,0xff};
uint16_t input_value[2] = {0} ;
int8_t current_operator_key = -1;
int8_t key_index = -1,key_index_last = -1;
int16_t key_press_cnt_old = 0;
uint16_t write_value=0;

static int8_t get_key_press(int8_t chip,uint16_t key_value)
{
  if(key_value == 0xff || key_value == 0) return -1;

  for(int16_t i=0;i<16;i++)
  {
    if((key_value & (1<<i) ) == 0)  return (chip==0)?i:i+16;
  }
}

static uint16_t getKeycode()
{
  uint16_t input_value = 0,tmp_value;
  uint8_t h_value = 0 ,l_value = 0;
  tmp_value = pcf.digitalReadByte();
  //h_value = tmp_value>>8;
// l_value = tmp_value&0xff;
  //input_value = (l_value<<8 ) | h_value;
  input_value = tmp_value;

  return input_value;
}



static void checkKeyPress(int8_t chip);

static uint16_t key_old_arr[2] = {0};

void loop() {

  input_value[0] = getKeycode();
  if(key_old_arr[0] != input_value[0])
  {
    key_old_arr[0] = input_value[0];
    Serial.printf("input0:%d\r\n",input_value[0]);
  }

  checkKeyPress(0);


  delay(10); // a short debounce delay
}

static void checkKeyPress(int8_t chip)
{
  uint8_t start_index = (chip==0)?0:16;
  if(input_value_old[chip] != input_value[chip])
  {
    input_value_old[chip] = input_value[chip];
    if(input_value[chip] == 0xff)
    {
      Serial.printf("key is released!");

      current_operator_key = -1;
      key_index_last = key_index = -1;

      for (uint8_t p=start_index; p<8+start_index; p++) ///all key status init.
      {
        key_press_prop[p].key_index = p+1;
        key_press_prop[p].key_status = KEY_RELEASE;
        key_press_prop[p].key_time_start = 0;
        key_press_prop[p].key_press_time = 0;
        key_press_prop[p].key_time_rec = 0;
        key_press_prop[p].key_press_cnt = 0;
        key_press_prop[p].key_press_cnt_old = 0;
      }
    }
    else ///key press
    {
      //Serial.printf("input_value = %04X \r\n",input_value);
      key_index = get_key_press(chip,input_value[chip]);
      if(key_index >= 0)
      {
        key_index_last = key_index;
        Serial.printf("key %02d # is pressed! \r\n",key_index+1);
        current_operator_key = key_index;
        key_press_prop[current_operator_key].key_status = KEY_SHORT_PRESSED;
        key_press_prop[current_operator_key].key_time_start = millis();
        key_press_prop[current_operator_key].key_press_time = 0;
      }
    }
  }
  else
  {
    if(input_value[chip] != 0xff) ///LONG PRESS!
    {
      //Serial.printf("key long pressed! \r\n");

      key_index = get_key_press(chip,input_value[chip]);
      if(key_index >= 0 && key_index_last == key_index)
      {
        //Serial.printf("key long pressed! key_index = %d\r\n",key_index);

        current_operator_key = key_index;
        key_press_prop[current_operator_key].key_status = KEY_LONG_PRESSED;
        key_press_prop[current_operator_key].key_time_rec = millis();
        key_press_prop[current_operator_key].key_press_time = key_press_prop[current_operator_key].key_time_rec - key_press_prop[current_operator_key].key_time_start;
        key_press_prop[current_operator_key].key_press_cnt = (key_press_prop[current_operator_key].key_press_time % 4080 ) / 100; ////100MS发一次

        //Serial.printf("key long time = %d, cnt = %d \r\n",key_press_prop[current_operator_key].key_press_time,key_press_prop[current_operator_key].key_press_cnt);

        if(key_press_prop[current_operator_key].key_press_cnt_old != key_press_prop[current_operator_key].key_press_cnt)
        {
          key_press_prop[current_operator_key].key_press_cnt_old = key_press_prop[current_operator_key].key_press_cnt;
          /////send st_tx information.
          key_press_prop[current_operator_key].current_light = (float)key_press_prop[current_operator_key].key_press_cnt * 100.0f;
          write_value = (uint16_t) key_press_prop[current_operator_key].current_light;

          Serial.printf("key_long_press_time = %d, current_light = %d \r\n",key_press_prop[current_operator_key].key_press_time,write_value);

          modbus_write_multiple_registers(myst_serial,1,4000+current_operator_key,&write_value,1);


        }
      }
    }
  }

}
arduino ino file download:

.zip   1-dac-8ch.zip (Size: 2.83 KB / Downloads: 30)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip   1-dac-8ch.ino.merged.zip (Size: 205.65 KB / Downloads: 35)

Print this item

  DM4 ESPHome yaml for home assistant without tuya
Posted by: admin - 02-03-2026, 12:17 AM - Forum: DM4 (under designing) - No Replies

Code:
esphome:
  name: dm4
  friendly_name: dm4

esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: arduino

# Enable logging
logger:

# Enable Home Assistant API
api:

ota:
  platform: esphome

web_server:
  port: 80

ethernet:
  type: W5500
  clk_pin: GPIO1
  mosi_pin: GPIO2
  miso_pin: GPIO41
  cs_pin: GPIO42
  interrupt_pin: GPIO43
  reset_pin: GPIO44

i2c:
   - id: bus_a
     sda: 8
     scl: 18
     scan: true
     frequency: 400kHz

text_sensor:
  - platform: ethernet_info
    ip_address:
      name: ESP IP Address
      id: eth_ip
      address_0:
        name: ESP IP Address 0
      address_1:
        name: ESP IP Address 1
      address_2:
        name: ESP IP Address 2
      address_3:
        name: ESP IP Address 3
      address_4:
        name: ESP IP Address 4
    dns_address:
      name: ESP DNS Address
    mac_address:
      name: ESP MAC Address

font:
  - file: "gfonts://Roboto"
    id: roboto
    size: 15

display:
  - platform: ssd1306_i2c
    model: "SSD1306 128x64"
    address: 0x3C
    lambda: |-
      it.printf(0, 15, id(roboto), "IP: %s", id(eth_ip).state.c_str());
uart:
  - id: uart_1    #RS485
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 38
    rx_pin: 39

switch:
  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]


pcf8574:
  - id: 'pcf8574_hub_in_1'  # for input channel 1-16
    i2c_id: bus_a
    address: 0x24
    pcf8575: false

binary_sensor:
  - platform: gpio
    name: "dm4-input01"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "dm4-input02"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "dm4-input03"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "dm4-input04"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

##pull-up resistance on PCB
  - platform: gpio
    name: "dm4-W1-io48"
    pin:
      number: 48
      inverted: true

  - platform: gpio
    name: "dm4-W1-io47"
    pin:
      number: 47
      inverted: true

  - platform: gpio
    name: "dm4-W1-io40"
    pin:
      number: 40
      inverted: true

  - platform: gpio
    name: "dm4-W1-io17"
    pin:
      number: 17
      inverted: true
## without resistance on PCB
  - platform: gpio
    name: "dm4-io13"
    pin:
      number: 13
      inverted: false

  - platform: gpio
    name: "dm4-io14"
    pin:
      number: 14
      inverted:  false

  - platform: gpio
    name: "dm4-21"
    pin:
      number: 21
      inverted:  false

  - platform: gpio
    name: "dm4-0"
    pin:
      number: 0
      inverted:  false

ads1115:
  - address: 0x48
sensor:
  - platform: ads1115
    multiplexer: 'A0_GND'
    gain: 6.144
    resolution: 16_BITS
    name: "ADS1115 Channel A0-GND"
    update_interval: 5s
  - platform: ads1115
    multiplexer: 'A1_GND'
    gain: 6.144
    name: "ADS1115 Channel A1-GND"
    update_interval: 5s
  - platform: ads1115
    multiplexer: 'A2_GND'
    gain: 6.144
    name: "ADS1115 Channel A2-GND"
    update_interval: 5s
  - platform: ads1115
    multiplexer: 'A3_GND'
    gain: 6.144
    name: "ADS1115 Channel A3-GND"
    update_interval: 5s

mcp4728:
  - id: dac_output

output:
- platform: mcp4728
  id: ac_dimmer_1
  mcp4728_id: dac_output
  channel: A
  vref: internal

- platform: mcp4728
  id: ac_dimmer_2
  mcp4728_id: dac_output
  channel: B
  vref: internal

- platform: mcp4728
  id: ac_dimmer_3
  channel: C
  vref: internal

- platform: mcp4728
  id: ac_dimmer_4
  channel: D
  vref: internal

light:
  - platform: monochromatic
    name: "DM4 DAC-1"
    id: dm4_dac_1
    output: ac_dimmer_1
    gamma_correct: 1.0

  - platform: monochromatic
    name: "DM4 DAC-2"
    id: dm4_dac_2
    output: ac_dimmer_2
    gamma_correct: 1.0

  - platform: monochromatic
    name: "DM4 DAC-3"
    id: dm4_dac_3
    output: ac_dimmer_3
    gamma_correct: 1.0

  - platform: monochromatic
    name: "DM4 DAC-4"
    id: dm4_dac_4
    output: ac_dimmer_4
    gamma_correct: 1.0

esphome yaml file download:

.txt   DM4-HA-without Tuya.txt (Size: 4.4 KB / Downloads: 29)

Print this item
