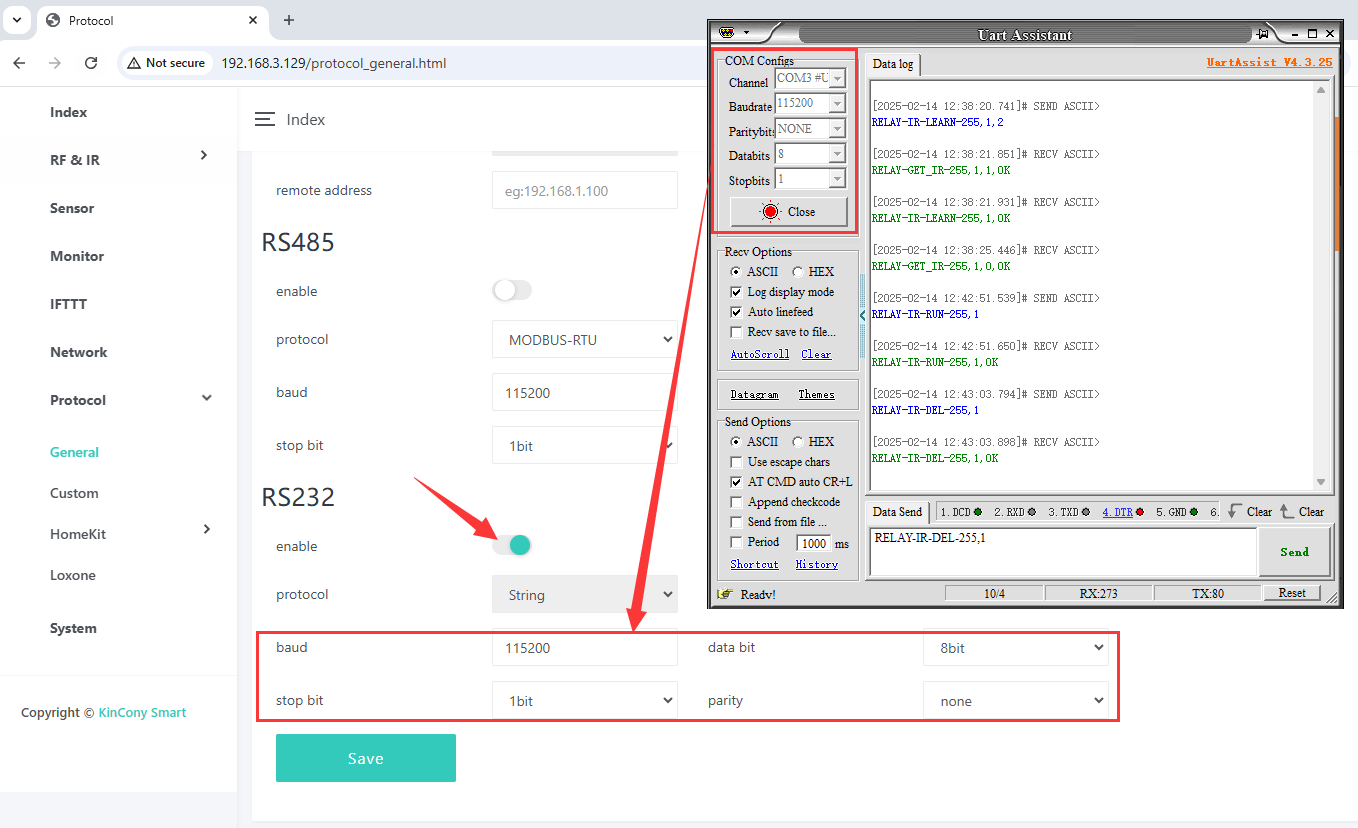

  "KCS" v3 firmware STRING protocol document
Posted by: admin - 02-15-2025, 04:01 AM - Forum: "KCS" v3 firmware - No Replies

Note: This protocol document use for KinCony ESP32-S3 smart controller:
you need to download KCS v3 firmware to ESP32-S3 firstly.
Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number.
protocol document download:
.pdf   KCSv3-protocol-String.pdf (Size: 282.08 KB / Downloads: 434)
for IR commands:



Print this item

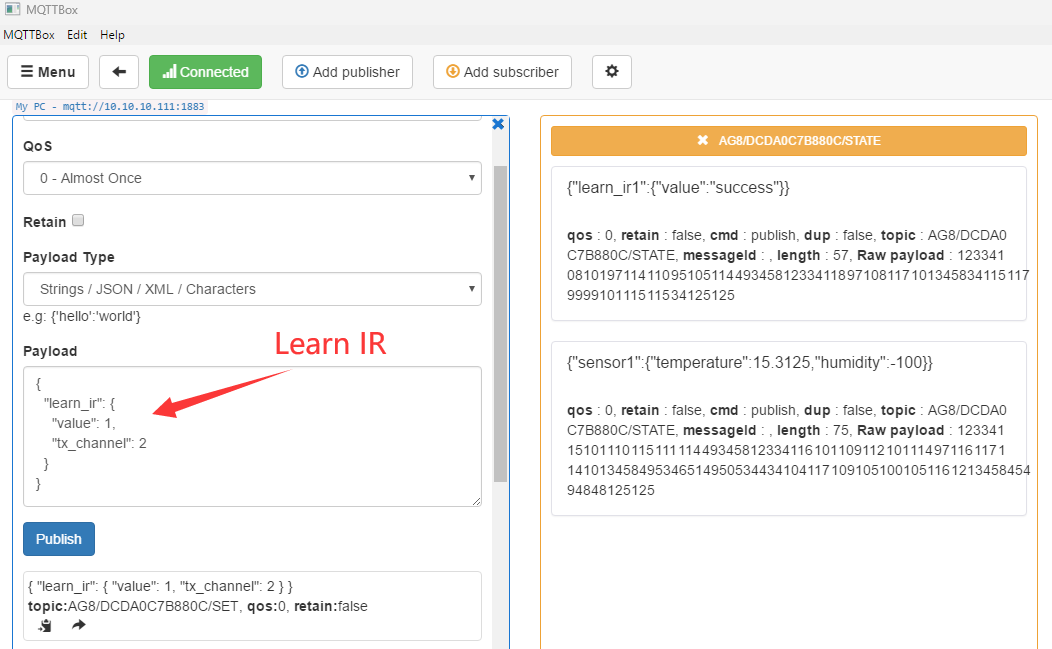

  "KCS" v3 firmware MQTT protocol document
Posted by: admin - 02-15-2025, 03:49 AM - Forum: "KCS" v3 firmware - No Replies

Note: This protocol document use for KinCony ESP32-S3 smart controller:
you need to download KCS v3 firmware to ESP32-S3 firstly.
Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number.
protocol document download:
.pdf   KCSv3-protocol-MQTT.pdf (Size: 287.19 KB / Downloads: 312)
for IR commands:




Print this item

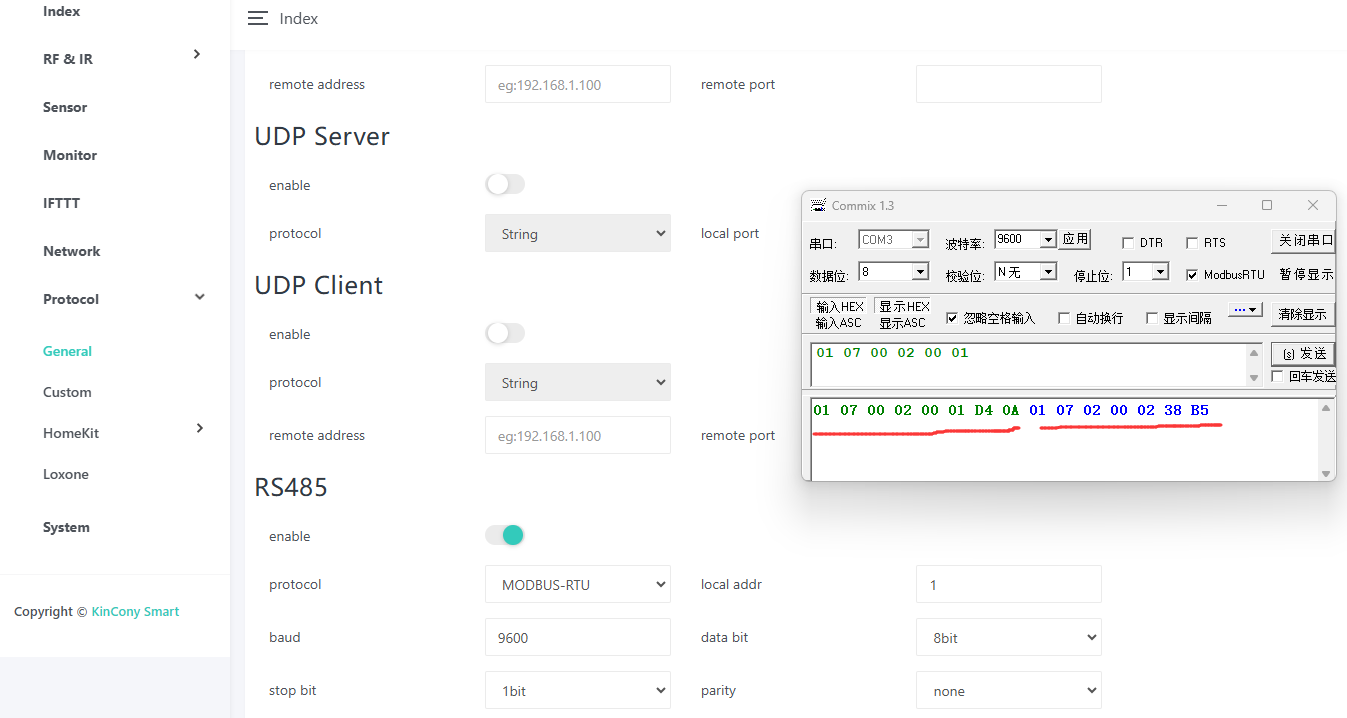

  "KCS" v3 firmware Modbus protocol document
Posted by: admin - 02-15-2025, 03:32 AM - Forum: "KCS" v3 firmware - No Replies

Note: This protocol document use for KinCony ESP32-S3 smart controller:
you need to download KCS v3 firmware to ESP32-S3 firstly.
Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number.

.pdf   KCSv3-protocol-ModBus.pdf (Size: 264.96 KB / Downloads: 435)
for IR commands:




Print this item

  "KCS" v3 firmware UDP STRING protocol document for Loxone Miniserver
Posted by: admin - 02-15-2025, 03:21 AM - Forum: "KCS" v3 firmware - No Replies

Protocol

1: control digital output (DO)
Loxone send to KCS: RELAY-SET-255,2,1  //turn ON DO2
KCS back to Loxone: RELAY-SET-255,2,1,OK
Loxone send to KCS: RELAY-SET-255,2,0  //turn OFF DO2
KCS back to Loxone: RELAY-SET-255,2,0,OK

2: digital output (DO) state feedback
KCS back to Loxone: RELAY-SET-255,3,1,OK //DO3 is ON
KCS back to Loxone: RELAY-SET-255,3,0,OK //DO3 is OFF

3: digital input (DI) state feedback
KCS back to Loxone: RELAY-GET_INPUT-255,4,1,OK  //DI4 is ON
KCS back to Loxone: RELAY-GET_INPUT-255,4,0,OK  //DI4 is OFF

4: control analog output (AO)
Loxone send to KCS: RELAY-SET_DAC_255,2,0  //channel 2 AO=0  0%
KCS back to Loxone: RELAY-SET_DAC_255,2,0,OK
Loxone send to KCS: RELAY-SET_DAC_255,3,255  //channel 3 AO=255 100%
KCS back to Loxone: RELAY-SET_DAC_255,3,255,OK

5: analog output (AO) state feedback
KCS back to Loxone: RELAY-GET_DAC_255,1,107,OK  //channel 1 AO=107
KCS back to Loxone: RELAY-GET_DAC_255,2,255,OK  //channel 2 AO=255

6: analog input (AI) state feedback
KCS back to Loxone: RELAY-GET_ADC-255,1,2670,OK  //channel1 ADC is 2670

7: RF433M receiver state feedback
KCS back to Loxone: RELAY-GET_RF-255,2,1,OK  //channel2 RF sensor is ON
KCS back to Loxone: RELAY-GET_RF-255,3,0,OK  //channel3 RF sensor is OFF

8: temperature & humidity sensor feedback
KCS back to Loxone:RELAY-GET_SENSOR-255,3,16.8,46.8,OK //channel3 sensor temperature=16.8℃ humidity=46.8%
KCS back to Loxone:RELAY-GET_SENSOR-255,4,27.8,-100,OK //channel4 sensor temperature=27.8℃ without humidity

9: Learn IR (MAX support 192 IR signals):
Loxone send to KCS: RELAY-IR-LEARN-255,1,2    // begin learn IR signal ID=1, send by IR tube-2
KCS back to Loxone: RELAY-IR-LEARN-255,1,OK  // success
KCS back to Loxone: RELAY-IR-LEARN-255,1,TIMEOUT  // timeout

10: Send IR
Loxone send to KCS: RELAY-IR-RUN-255,1  // send IR signal ID=1
KCS back to Loxone: RELAY-IR-RUN-255,1,OK

11: Delete IR
Loxone send to KCS: RELAY-IR-DEL-255,1  // delete learned IR signal ID=1
KCS back to Loxone: RELAY-IR-DEL-255,1,OK

download Loxone config demo project file from KinCony forum

Print this item

  "KCS" v3.7.0 firmware BIN file download
Posted by: admin - 02-15-2025, 03:18 AM - Forum: "KCS" v3 firmware - No Replies

v3.7.0 improvement:
1. add support KC868-A6v3, KC868-A16v3, AG8, T16M controller.
2. fixed some bugs.



Attached Files
.zip   KCS_A6V3_V3.7.0.zip (Size: 1 MB / Downloads: 432)
.zip   KCS_A16V3_V3.7.0.zip (Size: 1.08 MB / Downloads: 405)
.zip   KCS_A32PRO_V3.7.0.zip (Size: 1.04 MB / Downloads: 355)
.zip   KCS_AG8_V3.7.0.zip (Size: 1.03 MB / Downloads: 364)
.zip   KCS_B16M_V3.7.0.zip (Size: 1.07 MB / Downloads: 350)
.zip   KCS_F16_V3.7.0.zip (Size: 1.07 MB / Downloads: 345)
.zip   KCS_F24_V3.7.0.zip (Size: 1.07 MB / Downloads: 348)
.zip   KCS_T16M_V3.7.0.zip (Size: 1.02 MB / Downloads: 357)
Print this item

  KC868-A16v3 ESPHome yaml for home assistant
Posted by: admin - 02-15-2025, 03:01 AM - Forum: KC868-A16v3 - Replies (10)

Code:
esphome:
  name: a16v3
  friendly_name: a16v3
  platformio_options:
    board_build.flash_mode: dio

esp32:
  board: esp32-s3-devkitc-1
  framework:
    type: esp-idf

# Enable logging
logger:
  hardware_uart: USB_SERIAL_JTAG

api:

ethernet:
  type: W5500
  clk_pin: GPIO42
  mosi_pin: GPIO43
  miso_pin: GPIO44
  cs_pin: GPIO15
  interrupt_pin: GPIO2
  reset_pin: GPIO1

i2c:
   - id: bus_a
     sda: 9
     scl: 10
     scan: true
     frequency: 400kHz

# Example configuration entry
pcf8574:
  - id: 'pcf8574_hub_out_1'  # for output channel 1-8
    address: 0x24

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16
    address: 0x25

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8
    address: 0x21

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16
    address: 0x22

uart:
  - id: uart_1
    baud_rate: 9600
    debug:
      direction: BOTH
      dummy_receiver: true
      after:
        timeout: 10ms
    tx_pin: 16
    rx_pin: 17



switch:

  - platform: uart
    uart_id: uart_1
    name: "RS485 Button"
    data: [0x11, 0x22, 0x33, 0x44, 0x55]

  - platform: gpio
    name: "a16v3_output1"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output2"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output3"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output4"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output5"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output6"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output7"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output8"
    pin:
      pcf8574: pcf8574_hub_out_1
      number: 7
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output9"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 0
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output10"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 1
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output11"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 2
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output12"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 3
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output13"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 4
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output14"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 5
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output15"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 6
      mode: OUTPUT
      inverted: true

  - platform: gpio
    name: "a16v3_output16"
    pin:
      pcf8574: pcf8574_hub_out_2
      number: 7
      mode: OUTPUT
      inverted: true


binary_sensor:

  - platform: gpio
    name: "a16v3_input1"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input2"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input3"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input4"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input5"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input6"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input7"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input8"
    pin:
      pcf8574: pcf8574_hub_in_1
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input9"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 0
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input10"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 1
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input11"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 2
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input12"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 3
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input13"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 4
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input14"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 5
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input15"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 6
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "a16v3_input16"
    pin:
      pcf8574: pcf8574_hub_in_2
      number: 7
      mode: INPUT
      inverted: true

  - platform: gpio
    name: "A16v3 IO47"
    pin:
      number: 47
      inverted: true

  - platform: gpio
    name: "A16v3 IO48"
    pin:
      number: 48
      inverted: true

  - platform: gpio
    name: "A16v3 IO38"
    pin:
      number: 38
      inverted: true

  - platform: gpio
    name: "A16v3 IO39"
    pin:
      number: 39
      inverted: true

  - platform: gpio
    name: "A16v3 IO40"
    pin:
      number: 40
      inverted: true

  - platform: gpio
    name: "A16v3 IO41"
    pin:
      number: 41
      inverted: true

  - platform: gpio
    name: "A16v3 DW"
    pin:
      number: 0
      inverted: true

sensor:
  - platform: adc
    pin: 4
    name: "A16v3 A1 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 6
    name: "A16v3 A2 Voltage"
    update_interval: 5s
    attenuation: 11db
    filters:
      # - multiply: 1.51515
      - lambda:
          if (x >= 3.11) {
            return x * 1.60256;
          } else if (x <= 0.15) {
            return 0;
          } else {
            return x * 1.51;
          }
  - platform: adc
    pin: 7
    name: "A16v3 A3 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666
  - platform: adc
    pin: 5
    name: "A16v3 A4 Current"
    update_interval: 5s
    unit_of_measurement: mA
    attenuation: 11db
    filters:
      - multiply: 6.66666666

web_server:
  port: 80

# font:
#   - file: "gfonts://Roboto"
#     id: roboto
#     size: 20

# display:
#   - platform: ssd1306_i2c
#     i2c_id: bus_a
#     model: "SSD1306 128x64"
#     address: 0x3C
#     lambda: |-
#       it.printf(0, 0, id(roboto), "A16v3");
download yaml file:
.txt   A16v3-ESPHome.txt (Size: 7.81 KB / Downloads: 856)

Print this item

  KC868-A16v3 ESP32-S3 IO pins define
Posted by: admin - 02-15-2025, 03:00 AM - Forum: KC868-A16v3 - Replies (14)

ANALOG_A1  4
ANALOG_A2  6
ANALOG_A3  7
ANALOG_A4  5

IIC Bus:

SDA:GPIO9
SCL:GPIO10

Relay_IIC_address 0x24
Relay_IIC_address 0x25

Input_IIC_address 0x21
Input_IIC_address 0x22

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68
SSD1306 display: i2c address:0x3c

-----------------

1-wire (pull-up resistance on PCB):
1-wire1:GPIO47
1-wire2:GPIO48
1-wire3:GPIO38

free GPIOs (without pull-up resistance on PCB):
free gpio-1:GPIO39
free gpio-2:GPIO40
free gpio-3:GPIO41
-----------------

Ethernet (W5500) I/O define:

clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO15

interrupt_pin: GPIO2
reset_pin: GPIO1

--------------------
RS485:
RXD:GPIO17
TXD:GPIO16

--------------------
SD Card:
SPI-MOSI:GPIO12
SPI-SCK:GPIO13
SPI-MISO:GPIO14
SPI-CS:GPIO11
SD-CD:GPIO21

--------------------
RF433MHz wireless receiver: GPIO8
RF433MHz wireless sender: GPIO18

free gpio on PCB (beside ESP32-S3 module)
GPIO39
GPIO40
GPIO41

Print this item

  Page kincony problem
Posted by: balcerseb - 02-14-2025, 03:34 PM - Forum: KC868-A16 - Replies (1)

Gentlemen in the manual for the KC868 A16 after logging into the software the input web page in the manual looks like this (see first picture) and I am missing the ON, OFF TOGLLE table how to fix this anyone has an idea because you can't set the control




Print this item

  KCS v3 for AG8 IR protocol
Posted by: admin - 02-14-2025, 05:27 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - Replies (17)

UDP Server / TCP Server / Loxone / RS232:

Learn IR (MAX support 192 IR signals):

send:  RELAY-IR-LEARN-255,1,2    // begin learn IR signal ID=1, send by IR tube-2
receive: RELAY-IR-LEARN-255,1,OK  // success
receive: RELAY-IR-LEARN-255,1,TIMEOUT  // timeout

send: RELAY-IR-LEARN-255,200  // if send IR exceeding the maximum IR ID(MAX=192)
receive: RELAY-IR-LEARN-255,200,ERROR  // error

Send IR:

send: RELAY-IR-RUN-255,1  // send IR signal ID=1
receive: RELAY-IR-RUN-255,1,OK

Delete IR:

send: RELAY-IR-DEL-255,1  // delete learned IR signal ID=1
receive: RELAY-IR-DEL-255,1,OK
---------------------------------------------------------------
UDP Client / TCP Client / Loxone / RS232:

IR triggered and auto feedback: (ONLY use for NEC and RC5 IR code)

RELAY-GET_IR-255,1,1,OK  // trigger
RELAY-GET_IR-255,1,0,OK  // not trigger



---------------------------------------------------------------

MQTT:

Learn IR:  // begin learn IR signal ID=1, send by IR tube-2
payload:
{
  "learn_ir": {
    "value": 1,
    "tx_channel": 2
  }
}

Delete IR:  // delete learned IR signal ID=1

payload:
{
  "run_ir": {
    "value": 1
  }
}

IR triggered and auto feedback:  // trigger when value=1  (ONLY use for NEC and RC5 IR code)

payload:

// trigger begin
{
  "ir1": {
    "value": 1
  }
}

// trigger end
{
  "ir1": {
    "value": 0
  }
}



---------------------------------------------------------------
RS485 Modbus

// 01: Address
// 08: Function code - Learn IR
// 00 05: Register address, 05 means ID=6 because ID begin with 0
// 00 04: Send IR tube, values range from 1-8. 04 means the 4th channel
// F1 C9: CRC
[Tx] 01 08 00 05 00 04 F1 C9

// 01: Address
// 08: Function code - Learn IR
// 02: Data length
// 00 05: Data value, corresponding to the register address when transmitting
// 7A 63: CRC
[Rx] 01 08 02 00 05 7A 63

---------------------------

// 01: Address
// 07: Function code - Send IR
// 00 02: Register address, send IR at index 2, which ID=3
// 00 01: Register count, fixed value 1, only one infrared can be controlled at a time
// D4 0A: CRC
[Tx] 01 07 00 02 00 01 D4 0A

// 01: Address
// 07: Function code - Send IR
// 02: Data length
// 00 02: Data value, corresponding to the register address when transmitting
// 38 B5: CRC
[Rx] 01 07 02 00 02 38 B5

---------------------------

// 01: Address
// 09: Function code - Delete IR
// 00 07: Register address, 07 means ID=8
// 00 01: Register count, fixed value 1, only one infrared can be deleted at a time
// AD CA: CRC
[Tx][11:32:00.669] 01 09 00 07 00 01 AD CA

// 01: Address
// 09: Function code - Delete IR
// 02: Data length
// 00 07: Data value, corresponding to the register address when transmitting
// FA 5E: CRC
[Rx][11:32:01.959] 01 09 02 00 07 FA 5E





Print this item

  KC 868 Server
Posted by: ezra@riverviewwoodproducts.com - 02-13-2025, 06:02 PM - Forum: News - Replies (1)

Hello,

 KC 868 Server running Home Assistant.


>Can Anyone help me figure out what I need to do so that my Analog sensors update by themselves on my home assistant dashboard Gauge Card.



>It updates only when I turn on an off a output signal. But I want it to just update the sensor by itself every 5 seconds or so. I have a 4-20 ma water level sensor connected to it.

can this be done by a way of pining the server somehow? i haven't had luck with that either.

Print this item
