"KCS" v3 firmware HTTP protocol document

Posted by: admin - 02-15-2025, 04:04 AM - Forum: "KCS" v3 firmware - No Replies

Note: This protocol document use for KinCony ESP32-S3 smart controller:
you need to download KCS v3 firmware to ESP32-S3 firstly.
Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number.
protocol document download:
.pdf KCSv3-protocol-HTTP.pdf (Size: 308.71 KB / Downloads: 525)

"KCS" v3 firmware STRING protocol document

Posted by: admin - 02-15-2025, 04:01 AM - Forum: "KCS" v3 firmware - No Replies

Note: This protocol document use for KinCony ESP32-S3 smart controller:
you need to download KCS v3 firmware to ESP32-S3 firstly.
Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number.
protocol document download:
.pdf   KCSv3-protocol-String.pdf (Size: 282.08 KB / Downloads: 445)
for IR commands:

"KCS" v3 firmware MQTT protocol document

Posted by: admin - 02-15-2025, 03:49 AM - Forum: "KCS" v3 firmware - No Replies

Note: This protocol document use for KinCony ESP32-S3 smart controller:
you need to download KCS v3 firmware to ESP32-S3 firstly.
Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number.
protocol document download:
.pdf   KCSv3-protocol-MQTT.pdf (Size: 287.19 KB / Downloads: 328)
for IR commands:

"KCS" v3 firmware Modbus protocol document

Posted by: admin - 02-15-2025, 03:32 AM - Forum: "KCS" v3 firmware - No Replies

	Note: This protocol document use for KinCony ESP32-S3 smart controller: you need to download KCS v3 firmware to ESP32-S3 firstly. Different board will have different channel of digital output, digital input , ADC, DAC,IR, RF. So the protocol is same , just according to the hardware resource to set channel number. KCSv3-protocol-ModBus.pdf (Size: 264.96 KB / Downloads: 447) for IR commands:

"KCS" v3 firmware UDP STRING protocol document for Loxone Miniserver

Posted by: admin - 02-15-2025, 03:21 AM - Forum: "KCS" v3 firmware - No Replies

Protocol

1: control digital output (DO)
Loxone send to KCS: RELAY-SET-255,2,1 //turn ON DO2
KCS back to Loxone: RELAY-SET-255,2,1,OK
Loxone send to KCS: RELAY-SET-255,2,0 //turn OFF DO2
KCS back to Loxone: RELAY-SET-255,2,0,OK

2: digital output (DO) state feedback
KCS back to Loxone: RELAY-SET-255,3,1,OK //DO3 is ON
KCS back to Loxone: RELAY-SET-255,3,0,OK //DO3 is OFF

3: digital input (DI) state feedback
KCS back to Loxone: RELAY-GET_INPUT-255,4,1,OK //DI4 is ON
KCS back to Loxone: RELAY-GET_INPUT-255,4,0,OK //DI4 is OFF

4: control analog output (AO)
Loxone send to KCS: RELAY-SET_DAC_255,2,0 //channel 2 AO=0 0%
KCS back to Loxone: RELAY-SET_DAC_255,2,0,OK
Loxone send to KCS: RELAY-SET_DAC_255,3,255 //channel 3 AO=255 100%
KCS back to Loxone: RELAY-SET_DAC_255,3,255,OK

5: analog output (AO) state feedback
KCS back to Loxone: RELAY-GET_DAC_255,1,107,OK //channel 1 AO=107
KCS back to Loxone: RELAY-GET_DAC_255,2,255,OK //channel 2 AO=255

6: analog input (AI) state feedback
KCS back to Loxone: RELAY-GET_ADC-255,1,2670,OK //channel1 ADC is 2670

7: RF433M receiver state feedback
KCS back to Loxone: RELAY-GET_RF-255,2,1,OK //channel2 RF sensor is ON
KCS back to Loxone: RELAY-GET_RF-255,3,0,OK //channel3 RF sensor is OFF

8: temperature & humidity sensor feedback
KCS back to Loxone:RELAY-GET_SENSOR-255,3,16.8,46.8,OK //channel3 sensor temperature=16.8℃ humidity=46.8%
KCS back to Loxone:RELAY-GET_SENSOR-255,4,27.8,-100,OK //channel4 sensor temperature=27.8℃ without humidity

9: Learn IR (MAX support 192 IR signals):
Loxone send to KCS: RELAY-IR-LEARN-255,1,2 // begin learn IR signal ID=1, send by IR tube-2
KCS back to Loxone: RELAY-IR-LEARN-255,1,OK // success
KCS back to Loxone: RELAY-IR-LEARN-255,1,TIMEOUT // timeout

10: Send IR
Loxone send to KCS: RELAY-IR-RUN-255,1 // send IR signal ID=1
KCS back to Loxone: RELAY-IR-RUN-255,1,OK

11: Delete IR
Loxone send to KCS: RELAY-IR-DEL-255,1 // delete learned IR signal ID=1
KCS back to Loxone: RELAY-IR-DEL-255,1,OK

download Loxone config demo project file from KinCony forum

"KCS" v3.7.0 firmware BIN file download

Posted by: admin - 02-15-2025, 03:18 AM - Forum: "KCS" v3 firmware - No Replies

v3.7.0 improvement:
1. add support KC868-A6v3, KC868-A16v3, AG8, T16M controller.
2. fixed some bugs.

Attached Files
.zip

KCS_A6V3_V3.7.0.zip (Size: 1 MB / Downloads: 440)
.zip

KCS_A16V3_V3.7.0.zip (Size: 1.08 MB / Downloads: 419)
.zip

KCS_A32PRO_V3.7.0.zip (Size: 1.04 MB / Downloads: 360)
.zip

KCS_AG8_V3.7.0.zip (Size: 1.03 MB / Downloads: 373)
.zip

KCS_B16M_V3.7.0.zip (Size: 1.07 MB / Downloads: 358)
.zip

KCS_F16_V3.7.0.zip (Size: 1.07 MB / Downloads: 353)
.zip

KCS_F24_V3.7.0.zip (Size: 1.07 MB / Downloads: 355)
.zip

KCS_T16M_V3.7.0.zip (Size: 1.02 MB / Downloads: 364)

KC868-A16v3 ESPHome yaml for home assistant

Posted by: admin - 02-15-2025, 03:01 AM - Forum: KC868-A16v3 - Replies (10)

Code:
esphome:

  name: a16v3

  friendly_name: a16v3

  platformio_options:

    board_build.flash_mode: dio

esp32:

  board: esp32-s3-devkitc-1

  framework:

    type: esp-idf

# Enable logging

logger:

  hardware_uart: USB_SERIAL_JTAG

api:

ethernet:

  type: W5500

  clk_pin: GPIO42

  mosi_pin: GPIO43

  miso_pin: GPIO44

  cs_pin: GPIO15

  interrupt_pin: GPIO2

  reset_pin: GPIO1

i2c:

   - id: bus_a

     sda: 9

     scl: 10

     scan: true

     frequency: 400kHz

# Example configuration entry

pcf8574:

  - id: 'pcf8574_hub_out_1'  # for output channel 1-8

    address: 0x24

  - id: 'pcf8574_hub_out_2'  # for output channel 9-16

    address: 0x25

  - id: 'pcf8574_hub_in_1'  # for input channel 1-8

    address: 0x21

  - id: 'pcf8574_hub_in_2'  # for input channel 9-16

    address: 0x22

uart:

  - id: uart_1

    baud_rate: 9600

    debug:

      direction: BOTH

      dummy_receiver: true

      after:

        timeout: 10ms

    tx_pin: 16

    rx_pin: 17

switch:

  - platform: uart

    uart_id: uart_1

    name: "RS485 Button"

    data: [0x11, 0x22, 0x33, 0x44, 0x55]

  - platform: gpio

    name: "a16v3_output1"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output2"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output3"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output4"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output5"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output6"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output7"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output8"

    pin:

      pcf8574: pcf8574_hub_out_1

      number: 7

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output9"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 0

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output10"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 1

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output11"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 2

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output12"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 3

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output13"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 4

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output14"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 5

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output15"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 6

      mode: OUTPUT

      inverted: true

  - platform: gpio

    name: "a16v3_output16"

    pin:

      pcf8574: pcf8574_hub_out_2

      number: 7

      mode: OUTPUT

      inverted: true

binary_sensor:

  - platform: gpio

    name: "a16v3_input1"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input2"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input3"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input4"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input5"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input6"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input7"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input8"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 7

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input9"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input10"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input11"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input12"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 3

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input13"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 4

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input14"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 5

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input15"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 6

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "a16v3_input16"

    pin:

      pcf8574: pcf8574_hub_in_2

      number: 7

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "A16v3 IO47"

    pin:

      number: 47

      inverted: true

  - platform: gpio

    name: "A16v3 IO48"

    pin:

      number: 48

      inverted: true

  - platform: gpio

    name: "A16v3 IO38"

    pin:

      number: 38

      inverted: true

  - platform: gpio

    name: "A16v3 IO39"

    pin:

      number: 39

      inverted: true

  - platform: gpio

    name: "A16v3 IO40"

    pin:

      number: 40

      inverted: true

  - platform: gpio

    name: "A16v3 IO41"

    pin:

      number: 41

      inverted: true

  - platform: gpio

    name: "A16v3 DW"

    pin:

      number: 0

      inverted: true

sensor:

  - platform: adc

    pin: 4

    name: "A16v3 A1 Voltage"

    update_interval: 5s

    attenuation: 11db

    filters:

      - lambda:

          if (x >= 3.11) {

            return x * 1.60256;

          } else if (x <= 0.15) {

            return 0;

          } else {

            return x * 1.51;

          }

  - platform: adc

    pin: 6

    name: "A16v3 A2 Voltage"

    update_interval: 5s

    attenuation: 11db

    filters:

      # - multiply: 1.51515

      - lambda:

          if (x >= 3.11) {

            return x * 1.60256;

          } else if (x <= 0.15) {

            return 0;

          } else {

            return x * 1.51;

          }

  - platform: adc

    pin: 7

    name: "A16v3 A3 Current"

    update_interval: 5s

    unit_of_measurement: mA

    attenuation: 11db

    filters:

      - multiply: 6.66666666

  - platform: adc

    pin: 5

    name: "A16v3 A4 Current"

    update_interval: 5s

    unit_of_measurement: mA

    attenuation: 11db

    filters:

      - multiply: 6.66666666

web_server:

  port: 80

# font:

#   - file: "gfonts://Roboto"

#     id: roboto

#     size: 20

# display:

#   - platform: ssd1306_i2c

#     i2c_id: bus_a

#     model: "SSD1306 128x64"

#     address: 0x3C

#     lambda: |-

#       it.printf(0, 0, id(roboto), "A16v3");

download yaml file:
.txt

A16v3-ESPHome.txt (Size: 7.81 KB / Downloads: 887)

KC868-A16v3 ESP32-S3 IO pins define

Posted by: admin - 02-15-2025, 03:00 AM - Forum: KC868-A16v3 - Replies (14)

ANALOG_A1 4
ANALOG_A2 6
ANALOG_A3 7
ANALOG_A4 5

IIC Bus:

SDA:GPIO9
SCL:GPIO10

Relay_IIC_address 0x24
Relay_IIC_address 0x25

Input_IIC_address 0x21
Input_IIC_address 0x22

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68
SSD1306 display: i2c address:0x3c

-----------------

1-wire (pull-up resistance on PCB):
1-wire1:GPIO47
1-wire2:GPIO48
1-wire3:GPIO38

free GPIOs (without pull-up resistance on PCB):
free gpio-1:GPIO39
free gpio-2:GPIO40
free gpio-3:GPIO41
-----------------

Ethernet (W5500) I/O define:

clk_pin: GPIO42
mosi_pin: GPIO43
miso_pin: GPIO44
cs_pin: GPIO15

interrupt_pin: GPIO2
reset_pin: GPIO1

--------------------
RS485:
RXD:GPIO17
TXD:GPIO16

--------------------
SD Card:
SPI-MOSI:GPIO12
SPI-SCK:GPIO13
SPI-MISO:GPIO14
SPI-CS:GPIO11
SD-CD:GPIO21

--------------------
RF433MHz wireless receiver: GPIO8
RF433MHz wireless sender: GPIO18

free gpio on PCB (beside ESP32-S3 module)
GPIO39
GPIO40
GPIO41

Page kincony problem

Posted by: balcerseb - 02-14-2025, 03:34 PM - Forum: KC868-A16 - Replies (1)

	Gentlemen in the manual for the KC868 A16 after logging into the software the input web page in the manual looks like this (see first picture) and I am missing the ON, OFF TOGLLE table how to fix this anyone has an idea because you can't set the control

KCS v3 for AG8 IR protocol

Posted by: admin - 02-14-2025, 05:27 AM - Forum: KC868-AG / AG Pro / AG8 / Z1 - Replies (17)

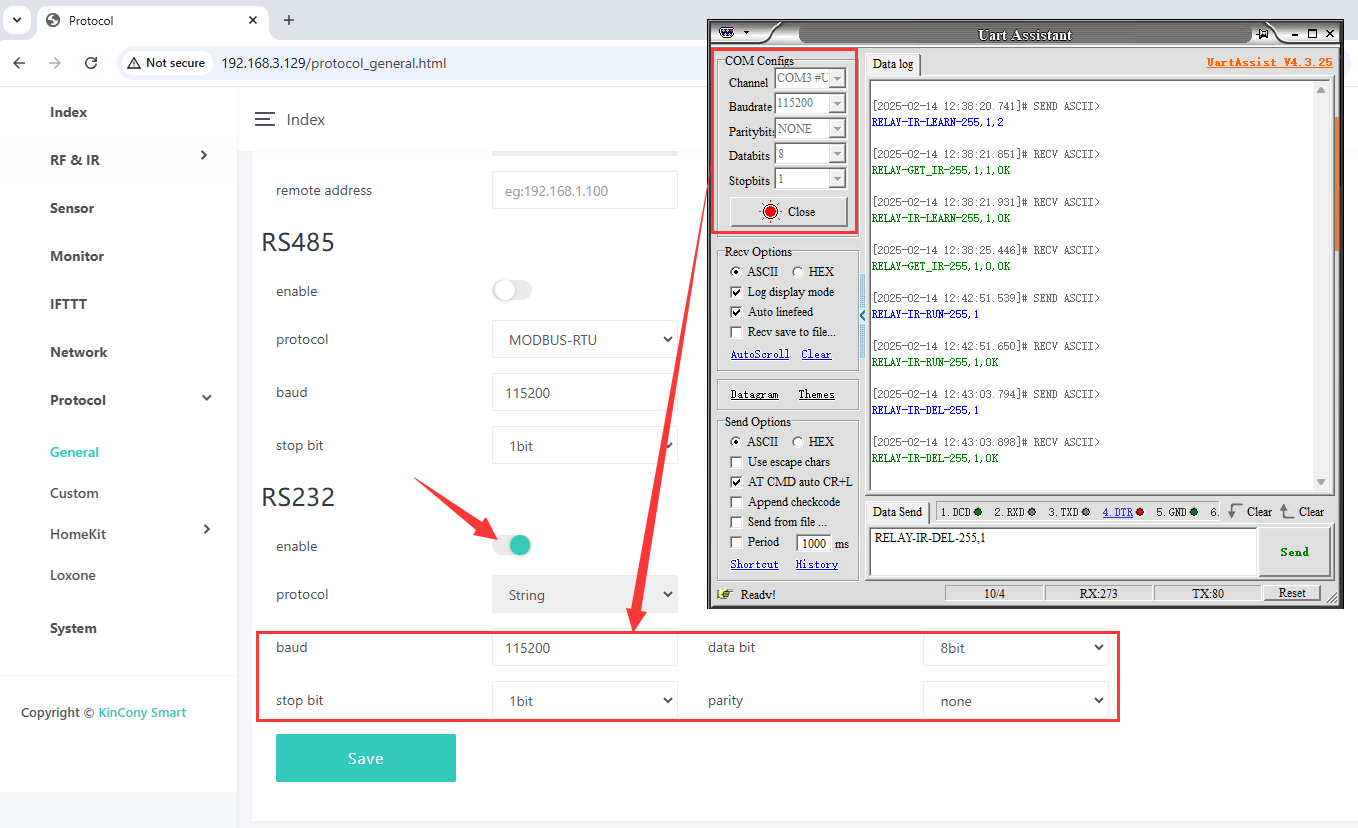

UDP Server / TCP Server / Loxone / RS232:

Learn IR (MAX support 192 IR signals):

send: RELAY-IR-LEARN-255,1,2 // begin learn IR signal ID=1, send by IR tube-2
receive: RELAY-IR-LEARN-255,1,OK // success
receive: RELAY-IR-LEARN-255,1,TIMEOUT // timeout

send: RELAY-IR-LEARN-255,200 // if send IR exceeding the maximum IR ID(MAX=192)
receive: RELAY-IR-LEARN-255,200,ERROR // error

Send IR:

send: RELAY-IR-RUN-255,1 // send IR signal ID=1
receive: RELAY-IR-RUN-255,1,OK

Delete IR:

send: RELAY-IR-DEL-255,1 // delete learned IR signal ID=1
receive: RELAY-IR-DEL-255,1,OK
---------------------------------------------------------------
UDP Client / TCP Client / Loxone / RS232:

IR triggered and auto feedback: (ONLY use for NEC and RC5 IR code)

RELAY-GET_IR-255,1,1,OK // trigger
RELAY-GET_IR-255,1,0,OK // not trigger



---------------------------------------------------------------

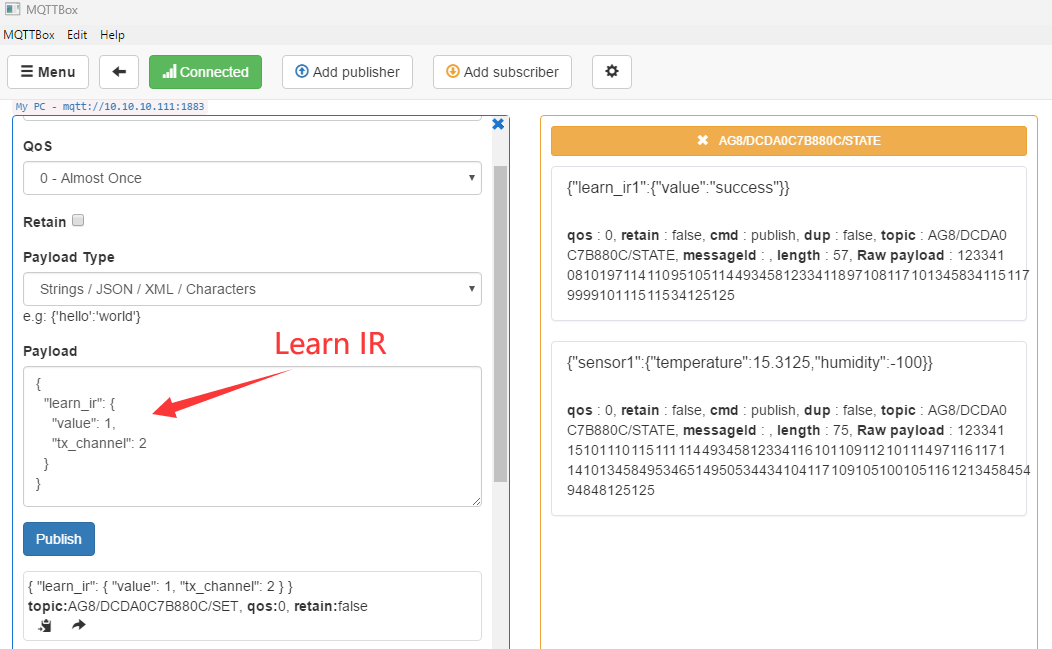

MQTT:

Learn IR: // begin learn IR signal ID=1, send by IR tube-2
payload:
{
"learn_ir": {
"value": 1,
"tx_channel": 2
}
}

Delete IR: // delete learned IR signal ID=1

payload:
{
"run_ir": {
"value": 1
}
}

IR triggered and auto feedback: // trigger when value=1 (ONLY use for NEC and RC5 IR code)

payload:

// trigger begin
{
"ir1": {
"value": 1
}
}

// trigger end
{
"ir1": {
"value": 0
}
}



---------------------------------------------------------------
RS485 Modbus

// 01: Address
// 08: Function code - Learn IR
// 00 05: Register address, 05 means ID=6 because ID begin with 0
// 00 04: Send IR tube, values range from 1-8. 04 means the 4th channel
// F1 C9: CRC
[Tx] 01 08 00 05 00 04 F1 C9

// 01: Address
// 08: Function code - Learn IR
// 02: Data length
// 00 05: Data value, corresponding to the register address when transmitting
// 7A 63: CRC
[Rx] 01 08 02 00 05 7A 63

---------------------------

// 01: Address
// 07: Function code - Send IR
// 00 02: Register address, send IR at index 2, which ID=3
// 00 01: Register count, fixed value 1, only one infrared can be controlled at a time
// D4 0A: CRC
[Tx] 01 07 00 02 00 01 D4 0A

// 01: Address
// 07: Function code - Send IR
// 02: Data length
// 00 02: Data value, corresponding to the register address when transmitting
// 38 B5: CRC
[Rx] 01 07 02 00 02 38 B5

---------------------------

// 01: Address
// 09: Function code - Delete IR
// 00 07: Register address, 07 means ID=8
// 00 01: Register count, fixed value 1, only one infrared can be deleted at a time
// AD CA: CRC
[Tx][11:32:00.669] 01 09 00 07 00 01 AD CA

// 01: Address
// 09: Function code - Delete IR
// 02: Data length
// 00 07: Data value, corresponding to the register address when transmitting
// FA 5E: CRC
[Rx][11:32:01.959] 01 09 02 00 07 FA 5E

Pages (362): « Previous 1 … 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 … 362 Next »

Login
Username:
Password:	Lost Password?
	Remember me
