I recently bought a Kincony A16 card with the aim of making it work in RS485 with this Waveshare gateway :
https://www.amazon.fr/dp/B09LQMH2S1?ref=...title&th=1

I control this gateway from a Loxone Miniserver, however I can't really understand the Kincony Modbus register table :
https://kincony.com/forum/attachment.php?aid=2240

The loxone page for modbus communication :
https://www.loxone.com/frfr/kb/communication-modbus/

RS485 transmission is enabled in the A16 and gateway parameters.

I need the I/O address and the register type.

Could someone tell me the requests to send to enable / disable an output and get state of digital / analog input on A16 please ?

Thanks in advance for your help, Tom

My gear: KC868 A16, KCS
DS18B20 connected to chanel 1

I have one DS18B20 connected to chanel 1, and its working correct. I see that temperature is changing through kcs panel
    >
Unfortunately looks like temperature value is not provided by mqtt. Through mqtt explorer i see there is only two threshold values provided by mqtt.


greetings,

I would like to do the followings
3 digital input and one digital output

the trouble that digital input 3 should be permissive low to activiate relay 1.
then I would  the software while the relay 1 is activiated, to monitor digital input 3.
if it is remain high, keep relay 1
if it is switch to low , de activate relay 1

if ( digital input 1 == high and digital input 2 == high and digital input 3 ==  low ( this is will be permissive signal ) )
digital output 1 == high

if ( digital input 1 = low and digital input 2== low )
digital output 1 == low

if ( digital input 3 == low )
delay 1 minute
digital output 1 = low

what is the meaning of this
PCF8574 pcf8574(0x24, 04, 15) ?
and how i can define both inputs and outputs?

hello technical support team,

I produced nodered diagram(for test) to control h32b controller. for test, i want to control 3 realys by one switch.
the problem is :

when i turn on the switch, i got just one relay turn on from the three relays.(they don't turn on all of them in the same time). but if i put timer for the other 2 relays, then i got all relays turn on.

realy 22----> 0 sec
relay 23---> 0.3 sec
relay 24---> 0.6 sec

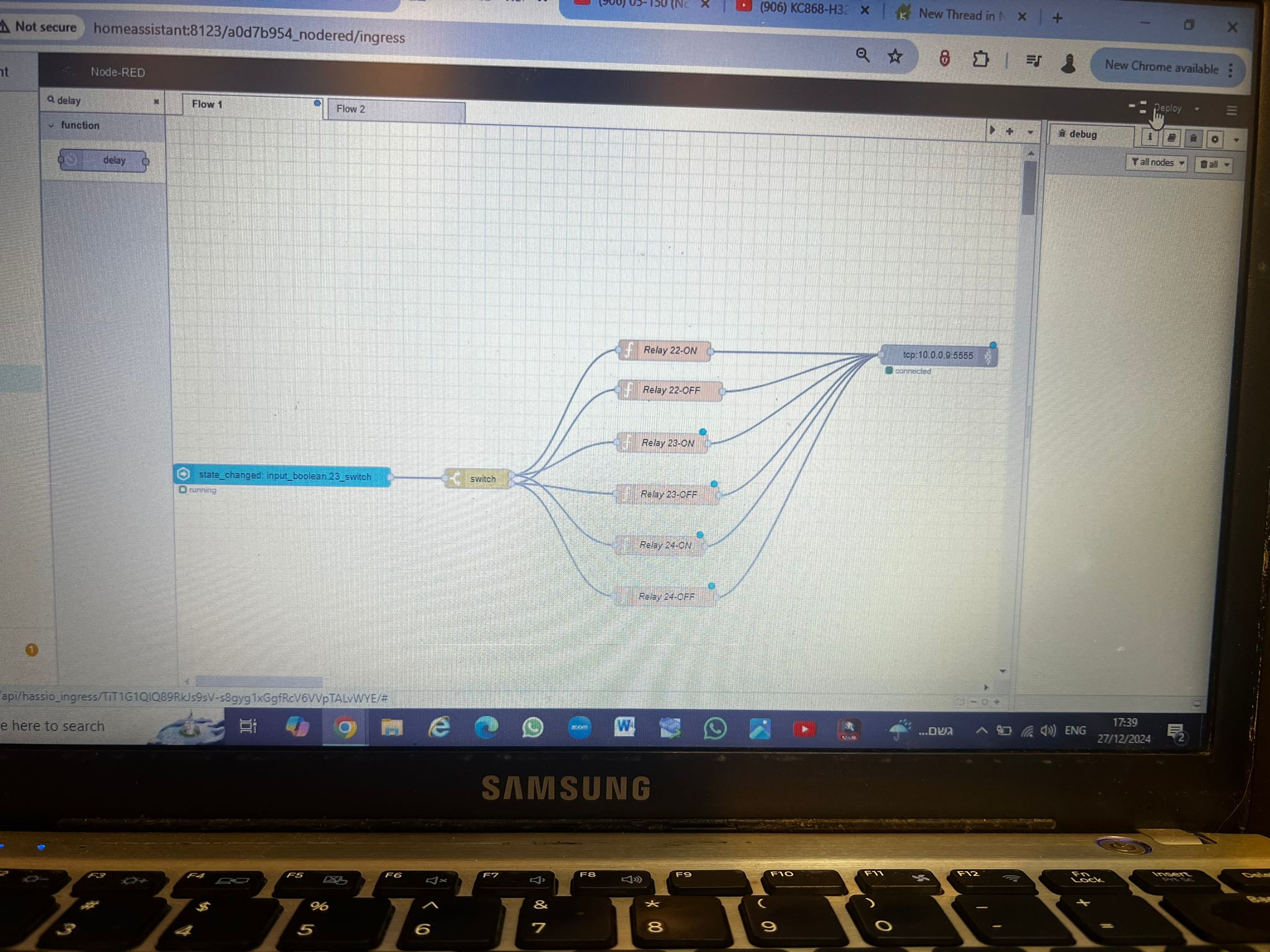

i will add a pictures of the diagrams : one picture without delay, the seconed picture with delay

Attached Files

Thumbnail(s)


Good afternoon,

I flashed several times the KC868-A16S board with ESPHome firmware but the relay n. 8 remains always in on state (also the status led on the board) and it is impossible to control it.

This is the last firmware (still with the problem) :

Hey,

first of all: Thanks for this great product! I am now trying to connect it via MQTT to Home Assistant. (I had several issues by using ESPHome, so I wanna stick with MQTT for now).

What I did:

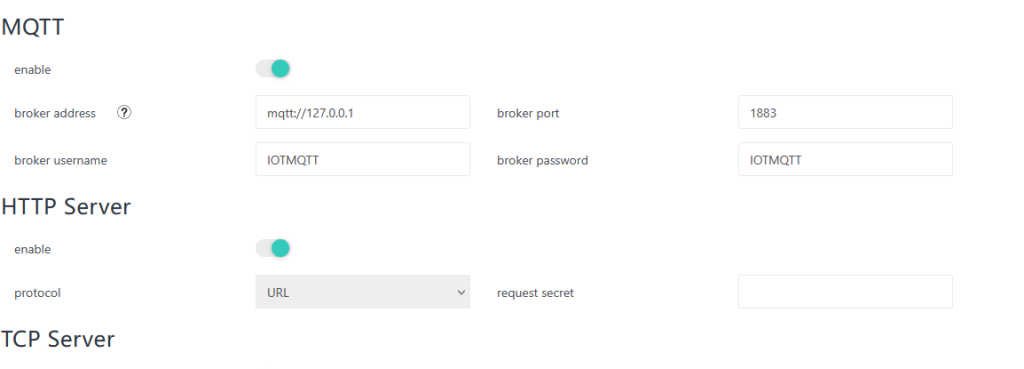

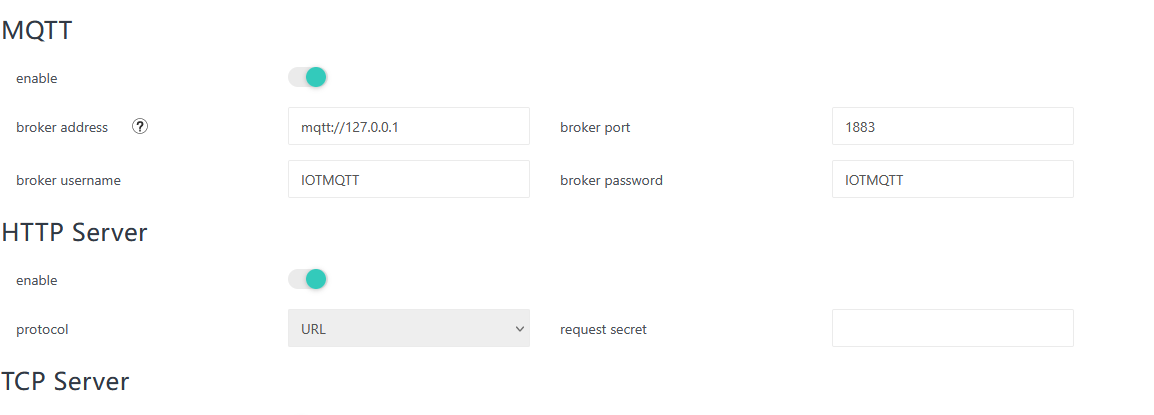

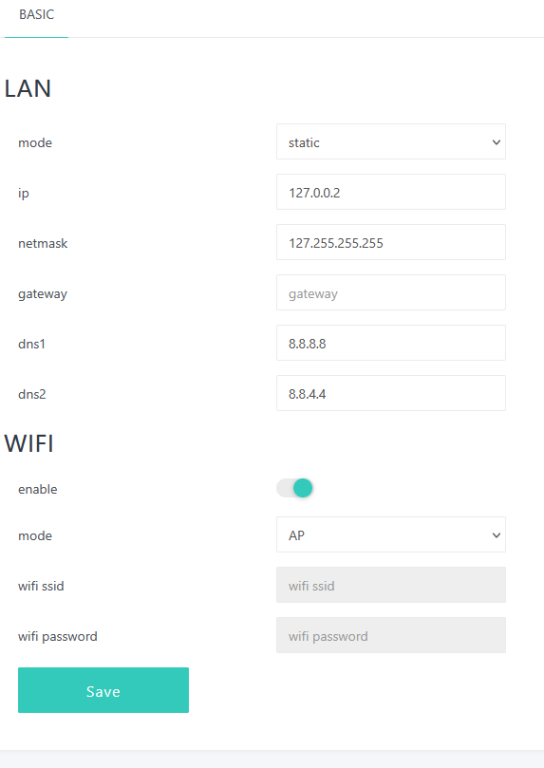

• MQTT Setup within KCS

• Setup Mosquito and MQTT within Home-Assistant (Already existing)

• Confirmed that the Packages are received by listening to #


Hi I have a kc868-a6 board that i have recently bought. I can't manage to communicate with it. I am using the esp32 download tool v3.9.2 in order to download the firmware "KCS_KC868_A6_V2.2.8.bin" but at the command dos screen that opens it shows repeatedly dots when i push the start button.
after too many dots without result i press the stop button and it gives the messages
"[2024-12-27 02:19:54,814][ESP8266Loader_spi[1]][espDownloader.py][line:422][ERROR]: Chip sync error
[2024-12-27 02:19:54,814][ESP8266Loader_spi[1]][espDownloader.py][line:582][ERROR]: ESP32 Chip sync error esp_sync_blocking.
no log file output ..."
 I am using a usb to rs232 converter and it gives me the COM3 port.
I have also tried with a direct usb cable but it doesn't shows any port.
Can anyone please help me?
I have also tried with the arduino application to upload a short sketch but it can't communicate with the board.
Then I have installed the "KC868-A series ESP32 board USB Driver For Windows" but with no success again.
Finally i have tried with the "uart assistant" tool but no success.
The attached file has the printscreen of my trials

  kc868-a6 communication problem.pdf (Size: 447.95 KB / Downloads: 424)

Is there LoRa code for me to peruse while I wait for my new board (KC 868-A6 I think)
Thanks!

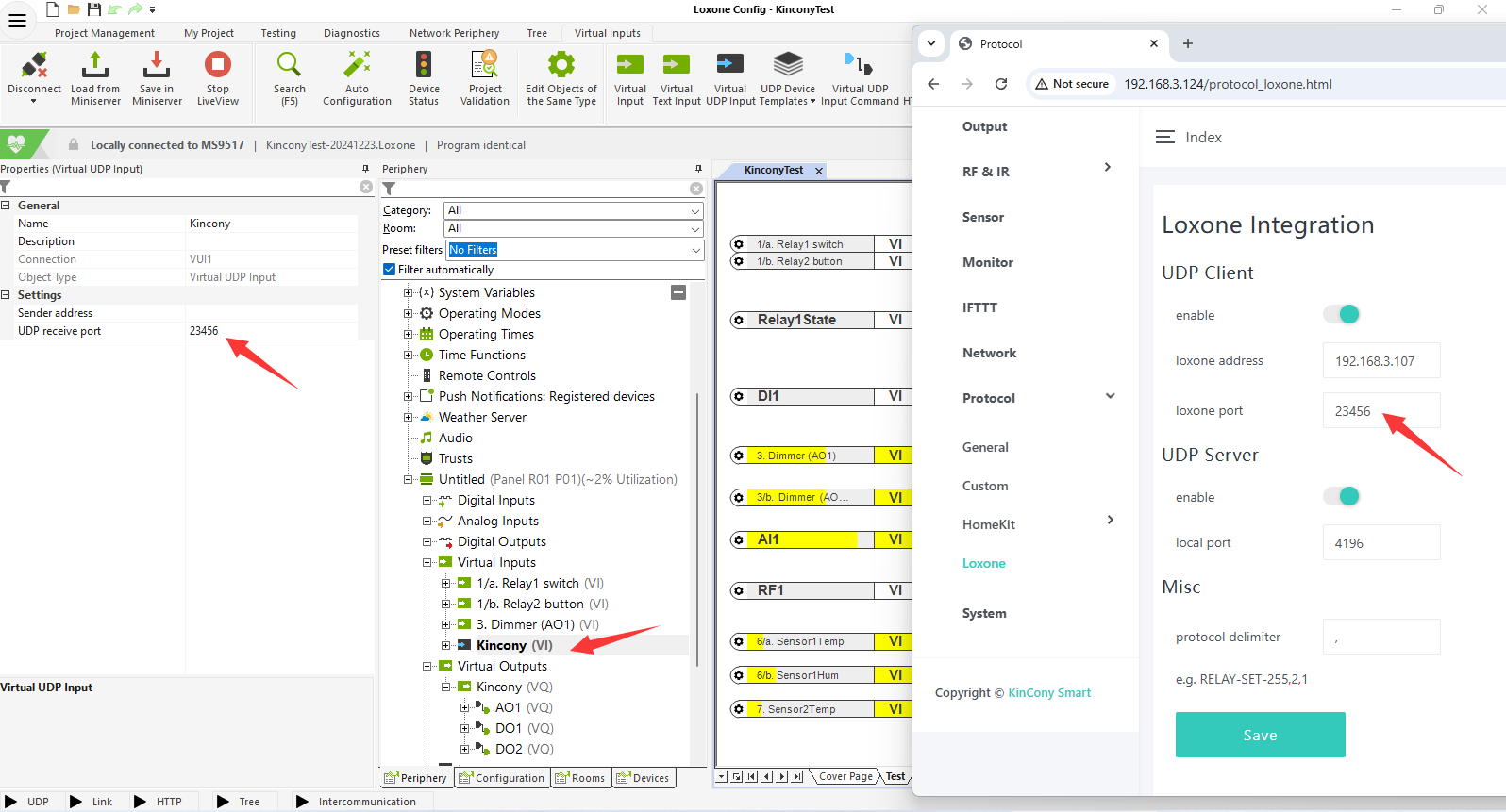

support by > KCS v3.4.0 using KinCony B16M, F16, F24, A32 Pro smart controller.

1: control digital output (DO)
Loxone send to KCS: RELAY-SET-255,2,1  //turn ON DO2
KCS back to Loxone: RELAY-SET-255,2,1,OK
Loxone send to KCS: RELAY-SET-255,2,0  //turn OFF DO2
KCS back to Loxone: RELAY-SET-255,2,0,OK

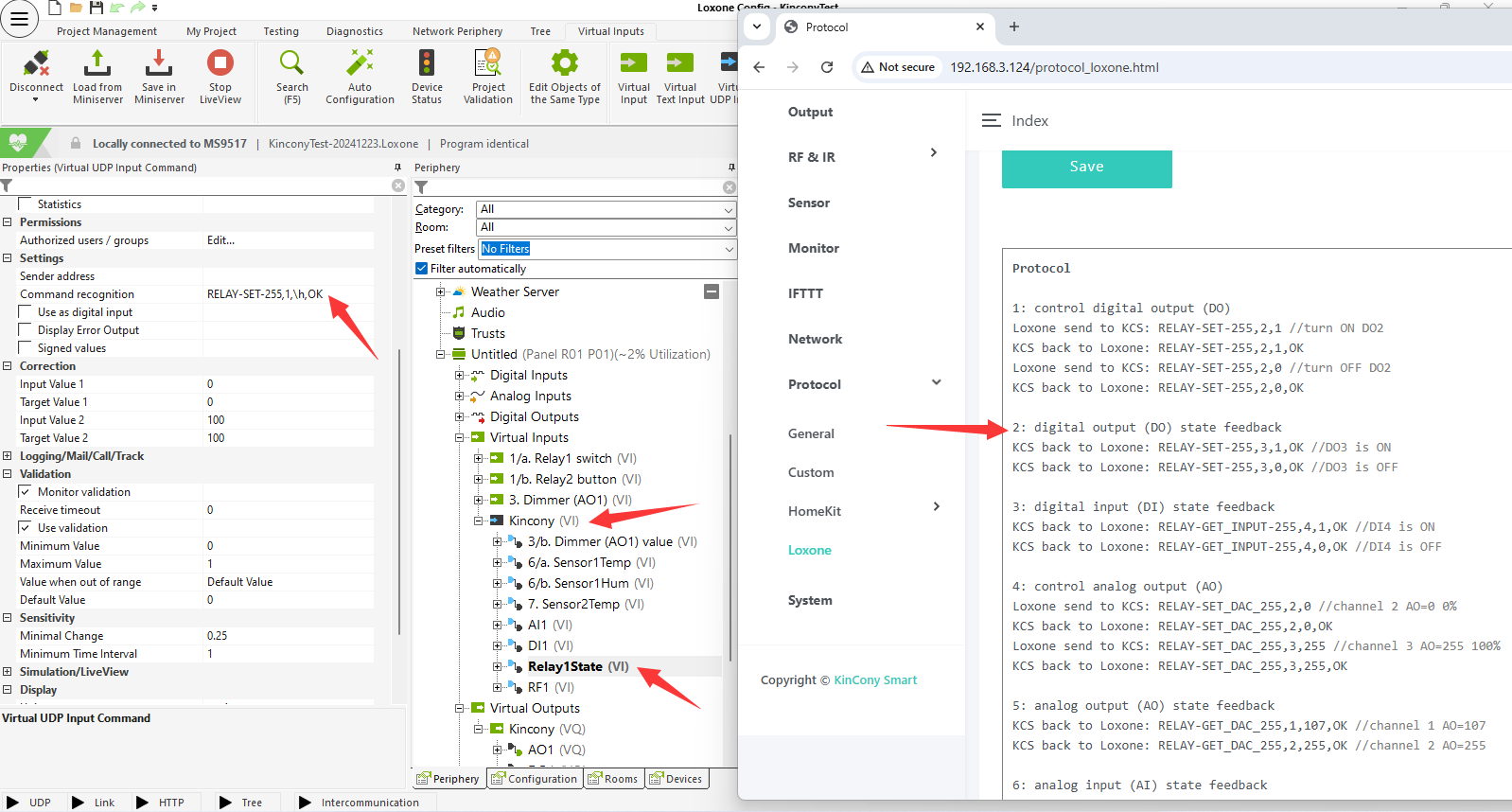

2: digital output (DO) state feedback
KCS back to Loxone: RELAY-SET-255,3,1,OK //DO3 is ON
KCS back to Loxone: RELAY-SET-255,3,0,OK //DO3 is OFF

3: digital input (DI) state feedback
KCS back to Loxone: RELAY-GET_INPUT-255,4,1,OK  //DI4 is ON
KCS back to Loxone: RELAY-GET_INPUT-255,4,0,OK  //DI4 is OFF

4: control analog output (AO)
Loxone send to KCS: RELAY-SET_DAC_255,2,0  //channel 2 AO=0  0%
KCS back to Loxone: RELAY-SET_DAC_255,2,0,OK
Loxone send to KCS: RELAY-SET_DAC_255,3,255  //channel 3 AO=255 100%
KCS back to Loxone: RELAY-SET_DAC_255,3,255,OK

5: analog output (AO) state feedback
KCS back to Loxone: RELAY-GET_DAC_255,1,107,OK  //channel 1 AO=107
KCS back to Loxone: RELAY-GET_DAC_255,2,255,OK  //channel 2 AO=255

6: analog input (AI) state feedback
KCS back to Loxone: RELAY-GET_ADC-255,1,2670,OK  //channel1 ADC is 2670

7: RF433M receiver state feedback
KCS back to Loxone: RELAY-GET_RF-255,2,1,OK  //channel2 RF sensor is ON
KCS back to Loxone: RELAY-GET_RF-255,3,0,OK  //channel3 RF sensor is OFF

8: temperature & humidity sensor feedback
KCS back to Loxone:RELAY-GET_SENSOR-255,3,16.8,46.8,OK //channel3 sensor temperature=16.8℃ humidity=46.8%
KCS back to Loxone:RELAY-GET_SENSOR-255,4,27.8,-100,OK //channel4 sensor temperature=27.8℃ without humidity

download Loxone config demo project file and integration guide from: https://www.kincony.com/forum/showthread.php?tid=7264
