  KC868-D8 Dimmer 1-10V, logarithmic
Posted by: bogdan_0 - 05-25-2022, 07:00 AM - Forum: KC868-HxB series Smart Controller - Replies (3)

Hello

1. Is there any setting that I can use KC868-D8 dimmer as "1-10V"?
I have found a led driver din rail format (which would reduce the occupied space in my automation cabinet) but I need to work on 1-10V range instead of 0-10V.
example: https://www.sunricher.com/din-rail-0-1-1...ifications


2. I understand that KC868-D8 is a liniar driver; so in order to achieve a smooth logarithmic turn-on/off of light intensity I should combine it with a logarithmic led driver. please tell if I am wrong.

[Image: 1627051498-why-you-need-dimming-curves-6...q=60&w=300]
source: https://eldoled.com/insights/why-you-nee...ng-curves/

Thank you

Print this item

  Lesson26 - send email notifications by sensor in home assistant
Posted by: admin - 05-24-2022, 09:09 AM - Forum: Home automation training courses - No Replies



# Example configuration.yaml entry for Google Mail.
notify:
  - name: "NOTIFIER_NAME"
    platform: smtp
    server: "smtp.gmail.com"
    port: 587
    timeout: 15
    sender: "YOUR_USERNAME@gmail.com"
    encryption: starttls
    username: "YOUR_USERNAME@gmail.com"
    password: "YOUR_PASSWORD"
    recipient:
      - "RECIPIENT_1@example.com"
      - "RECIPIENT_N@example.com"
    sender_name: "SENDER_NAME"

Print this item

Wink Lesson25 - how to use Apple HomeKit by home assistant
Posted by: admin - 05-23-2022, 03:07 AM - Forum: Home automation training courses - No Replies


1. home assistant -- Configration -- Device & Services +ADD INTEGRATION -- HomeKit

2. find the QRcode of HomeKit "HASS Bridge" in Notifications

3. open "HOME" app by iOS device (iPhone/iPad) scan this QRcode to add devices.

Print this item

  Disappointed with this server...
Posted by: Amaral989 - 05-23-2022, 01:54 AM - Forum: KC868-Server Raspberry Pi4 local server - Replies (5)

The ESP 3.3v is 5v now.
i can not get ADC to read voltages . This unit just doesn't work like its described.  Angry

Print this item

  ADC pins
Posted by: Amaral989 - 05-22-2022, 03:54 AM - Forum: KC868-Server Raspberry Pi4 local server - Replies (4)

Hello,
This is all new to me and trying to learn as i go along.
I have a resistance sensor that reads water tank levels. Full level it reads 33ohms, empty level reads 240ohms.
I'm trying to understand how to hook this sensor up. I'm assuming it needs to be on ADC 0.
If it does , i dont see anything occuring .

Thank you for you help.
john

Print this item

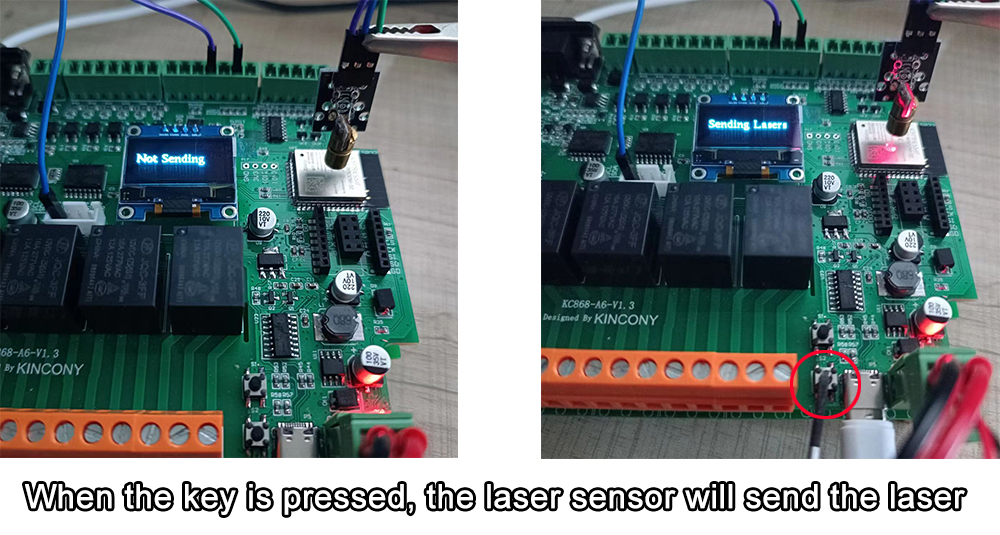

Wink 【Sensor series program】-#02-Arduino code of KC868-A6 and Laser Sensor
Posted by: KinCony Support - 05-20-2022, 09:03 AM - Forum: KC868-A6 - No Replies

【Sensor series program】-#02-Arduino code of KC868-A6 and Laser Sensor

Code:
#include <U8g2lib.h>
#include <Wire.h>
U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0,  15, 4, U8X8_PIN_NONE);//SCL IO15  SDA  IO4


void page1() {
  u8g2.setFont(u8g2_font_timR14_tf);// Font 18
  u8g2.setFontPosTop();
  u8g2.setCursor(5,20);
  u8g2.print("Sending Lasers ");
}
void page2() {
  u8g2.setFont(u8g2_font_timR14_tf);// Font 18
  u8g2.setFontPosTop();
  u8g2.setCursor(5,20);
  u8g2.print("Not Sending");
}

void setup() {
  pinMode(0,INPUT);
  pinMode(32,OUTPUT);
  u8g2.setI2CAddress(0x3C*2);
  u8g2.begin();
  u8g2.enableUTF8Print();

}
void loop() {
  if(digitalRead(0)==LOW)
  {
   digitalWrite(32,HIGH);
   u8g2.firstPage();
    do
     {
    page1();
     }while(u8g2.nextPage());
  }
  else
     {
      digitalWrite(32,LOW);
         u8g2.firstPage();
    do
     {
       page2();
     }while(u8g2.nextPage());
     }

}


Print this item

Wink 【Sensor series program】-#01-Arduino code of KC868-A6 and Hall Sensor
Posted by: KinCony Support - 05-20-2022, 03:11 AM - Forum: KC868-A6 - No Replies

【Sensor series program】-#01-Arduino code of KC868-A6 and Hall Sensor

Code:
/*【Sensor series program】Arduino code of KC868-A6 and Hall Sensor*/
/*When the Hall sensor is triggered, Turn on relay 1; Otherwise turn off relay1*/
#include "Wire.h"
#include"PCF8574.h"

PCF8574 pcf8574_RE(0x24,4,15);
int rawValue;

void setup(){

  pinMode(32,INPUT);
  Serial.begin(115200);
  pcf8574_RE.pinMode(P0,OUTPUT);
  pcf8574_RE.pinMode(P1,OUTPUT);
  pcf8574_RE.pinMode(P2,OUTPUT);
  pcf8574_RE.pinMode(P3,OUTPUT);
  pcf8574_RE.pinMode(P4,OUTPUT);
  pcf8574_RE.pinMode(P5,OUTPUT);
  pcf8574_RE.begin();
  for(int i=0;i<6;i++)
  {
   pcf8574_RE.digitalWrite(i,HIGH);
  }
}

void loop(){
  rawValue=analogRead(32);
  Serial.println(rawValue);
  if(rawValue==0)
  {

      pcf8574_RE.digitalWrite(P0,LOW);
  }
  else {
      pcf8574_RE.digitalWrite(P0,HIGH);
  }
}



Print this item

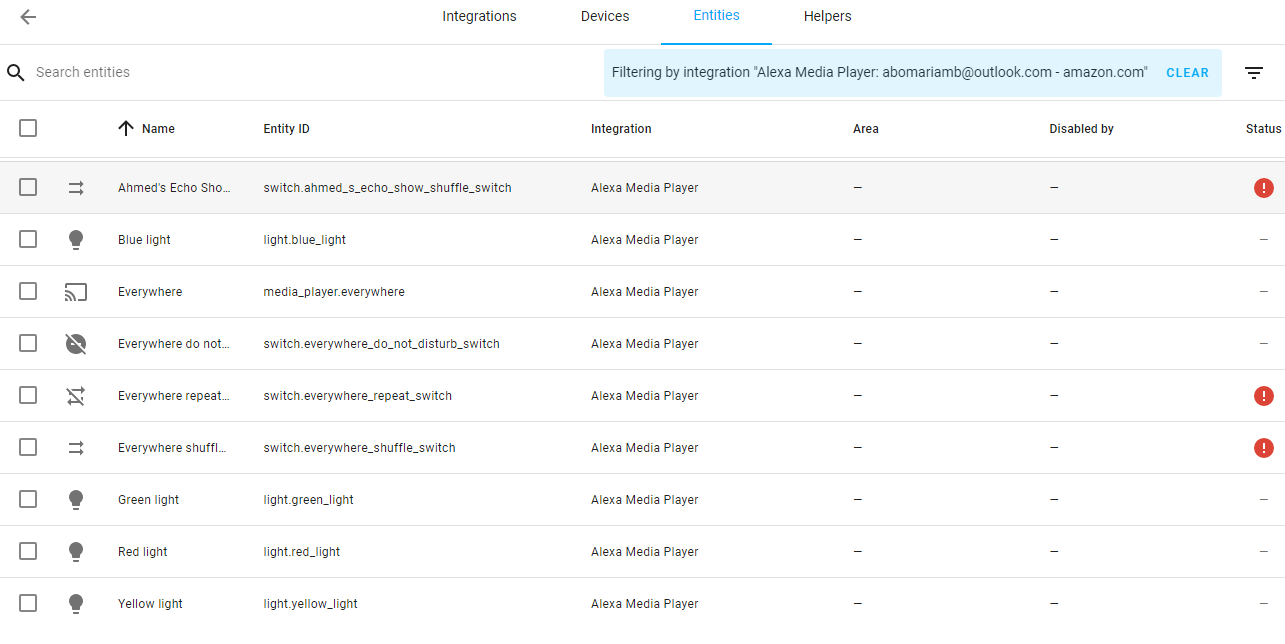

  KC868 H32B in node red and home assistant
Posted by: ahmedwizza - 05-19-2022, 11:52 AM - Forum: KC868-HxB series Smart Controller - Replies (1)

Hello Engineer

I faced some problem.when I active Alexa bridge and made switch .then connect Alexa node to controller by TCP out
  all okay .... the sound control by Alexa is okay ...the switch appeared in Alexa app in my phone ...but I cant find the switch in Alexa entities in home assistant to control

as attached photos



Attached Files Thumbnail(s)

Print this item

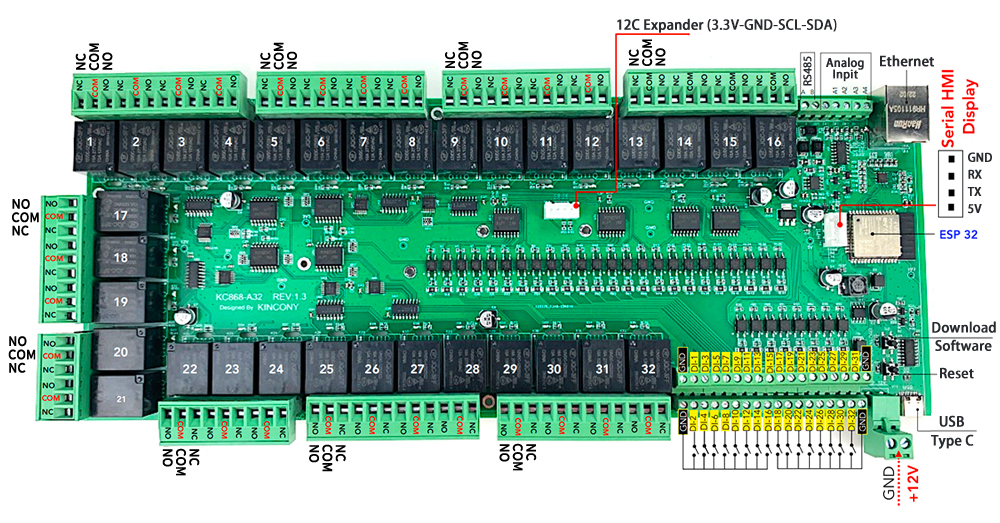

Rainbow How to use tasmota for KC868-A32 via PCF8574 IIC extend GPIO
Posted by: KinCony Support - 05-18-2022, 02:50 AM - Forum: KC868-A32/A32 Pro - Replies (10)

How to use tasmota for KC868-A32 via PCF8574 IIC extend GPIO


The Tamplate code is:

{"NAME":"KC868-A32","GPIO":[32,0,1120,0,641,609,0,0,0,608,1,640,0,0,5600,0,0,0,0,5568,0,0,0,0,0,0,0,0,1,1,0,0,1,0,0,1],"FLAG":0,"BASE":1}


Set all Device port to  "OUTPUT"






Attached Files
.zip   ESP-Flasher-Windows-x64.zip (Size: 16.07 MB / Downloads: 829)
.zip   firmware-en-a32.zip (Size: 764.89 KB / Downloads: 843)
Print this item

  Lesson24 - home assistant remote access by FREE DuckDNS
Posted by: admin - 05-17-2022, 04:27 AM - Forum: Home automation training courses - Replies (5)


https://www.duckdns.org/

Print this item
