How to use tasmota for KC868-A32 via PCF8574 IIC extend GPIO

Posted by: KinCony Support - 05-18-2022, 02:50 AM - Forum: KC868-A32/A32 Pro - Replies (10)

How to use tasmota for KC868-A32 via PCF8574 IIC extend GPIO


The Tamplate code is:

{"NAME":"KC868-A32","GPIO":[32,0,1120,0,641,609,0,0,0,608,1,640,0,0,5600,0,0,0,0,5568,0,0,0,0,0,0,0,0,1,1,0,0,1,0,0,1],"FLAG":0,"BASE":1}


Set all Device port to "OUTPUT"

Attached Files
.zip

ESP-Flasher-Windows-x64.zip (Size: 16.07 MB / Downloads: 1054)
.zip

firmware-en-a32.zip (Size: 764.89 KB / Downloads: 1091)

Lesson24 - home assistant remote access by FREE DuckDNS

Posted by: admin - 05-17-2022, 04:27 AM - Forum: Home automation training courses - Replies (5)

	https://www.duckdns.org/

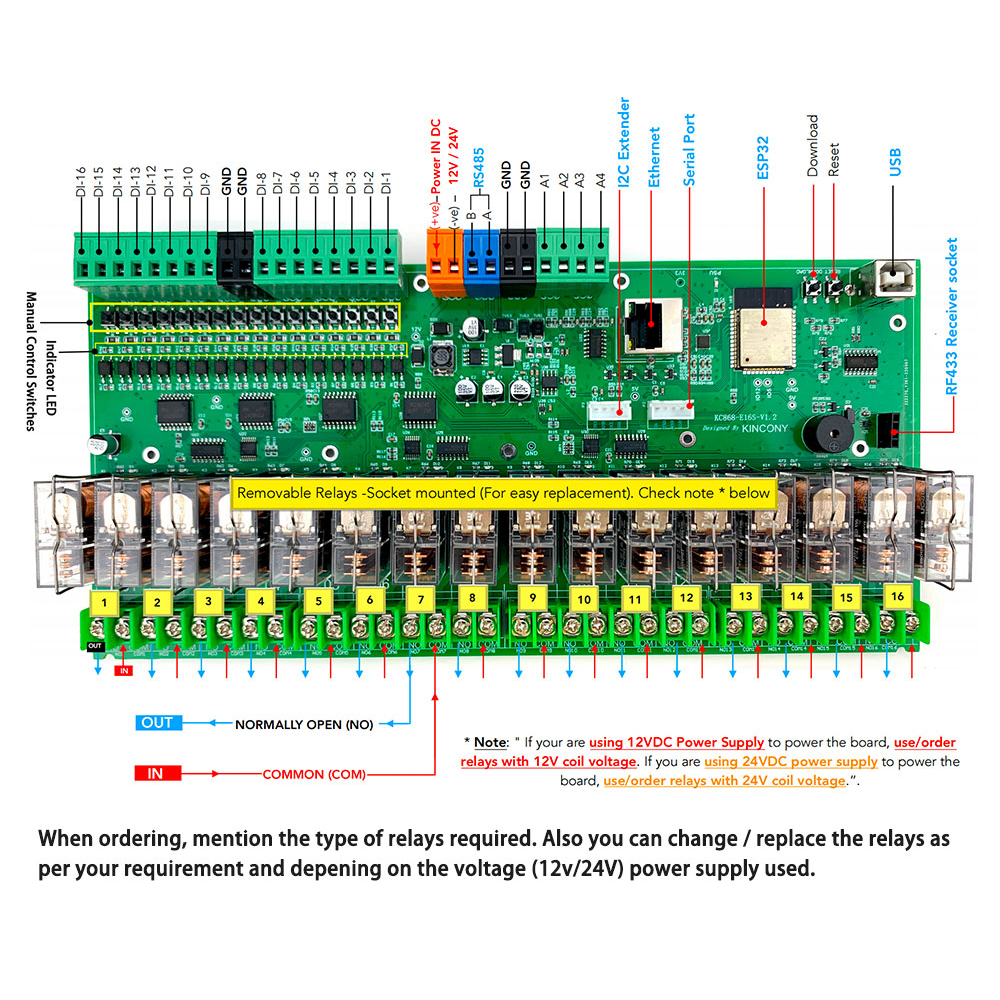

[Arduino IDE demo source code for KC868-E16S]--#06-KC868-E16S-RS485

Posted by: KinCony Support - 05-17-2022, 01:29 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#06-KC868-E16S-RS485

Code:
/*WWW.KINCONY.COM */

/*KC868-E16S CODE OF RS485*/

void setup(){

  Serial2.begin(9600,SERIAL_8N1,13,32);// IO13 is 485RX  IO32 is 485TX

}

void loop() {

 Serial2.println("abcd123456789551");// send abcd123456789551

}

Attached Files
.zip

KC868-E16S-RS485.zip (Size: 469.31 KB / Downloads: 961)

[Arduino IDE demo source code for KC868-E16S]--#05-KC868-E16S-LAN8720_UDP

Posted by: KinCony Support - 05-17-2022, 01:28 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#05-KC868-E16S-LAN8720_UDP

Code:
/*www.kincony.com */

/* KC868-E16S CODE OF LAN8720-UDP */

#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

Attached Files
.zip

KC868-E16S-LAN8720_UDP.zip (Size: 1.11 KB / Downloads: 888)

[Arduino IDE demo source code for KC868-E16S]--#04-KC868-E16S-ADC_IN

Posted by: KinCony Support - 05-17-2022, 01:25 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#04-KC868-E16S-ADC_IN

Code:
/*www.kinocny.com */

/*KC868-E16S CODE OF ADC-IN*/

#include "Arduino.h"

#define ANALOG_A1   36

#define ANALOG_A2   35

#define ANALOG_A3   34

#define ANALOG_A4   39

void setup()

{

    Serial.begin(115200);

    delay(500);

  pinMode(ANALOG_A1,INPUT);

  pinMode(ANALOG_A2,INPUT);

  pinMode(ANALOG_A3,INPUT);

  pinMode(ANALOG_A4,INPUT);

}

void loop()

{

  if(analogRead(ANALOG_A1)!=0)  {Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));}

  if(analogRead(ANALOG_A2)!=0)  {Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));}

  if(analogRead(ANALOG_A3)!=0)  {Serial.printf("Current Reading A3 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));}

  if(analogRead(ANALOG_A4)!=0)  {Serial.printf("Current Reading A4 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));}

  delay(50);

}

Attached Files
.zip

KC868-E16S-ADC_IN.zip (Size: 674 bytes / Downloads: 831)

[Arduino IDE demo source code for KC868-E16S]--#03-KC868-E16S-8574-DO

Posted by: KinCony Support - 05-17-2022, 01:21 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#03-KC868-E16S-8574-DO

Code:
/*KC868-E16S Code of PCF8574 OUTPUT  CONTROL RELAYS*/

/*Press and hold on key Download ,relays ON,   release key relays OFF*/

#include "Arduino.h"

#include "PCF8574.h"

/*Set pcf8574 Output i2c address and SDA IO16/ SCL IO15*/

#define buttonPin 0

PCF8574 pcf8574_1(0x21,16,15);

PCF8574 pcf8574_2(0x25,16,15);

void setup()

{

    Serial.begin(115200);

/* Set pinMode to OUTPUT*/

   pinMode(buttonPin, INPUT);// key download  IO0

    pcf8574_1.pinMode(P0, OUTPUT);

  pcf8574_1.pinMode(P1, OUTPUT);

  pcf8574_1.pinMode(P2, OUTPUT);

  pcf8574_1.pinMode(P3, OUTPUT);

  pcf8574_1.pinMode(P4, OUTPUT);

  pcf8574_1.pinMode(P5, OUTPUT);

  pcf8574_1.pinMode(P6, OUTPUT);

  pcf8574_1.pinMode(P7, OUTPUT);

  pcf8574_2.pinMode(P0, OUTPUT);

  pcf8574_2.pinMode(P1, OUTPUT);

  pcf8574_2.pinMode(P2, OUTPUT);

  pcf8574_2.pinMode(P3, OUTPUT);

  pcf8574_2.pinMode(P4, OUTPUT);

  pcf8574_2.pinMode(P5, OUTPUT);

  pcf8574_2.pinMode(P6, OUTPUT);

  pcf8574_2.pinMode(P7, OUTPUT);

  pcf8574_1.begin();

  pcf8574_2.begin();

}

void loop()

{

 if(digitalRead(buttonPin)==0)

 {

      pcf8574_1.digitalWrite(P0, LOW);  delay(100);

    pcf8574_1.digitalWrite(P1, LOW);  delay(100);

    pcf8574_1.digitalWrite(P2, LOW);  delay(100);

    pcf8574_1.digitalWrite(P3, LOW);  delay(100);

    pcf8574_1.digitalWrite(P4, LOW);  delay(100);

    pcf8574_1.digitalWrite(P5, LOW);  delay(100);

    pcf8574_1.digitalWrite(P6, LOW);  delay(100);

    pcf8574_1.digitalWrite(P7, LOW);  delay(100);

    pcf8574_2.digitalWrite(P0, LOW);  delay(100);

    pcf8574_2.digitalWrite(P1, LOW);  delay(100);

    pcf8574_2.digitalWrite(P2, LOW);  delay(100);

    pcf8574_2.digitalWrite(P3, LOW);  delay(100);

    pcf8574_2.digitalWrite(P4, LOW);  delay(100);

    pcf8574_2.digitalWrite(P5, LOW);  delay(100);

    pcf8574_2.digitalWrite(P6, LOW);  delay(100);

    pcf8574_2.digitalWrite(P7, LOW);  delay(100);

  }

  else

  {

    pcf8574_1.digitalWrite(P0, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P1, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P2, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P3, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P4, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P5, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P6, HIGH);  delay(100);

    pcf8574_1.digitalWrite(P7, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P0, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P1, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P2, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P3, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P4, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P5, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P6, HIGH);  delay(100);

    pcf8574_2.digitalWrite(P7, HIGH);  delay(100);

  }

}

Attached Files
.zip

KC868-E16S-8574-DO.zip (Size: 911 bytes / Downloads: 825)

[Arduino IDE demo source code for KC868-E16S]--#02-KC868-E16S-8574-DI

Posted by: KinCony Support - 05-17-2022, 01:17 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#02-KC868-E16S-8574-DI

Code:
/*KC868-E16S pcf8574 -digital input code*/

#include "Arduino.h"

#include "PCF8574.h"

// Set i2c address

PCF8574 pcf8574_IN1(0x22,16,15);

PCF8574 pcf8574_IN2(0x24,16,15);

void setup()

{

    Serial.begin(115200);

    delay(1000);

  pcf8574_IN1.begin();

  pcf8574_IN2.begin();

 pcf8574_IN1.pinMode(P0, INPUT);

 pcf8574_IN1.pinMode(P1, INPUT);

 pcf8574_IN1.pinMode(P2, INPUT);

 pcf8574_IN1.pinMode(P3, INPUT);

 pcf8574_IN1.pinMode(P4, INPUT);

 pcf8574_IN1.pinMode(P5, INPUT);

 pcf8574_IN1.pinMode(P6, INPUT);

 pcf8574_IN1.pinMode(P7, INPUT);

 pcf8574_IN2.pinMode(P0, INPUT);

 pcf8574_IN2.pinMode(P1, INPUT);

 pcf8574_IN2.pinMode(P2, INPUT);

 pcf8574_IN2.pinMode(P3, INPUT);

 pcf8574_IN2.pinMode(P4, INPUT);

 pcf8574_IN2.pinMode(P5, INPUT);

 pcf8574_IN2.pinMode(P6, INPUT);

 pcf8574_IN2.pinMode(P7, INPUT);

}

void loop()

{

   if (pcf8574_IN1.digitalRead(P0)==0)  {Serial.println("KEY1 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P1)==0)  {Serial.println("KEY2 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P2)==0)  {Serial.println("KEY3 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P3)==0)  {Serial.println("KEY4 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P4)==0)  {Serial.println("KEY5 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P5)==0)  {Serial.println("KEY6 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P6)==0)  {Serial.println("KEY7 PRESSED");}delay(100);

   if (pcf8574_IN1.digitalRead(P7)==0)  {Serial.println("KEY8 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P0)==0)  {Serial.println("KEY9 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P1)==0)  {Serial.println("KEY10 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P2)==0)  {Serial.println("KEY11 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P3)==0)  {Serial.println("KEY12 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P4)==0)  {Serial.println("KEY13 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P5)==0)  {Serial.println("KEY14 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P6)==0)  {Serial.println("KEY15 PRESSED");}delay(100);

   if (pcf8574_IN2.digitalRead(P7)==0)  {Serial.println("KEY16 PRESSED");}delay(100);

}

Attached Files
.zip

KC868-E16S-8574-DI.zip (Size: 783 bytes / Downloads: 842)

[Arduino IDE demo source code for KC868-E16S]--#01-KC868-E16S-433-decode

Posted by: KinCony Support - 05-17-2022, 01:07 AM - Forum: KC868-E16S/E16P - No Replies

[Arduino IDE demo source code for KC868-E16S]--#01-KC868-E16S-433-decode

Code:
/*www.kinocny.com */

/*KC868-E16S CODE OF 433MHz decode*/

#include <RCSwitch.h>

RCSwitch mySwitch = RCSwitch();

void setup() {

  Serial.begin(9600);

  mySwitch.enableReceive(digitalPinToInterrupt(4));

}

void loop() {

  if (mySwitch.available()) {

    Serial.print("Received ");

    Serial.print( mySwitch.getReceivedValue() );

    Serial.print(" / ");

    Serial.print( mySwitch.getReceivedBitlength() );

    Serial.print("bit ");

    Serial.print("Protocol: ");

    Serial.println( mySwitch.getReceivedProtocol() );

    mySwitch.resetAvailable();

  }

}

Attached Files
.zip

KC868-E16S-433-decode.zip (Size: 669 bytes / Downloads: 817)

KC868 H32B in home assistant

Posted by: ahmedwizza - 05-17-2022, 12:49 AM - Forum: KC868-HxB series Smart Controller - Replies (4)

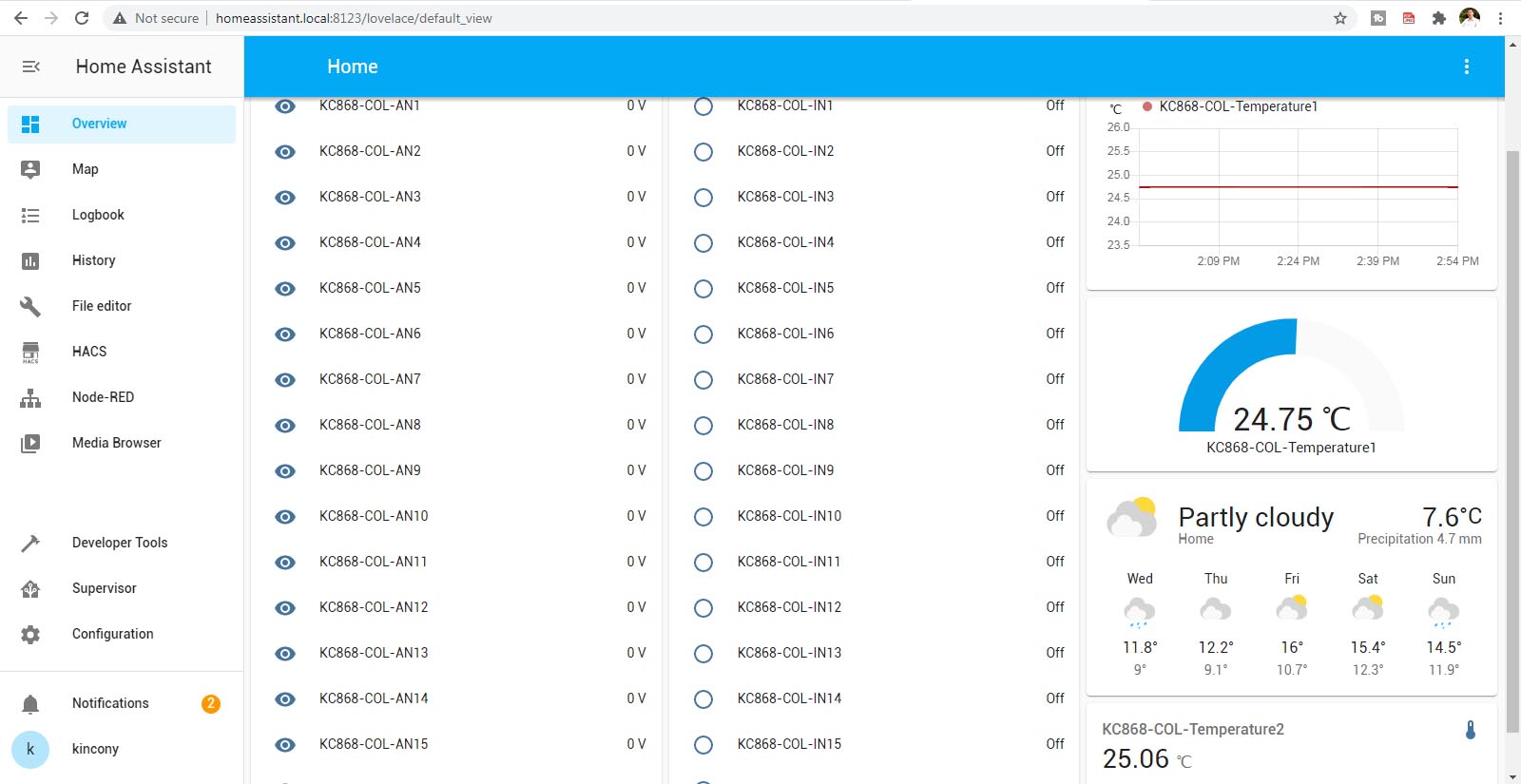

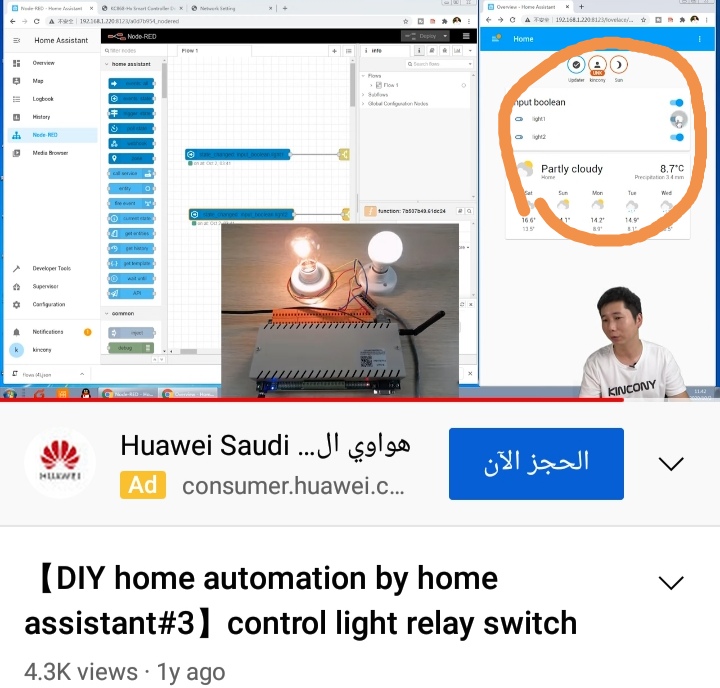

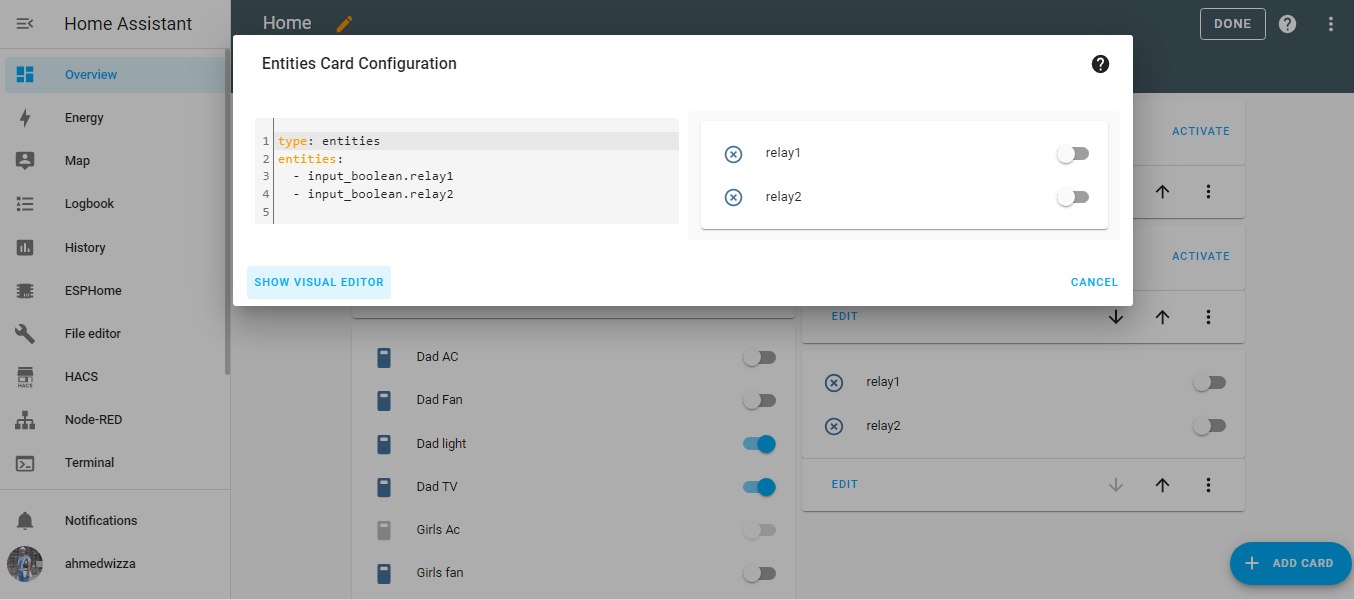

	hello engineer could you please help my in home assistant when i add KC868 H32B to home assistant .needed to make one switch control all On and Off like attached photos. Attached Files Thumbnail(s)

[Arduino IDE of KC868-E16S]--#00-KC868-E16S-configure for ESPhome

Posted by: admin - 05-17-2022, 12:45 AM - Forum: KC868-E16S/E16P - Replies (13)

esphome:
name: kc868-e16s
platform: ESP32
board: esp32dev

# Example configuration entry for ESP32
i2c:
sda: 16
scl: 15
scan: true
id: bus_a

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

# Optional manual IP
# manual_ip:
# static_ip: 192.168.1.199
# gateway: 192.168.1.1
# subnet: 255.255.255.0

# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-8
address: 0x21

- id: 'pcf8574_hub_out_2' # for output channel 9-16
address: 0x25

- id: 'pcf8574_hub_in_1' # for input channel 1-8
address: 0x22

- id: 'pcf8574_hub_in_2' # for input channel 9-16
address: 0x24

# Individual outputs
switch:
- platform: gpio
name: "e16s-output1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output9"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output10"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output11"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output12"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output13"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output14"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output15"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "e16s-output16"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true

binary_sensor:
- platform: gpio
name: "e16s-input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input9"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input10"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input11"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input12"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input13"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input14"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input15"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "e16s-input16"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true

# Enable logging
logger:

# Enable Home Assistant API
api:

Pages (419): « Previous 1 … 351 352 353 354 355 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 … 419 Next »

Login
Username:
Password:	Lost Password?
	Remember me
