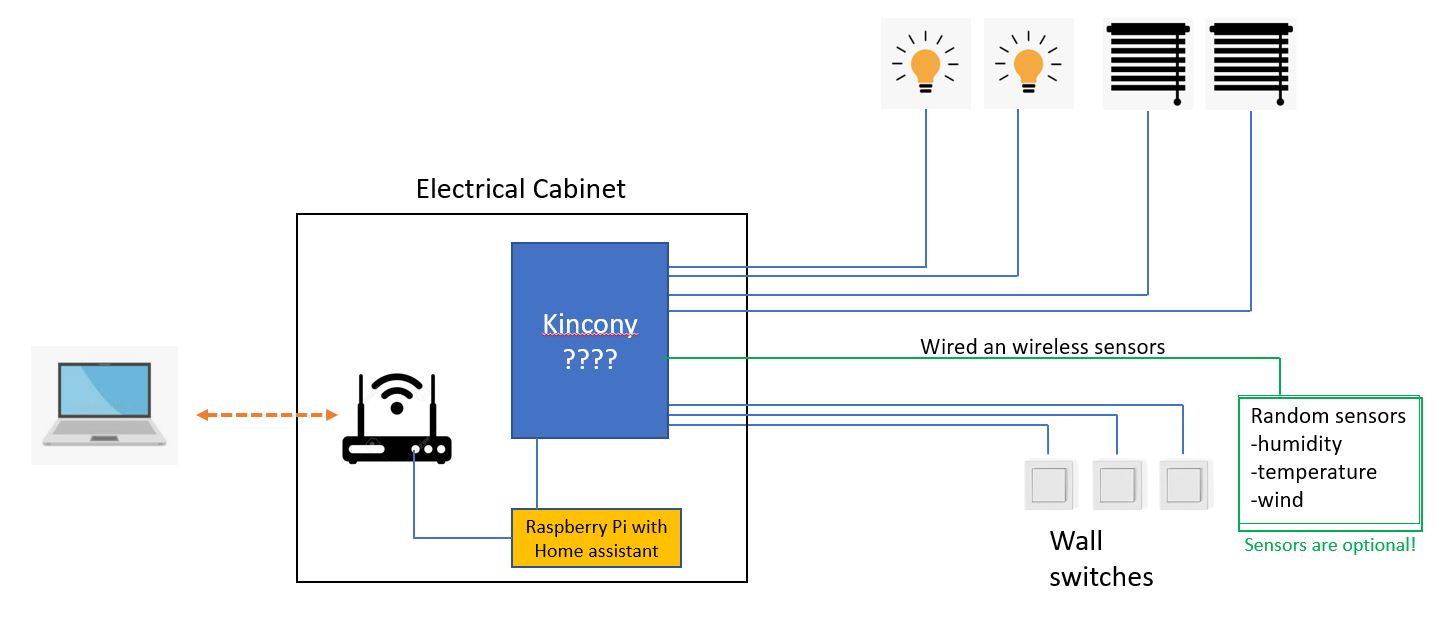

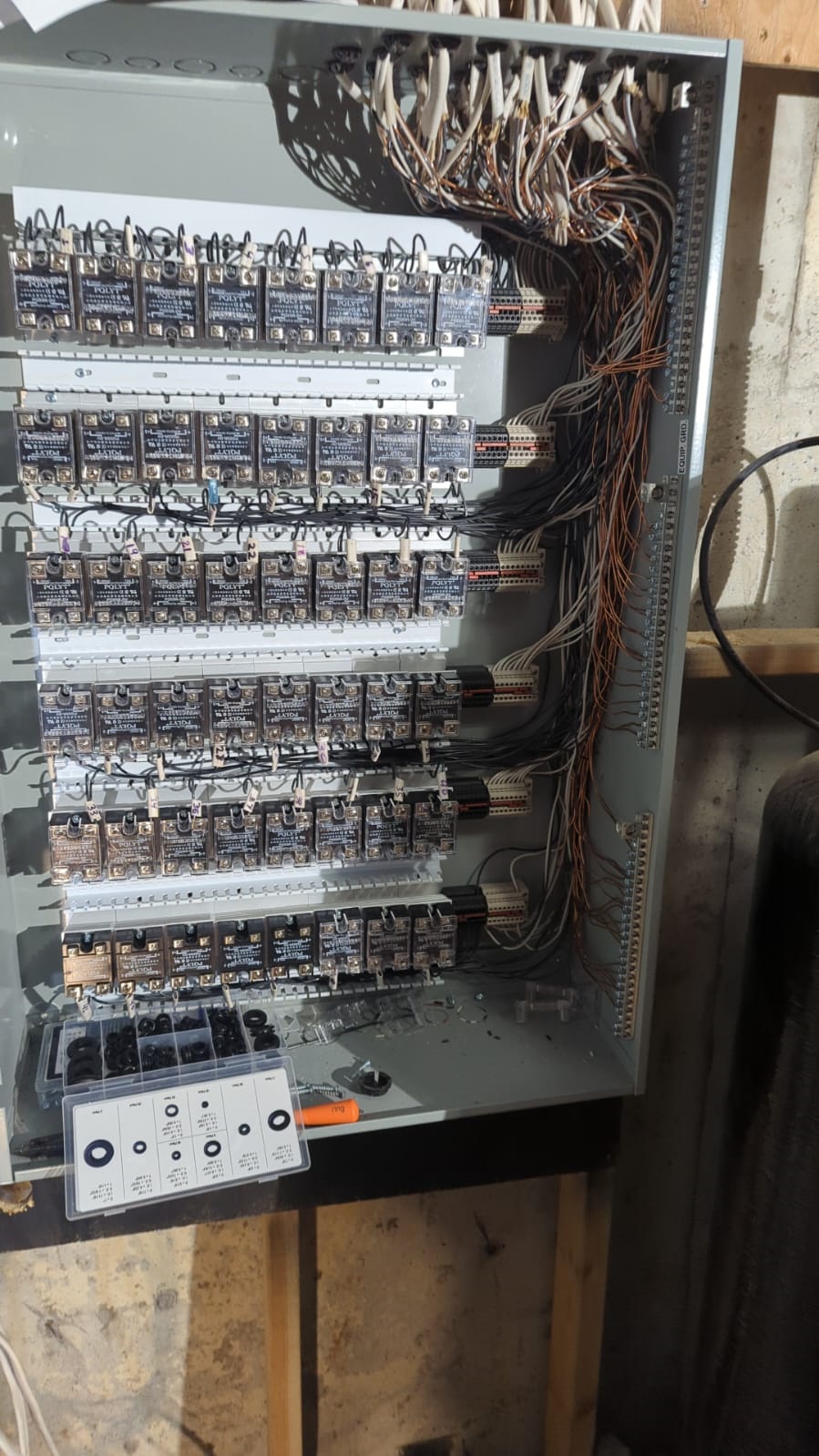

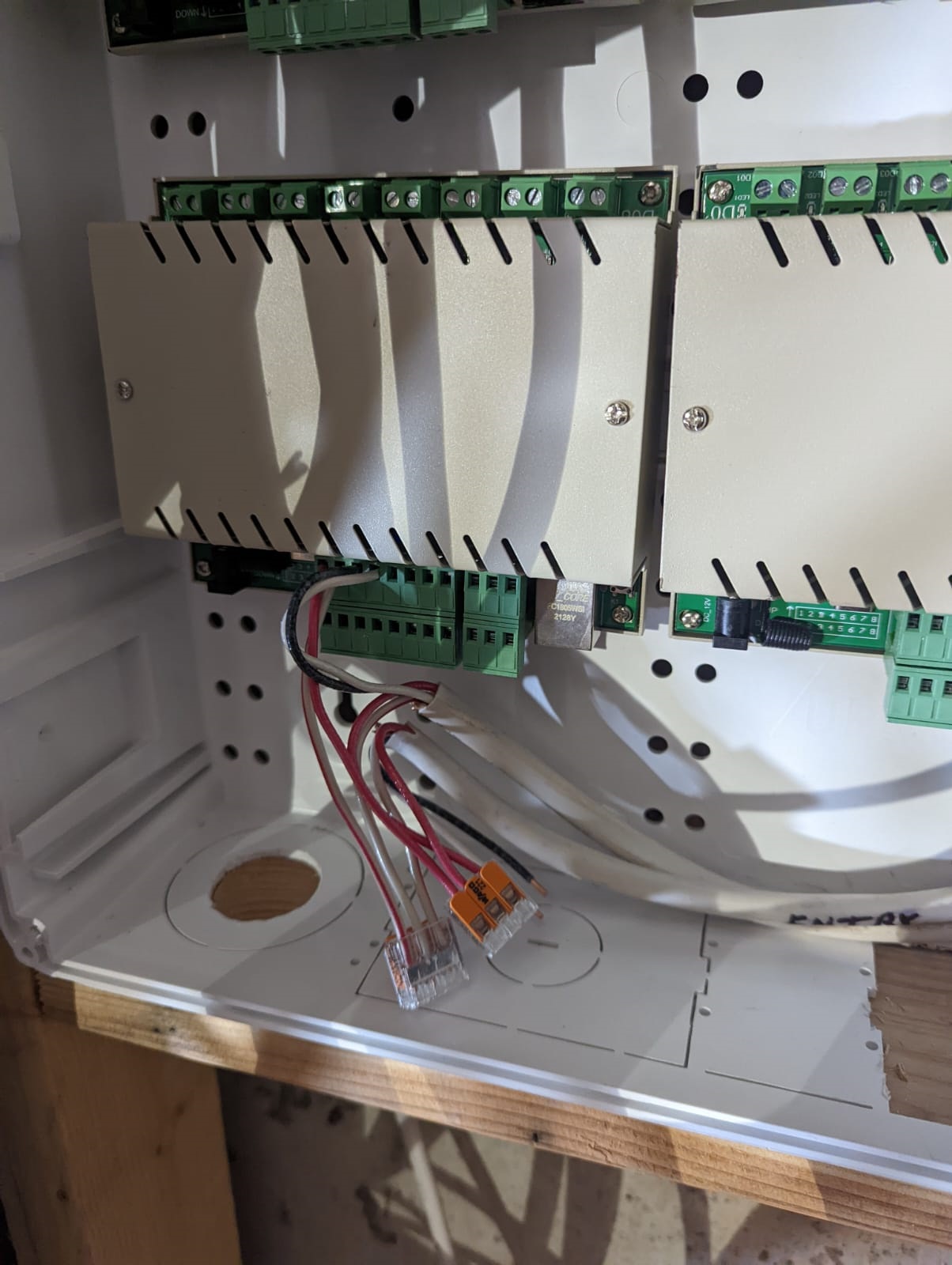

KC868-Server integrate to home asssitant by MQTT configuration.yaml

Posted by: admin - 03-27-2022, 04:52 AM - Forum: KC868-Server Raspberry Pi4 local server - Replies (15)

	KC868-Server 16 channel output, 16 channel digital input, 4 channel analog input all use in configuration.yaml KC868-Server-home-assistant-config.txt (Size: 8.15 KB / Downloads: 1039) Note: xxxxxxxxxxxxxxxxxxxxxxxx is UID of controller, just replace with your device UID. You can find the UID in ethernet setting.

Lesson8 - install Mosquitto broker on home assistant

Posted by: admin - 03-27-2022, 03:29 AM - Forum: Home automation training courses - No Replies

1. MQTT structure





2. Install mosquito MQTT broker on home assistant



Configuration:

logins:
- username: mqtt
password: '123'
customize:
active: false
folder: mosquitto
certfile: fullchain.pem
keyfile: privkey.pem
require_certificate: false

Note: username and password just replace by yourself.

3. MQTT communication


4. MQTT communication test

Configuration-->Devices & Services --> Mosquitto broker "CONFIGURE"

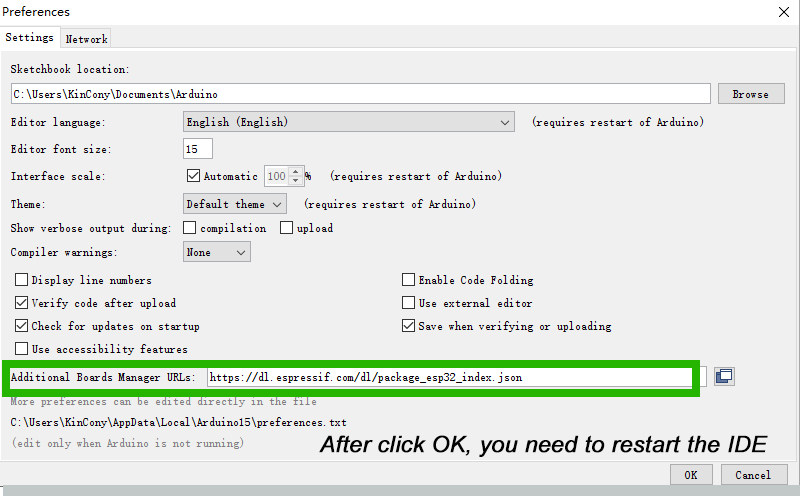

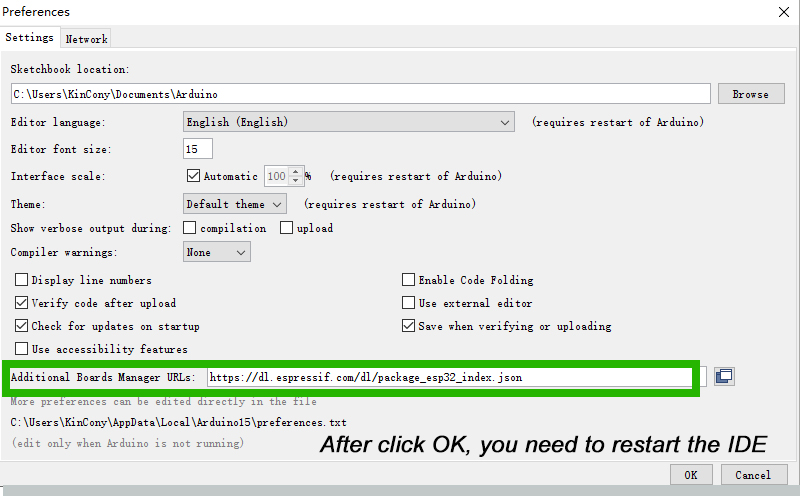

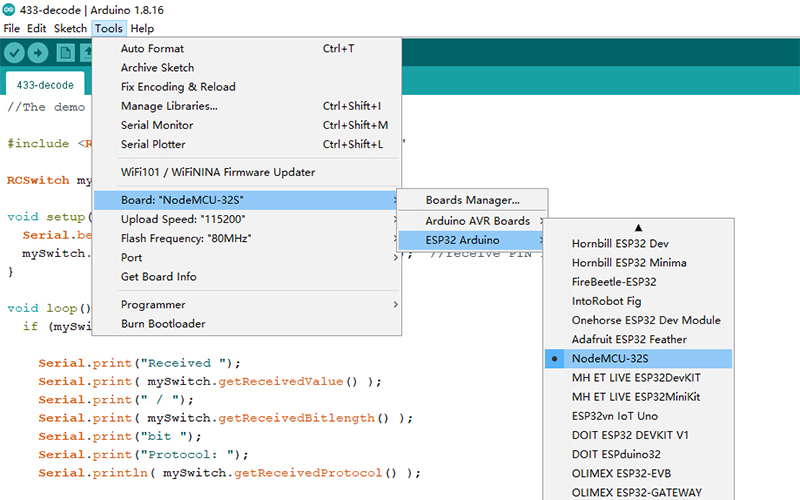

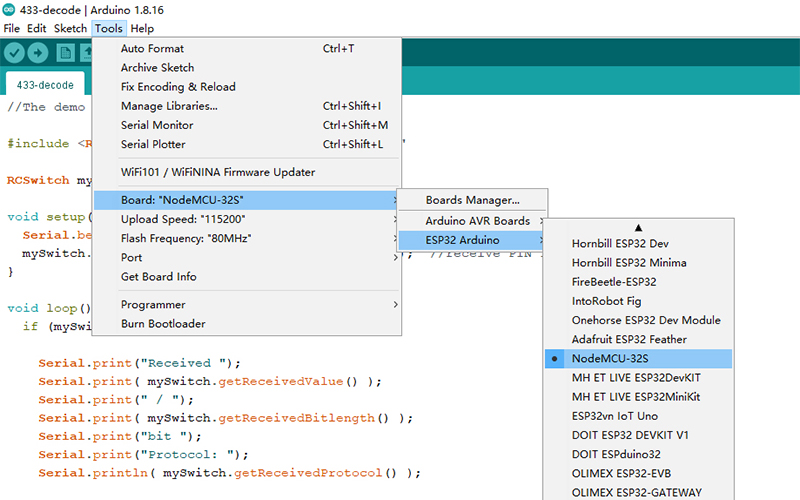

[Arduino IDE demo source code for KC868-A32]--#06-RS485

Posted by: KinCony Support - 03-24-2022, 07:03 AM - Forum: KC868-A32/A32 Pro - Replies (1)

Code:
void setup() {

 Serial1.begin(9600);    //Serial 1

}

void loop() {

Serial1.println("KinCony");

delay(1500);

}

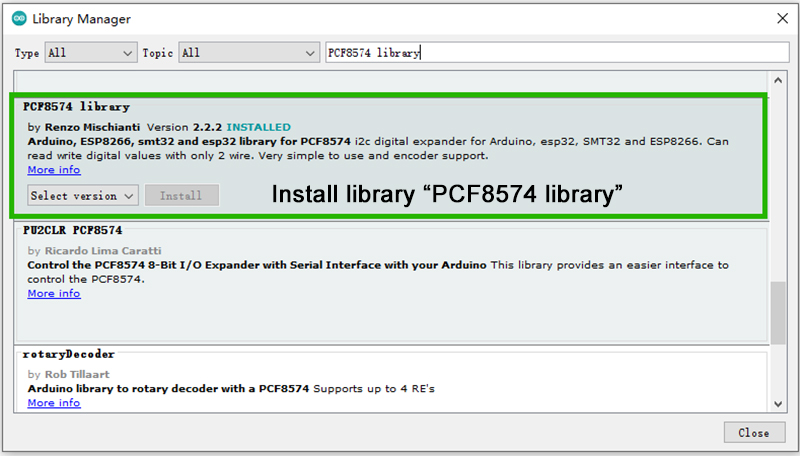

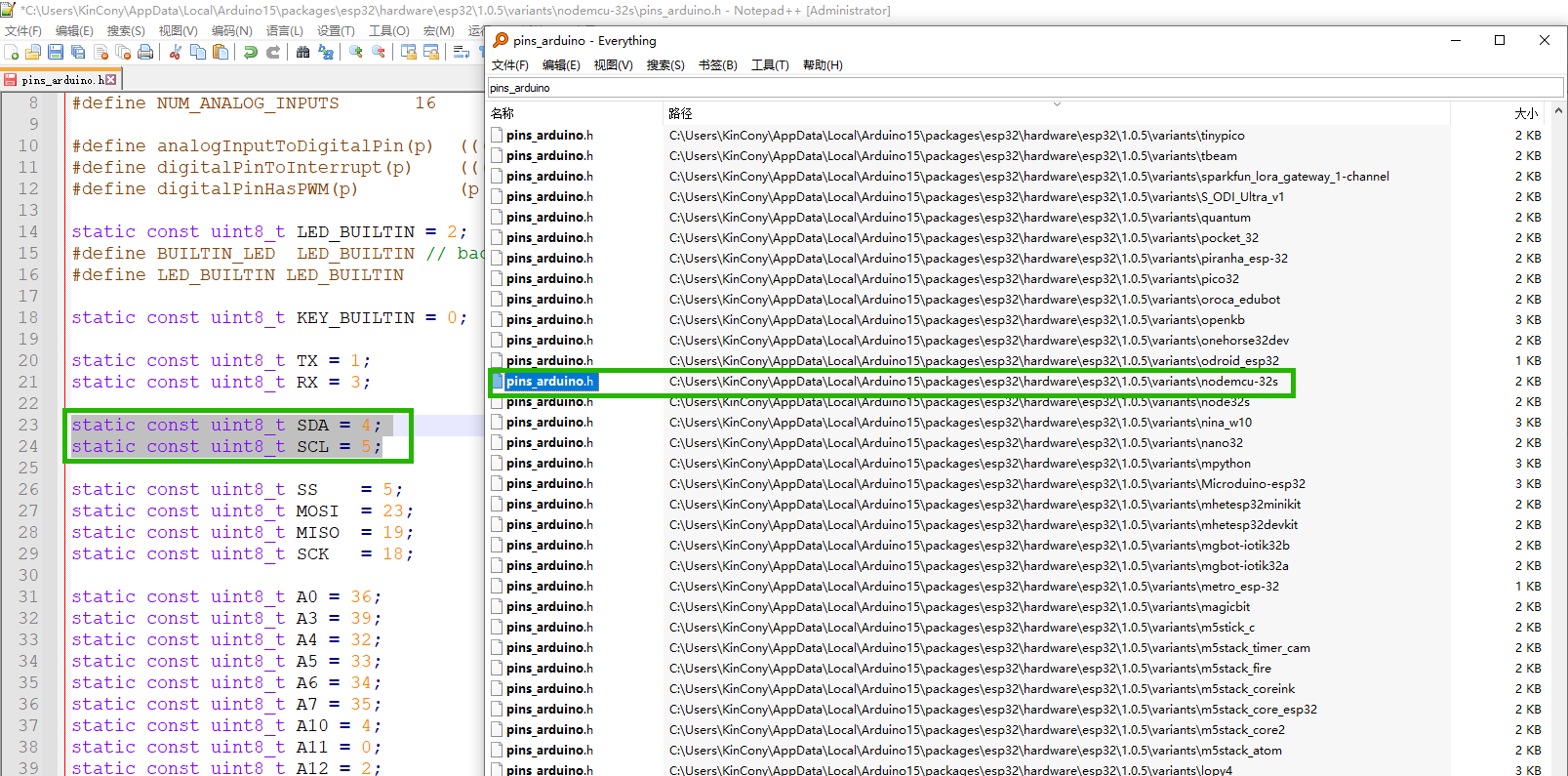

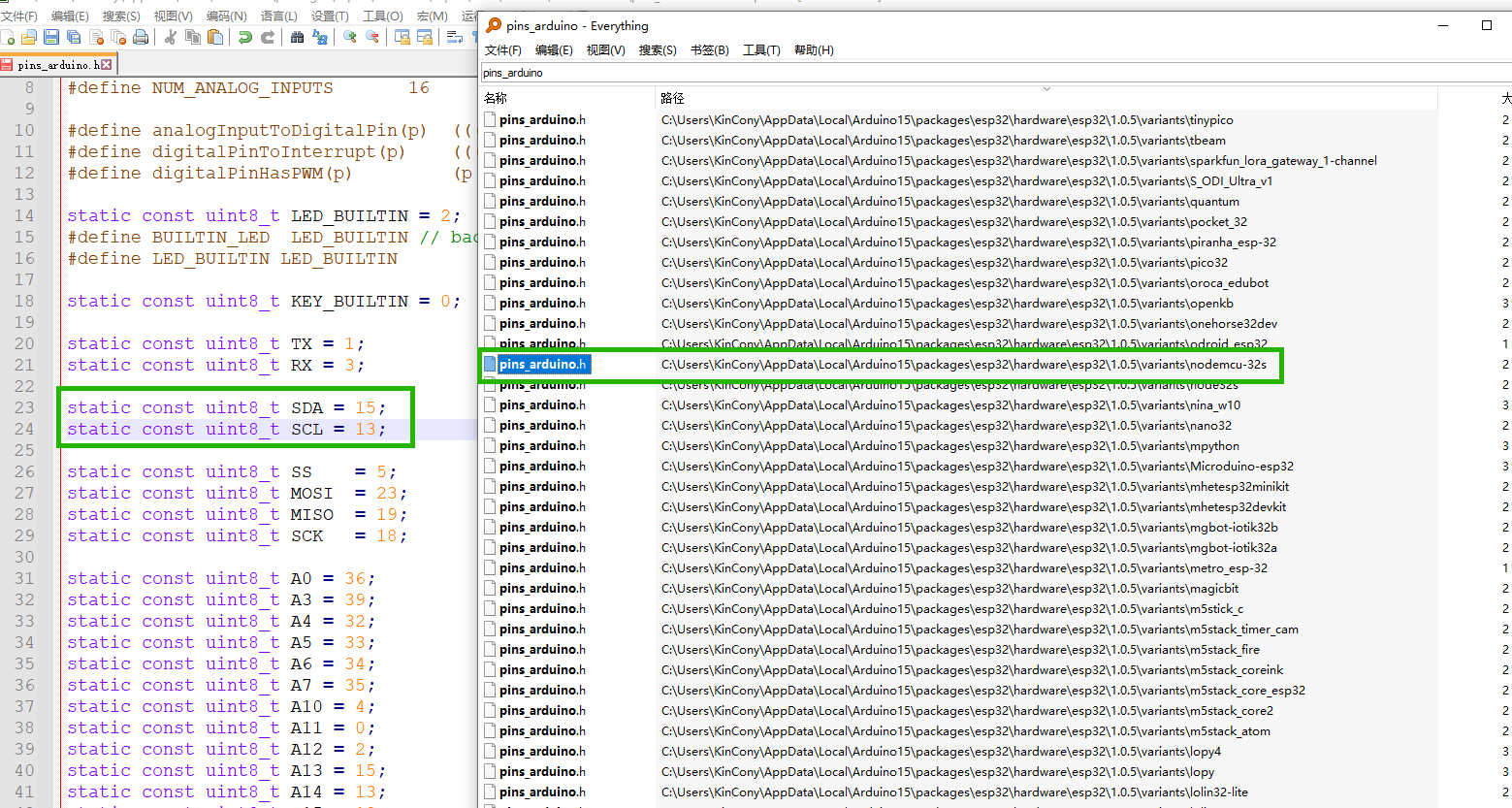

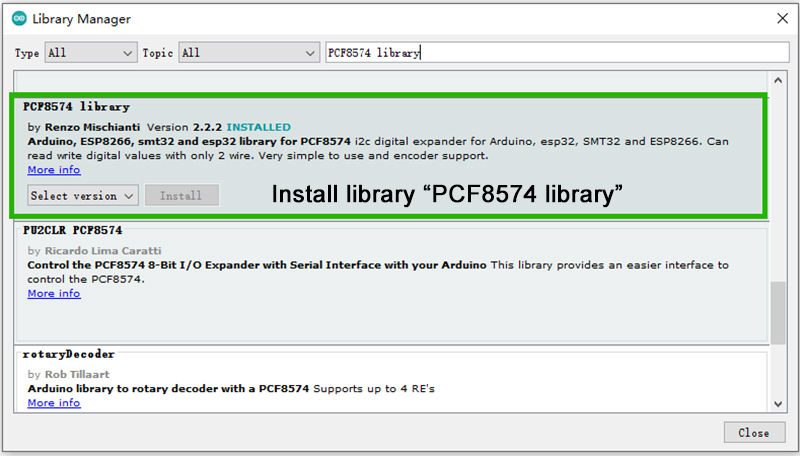

[Arduino IDE demo source code for KC868-A32]--#05-PCF8574-DO

Posted by: KinCony Support - 03-24-2022, 06:59 AM - Forum: KC868-A32/A32 Pro - Replies (2)

Code:
#include "Arduino.h"

#include "PCF8574.h"

TwoWire I2Ctwo = TwoWire(1);

// Set i2c address

PCF8574 pcf8574_R1(&I2Ctwo, 0x24, 15, 13);

PCF8574 pcf8574_R2(&I2Ctwo, 0x25, 15, 13);

PCF8574 pcf8574_R3(&I2Ctwo, 0x21, 15, 13);

PCF8574 pcf8574_R4(&I2Ctwo, 0x22, 15, 13);

void setup()

{

    Serial.begin(115200);

//    delay(1000);

    // Set pinMode to OUTPUT

 pcf8574_R1.pinMode(P0, OUTPUT);

 pcf8574_R1.pinMode(P1, OUTPUT);

 pcf8574_R1.pinMode(P2, OUTPUT);

 pcf8574_R1.pinMode(P3, OUTPUT);

 pcf8574_R1.pinMode(P4, OUTPUT);

 pcf8574_R1.pinMode(P5, OUTPUT);

 pcf8574_R1.pinMode(P6, OUTPUT);

 pcf8574_R1.pinMode(P7, OUTPUT);

 pcf8574_R2.pinMode(P0, OUTPUT);

 pcf8574_R2.pinMode(P1, OUTPUT);

 pcf8574_R2.pinMode(P2, OUTPUT);

 pcf8574_R2.pinMode(P3, OUTPUT);

 pcf8574_R2.pinMode(P4, OUTPUT);

 pcf8574_R2.pinMode(P5, OUTPUT);

 pcf8574_R2.pinMode(P6, OUTPUT);

 pcf8574_R2.pinMode(P7, OUTPUT);

 pcf8574_R3.pinMode(P0, OUTPUT);

 pcf8574_R3.pinMode(P1, OUTPUT);

 pcf8574_R3.pinMode(P2, OUTPUT);

 pcf8574_R3.pinMode(P3, OUTPUT);

 pcf8574_R3.pinMode(P4, OUTPUT);

 pcf8574_R3.pinMode(P5, OUTPUT);

 pcf8574_R3.pinMode(P6, OUTPUT);

 pcf8574_R3.pinMode(P7, OUTPUT);

 pcf8574_R4.pinMode(P0, OUTPUT);

 pcf8574_R4.pinMode(P1, OUTPUT);

 pcf8574_R4.pinMode(P2, OUTPUT);

 pcf8574_R4.pinMode(P3, OUTPUT);

 pcf8574_R4.pinMode(P4, OUTPUT);

 pcf8574_R4.pinMode(P5, OUTPUT);

 pcf8574_R4.pinMode(P6, OUTPUT);

 pcf8574_R4.pinMode(P7, OUTPUT);

    Serial.print("Init pcf8574_R1...");

    if (pcf8574_R1.begin()){

        Serial.println("PCF8574_R1_OK");

    }else{

        Serial.println("PCF8574_R1_KO");

    }

  Serial.print("Init pcf8574_R2...");

  if (pcf8574_R2.begin()){

    Serial.println("PCF8574_R2_OK");

  }else{

    Serial.println("PCF8574_R2_KO");

  }

  Serial.print("Init pcf8574_R3...");

  if (pcf8574_R3.begin()){

    Serial.println("PCF8574_R3_OK");

  }else{

    Serial.println("PCF8574_R3_KO");

  }

  Serial.print("Init pcf8574_R4...");

  if (pcf8574_R4.begin()){

    Serial.println("PCF8574_R4_OK");

  }else{

    Serial.println("PCF8574_R4_KO");

  }

}

void loop()

{

    pcf8574_R1.digitalWrite(P0, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P1, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P2, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P3, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P4, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P5, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P6, LOW);

  delay(200);

  pcf8574_R1.digitalWrite(P7, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P0, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P1, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P2, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P3, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P4, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P5, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P6, LOW);

  delay(200);

  pcf8574_R2.digitalWrite(P7, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P0, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P1, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P2, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P3, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P4, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P5, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P6, LOW);

  delay(200);

  pcf8574_R3.digitalWrite(P7, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P0, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P1, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P2, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P3, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P4, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P5, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P6, LOW);

  delay(200);

  pcf8574_R4.digitalWrite(P7, LOW);

  delay(200);

}

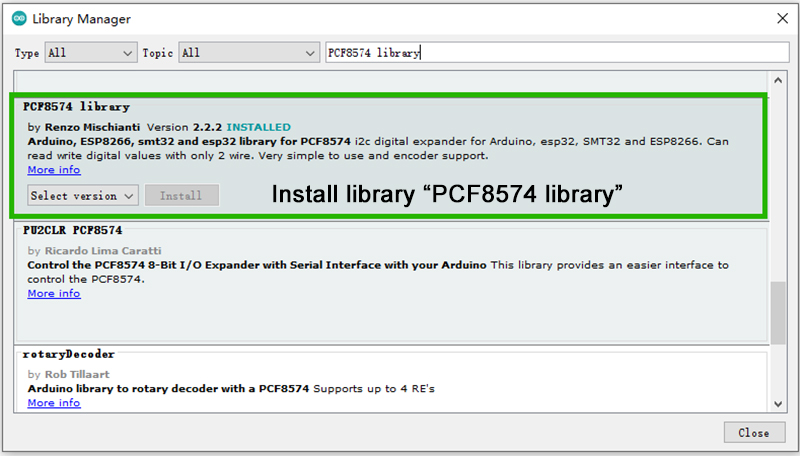

[Arduino IDE demo source code for KC868-A32]--#04-PCF8574-DI

Posted by: KinCony Support - 03-24-2022, 06:53 AM - Forum: KC868-A32/A32 Pro - No Replies

Code:
/*

 KeyPressed on PIN1

 by Mischianti Renzo <http://www.mischianti.org>

 https://www.mischianti.org/2019/01/02/pcf8574-i2c-digital-i-o-expander-fast-easy-usage/

*/

#include "Arduino.h"

#include "PCF8574.h"

// Instantiate Wire for generic use at 400kHz

TwoWire I2Cone = TwoWire(0);

// Instantiate Wire for generic use at 100kHz

TwoWire I2Ctwo = TwoWire(1);

// Set i2c address

PCF8574 pcf8574_I1(0x24);

PCF8574 pcf8574_I2(0x25);

PCF8574 pcf8574_I3(0x21);

PCF8574 pcf8574_I4(0x22);

unsigned long timeElapsed;

void setup()

{

    Serial.begin(115200);

    delay(1000);

//    pcf8574.pinMode(P0, OUTPUT);

 pcf8574_I1.pinMode(P0, INPUT);

 pcf8574_I1.pinMode(P1, INPUT);

 pcf8574_I1.pinMode(P2, INPUT);

 pcf8574_I1.pinMode(P3, INPUT);

 pcf8574_I1.pinMode(P4, INPUT);

 pcf8574_I1.pinMode(P5, INPUT);

 pcf8574_I1.pinMode(P6, INPUT);

 pcf8574_I1.pinMode(P7, INPUT);

 pcf8574_I2.pinMode(P0, INPUT);

 pcf8574_I2.pinMode(P1, INPUT);

 pcf8574_I2.pinMode(P2, INPUT);

 pcf8574_I2.pinMode(P3, INPUT);

 pcf8574_I2.pinMode(P4, INPUT);

 pcf8574_I2.pinMode(P5, INPUT);

 pcf8574_I2.pinMode(P6, INPUT);

 pcf8574_I2.pinMode(P7, INPUT);

 pcf8574_I3.pinMode(P0, INPUT);

 pcf8574_I3.pinMode(P1, INPUT);

 pcf8574_I3.pinMode(P2, INPUT);

 pcf8574_I3.pinMode(P3, INPUT);

 pcf8574_I3.pinMode(P4, INPUT);

 pcf8574_I3.pinMode(P5, INPUT);

 pcf8574_I3.pinMode(P6, INPUT);

 pcf8574_I3.pinMode(P7, INPUT);

 pcf8574_I4.pinMode(P0, INPUT);

 pcf8574_I4.pinMode(P1, INPUT);

 pcf8574_I4.pinMode(P2, INPUT);

 pcf8574_I4.pinMode(P3, INPUT);

 pcf8574_I4.pinMode(P4, INPUT);

 pcf8574_I4.pinMode(P5, INPUT);

 pcf8574_I4.pinMode(P6, INPUT);

 pcf8574_I4.pinMode(P7, INPUT);

    Serial.print("Init pcf8574...");

    if (pcf8574_I1.begin()){

        Serial.println("pcf8574_I1_OK");

    }else{

        Serial.println("pcf8574_I1_KO");

    }

  Serial.print("Init pcf8574...");

  if (pcf8574_I2.begin()){

    Serial.println("pcf8574_I2_OK");

  }else{

    Serial.println("pcf8574_I2_KO");

  }

  Serial.print("Init pcf8574_I3...");

  if (pcf8574_I3.begin()){

    Serial.println("pcf8574_I3_OK");

  }else{

    Serial.println("pcf8574_I3_KO");

  }

  Serial.print("Init pcf8574_I4...");

  if (pcf8574_I4.begin()){

    Serial.println("pcf8574_I4_OK");

  }else{

    Serial.println("pcf8574_I4_KO");

  }

}

void loop()

{

 uint8_t val1 = pcf8574_I1.digitalRead(P0);

 uint8_t val2 = pcf8574_I1.digitalRead(P1);

 uint8_t val3 = pcf8574_I1.digitalRead(P2);

 uint8_t val4 = pcf8574_I1.digitalRead(P3);

 uint8_t val5 = pcf8574_I1.digitalRead(P4);

 uint8_t val6 = pcf8574_I1.digitalRead(P5);

 uint8_t val7 = pcf8574_I1.digitalRead(P6);

 uint8_t val8 = pcf8574_I1.digitalRead(P7);

 uint8_t val9 = pcf8574_I2.digitalRead(P0);

 uint8_t val10 = pcf8574_I2.digitalRead(P1);

 uint8_t val11 = pcf8574_I2.digitalRead(P2);

 uint8_t val12 = pcf8574_I2.digitalRead(P3);

 uint8_t val13 = pcf8574_I2.digitalRead(P4);

 uint8_t val14 = pcf8574_I2.digitalRead(P5);

 uint8_t val15 = pcf8574_I2.digitalRead(P6);

 uint8_t val16 = pcf8574_I2.digitalRead(P7);

 uint8_t val17 = pcf8574_I3.digitalRead(P0);

 uint8_t val18 = pcf8574_I3.digitalRead(P1);

 uint8_t val19 = pcf8574_I3.digitalRead(P2);

 uint8_t val20 = pcf8574_I3.digitalRead(P3);

 uint8_t val21 = pcf8574_I3.digitalRead(P4);

 uint8_t val22 = pcf8574_I3.digitalRead(P5);

 uint8_t val23 = pcf8574_I3.digitalRead(P6);

 uint8_t val24 = pcf8574_I3.digitalRead(P7);

 uint8_t val25 = pcf8574_I4.digitalRead(P0);

 uint8_t val26 = pcf8574_I4.digitalRead(P1);

 uint8_t val27 = pcf8574_I4.digitalRead(P2);

 uint8_t val28 = pcf8574_I4.digitalRead(P3);

 uint8_t val29 = pcf8574_I4.digitalRead(P4);

 uint8_t val30 = pcf8574_I4.digitalRead(P5);

 uint8_t val31 = pcf8574_I4.digitalRead(P6);

 uint8_t val32 = pcf8574_I4.digitalRead(P7);

 if (val1==LOW) Serial.println("KEY1 PRESSED");

 if (val2==LOW) Serial.println("KEY2 PRESSED");

 if (val3==LOW) Serial.println("KEY3 PRESSED");

 if (val4==LOW) Serial.println("KEY4 PRESSED");

 if (val5==LOW) Serial.println("KEY5 PRESSED");

 if (val6==LOW) Serial.println("KEY6 PRESSED");

 if (val7==LOW) Serial.println("KEY7 PRESSED");

 if (val8==LOW) Serial.println("KEY8 PRESSED");

 if (val9==LOW) Serial.println("KEY9 PRESSED");

 if (val10==LOW) Serial.println("KEY10 PRESSED");

 if (val11==LOW) Serial.println("KEY11 PRESSED");

 if (val12==LOW) Serial.println("KEY12 PRESSED");

 if (val13==LOW) Serial.println("KEY13 PRESSED");

 if (val14==LOW) Serial.println("KEY14 PRESSED");

 if (val15==LOW) Serial.println("KEY15 PRESSED");

 if (val16==LOW) Serial.println("KEY16 PRESSED");

 if (val17==LOW) Serial.println("KEY17 PRESSED");

 if (val18==LOW) Serial.println("KEY18 PRESSED");

 if (val19==LOW) Serial.println("KEY19 PRESSED");

 if (val20==LOW) Serial.println("KEY20 PRESSED");

 if (val21==LOW) Serial.println("KEY21 PRESSED");

 if (val22==LOW) Serial.println("KEY22 PRESSED");

 if (val23==LOW) Serial.println("KEY23 PRESSED");

 if (val24==LOW) Serial.println("KEY24 PRESSED");

 if (val25==LOW) Serial.println("KEY25 PRESSED");

 if (val26==LOW) Serial.println("KEY26 PRESSED");

 if (val27==LOW) Serial.println("KEY27 PRESSED");

 if (val28==LOW) Serial.println("KEY28 PRESSED");

 if (val29==LOW) Serial.println("KEY29 PRESSED");

 if (val30==LOW) Serial.println("KEY30 PRESSED");

 if (val31==LOW) Serial.println("KEY31 PRESSED");

 if (val32==LOW) Serial.println("KEY32 PRESSED");

    delay(300);

}

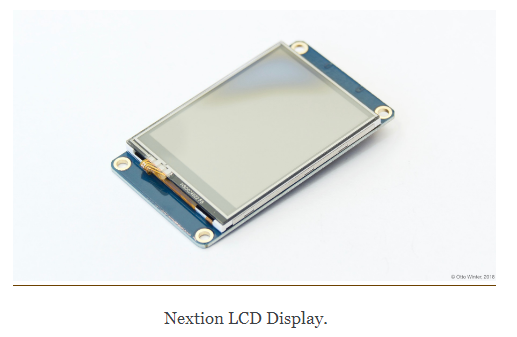

[Arduino IDE demo source code for KC868-A32]--#03-Nextion TFT LCD Display

Posted by: KinCony Support - 03-24-2022, 06:34 AM - Forum: KC868-A32/A32 Pro - No Replies

Code:
int i=0;

void setup()

{

Serial2.begin(9600);

}

void loop()

{

i++;

if (i==100) i=0;

Serial2.print("n0.val=");

Serial2.print(i);

Serial2.write(0xff);

Serial2.write(0xff);

Serial2.write(0xff);

delay(200);

}

[Arduino IDE demo source code for KC868-A32]--#02-LAN8720_UDP

Posted by: KinCony Support - 03-24-2022, 06:29 AM - Forum: KC868-A32/A32 Pro - No Replies

Code:
#include <ETH.h>

#include <WiFiUdp.h>

#define ETH_ADDR        0

#define ETH_POWER_PIN  -1

#define ETH_MDC_PIN    23

#define ETH_MDIO_PIN   18

#define ETH_TYPE       ETH_PHY_LAN8720

#define ETH_CLK_MODE   ETH_CLOCK_GPIO17_OUT

WiFiUDP Udp;                      //Create UDP object

unsigned int localUdpPort = 4196; //local port

IPAddress local_ip(192, 168, 1, 200);

IPAddress gateway(192, 168, 1, 1);

IPAddress subnet(255, 255, 255, 0);

IPAddress dns(192, 168, 1, 1);

void setup()

{

  Serial.begin(115200);

  Serial.println();

  ETH.begin(ETH_ADDR, ETH_POWER_PIN, ETH_MDC_PIN, ETH_MDIO_PIN, ETH_TYPE, ETH_CLK_MODE); //start with ETH

  // write confir for static IP, gateway,subnet,dns1,dns2

  if (ETH.config(local_ip, gateway, subnet, dns, dns) == false) {

    Serial.println("LAN8720 Configuration failed.");

  }else{Serial.println("LAN8720 Configuration success.");}

 /* while(!((uint32_t)ETH.localIP())) //wait for IP

  {

  }*/

  Serial.println("Connected");

  Serial.print("IP Address:");

  Serial.println(ETH.localIP());

  Udp.begin(localUdpPort); //begin UDP listener

}

void loop()

{

  int packetSize = Udp.parsePacket(); //get package size

  if (packetSize)                     //if have received data

  {

    char buf[packetSize];

    Udp.read(buf, packetSize); //read current data

    Serial.println();

    Serial.print("Received: ");

    Serial.println(buf);

    Serial.print("From IP: ");

    Serial.println(Udp.remoteIP());

    Serial.print("From Port: ");

    Serial.println(Udp.remotePort());

    Udp.beginPacket(Udp.remoteIP(), Udp.remotePort()); //ready to send data

    Udp.print("Received: ");

    Udp.write((const uint8_t*)buf, packetSize); //copy data to sender buffer

    Udp.endPacket();            //send data

  }

}

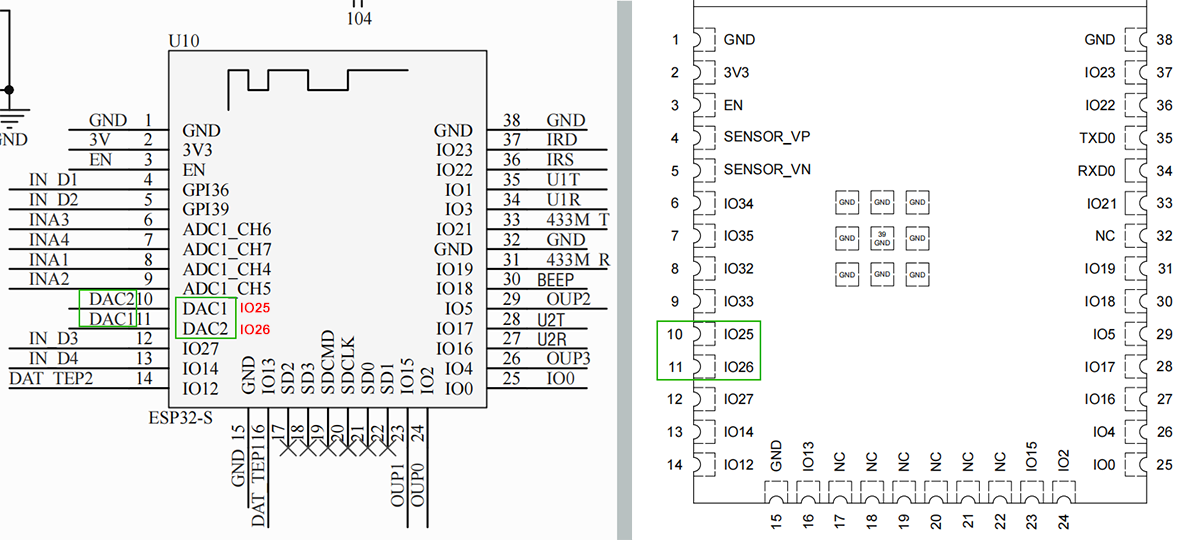

[Arduino IDE demo source code for KC868-A32]--#01-ADC_INOUT

Posted by: KinCony Support - 03-24-2022, 06:22 AM - Forum: KC868-A32/A32 Pro - No Replies

Code:

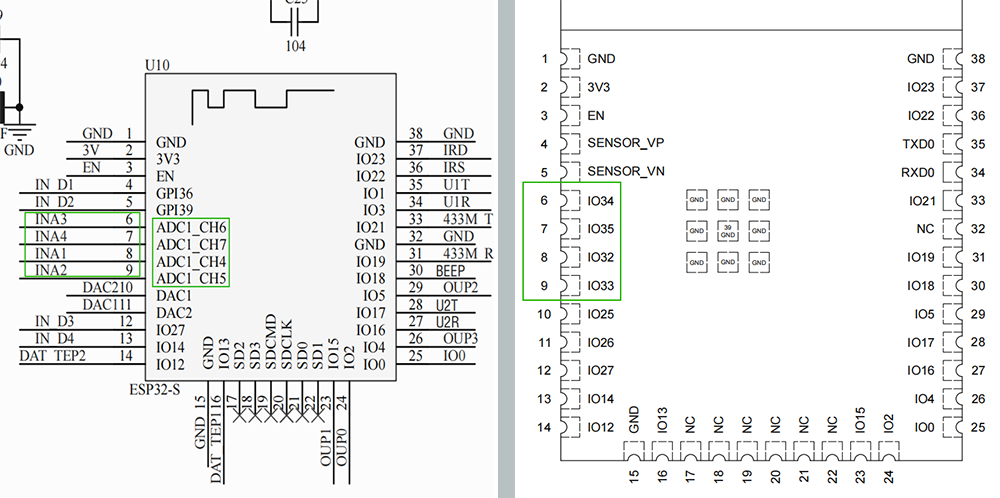

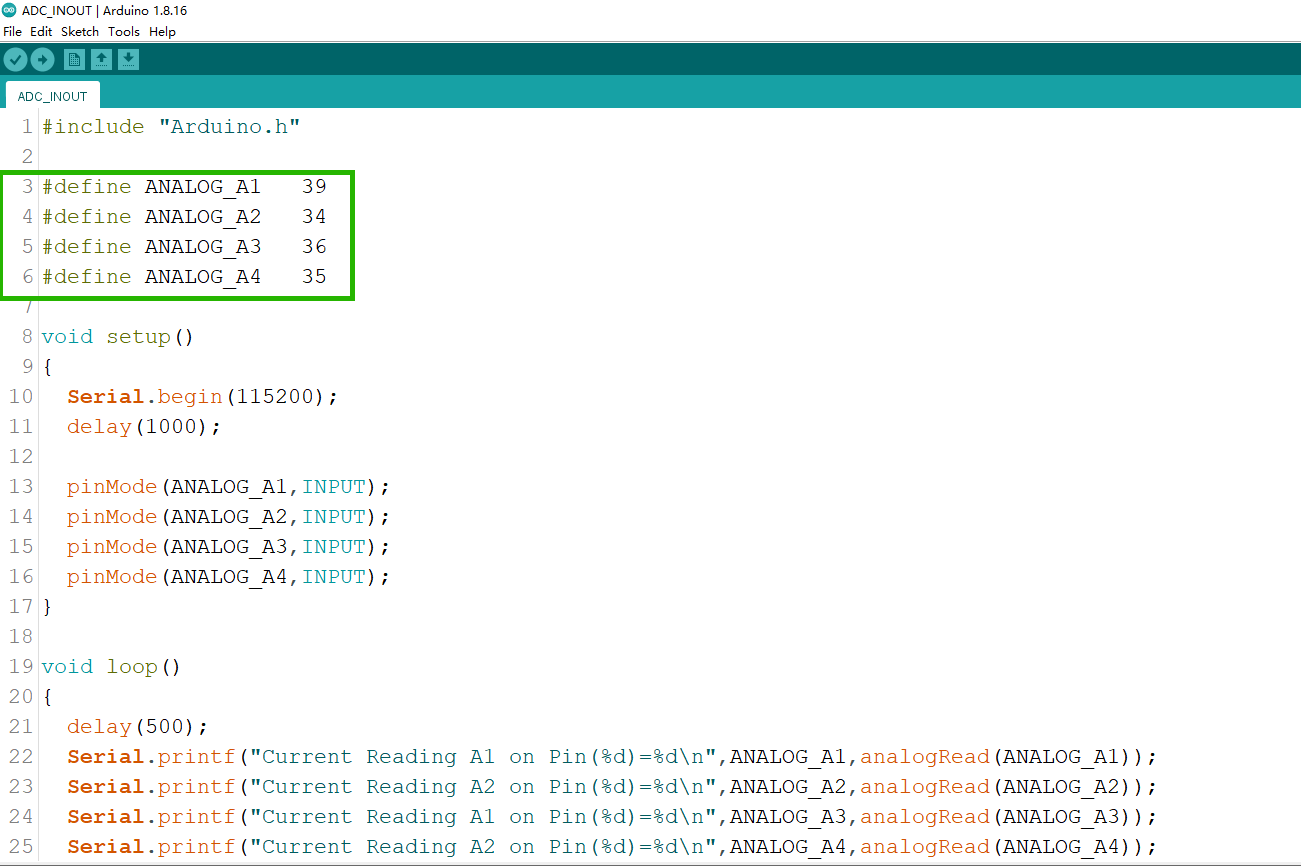

#include "Arduino.h"

#define ANALOG_A1   39

#define ANALOG_A2   34

#define ANALOG_A3   36

#define ANALOG_A4   35

void setup()

{

    Serial.begin(115200);

    delay(1000);

  pinMode(ANALOG_A1,INPUT);

  pinMode(ANALOG_A2,INPUT);

  pinMode(ANALOG_A3,INPUT);

  pinMode(ANALOG_A4,INPUT);

}

void loop()

{

  delay(500);

  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A1,analogRead(ANALOG_A1));

  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A2,analogRead(ANALOG_A2));

  Serial.printf("Current Reading A1 on Pin(%d)=%d\n",ANALOG_A3,analogRead(ANALOG_A3));

  Serial.printf("Current Reading A2 on Pin(%d)=%d\n",ANALOG_A4,analogRead(ANALOG_A4));

}

KC868-A32 configure for ESPhome

Posted by: admin - 03-23-2022, 12:36 PM - Forum: KC868-A32/A32 Pro - Replies (29)

esphome:
name: a32
platform: ESP32
board: esp32dev

# Enable logging
logger:

# Enable Home Assistant API
api:

# Example configuration entry
i2c:
- id: bus_a
sda: 15
scl: 13
scan: true
- id: bus_b
sda: 4
scl: 5
scan: true

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

# Example configuration entry
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-8
i2c_id: bus_a
address: 0x24

- id: 'pcf8574_hub_out_2' # for output channel 9-16
i2c_id: bus_a
address: 0x25

- id: 'pcf8574_hub_out_3' # for output channel 17-24
i2c_id: bus_a
address: 0x21

- id: 'pcf8574_hub_out_4' # for output channel 25-32
i2c_id: bus_a
address: 0x22

- id: 'pcf8574_hub_in_1' # for input channel 1-8
i2c_id: bus_b
address: 0x24

- id: 'pcf8574_hub_in_2' # for input channel 9-16
i2c_id: bus_b
address: 0x25

- id: 'pcf8574_hub_in_3' # for input channel 17-24
i2c_id: bus_b
address: 0x21

- id: 'pcf8574_hub_in_4' # for input channel 25-32
i2c_id: bus_b
address: 0x22

# Individual outputs
switch:
- platform: gpio
name: "light1"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "light2"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "light3"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "light4"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "light5"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "light6"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "light7"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "light8"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "light9"
pin:
pcf8574: pcf8574_hub_out_2
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "light10"
pin:
pcf8574: pcf8574_hub_out_2
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "light11"
pin:
pcf8574: pcf8574_hub_out_2
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "light12"
pin:
pcf8574: pcf8574_hub_out_2
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "light13"
pin:
pcf8574: pcf8574_hub_out_2
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "light14"
pin:
pcf8574: pcf8574_hub_out_2
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "light15"
pin:
pcf8574: pcf8574_hub_out_2
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "light16"
pin:
pcf8574: pcf8574_hub_out_2
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "light17"
pin:
pcf8574: pcf8574_hub_out_3
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "light18"
pin:
pcf8574: pcf8574_hub_out_3
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "light19"
pin:
pcf8574: pcf8574_hub_out_3
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "light20"
pin:
pcf8574: pcf8574_hub_out_3
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "light21"
pin:
pcf8574: pcf8574_hub_out_3
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "light22"
pin:
pcf8574: pcf8574_hub_out_3
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "light23"
pin:
pcf8574: pcf8574_hub_out_3
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "light24"
pin:
pcf8574: pcf8574_hub_out_3
number: 7
mode: OUTPUT
inverted: true

- platform: gpio
name: "light25"
pin:
pcf8574: pcf8574_hub_out_4
number: 0
mode: OUTPUT
inverted: true

- platform: gpio
name: "light26"
pin:
pcf8574: pcf8574_hub_out_4
number: 1
mode: OUTPUT
inverted: true

- platform: gpio
name: "light27"
pin:
pcf8574: pcf8574_hub_out_4
number: 2
mode: OUTPUT
inverted: true

- platform: gpio
name: "light28"
pin:
pcf8574: pcf8574_hub_out_4
number: 3
mode: OUTPUT
inverted: true

- platform: gpio
name: "light29"
pin:
pcf8574: pcf8574_hub_out_4
number: 4
mode: OUTPUT
inverted: true

- platform: gpio
name: "light30"
pin:
pcf8574: pcf8574_hub_out_4
number: 5
mode: OUTPUT
inverted: true

- platform: gpio
name: "light31"
pin:
pcf8574: pcf8574_hub_out_4
number: 6
mode: OUTPUT
inverted: true

- platform: gpio
name: "light32"
pin:
pcf8574: pcf8574_hub_out_4
number: 7
mode: OUTPUT
inverted: true

# Individual outputs
binary_sensor:
- platform: gpio
name: "input1"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "input2"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "input3"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "input4"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "input9"
pin:
pcf8574: pcf8574_hub_in_2
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "input10"
pin:
pcf8574: pcf8574_hub_in_2
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "input11"
pin:
pcf8574: pcf8574_hub_in_2
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "input12"
pin:
pcf8574: pcf8574_hub_in_2
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "input13"
pin:
pcf8574: pcf8574_hub_in_2
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "input14"
pin:
pcf8574: pcf8574_hub_in_2
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "input15"
pin:
pcf8574: pcf8574_hub_in_2
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "input16"
pin:
pcf8574: pcf8574_hub_in_2
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "input17"
pin:
pcf8574: pcf8574_hub_in_3
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "input18"
pin:
pcf8574: pcf8574_hub_in_3
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "input19"
pin:
pcf8574: pcf8574_hub_in_3
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "input20"
pin:
pcf8574: pcf8574_hub_in_3
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "input21"
pin:
pcf8574: pcf8574_hub_in_3
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "input22"
pin:
pcf8574: pcf8574_hub_in_3
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "input23"
pin:
pcf8574: pcf8574_hub_in_3
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "input24"
pin:
pcf8574: pcf8574_hub_in_3
number: 7
mode: INPUT
inverted: true

- platform: gpio
name: "input25"
pin:
pcf8574: pcf8574_hub_in_4
number: 0
mode: INPUT
inverted: true

- platform: gpio
name: "input26"
pin:
pcf8574: pcf8574_hub_in_4
number: 1
mode: INPUT
inverted: true

- platform: gpio
name: "input27"
pin:
pcf8574: pcf8574_hub_in_4
number: 2
mode: INPUT
inverted: true

- platform: gpio
name: "input28"
pin:
pcf8574: pcf8574_hub_in_4
number: 3
mode: INPUT
inverted: true

- platform: gpio
name: "input29"
pin:
pcf8574: pcf8574_hub_in_4
number: 4
mode: INPUT
inverted: true

- platform: gpio
name: "input30"
pin:
pcf8574: pcf8574_hub_in_4
number: 5
mode: INPUT
inverted: true

- platform: gpio
name: "input31"
pin:
pcf8574: pcf8574_hub_in_4
number: 6
mode: INPUT
inverted: true

- platform: gpio
name: "input32"
pin:
pcf8574: pcf8574_hub_in_4
number: 7
mode: INPUT
inverted: true

# Example configuration entry
sensor:
- platform: adc
pin: 39
name: "analog-1"
update_interval: 10s
attenuation: 11db

- platform: adc
pin: 34
name: "analog-2"
update_interval: 10s
attenuation: 11db

- platform: adc
pin: 36
name: "analog-3"
update_interval: 10s
attenuation: 11db

- platform: adc
pin: 35
name: "analog-4"
update_interval: 10s
attenuation: 11db

KC868-A32 ESP32 I/O pin define

Posted by: admin - 03-23-2022, 12:35 PM - Forum: KC868-A32/A32 Pro - Replies (3)

#define ANALOG_A1 GPIO39
#define ANALOG_A2 GPIO34
#define ANALOG_A3 GPIO36
#define ANALOG_A4 GPIO35

IIC Bus:A

SDA-A:GPIO15
SCL-A:GPIO13

PCF8574:U16 (relay1-8): 100 100 = 0x24
PCF8574:U32 (relay9-16): 100 101 = 0x25
PCF8574:U58 (relay17-24): 100 001 = 0x21
PCF8574:U59 (relay25-32): 100 010 = 0x22

IIC Bus:B
SDA-B:GPIO4
SCL-B:GPIO5

PCF8574:U14 (DI1-8): 100 100 = 0x24
PCF8574:U31 (DI9-16): 100 101 = 0x25
PCF8574:U56 (DI17-24): 100 001 = 0x21
PCF8574:U57 (DI25-32): 100 010 = 0x22

-----------------

Ethernet (LAN8720) I/O define:

#define ETH_ADDR 0
#define ETH_POWER_PIN -1
#define ETH_MDC_PIN 23
#define ETH_MDIO_PIN 18
#define ETH_TYPE ETH_PHY_LAN8720
#define ETH_CLK_MODE ETH_CLOCK_GPIO17_OUT

--------------------

RS485:
RXD:GPIO16
TXD:GPIO14

Extend serial port (3.3v TTL level):
RXD:GPIO33
TXD:GPIO32

Pages (414): « Previous 1 … 356 357 358 359 360 361 362 363 364 365 366 367 368 369 370 371 372 373 374 375 376 … 414 Next »

Login
Username:
Password:	Lost Password?
	Remember me
