Hi
I am designing a pressure controlled vacuum tank.
Software of ESP32 and
Nextion screen is OK

But I have problem when
I get digital input from (TMCB)
thermal magnetic circuit protector( schneider gv2me14)
When red fault contacts close I want to get information of fault of motor.  But esp32 reset itself .

Attached Files

Thumbnail(s)


#define Do 262
#define Re 294
#define Mi 330
#define Fa 350
#define Sol 393
#define La 441
#define Si 495
#define Doo 882
#define CC 525
#define DD 589
#define EE 661
#define AA 882
#include <ESP32Servo.h>

int musiclist[32]={Do,Re,Mi,Do,Do,Re,Mi,Do,Mi,Fa,Sol,Mi,Fa,Sol,Sol,La,Sol,Fa,Mi,Do,Sol,La,Sol,Fa,Mi,Do,Re,Sol,Do,Re,Sol,Do};

int timelist[32]={2,2,2,2,2,2,2,2,2,2,4,2,2,4,1,1,1,1,2,2,1,1,1,1,2,2,3,3,4,3,3,4};

void setup(){
  Serial.begin(115200);
  pinMode(26,OUTPUT);
}

void loop(){
  int i = 0;
    for (int i = 0; i <32; i = i + (1)) {
      tone(26, musiclist[i], 125*timelist[i]);
      delay(100);
    }
    delay(1000);
    i = 0;
  }

download arduino IDE source code file:

  play music.zip (Size: 486 bytes / Downloads: 953)

Note: install "ESP32Servo" library online firstly.


void setup() {
  pinMode(26,OUTPUT);
}

void loop() {
  digitalWrite(26,HIGH);
  delay(3000);
  digitalWrite(26,LOW);
  delay(2000);
}


download arduino IDE source code file:

  beep.zip (Size: 247 bytes / Downloads: 987)

// define Buzzer GPIO
const int TONE_OUTPUT_PIN = 26;

const int TONE_PWM_CHANNEL = 0;

void setup() {
  ledcAttachPin(TONE_OUTPUT_PIN, TONE_PWM_CHANNEL);
}

void loop() {
  // Plays the middle C scale
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_C, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_D, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_E, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_F, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_G, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_A, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_B, 4);
  delay(500);
  ledcWriteNote(TONE_PWM_CHANNEL, NOTE_C, 5);
  delay(500);
}

download arduino IDE source code file:

  play tone.zip (Size: 369 bytes / Downloads: 1038)

#include <FastLED.h>

#define NUM_LEDS 4
#define DATA_PIN 32
CRGB leds[NUM_LEDS];

void setup() {
    FastLED.addLeds<WS2812B, DATA_PIN, GRB>(leds, NUM_LEDS);
}

void loop() {
    leds[0] = CRGB::Blue;
    leds[1] = CRGB::Blue;
    leds[2] = CRGB::Blue;
    leds[3] = CRGB::Blue;
    FastLED.show();
    delay(2000);
    leds[0] = CRGB::Black;
    leds[1] = CRGB::Black;
    leds[2] = CRGB::Black;
    leds[3] = CRGB::Black;
    FastLED.show();
    delay(2000);
}

download arduino IDE source code file:
  Uair-LED.zip (Size: 364 bytes / Downloads: 1051)

Note: install "FastLED" library online firstly.


These products already stop produce now, just download link for old customers.

KC868-H2 (APP, PC software, VirCom network tool)  RAR  ZIP
KC868-H2W (APP, PC software, VirCom tool,Wifi config)  RAR  ZIP
KC868-H4 (APP, PC software, VirCom tool)  RAR  ZIP
KC868-H4W (APP, PC software, VirCom tool,Wifi config)  RAR  ZIP
KC868-H8 (APP, PC software, VirCom tool)  RAR  ZIP
KC868-H8W (APP, PC software, VirCom tool,Wifi config)  RAR  ZIP
KC868-H16 (APP, PC software, VirCom tool)  RAR  ZIP
KC868-H16W (APP, PC software, VirCom tool,Wifi config)  RAR  ZIP
KC868-H32 (APP, PC software, VirCom tool)  RAR  ZIP
KC868-H32W (APP, PC software, VirCom tool,Wifi config)  RAR  ZIP
4-KC868-H2/4/8 NetRelay Control User manual(Demo tool).pdf
5-KC868-H16/32 User manual.pdf
6-KC868-H2W/4W/8W/16W/32W Wifi version user manual.pdf
12-Google Home voice module(KC868-H2/4/8/16/32) Manual.pdf
14-KC868-H2 User Manual(V0612).pdf
15-KC868-H2w User Manual(V0612).pdf
16-KC868-H4 User Manual(V0612).pdf
17-KC868-H4w User Manual(V0612).pdf
18-KC868 H16 User Manual(V0819).pdf
19-KC868 H16W User Manual(V0819).pdf
32- ModBus Adapter Protocol

In some 3rd-party applications the terms "PNP" / "NPN" are used to describe the polarity of the control signal (whether positive +12V or ground 0V voltage is used as the control signal). The KC868-H32BS outputs +12V (or +24V) per each output channel to control the relay. If a relay module is used, it gets a 0V as a common control line and +12V signal per each channel. Is this configuration considered as "PNP" or "NPN" connection from the point of view of the relay module?

improvement:

1. add MQTT topic include "post password" function. Improved security for controller



2. add 8 channel sensor input ports for effective pulse width options. Such as a sensor trigger signal time, from 10ms ---1 second.




download the ZIP file , unzip update the bin file for KC868-H32BS relay controller by USB-RS232 cable.


  H32BS_V144_211222.zip (Size: 53.58 KB / Downloads: 955)

Hello!

I installed KC868-H32B with our mqtt server.

Sometimes TCP Client Led(white color) is blinking. what is that mean?

thank you!

Attached Files

Thumbnail(s)


improvement:

support send MQTT command control multi output by one command:

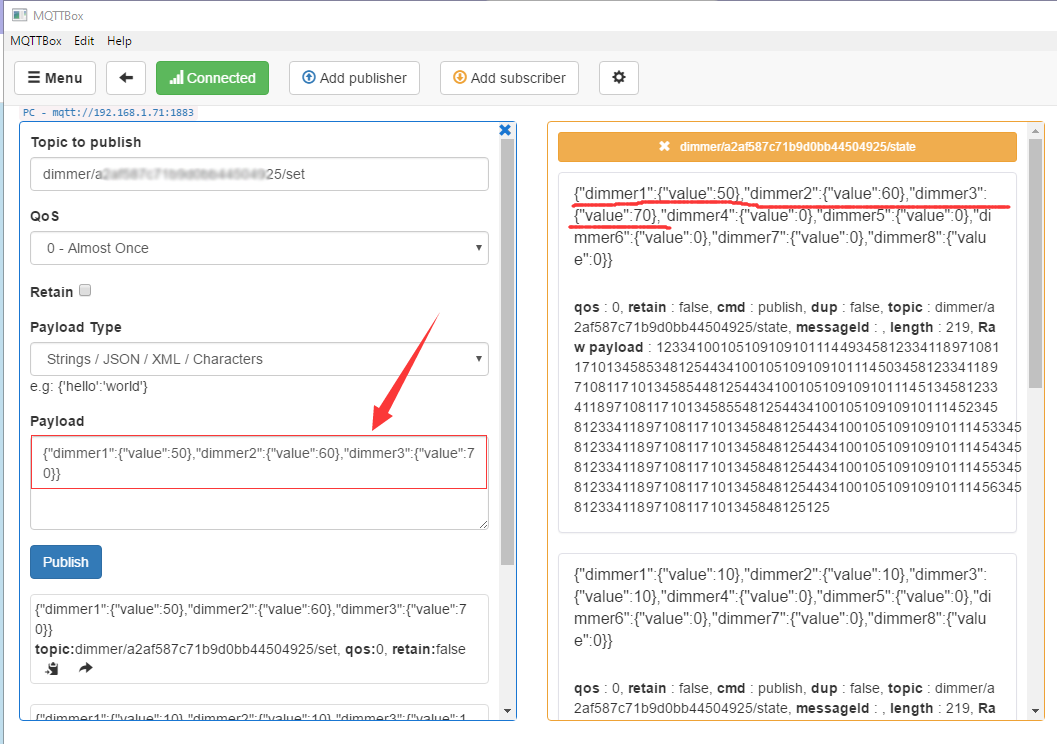

such as if you want to let KC868-D8 dimmer output1:50% output2:60% output3:70% you can send:
{"dimmer1":{"value":50},"dimmer2":{"value":60},"dimmer3":{"value":70}}


update BIN file firmware by "KC868 Controller Network Bootloader" tool.


firmware BIN file

  Dimmer8_V436_1222.zip (Size: 47.25 KB / Downloads: 932)
