IR receiver: IO23
IR sender: IO2

433MHz receiver: IO13
433MHz sender: IO22

Buzzer: IO4

Zigbee CP2652:
RXD:32
TXD:33

free GPIO:
IO26,IO14,IO34,IO21,IO18
IO25,IO27,IO39,IO35,IO19

tasmota config module GPIO for Zigbee module RXD,TXD pins:


AG Pro work with Xiaomi Zigbee temperature & humidity sensor:


tasmota zigbee firmware download:

  tasmota32_CP2652.zip (Size: 1.03 MB / Downloads: 687)

or you can download newest firmware from tasmota official webpage:
http://ota.tasmota.com/tasmota32/release/

ESP flasher for ESP32, ESP32-C3, ESP32-S2, ESP32-S3 and ESP8266 (Tasmota) download:
https://github.com/Jason2866/ESP_Flasher/releases






firmware:
  CC1352P2_CC2652P_launchpad_coordinator_20221226.zip (Size: 159.82 KB / Downloads: 524)

we have designed KC868-AG Pro by ESP32 + Tuya + Zigbee 3.0 module, it's easy to use ESPHome for home assistant. Now you can use home assistant and Tuya app at the same time. You can define RF buttons and IR buttons to control TV or air conditioner by IR signal. KinCony AG Pro also is a Zigbee3.0 gateway.




There are different use way for KC868-AG Pro smart controller.

1. download "KCS" firmware to ESP32 chip. You can use IR receiver/sender, RF receiver/sender with ESP32.

2. config ESPHome work with home assistant, the config ymal file as same as KC868-AG's yaml file, you can download from KinCony's forum.

3. use Tuya mobile phone app directly, remote control IR and RF device by internet.

4. download Zigbee3.0 coordinator firmware to Zigbee module (from factory we have already downloaded), work as Zigbee3.0 gateway. it support tasmota zigbee, support work as ZHA in home assistant.

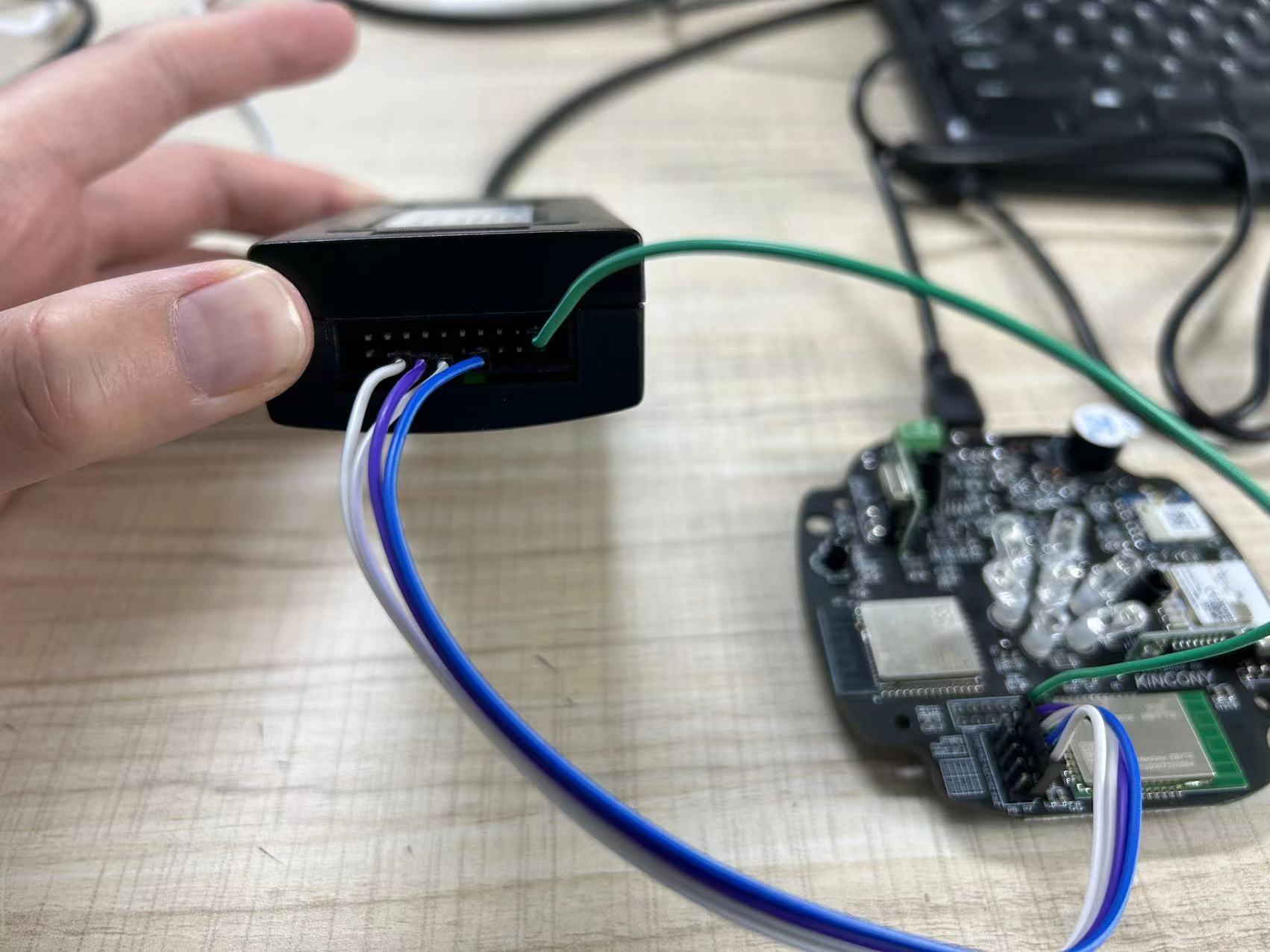

if you want to update Zigbee coordinator firmware for Zigbee module, you can use Jlink download by JTAG on PCB pins.

KC868-AG Por can connect with extend IR cable, just connect to "P9" green terminal on PCB. extend IR signal from Tuya module. if you want to extend IR signal from ESP32. just set the resistance RJ10 and RJ11 value.

RJ10=0 ohm RJ11=NC extend IR cable signal from Tuya module.
RJ10=NC RJ11=0 ohm extend IR cable signal from ESP32 module.

LED indicator and button:

on the bottom of box, there is RESET button for config Tuya module. HOLD on will reset Tuya module, then you can begin pair with your Tuya mobile phone app.

Red LED: power
Yellow LED: Tuya module state
Green LED: Zigbee state

Did FW update so I can connect loxone.

IP address changed I still cant connect
after reboot led lights were red and yellow normally they are red and blue.

Please advise, since nobody is able to do live support after selling me the product.

After power reboot Red, Blue & yellow light are on

Application condition A: Free education.

Hello,
I am interested in IOT. I watched many KinCony's home automation videos from youtube. I am planning to setup automation for my new house. So, I would like to aquire both free sample of products will help me to learning and testing for home automation. I am excited to explore the capabilities of these products and to gain hands-on experience with them.

Thank you

Best Regards,
Rajkumar

How to using Nodered MQTT for this board? If COLB & H32B it has an UID such as relay32/UID/state. How to get an UID for KC868-A32

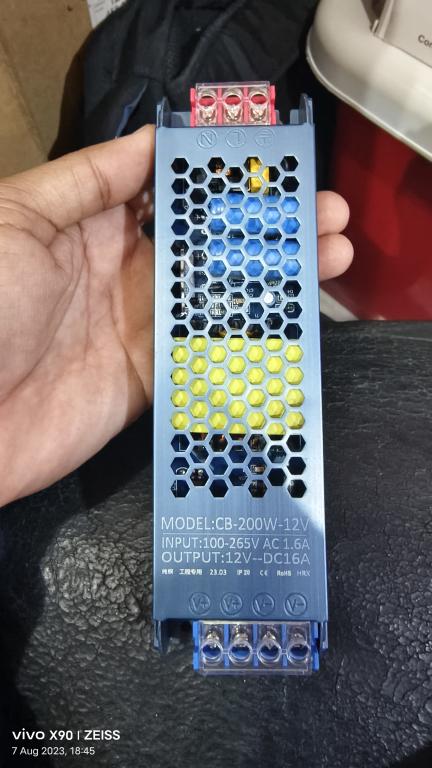

Is the 12v power supply as below suitable for power up kincony board?
