In some 3rd-party applications the terms "PNP" / "NPN" are used to describe the polarity of the control signal (whether positive +12V or ground 0V voltage is used as the control signal). The KC868-H32BS outputs +12V (or +24V) per each output channel to control the relay. If a relay module is used, it gets a 0V as a common control line and +12V signal per each channel. Is this configuration considered as "PNP" or "NPN" connection from the point of view of the relay module?

improvement:

1. add MQTT topic include "post password" function. Improved security for controller



2. add 8 channel sensor input ports for effective pulse width options. Such as a sensor trigger signal time, from 10ms ---1 second.




download the ZIP file , unzip update the bin file for KC868-H32BS relay controller by USB-RS232 cable.


  H32BS_V144_211222.zip (Size: 53.58 KB / Downloads: 280)

Hello!

I installed KC868-H32B with our mqtt server.

Sometimes TCP Client Led(white color) is blinking. what is that mean?

thank you!

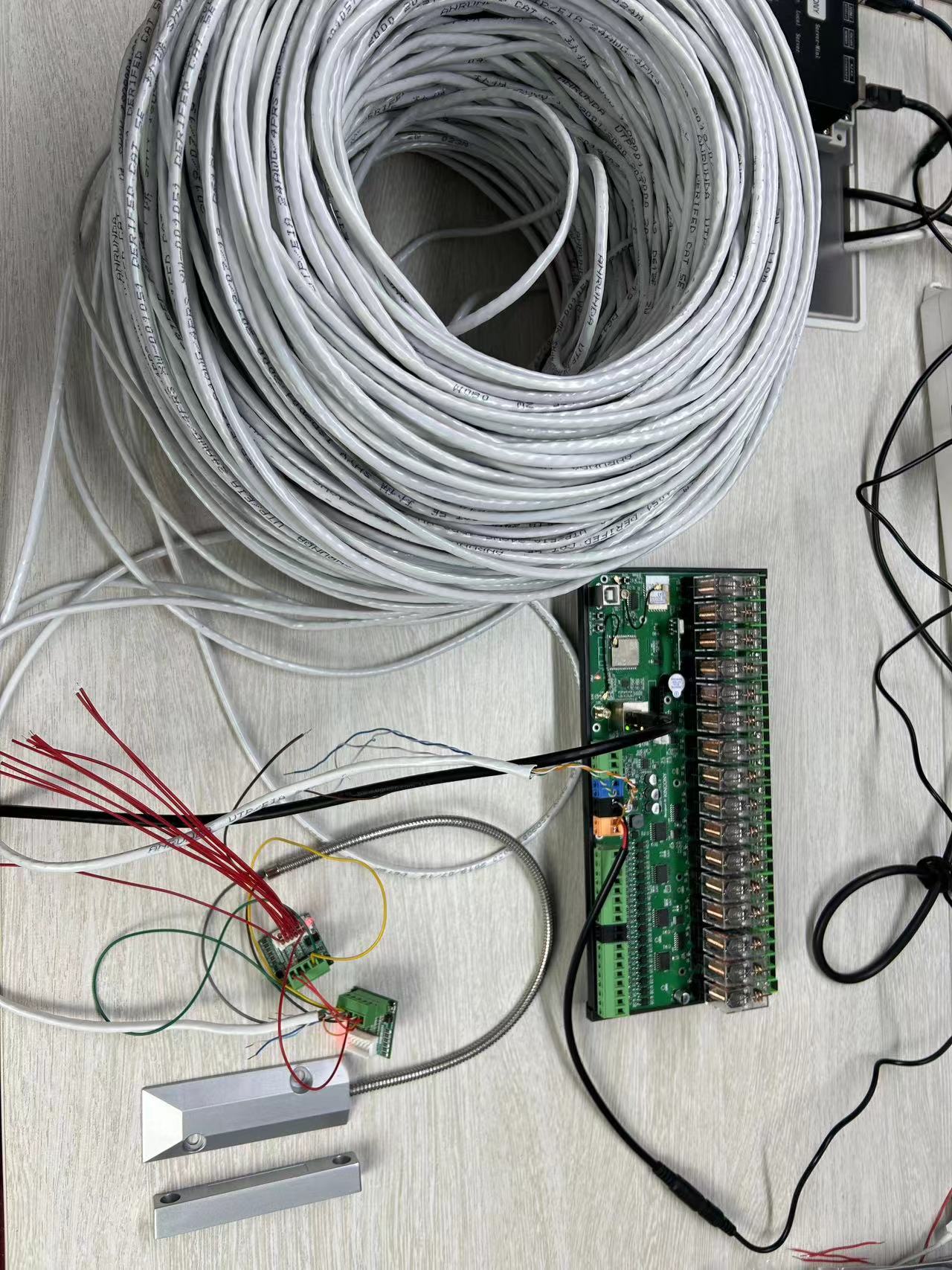

Attached Files

Thumbnail(s)


improvement:

support send MQTT command control multi output by one command:
such as if you want to let KC868-D8 dimmer output1:50% output2:60% output3:70% you can send:
{"dimmer1":{"value":50},"dimmer2":{"value":60},"dimmer3":{"value":70}}


update BIN file firmware by "KC868 Controller Network Bootloader" tool.


firmware BIN file

  Dimmer8_V436_1222.zip (Size: 47.25 KB / Downloads: 274)

# follow configure use for DS18B20 temperature sensor, SHT30 temperature and humidity sensor. WS2812B RGB LEDs.
i2c:
  sda: 4
  scl: 16
  scan: true
  id: bus_a


# Example configuration entry
dallas:
  - pin: GPIO27
    update_interval: 15s

# Individual sensors
sensor:
  - platform: dallas
    address: 0xC000000004D81528
    name: "internal Temperature"

# Example configuration entry
  - platform: sht3xd
    temperature:
      name: "extend Temperature"
    humidity:
      name: "extend Humidity"
    address: 0x44
    update_interval: 15s

light:
  - platform: fastled_clockless
    chipset: WS2812B
    pin: GPIO32    # Pin Define connected with LED strip
    num_leds: 4  #LEDs number
    rgb_order: GRB
    name: "Uair-Bottom-LED"
    effects:
      - addressable_rainbow:        ##defined 7 effects styles
      - addressable_color_wipe:
      - addressable_scan:
      - addressable_twinkle:
      - addressable_random_twinkle:
      - addressable_fireworks:
      - addressable_flicker:

  - platform: fastled_clockless
    chipset: WS2812B
    pin: GPIO33    # Pin Define connected with LED strip
    num_leds: 1  #LEDs number
    rgb_order: RGB
    name: "Uair-Vertical-LED"
    effects:
      - addressable_rainbow:        ##defined 7 effects styles
      - addressable_color_wipe:
      - addressable_scan:
      - addressable_twinkle:
      - addressable_random_twinkle:
      - addressable_fireworks:
      - addressable_flicker:



433M receiver：GPIO13
433M sender：GPIO2

IR receiver  GPIO19
IR sender GPIO22

i2c:
  sda: GPIO4
  scl: GPIO16

DS18B20 temperature sensor (internal) :GPIO27

Buzzer：GPIO26

WS2812B 4pcs bottom RGBW LEDs：GPIO32
WS2812B 1pc vertical bar RGBW LED：GPIO33

free GPIO for DIY extend on PCB:

GPIO15,GPIO5,GPIO21,GPIO25,GPIO36,GPIO34
GPIO17,GPIO18,GPIO23,GPIO14,GPIO39,GPIO35

extend port details:

  KC886-Uair-extend-GPIO.pdf (Size: 1.66 MB / Downloads: 502)

I need help with some basic IFTTT commands, for example, if I have an alarm condition I want to turn on lights at night, but not during the day:
DI #1 = IR beam perimeter sensor
AI #1= Light meter (<1.0V = night time, >= 1.0V = daytime)

IFTTT:
Number 1:  If DI #1 EdgeP,
Then:       Relay #1 OPEN (turn on alarm light)
                Relay #2 OPEN (send notification)
Number 2:  IF DI #1 Edge P and AI #1 < 1.0
Then:    Relay #3 OPEN (turn on outdoor lights)
===== This does not work, only  Number 1 is executed.  If I trigger the IR beam again then Number 2 is executed.  But that is not real life (I can’t ask intruder to break beam again !!).
(I also tried putting the Relay #3 OPEN command in Number 1 and set up a new Number 2 command to CLOSE Relay #3 if daytime, but that doesn’t work either.
Any suggestions?
Can you share any detailed IFTTT examples?

1- How can the products of other companies such as sonoff or tuya or other company  be used with kincony products, especially sensors?

2- How to know the specifications of the sensors that are compatible with kincony devices?

update your KC868-H32BS firmware >=1.43 version. Here is Node-Red flow download:


example:
1-click: relay1 toggle
2-click: relay1 ON, relay2 ON
hold-on: relay1 OFF, relay2 OFF


  multi-click-h32bs.zip (Size: 1.25 KB / Downloads: 327)

improvement:

add mqtt "TOGGLE" command.
for example:
Payload={"relay1":{"on":1}}    relay1:ON
Payload={"relay1":{"on":0}}    relay1:OFF
Payload={"relay1":{"on":2}}    relay1: toggle (ON->OFF or OFF->ON) new firmware add this command


  H32BS_V143_211212.zip (Size: 53.24 KB / Downloads: 293)
download the ZIP file , unzip update the bin file for KC868-H32BS relay controller by USB-RS232 cable.
