Tasmota supported devices

Posted by: GabrielRR - 09-23-2023, 07:24 AM - Forum: Development - Replies (3)

	Which from your products are fully compatible with tasmota firmware?

ESP32 Energy Meter Relay Controller - KinCony M1 released

Posted by: admin - 09-22-2023, 11:57 PM - Forum: News - No Replies

We have designed ESP32 Energy Meter Relay Controller - KinCony M1 (ESP32 1 channel AC voltage and current energy monitor) for home automation DIYer. it can easy integrate to home assistant by ESPHome. it use by BL0942 energy chip, support by ESPHome. the hardware have BL0942 sensor + 1CH DIGITAL INPUT port + 1CH ZMPT107-1 voltage sensor + Ethernet POE+ WiFi + Bluetooth + 30 Relay. It have I2C bus extender terminal.

[Image: M1-1_01.jpg]
[Image: M1-1_02.jpg]
[Image: M1-1_03.jpg]
[Image: M1-1_04.jpg]

error instal A128

Posted by: Almhlws - 09-22-2023, 10:41 AM - Forum: KC868-A series and Uair Smart Controller - Replies (15)

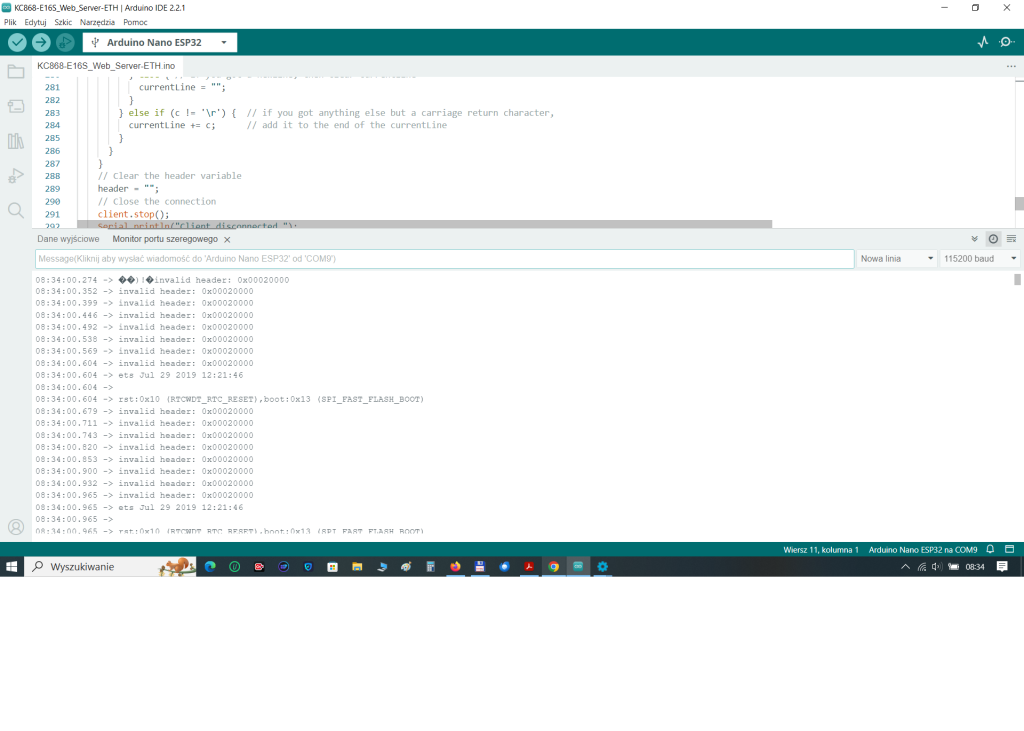

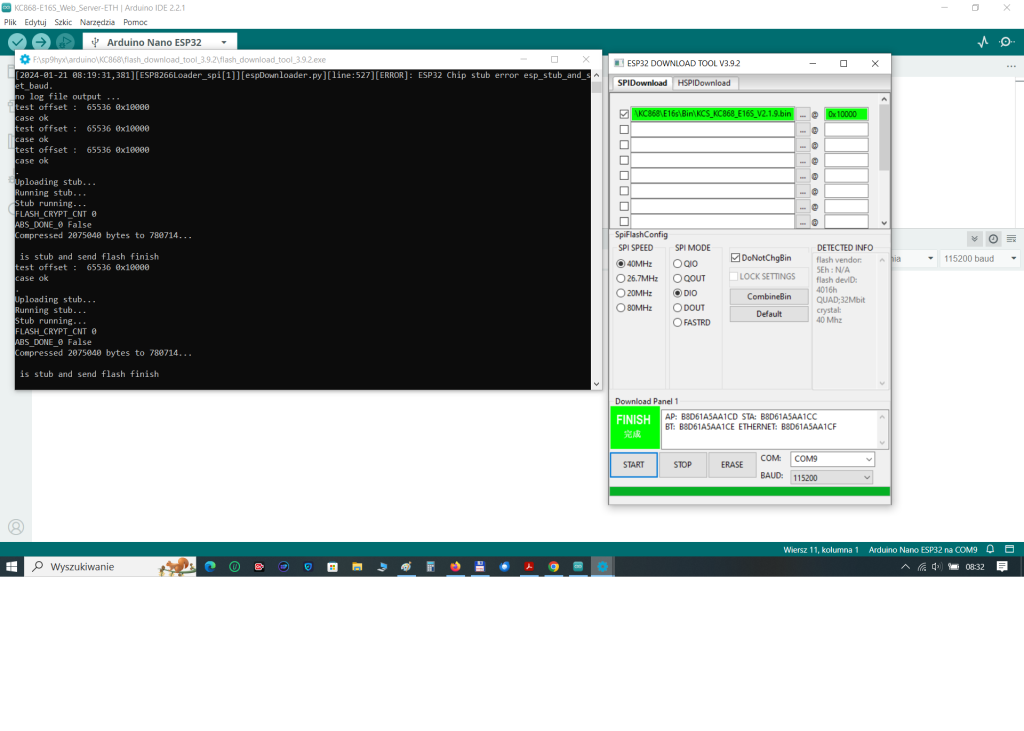

	Hi every one when i try to instal A123, i get error ERROR Serial port closed! see attach

Dead Board?

Posted by: grs56 - 09-22-2023, 06:11 AM - Forum: KC868-A8 - Replies (5)

Hi,

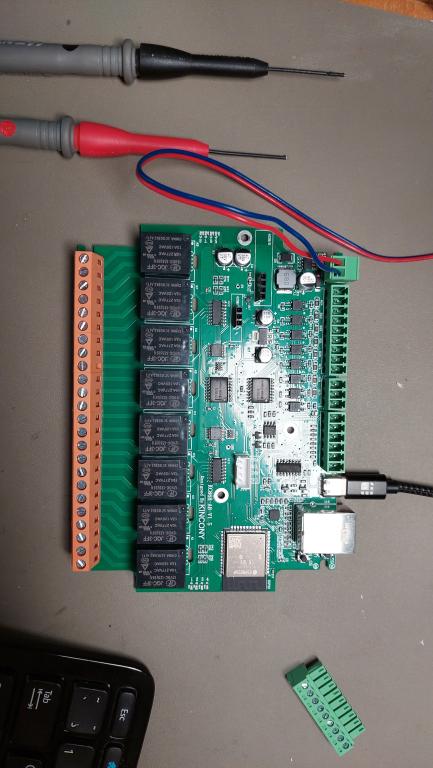

I have a KC868-A8.

I Flashed it fine four days ago using ESP Home on windows 11. The board is connected to a regulated switched-mode 12v supply. I had started to program up a script to use as an aquaponics controller. I had the following connected:

One dry contact on the first input

One TDS sensor on A1 (+4v)

One DS18B20 on S1

All was working well. I left the board running overnight.

Came back this morning and noticed that it wasn't showing up in Home Assistant or responding to its IP address.

Power was still OK everywhere.

I have attempted to reflash using esphome webtools and using ESP flasher and your own
tool from here: ESP Module Flash Download Tools - Smart Home Automation | KinCony

I have rebooted and reinstalled the com port.

I have tried from my mac.

The Serial port is showing up on USB connection on both the mac and PC.

I have tried with a different USB cable.

I have confirmed I am able to flash other esp32 chips from the PC with no problem.

I have tried using the s1 and s1 as boot buttons.

My assumption is that the board is dead unless you have other advice?

----
config for reference:
I had yet to attach the Ph probe as I was building a voltage divider this morning. Also the Ultrasonic sensor requires some extra files for the build and i had yet to but those in the right place.
# Basic Config
esphome:
name: "greenwall"
friendly_name: Greenwall
esp32:
board: esp32dev
framework:
type: arduino
# Enable logging
logger:
# Enable Home Assistant API
api:
encryption:
key: !secret greenwall_api_key

ota:
wifi:
ssid: !secret wifi_ssid
password: !secret wifi_password
domain: !secret local_domain
# Enable fallback hotspot (captive portal) in case wifi connection fails
ap:
ssid: "Esphome-Web-E12294"
password: "sJdgDQKbR936"
captive_portal:
web_server:
port: 80
auth:
username: !secret web_server_username
password: !secret gw_web_server_password
#ethernet:
# type: LAN8720
# mdc_pin: GPIO23
# mdio_pin: GPIO18
# clk_mode: GPIO17_OUT
# phy_addr: 0
pcf8574:
- id: 'pcf8574_hub_out_1' # for output channel 1-8
address: 0x24
- id: 'pcf8574_hub_in_1' # for input channel 1-8
address: 0x22
i2c:
sda: 4
scl: 5
scan: true
id: bus_a
# Individual outputs
switch:
- platform: gpio
name: "Circulation Pump"
pin:
pcf8574: pcf8574_hub_out_1
number: 0
mode: OUTPUT
inverted: true
- platform: gpio
name: "Swirl Filter Pump"
pin:
pcf8574: pcf8574_hub_out_1
number: 1
mode: OUTPUT
inverted: true
- platform: gpio
name: "Tank Fill"
pin:
pcf8574: pcf8574_hub_out_1
number: 2
mode: OUTPUT
inverted: true
- platform: gpio
name: "Mixer"
pin:
pcf8574: pcf8574_hub_out_1
number: 3
mode: OUTPUT
inverted: true
- platform: gpio
name: "Ph Up"
pin:
pcf8574: pcf8574_hub_out_1
number: 4
mode: OUTPUT
inverted: true
- platform: gpio
name: "Ph Down"
pin:
pcf8574: pcf8574_hub_out_1
number: 5
mode: OUTPUT
inverted: true
- platform: gpio
name: "Calcium"
pin:
pcf8574: pcf8574_hub_out_1
number: 6
mode: OUTPUT
inverted: true
- platform: gpio
name: "Micronutrients"
pin:
pcf8574: pcf8574_hub_out_1
number: 7
mode: OUTPUT
inverted: true
# Inputs
# Binary
binary_sensor:
- platform: gpio
name: "Tank Level Low"
pin:
pcf8574: pcf8574_hub_in_1
number: 0
mode: INPUT
inverted: true
- platform: gpio
name: "Swirl Level Low"
pin:
pcf8574: pcf8574_hub_in_1
number: 1
mode: INPUT
inverted: true
- platform: gpio
name: "Bio Level Low"
pin:
pcf8574: pcf8574_hub_in_1
number: 2
mode: INPUT
inverted: true
- platform: gpio
name: "Tank Overflow"
pin:
pcf8574: pcf8574_hub_in_1
number: 3
mode: INPUT
inverted: true
- platform: gpio
name: "a8-input5"
pin:
pcf8574: pcf8574_hub_in_1
number: 4
mode: INPUT
inverted: true
- platform: gpio
name: "a8-input6"
pin:
pcf8574: pcf8574_hub_in_1
number: 5
mode: INPUT
inverted: true
- platform: gpio
name: "a8-input7"
pin:
pcf8574: pcf8574_hub_in_1
number: 6
mode: INPUT
inverted: true
- platform: gpio
name: "a8-input8"
pin:
pcf8574: pcf8574_hub_in_1
number: 7
mode: INPUT
inverted: true
# Digital
- platform: gpio
name: "a8-s3"
pin:
number: 32
inverted: true
- platform: gpio
name: "a8-s4"
pin:
number: 33
inverted: true
dallas:
- pin: 14
sensor:
- platform: dallas
#address: 0x1c0000031edd2a28 #replace with your sensor's ID
index: 0
name: "Water Temperature"
- platform: ultrasonic
trigger_pin: 13
echo_pin: 32
name: "Water Level"
update_interval: 1s
accuracy_decimals: 2
filters:
- lambda: return (1 - x + 0.03);
- median:
window_size: 20
send_every: 10
unit_of_measurement: "m^3"
# Analog
# pins 34/35
# https://esphome.io/components/sensor/adc.html
- platform: adc
pin: 34
id: ph
name: "pH Sensor"
update_interval: 1s
unit_of_measurement: pH
# https://esphome.io/components/sensor/ind...or-filters
filters:
- median:
window_size: 7
send_every: 4
send_first_at: 3
# Measured voltage -> Actual pH (buffer solution)
- calibrate_linear:
- 0.59 -> 7.0
- 0.71 -> 4.0
- platform: adc
pin: 35
id: tds
name: "TDS Sensor"
update_interval: 1s
unit_of_measurement: ppm
# https://esphome.io/components/sensor/ind...or-filters
filters:
- lambda: return (x * 1000);
- median:
window_size: 7
send_every: 4
send_first_at: 3
# Measured voltage -> Actual TDS (buffer solution)
#- calibrate_linear:
# - 0.59 -> 7.0
# - 0.71 -> 4.0

Attached Files Thumbnail(s)

Nodered MQTT H32B

Posted by: abgran - 09-22-2023, 02:40 AM - Forum: KC868-HxB series Smart Controller - Replies (6)

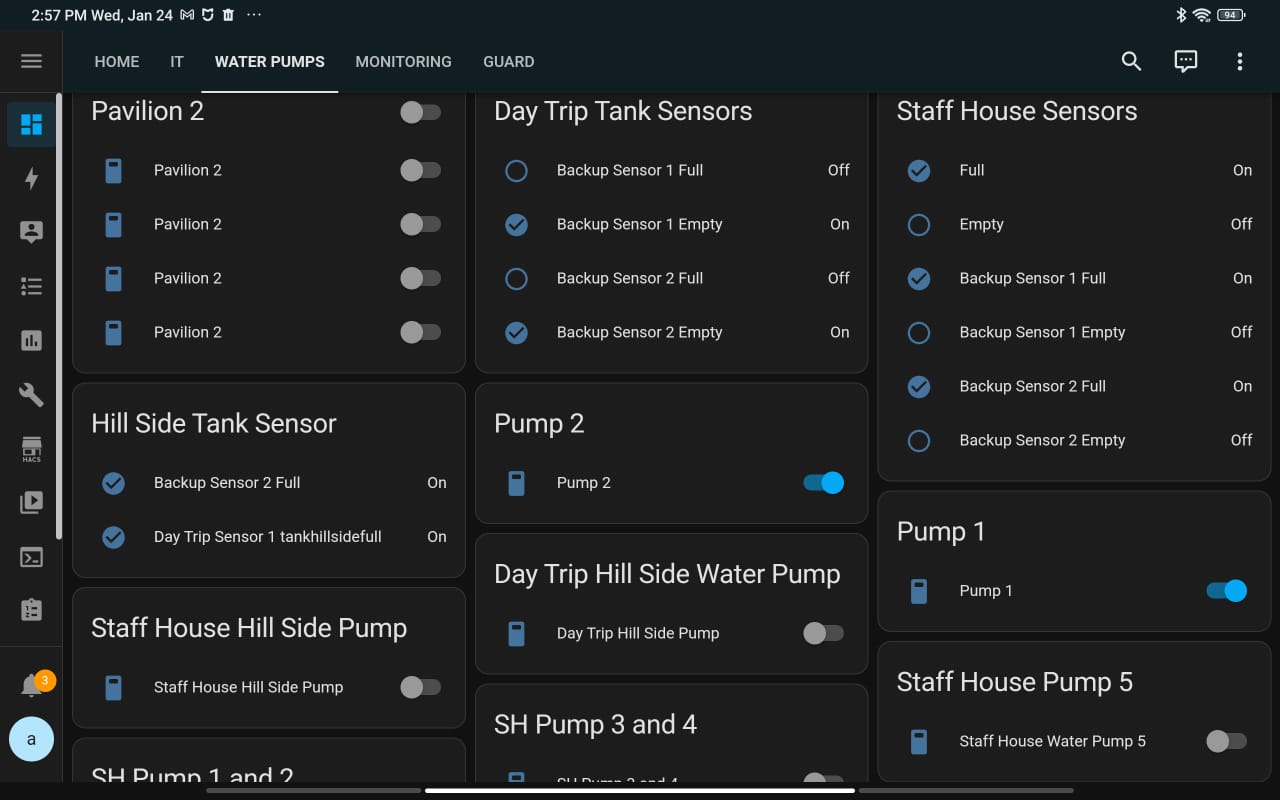

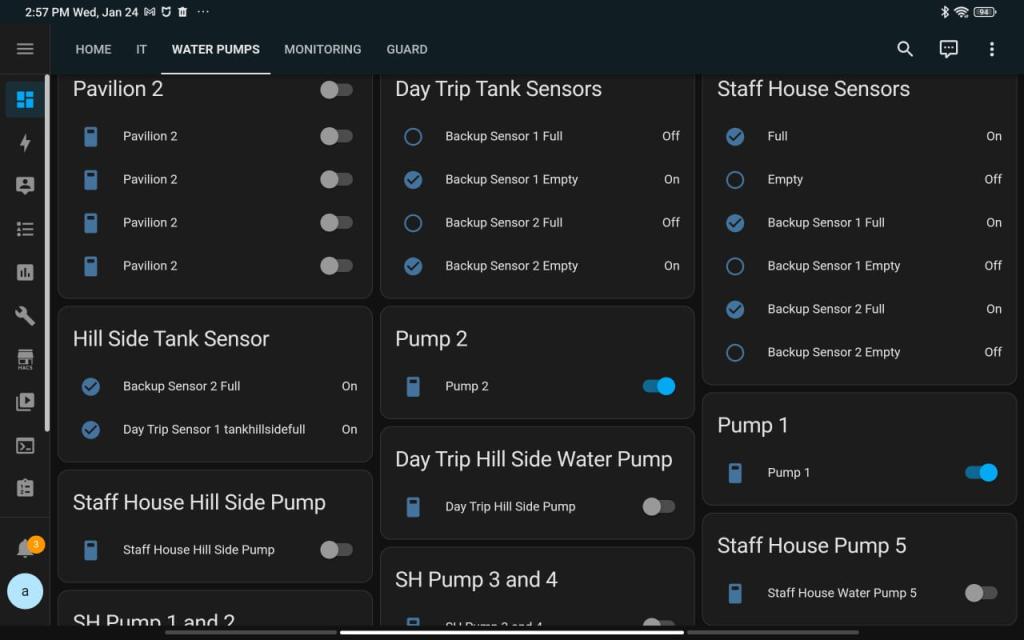

	How to read the state of value for H32B?

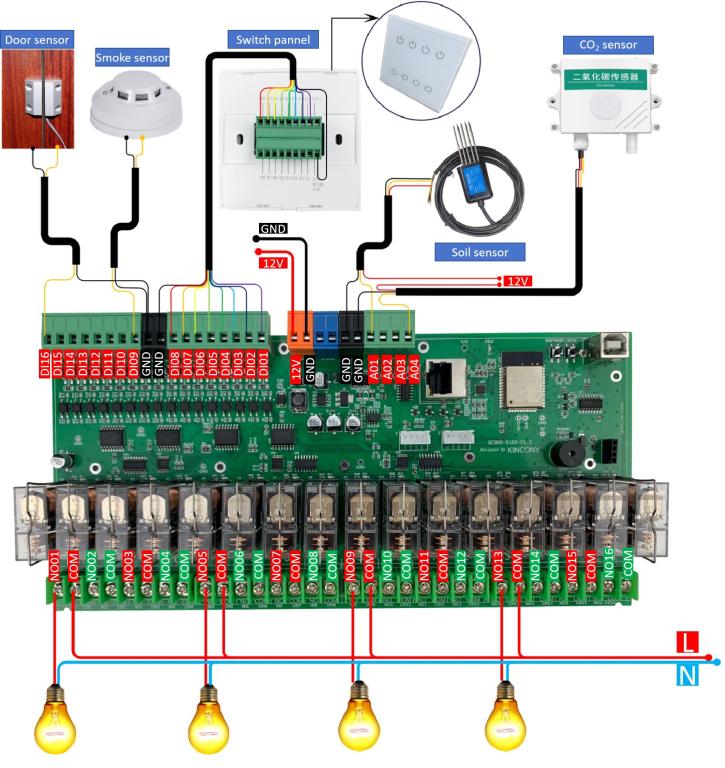

KC868-E16S wiring diagram

Posted by: KinCony Support - 09-22-2023, 01:34 AM - Forum: KC868-E16S/E16P - No Replies

Arduino source code demo for KinCony M1 Energy Meter Controller

Posted by: admin - 09-21-2023, 03:48 AM - Forum: KC868-M16 / M1 / MB / M30 - No Replies

Code:
/* KinCony M1 arduino demo

* output BL0942 voltage,current,power,frequency data by serial port

* @Author: www.kincony.com

*/

#include <SoftwareSerial.h>

const int Cur_mR = 10200;  //10200;

const int Volt_mR = 28700;   //28700;

unsigned char eNe_state = 0;

unsigned long dp_value_add_ele_1_value = 0;

unsigned long dp_value_cur_current_1_value = 0;

unsigned long dp_value_cur_power_1_value = 0;

unsigned long dp_value_cur_voltage_1_value = 0;

unsigned long dp_value_cur_freq_1_value = 0;

unsigned long dp_value_temp_value = 0;

#define  USB_TX_PIN   1

#define  USB_RX_PIN   3

#define  ENE1_RX_PIN   14

#define  ENE1_TX_PIN   13

#define  OUT1_PIN   33

unsigned long last_time = 0;

unsigned long eNe_last_time = 0;

String indata="";

String val="";

String outdata="";

SoftwareSerial eNe1;

void setup()

{

  pinMode(OUT1_PIN, OUTPUT);

  digitalWrite(OUT1_PIN, HIGH);

  Serial2.begin(9600,SERIAL_8N1,USB_RX_PIN,USB_TX_PIN);

  eNe1.begin(9600, SWSERIAL_8N1, ENE1_RX_PIN, ENE1_TX_PIN, false, 64);

  eNe1.listen();

  last_time = millis();

  eNe_last_time = last_time;

  eNe_state = 0;

}

void loop()

{

//sample energy

 switch (eNe_state)

{

 case 0:

    if((millis() - eNe_last_time)>100)

    {

     eNe1.listen();

     eNe_state=1;

     eNe_last_time = millis();

    }

    break;

 case 1:

    if((millis() - eNe_last_time)>1000)

    {

     eNe_state=2;

     eNe_last_time = millis();

    }

    break;

 case 2:

    outdata = "12";

    outdata[0] = 0x58;

    outdata[1] = 0xAA;

    eNe1.print(outdata);

    eNe_state=3;

    eNe_last_time = millis();

    break;

 case 3:

    if(eNe1.available()>0)

      {

        indata+=char(eNe1.read());   //read ene1

    eNe_last_time = millis();

      }

      else

      {

        if(((millis() - eNe_last_time)>4)&&(indata.length()>2))

          {

            val=indata;   //

              dp_value_add_ele_1_value=(double(indata[13]+indata[14]*256+indata[15]*65536)*16384*256*1218*1218*22*5)/36000/3537/Cur_mR/Volt_mR; //10200mR 28700mR

              dp_value_cur_current_1_value=(double(indata[1]+indata[2]*256+indata[3]*65536)*1218*1000)/305978/Cur_mR;  //10200mR

              dp_value_cur_power_1_value=(double(indata[10]+indata[11]*256+indata[12]*65536)*1218*1218*22*5)/3537/Cur_mR/Volt_mR; //10200mR 28700mR

              dp_value_cur_voltage_1_value=(double(indata[4]+indata[5]*256+indata[6]*65536)*1218*22*5)/73978/Volt_mR; //28700mR

              dp_value_cur_freq_1_value=2*500000/(double(indata[16]+indata[17]*256+indata[18]*65536)); //

            Serial2.println("meter1 channel data:");

            Serial2.print("ele1:");

            Serial2.print(dp_value_add_ele_1_value);

            Serial2.println(" wh");

            Serial2.print("current1:");

            Serial2.print(dp_value_cur_current_1_value);

            Serial2.println(" mA");

            Serial2.print("power1:");

            Serial2.print(dp_value_cur_power_1_value);

            Serial2.println(" W");

            Serial2.print("voltage1:");

            Serial2.print(dp_value_cur_voltage_1_value);

            Serial2.println(" V");

            Serial2.print("freq1:");

            Serial2.print(dp_value_cur_freq_1_value);

            Serial2.println(" Hz");

            eNe_state=0;

            indata="";

            eNe_last_time = millis();

          }

      }

     break;

 delay(1000);

}

}

M1.zip (Size: 1.14 KB / Downloads: 655)

KC868-COLB Logical Controller

Posted by: abgran - 09-21-2023, 12:35 AM - Forum: KC868-HxB series Smart Controller - Replies (3)

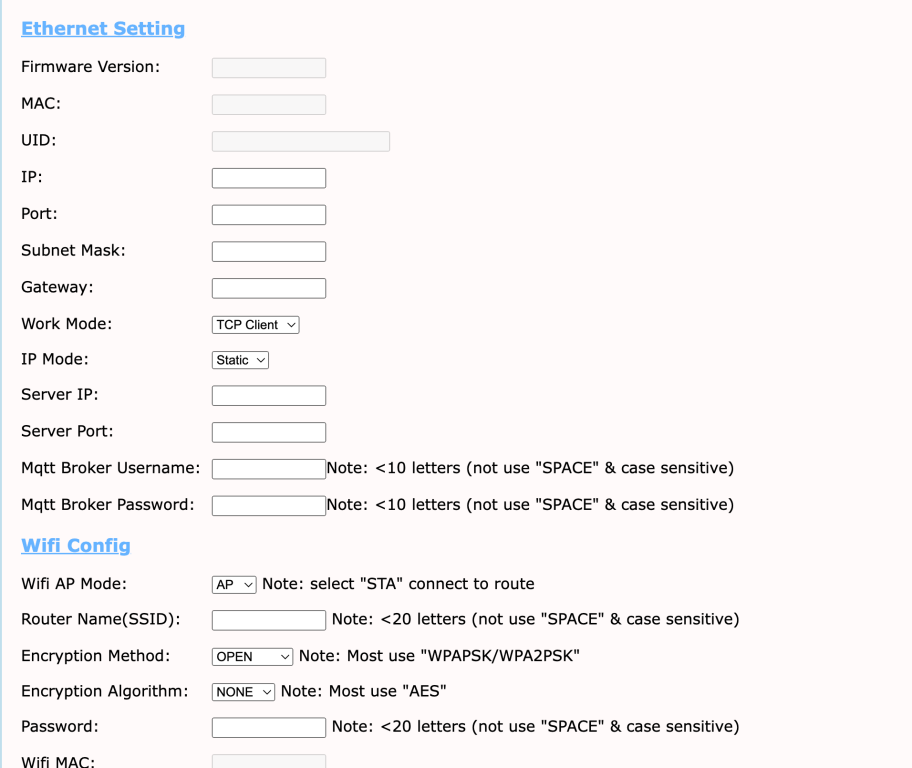

	Hi.. My question is, 1. How to reset this COLB? - The reason to reset is web admin turning blank. See attachment below. 2. How to update firmware? What tool i need? Any video to reference? Thank you. Attached Files Thumbnail(s)

KinCony M1 configure yaml for ESPhome

Posted by: admin - 09-21-2023, 12:13 AM - Forum: KC868-M16 / M1 / MB / M30 - No Replies

.txt M1-Home assistant.txt (Size: 865 bytes / Downloads: 450)

esphome:
name: m1
platform: ESP32
board: esp32dev
uart:
- id: uart_bus
tx_pin: GPIO13
rx_pin: GPIO14
baud_rate: 9600
stop_bits: 1

# Enable logging
logger:

# Enable Home Assistant API
api:

# Example configuration entry
ethernet:
type: LAN8720
mdc_pin: GPIO23
mdio_pin: GPIO18
clk_mode: GPIO17_OUT
phy_addr: 0

sensor:
- platform: bl0942
uart_id: uart_bus
update_interval: 3s
voltage:
name: 'M1 Voltage'
current:
name: 'M1 Current'
filters:
multiply: 0.1965
power:
name: 'M1 Power'
energy:
name: 'M1 Energy'
frequency:
name: "M1 Frequency"
accuracy_decimals: 2

switch:
- platform: gpio
pin: 33
name: "M1-relay"

binary_sensor:
- platform: gpio
pin: 32
name: "M1-sensor-DI"

KC868-M1 ESP32 I/O pin define

Posted by: admin - 09-21-2023, 12:11 AM - Forum: KC868-M16 / M1 / MB / M30 - Replies (3)

	IIC SDA:16 IIC SCL:15 Relay:33 Digital input:32 IR sender:4 IR receiver:5 energy meter BL0942 RXD: 13 energy meter BL0942 TXD: 14 Ethernet (LAN8720) I/O define: #define ETH_ADDR 0 #define ETH_POWER_PIN -1 #define ETH_MDC_PIN 23 #define ETH_MDIO_PIN 18 #define ETH_TYPE ETH_PHY_LAN8720 #define ETH_CLK_MODE ETH_CLOCK_GPIO17_OUT

Pages (360): « Previous 1 … 203 204 205 206 207 208 209 210 211 212 213 214 215 216 217 218 219 220 221 222 223 … 360 Next »

Login
Username:
Password:	Lost Password?
	Remember me
