Hello, I've just bought this device and after some preliminary tests I've noticed that IR range is terribly poor comparing to my another transmitter, which is a cheap Tuya based device.

Is it a matter of weak IR LEDs or reason is something else?

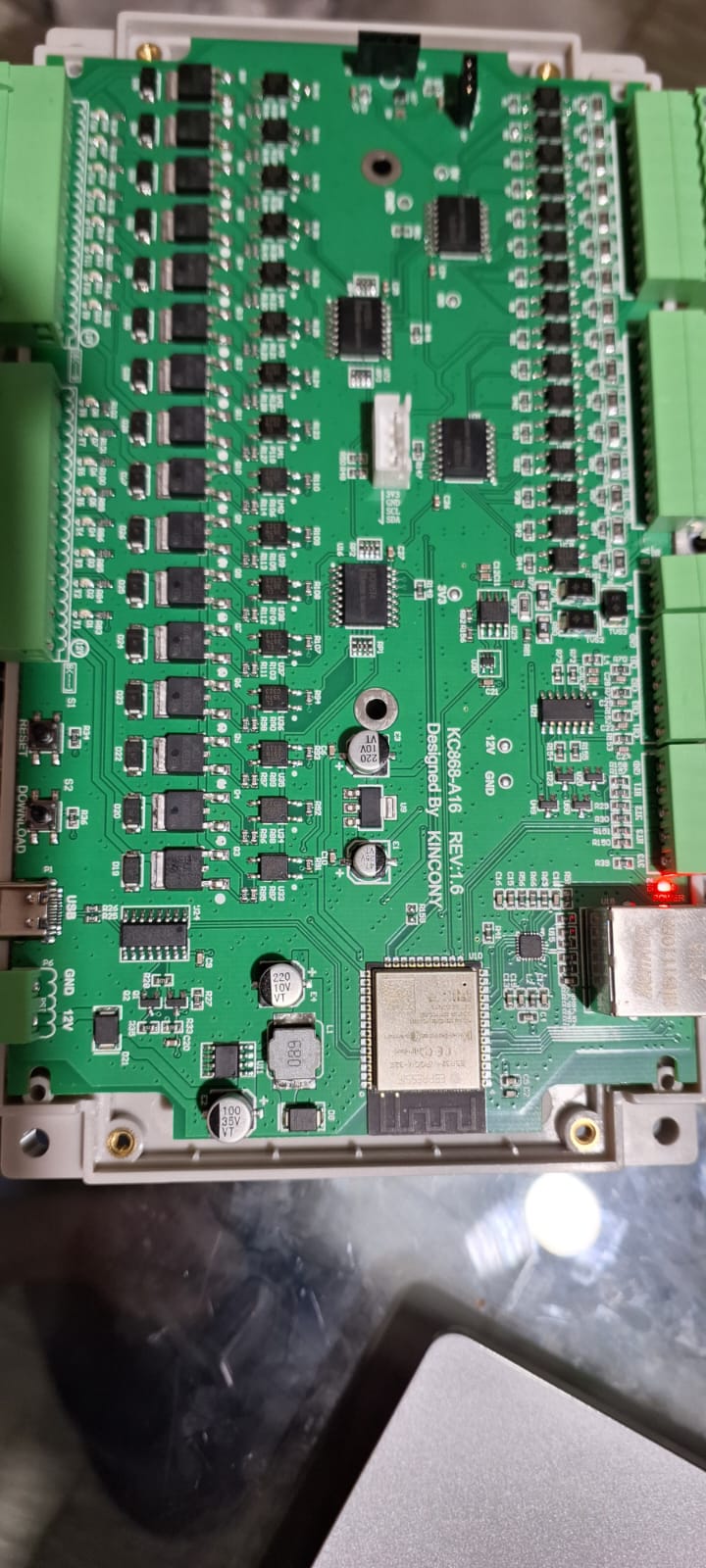

KC868-A16 Ethernet ESP32 Development Board

does anyone know how to make alexa work using this through the LAN? how to would be awesome i have NO IDEA!!! PLEASE HELP!!!
Also i want the inputs (dry contact)  to trigger the outputs,

if someone wants to message me and spend some time to teach/ show me how im willing to pay,

thanks again!

hello every one

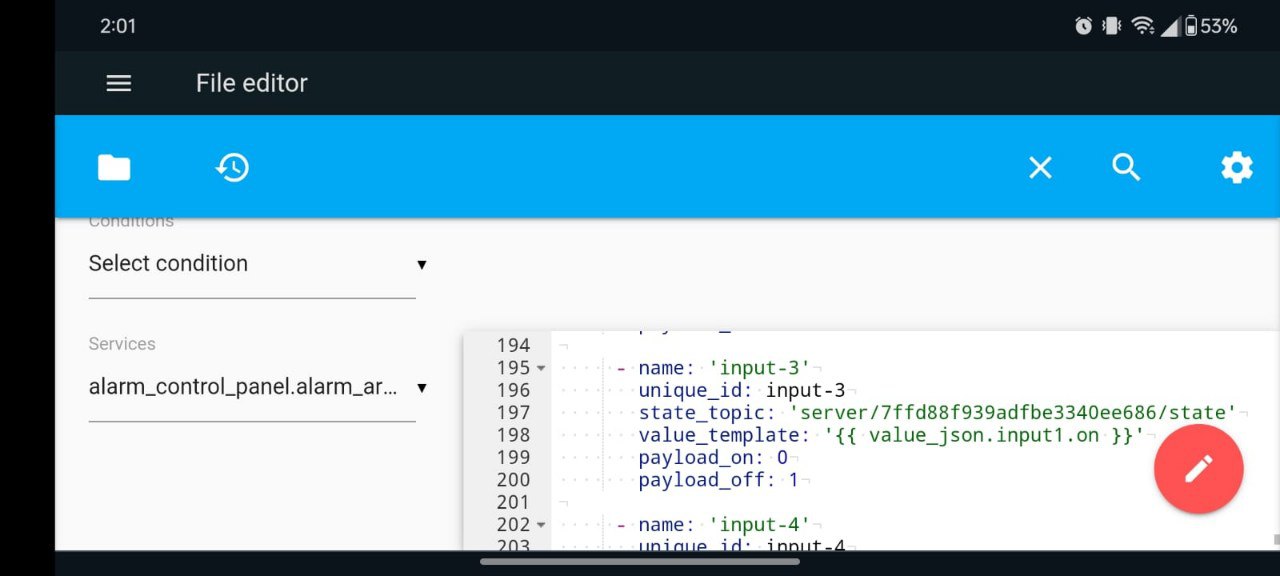

i have h32bs integrated in home assistant by mqtt  . please see pictures
how can solve it

Attached Files

Thumbnail(s)


[Arduino IDE demo source code for KC868-A8S]--#17-A8S_Digital input_Ethernet_Web_server_code

  KC868-A8S_Digital_input_Web_Server-ETH.zip (Size: 468.1 KB / Downloads: 362)

PC and phone webpage display


[Arduino IDE demo source code for KC868-AI]--#07-AI_Digital input_Ethernet_Web_server_code
Arduino source code and bin file

  KC868-AI_Web_Server-ETH.zip (Size: 470.08 KB / Downloads: 414)

PC and Phone webpage display


Hi, I would like to equip my fireplace insert with an automation that will measure the temperature of the flue gas in the chimney and control the air supply damper based on that.


Hi, I would like to equip my fireplace insert with an automation that will measure the temperature of the flue gas in the chimney and control the air supply damper based on that.

Systems like this can make the whole burning process much more efficient, using up to 30% less wood. Which is great. Plus, they can be very user-friendly and alert the user to add wood to the fireplace.

All you have to do is measure the temperature with a ceramic sensor that can withstand high temperatures and a servo drive to control the air supply damper.

All the logic should be able to be set up through Home Assistant.

• Which HW Kincony would handle this and how?

• Can you give me any advice?


Attached Files

Thumbnail(s)


Hi!

I have recently purchased a KC868-A8S.

My goal is to get a GSM web server, from which I can activate the relays.

I have managed to create a web server by creating my own AP, taking a tutorial from the forum as an example.


But this, although it is something similar, does not serve my purpose.

I have worked before with ESP32 and GSM (I used to work with TinyGSM), and when I wanted to connect it was necessary to define the MODEM_TX and MODEM_RX pins in code.

In this case I cannot find anywhere, neither in the documentation nor in the forum, how to connect the ESP to the GSM network, nor to which pins the modem corresponds.

I have a SIM800L module.

Is there an example of code (.ino) in which the configuration and connection of the GSM can be seen logically?

Any help is appreciated.

Thank you very much in advance and sorry for my level of English.

[Arduino IDE demo source code for KC868-E16S]--#08-E16S-Ethernet_Web_server_code
Refer to code #11 of KC868-A8 for download methods


  KC868-E16S_Web_Server-ETH.zip (Size: 474.02 KB / Downloads: 460)

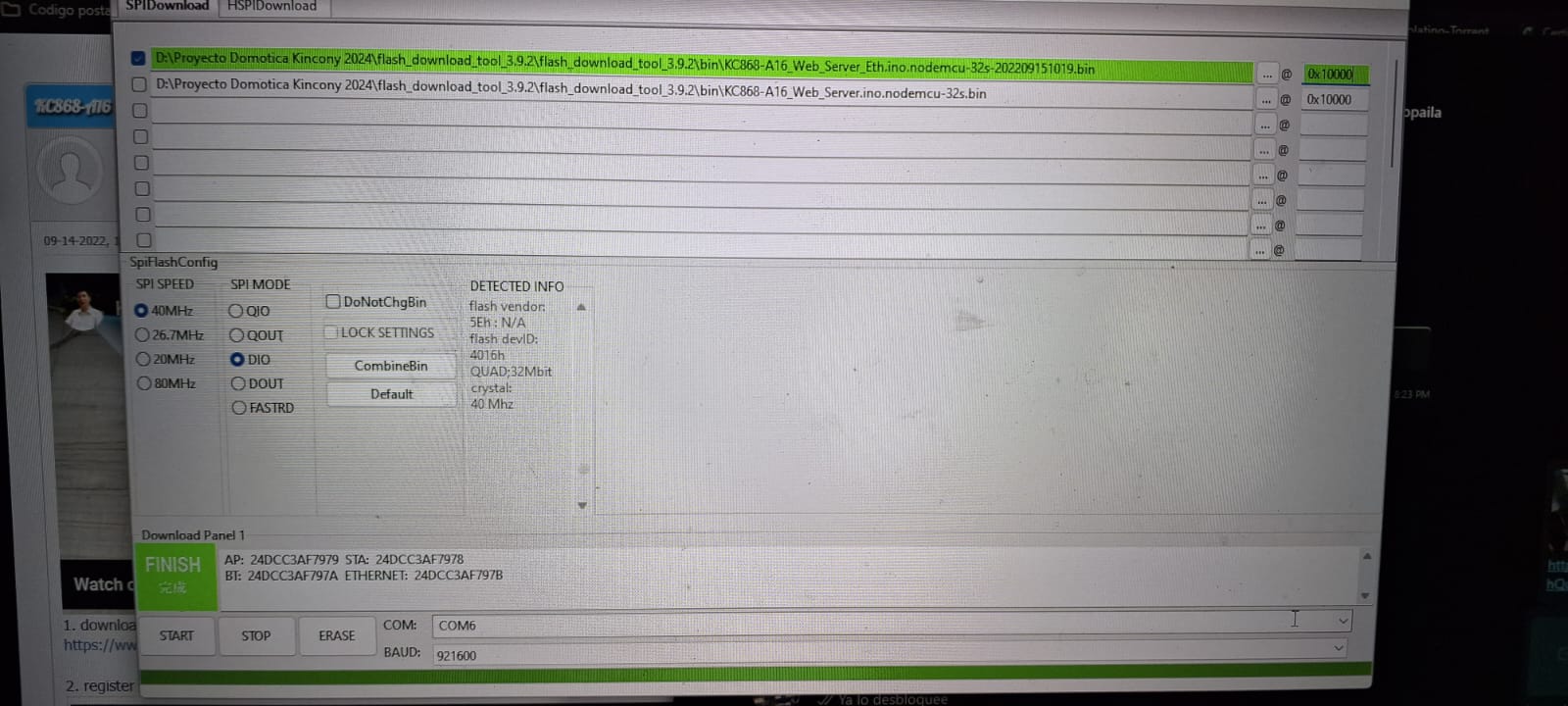

[Arduino IDE demo source code for KC868-A16]--#11-KC868-A16_Ethernet_Web_server_code
                      Refer to code #11 of A8 for download methods

  KC868-A16_Web_Server_Eth.zip (Size: 413.26 KB / Downloads: 894)

[Arduino IDE demo source code for KC868-A8S]--#16-KC868-A8S_Ethernet_Web_server_code

                                             Refer to code #11 of KC868-A8 for download methods

  KC868-A8S_Web_Server-ETH.zip (Size: 471.57 KB / Downloads: 304)

Code:

/***********************************************************
* Create Your own WebServer for KC868-A8S Smart Controller*
* https://www.kincony.com                                **
***********************************************************/

#include "PCF8574.h"
#define DEBUG_ETHERNET_WEBSERVER_PORT       Serial

// Debug Level from 0 to 4
#define _ETHERNET_WEBSERVER_LOGLEVEL_       3

#include <WebServer_WT32_ETH01.h>

WiFiServer server(80);

// Current time
unsigned long currentTime = millis();
// Previous time
unsigned long previousTime = 0;
// Define timeout time in milliseconds (example: 2000ms = 2s)
const long timeoutTime = 2000;

int flag_read_di=0;

// Variable to store the HTTP request
String header;
TwoWire I2Cone = TwoWire(0);
TwoWire I2Ctwo = TwoWire(1);
//set I2C of A8S
PCF8574 pcf8574_I1(&I2Cone,0x22,4,5);
PCF8574 pcf8574_R1(&I2Cone,0x24,4,5);


String relaystate[8]={"relay1state","relay2state","relay3state","relay4state",
                       "relay5state","relay6state","relay7state","relay8state",
                     };
String relay1state = "off";// state of relay1
String relay2state = "off";// state of relay2
String relay3state = "off";// state of relay3
String relay4state = "off";// state of relay4
String relay5state = "off";// state of relay5
String relay6state = "off";// state of relay6
String relay7state = "off";// state of relay7
String relay8state = "off";// state of relay8
void ScanKey()
{
  for(int i=0;i<=7;i++)
  {
    if(pcf8574_I1.digitalRead(i) == LOW)         //key pressed
      {
        delay(20);
        if(pcf8574_I1.digitalRead(i) == LOW)       //key pressed again
        {
          pcf8574_R1.digitalWrite(i,!pcf8574_R1.digitalRead(i));    // toggle relay1 state
          while(pcf8574_I1.digitalRead(i) == LOW); //wait remove hand
          if (pcf8574_R1.digitalRead(i) == LOW) relaystate[i+1]="on";else relaystate[i+1]="off";
        }
      }
  }

}

void setup() {

  Serial.begin(115200);

  // Set PCF8574 pinMode to OUTPUT
  for(int i=0;i<=7;i++)
  {
     pcf8574_R1.pinMode(i, OUTPUT);
  }

  pcf8574_R1.begin();

  for(int i=0;i<=7;i++)
  {
     pcf8574_I1.pinMode(i, INPUT);
  }

    pcf8574_I1.begin();


  for(int i=0;i<=7;i++)
  {
     pcf8574_R1.digitalWrite(i, HIGH);
  }
   while (!Serial);

  // Using this if Serial debugging is not necessary or not using Serial port
  //while (!Serial && (millis() < 3000));

  Serial.print("\nStarting WebServer on " + String(ARDUINO_BOARD));
  Serial.println(" with " + String(SHIELD_TYPE));
  Serial.println(WEBSERVER_WT32_ETH01_VERSION);

  // To be called before ETH.begin()
  WT32_ETH01_onEvent();

  //bool begin(uint8_t phy_addr=ETH_PHY_ADDR, int power=ETH_PHY_POWER, int mdc=ETH_PHY_MDC, int mdio=ETH_PHY_MDIO,
  //           eth_phy_type_t type=ETH_PHY_TYPE, eth_clock_mode_t clk_mode=ETH_CLK_MODE);
  //ETH.begin(ETH_PHY_ADDR, ETH_PHY_POWER, ETH_PHY_MDC, ETH_PHY_MDIO, ETH_PHY_TYPE, ETH_CLK_MODE);
  ETH.begin(ETH_PHY_ADDR, ETH_PHY_POWER);

  // Static IP, leave without this line to get IP via DHCP
  //bool config(IPAddress local_ip, IPAddress gateway, IPAddress subnet, IPAddress dns1 = 0, IPAddress dns2 = 0);
// ETH.config(myIP, myGW, mySN, myDNS);

  //WT32_ETH01_waitForConnect();

  // start the web server on port 80
  server.begin();

}

void loop(){
  WiFiClient client = server.available();   // Listen for incoming clients

  if (client) {                             // If a new client connects,
    Serial.println("New Client.");          // print a message out in the serial port
    String currentLine = "";                // make a String to hold incoming data from the client
    currentTime = millis();
    previousTime = currentTime;
    while (client.connected() && currentTime - previousTime <= timeoutTime) { // loop while the client's connected
      currentTime = millis();
      if (client.available()) {             // if there's bytes to read from the client,
        char c = client.read();             // read a byte, then
        Serial.write(c);                    // print it out the serial monitor
        header += c;
        if (c == '\n') {                    // if the byte is a newline character
          // if the current line is blank, you got two newline characters in a row.
          // that's the end of the client HTTP request, so send a response:
          if (currentLine.length() == 0) {
            // HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
            // and a content-type so the client knows what's coming, then a blank line:
            client.println("HTTP/1.1 200 OK");
            client.println("Content-type:text/html");
            client.println("Connection: close");
            client.println();

            // turns 16 relays on and off
            if (header.indexOf("GET /1/on") >= 0) {relay1state = "on";pcf8574_R1.digitalWrite(P0, LOW);}
            else if (header.indexOf("GET /1/off") >= 0) {relay1state = "off";pcf8574_R1.digitalWrite(P0, HIGH);}
            else if (header.indexOf("GET /2/on") >= 0)  {relay2state = "on";pcf8574_R1.digitalWrite(P1, LOW);}
            else if (header.indexOf("GET /2/off") >= 0) {relay2state = "off";pcf8574_R1.digitalWrite(P1, HIGH);}
            else if (header.indexOf("GET /3/on") >= 0)  {relay3state = "on";pcf8574_R1.digitalWrite(P2, LOW);}
            else if (header.indexOf("GET /3/off") >= 0) {relay3state = "off";pcf8574_R1.digitalWrite(P2, HIGH);}
            else if (header.indexOf("GET /4/on") >= 0)  {relay4state = "on";pcf8574_R1.digitalWrite(P3, LOW);}
            else if (header.indexOf("GET /4/off") >= 0) {relay4state = "off";pcf8574_R1.digitalWrite(P3, HIGH);}
            else if (header.indexOf("GET /5/on") >= 0)  {relay5state = "on";pcf8574_R1.digitalWrite(P4, LOW);}
            else if (header.indexOf("GET /5/off") >= 0) {relay5state = "off";pcf8574_R1.digitalWrite(P4, HIGH);}
            else if (header.indexOf("GET /6/on") >= 0)  {relay6state = "on";pcf8574_R1.digitalWrite(P5, LOW);}
            else if (header.indexOf("GET /6/off") >= 0) {relay6state = "off";pcf8574_R1.digitalWrite(P5, HIGH);}
            else if (header.indexOf("GET /7/on") >= 0)  {relay7state = "on";pcf8574_R1.digitalWrite(P6, LOW);}
            else if (header.indexOf("GET /7/off") >= 0) {relay7state = "off";pcf8574_R1.digitalWrite(P6, HIGH);}
            else if (header.indexOf("GET /8/on") >= 0)  {relay8state = "on";pcf8574_R1.digitalWrite(P7, LOW);}
            else if (header.indexOf("GET /8/off") >= 0) {relay8state = "off";pcf8574_R1.digitalWrite(P7, HIGH);}

            else if (header.indexOf("GET /read") >= 0) flag_read_di=1;
            else if (header.indexOf("GET /all/on") >= 0)
            {
              relay1state = "on";// state of relay1
              relay2state = "on";// state of relay2
              relay3state = "on";// state of relay3
              relay4state = "on";// state of relay4
              relay5state = "on";// state of relay5
              relay6state = "on";// state of relay6
              relay7state = "on";// state of relay7
              relay8state = "on";// state of relay8

              for(int i=0;i<=7;i++)
              {
                 pcf8574_R1.digitalWrite(i, LOW);
              }

            }
            else if (header.indexOf("GET /all/off") >= 0)
            {
              relay1state = "off";// state of relay1
              relay2state = "off";// state of relay2
              relay3state = "off";// state of relay3
              relay4state = "off";// state of relay4
              relay5state = "off";// state of relay5
              relay6state = "off";// state of relay6
              relay7state = "off";// state of relay7
              relay8state = "off";// state of relay8

              for(int i=0;i<=7;i++)
              {
                 pcf8574_R1.digitalWrite(i, HIGH);
              }

            }

            // Display the HTML web page
            client.println("<!DOCTYPE html><html>");
            client.println("<head><meta name=\"viewport\" content=\"width=device-width, initial-scale=1\">");
            client.println("<link rel=\"icon\" href=\"data:,\">");
            // CSS to style the on/off buttons
            // Feel free to change the background-color and font-size attributes to fit your preferences
            client.println("<style>html { font-family: Helvetica; display: inline-block; border: 3px solid green;margin: 0px auto;text-align: center;font-size: 10px;}");
            client.println(".button { background-color: #195B00; border-radius: 10px;color: white; padding: 10px 40px;");
            client.println("text-decoration: none; font-size: 20px; margin: 2px;text-align: center; cursor: pointer;}");
            client.println(".button2 {background-color: #77878A;}</style></head>");

            if (flag_read_di==1)
            {
              client.println(" relay1:" + relay1state + " relay2:" + relay2state + " relay3:" + relay3state + " relay4:" + relay4state + " relay5:" + relay5state + " relay6:" + relay6state + " relay7:" + relay7state + " relay8:" + relay8state);
            }
            else
            {
            // Web Page Heading
            client.println("<body><h1>KC868-A8S Web Server</h1>");


            // Display current state, and ON/OFF buttons for relay
            //client.println("<p>relay1 - State " + relay1state + "</p>");
            // If the relay is off, it displays the ON button
            if (relay1state == "off") client.println("<a href=\"/1/on\"><button class=\"button\">01-OFF</button></a>"); else client.println("<a href=\"/1/off\"><button class=\"button\">01--ON </button></a>");
            if (relay2state == "off") client.println("<a href=\"/2/on\"><button class=\"button\">02-OFF</button></a>"); else client.println("<a href=\"/2/off\"><button class=\"button\">02--ON </button></a>");
            if (relay3state == "off") client.println("<a href=\"/3/on\"><button class=\"button\">03-OFF</button></a>"); else client.println("<a href=\"/3/off\"><button class=\"button\">03--ON </button></a>");
            if (relay4state == "off") client.println("<a href=\"/4/on\"><button class=\"button\">04-OFF</button></a>"); else client.println("<a href=\"/4/off\"><button class=\"button\">04--ON </button></a>");
            if (relay5state == "off") client.println("<a href=\"/5/on\"><button class=\"button\">05-OFF</button></a>"); else client.println("<a href=\"/5/off\"><button class=\"button\">05--ON </button></a>");
            if (relay6state == "off") client.println("<a href=\"/6/on\"><button class=\"button\">06-OFF</button></a>"); else client.println("<a href=\"/6/off\"><button class=\"button\">06--ON </button></a>");
            if (relay7state == "off") client.println("<a href=\"/7/on\"><button class=\"button\">07-OFF</button></a>"); else client.println("<a href=\"/7/off\"><button class=\"button\">07--ON </button></a>");
            if (relay8state == "off") client.println("<a href=\"/8/on\"><button class=\"button\">08-OFF</button></a>"); else client.println("<a href=\"/8/off\"><button class=\"button\">08--ON </button></a>");

              client.println("<a href=\"/all/on\"><button class=\"button\">All--ON</button></a>");
              client.println("<a href=\"/all/off\"><button class=\"button\">All-OFF</button></a>");
            }
            client.println("</body></html>");

            // The HTTP response ends with another blank line
            client.println();
            break;
          } else { // if you got a newline, then clear currentLine
            currentLine = "";
          }
        } else if (c != '\r') {  // if you got anything else but a carriage return character,
          currentLine += c;      // add it to the end of the currentLine
        }
      }
    }
    // Clear the header variable
    header = "";
    // Close the connection
    client.stop();
    Serial.println("Client disconnected.");
    Serial.println("");
    flag_read_di=0;
  }

  ScanKey();            //scan key
}
