DM4 ESPHome yaml for home assistant without tuya

Posted by: admin - 02-03-2026, 12:17 AM - Forum: DM4 - No Replies

Code:
esphome:

  name: dm4

  friendly_name: dm4

esp32:

  board: esp32-s3-devkitc-1

  framework:

    type: arduino

# Enable logging

logger:

# Enable Home Assistant API

api:

ota:

  platform: esphome

web_server:

  port: 80

ethernet:

  type: W5500

  clk_pin: GPIO1

  mosi_pin: GPIO2

  miso_pin: GPIO41

  cs_pin: GPIO42

  interrupt_pin: GPIO43

  reset_pin: GPIO44

i2c:

   - id: bus_a

     sda: 8

     scl: 18

     scan: true

     frequency: 400kHz

text_sensor:

  - platform: ethernet_info

    ip_address:

      name: ESP IP Address

      id: eth_ip

      address_0:

        name: ESP IP Address 0

      address_1:

        name: ESP IP Address 1

      address_2:

        name: ESP IP Address 2

      address_3:

        name: ESP IP Address 3

      address_4:

        name: ESP IP Address 4

    dns_address:

      name: ESP DNS Address

    mac_address:

      name: ESP MAC Address

font:

  - file: "gfonts://Roboto"

    id: roboto

    size: 15

display:

  - platform: ssd1306_i2c

    model: "SSD1306 128x64"

    address: 0x3C

    lambda: |-

      it.printf(0, 15, id(roboto), "IP: %s", id(eth_ip).state.c_str());

uart:

  - id: uart_1    #RS485

    baud_rate: 9600

    debug:

      direction: BOTH

      dummy_receiver: true

      after:

        timeout: 10ms

    tx_pin: 38

    rx_pin: 39

switch:

  - platform: uart

    uart_id: uart_1

    name: "RS485 Button"

    data: [0x11, 0x22, 0x33, 0x44, 0x55]

pcf8574:

  - id: 'pcf8574_hub_in_1'  # for input channel 1-16

    i2c_id: bus_a

    address: 0x24

    pcf8575: false

binary_sensor:

  - platform: gpio

    name: "dm4-input01"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 0

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "dm4-input02"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 1

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "dm4-input03"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 2

      mode: INPUT

      inverted: true

  - platform: gpio

    name: "dm4-input04"

    pin:

      pcf8574: pcf8574_hub_in_1

      number: 3

      mode: INPUT

      inverted: true

##pull-up resistance on PCB

  - platform: gpio

    name: "dm4-W1-io48"

    pin:

      number: 48

      inverted: true

  - platform: gpio

    name: "dm4-W1-io47"

    pin:

      number: 47

      inverted: true

  - platform: gpio

    name: "dm4-W1-io40"

    pin:

      number: 40

      inverted: true

  - platform: gpio

    name: "dm4-W1-io17"

    pin:

      number: 17

      inverted: true

## without resistance on PCB

  - platform: gpio

    name: "dm4-io13"

    pin:

      number: 13

      inverted: false

  - platform: gpio

    name: "dm4-io14"

    pin:

      number: 14

      inverted:  false

  - platform: gpio

    name: "dm4-21"

    pin:

      number: 21

      inverted:  false

  - platform: gpio

    name: "dm4-0"

    pin:

      number: 0

      inverted:  false

ads1115:

  - address: 0x48

sensor:

  - platform: ads1115

    multiplexer: 'A0_GND'

    gain: 6.144

    resolution: 16_BITS

    name: "ADS1115 Channel A0-GND"

    update_interval: 5s

  - platform: ads1115

    multiplexer: 'A1_GND'

    gain: 6.144

    name: "ADS1115 Channel A1-GND"

    update_interval: 5s

  - platform: ads1115

    multiplexer: 'A2_GND'

    gain: 6.144

    name: "ADS1115 Channel A2-GND"

    update_interval: 5s

  - platform: ads1115

    multiplexer: 'A3_GND'

    gain: 6.144

    name: "ADS1115 Channel A3-GND"

    update_interval: 5s

mcp4728:

  - id: dac_output

output:

- platform: mcp4728

  id: ac_dimmer_1

  mcp4728_id: dac_output

  channel: A

  vref: internal

- platform: mcp4728

  id: ac_dimmer_2

  mcp4728_id: dac_output

  channel: B

  vref: internal

- platform: mcp4728

  id: ac_dimmer_3

  channel: C

  vref: internal

- platform: mcp4728

  id: ac_dimmer_4

  channel: D

  vref: internal

light:

  - platform: monochromatic

    name: "DM4 DAC-1"

    id: dm4_dac_1

    output: ac_dimmer_1

    gamma_correct: 1.0

  - platform: monochromatic

    name: "DM4 DAC-2"

    id: dm4_dac_2

    output: ac_dimmer_2

    gamma_correct: 1.0

  - platform: monochromatic

    name: "DM4 DAC-3"

    id: dm4_dac_3

    output: ac_dimmer_3

    gamma_correct: 1.0

  - platform: monochromatic

    name: "DM4 DAC-4"

    id: dm4_dac_4

    output: ac_dimmer_4

    gamma_correct: 1.0

esphome yaml file download:

.txt

DM4-HA-without Tuya.txt (Size: 4.4 KB / Downloads: 236)

DM4 ESP32-S3 IO pins define

Posted by: admin - 02-03-2026, 12:15 AM - Forum: DM4 - No Replies

SDA:GPIO8
SCL:GPIO18

PCF8574: (input1-4): i2c address:0x24

P0:input1
P1:input2
P2:input3
P3:input4

ADS1115 (4CH ADC): i2c address:0x48
Analog input (A1: DC 0-5v)
Analog input (A2: DC 0-5v)
Analog input (A3: DC 4-20mA)
Analog input (A4: DC 4-20mA)

24C02 EPROM i2c address: 0x50
DS3231 RTC i2c address: 0x68

MCP4728 DAC i2c address: 0x60

1-wire (pull-up resistance on PCB):
1-wire1:GPIO47
1-wire2:GPIO48
1-wire3:GPIO17
1-wire4:GPIO40

free GPIOs:
GPIO13
GPIO14
GPIO21

-----------------------
Ethernet (W5500) I/O define:

clk_pin: GPIO1
mosi_pin: GPIO2
miso_pin: GPIO41
cs_pin: GPIO42

interrupt_pin: GPIO43
reset_pin: GPIO44

--------------------
RS485:
RXD:GPIO38
TXD:GPIO39

Tuya module:
RXD:GPIO15
TXD:GPIO16

Tuya network button: Tuya module's P28
Tuya network LED: Tuya module's P16

SD Card:
SPI-MOSI:GPIO10
SPI-SCK:GPIO11
SPI-MISO:GPIO12
SPI-CS:GPIO9
SD-Detect: GPIO5

[arduino code examples for DM4]-05 Read free GPIO state

Posted by: admin - 02-03-2026, 12:12 AM - Forum: DM4 - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * GPIO Status Monitoring

 *

 * This program monitors the status (high or low) of multiple GPIO pins on the ESP32-S3.

 * It prints the status of the pins to the serial monitor whenever a change is detected.

 *

 * GPIO Pins Monitored:

 * - GPIO 40

 * - GPIO 7

 * - GPIO 48

 * - GPIO 47

 * - GPIO 13

 * - GPIO 14

 * - GPIO 21

 * - GPIO 0

 *

 * Hardware Requirements:

 * - Connect the pins to appropriate devices or pull them to HIGH/LOW for testing

 */

#define GPIO_PIN_40 40

#define GPIO_PIN_7 7

#define GPIO_PIN_48 48

#define GPIO_PIN_47 47

#define GPIO_PIN_13 13

#define GPIO_PIN_14 14

#define GPIO_PIN_21 21

#define GPIO_PIN_0 0

// Store the previous state of the GPIO pins

bool prevState[8] = {false, false, false, false, false, false, false, false};

void setup() {

  // Initialize serial communication for debugging purposes

  Serial.begin(115200); // Initialize the serial monitor at 115200 baud

  while (!Serial);      // Wait for the serial monitor to open

  // Initialize GPIO pins as inputs

  pinMode(GPIO_PIN_40, INPUT);

  pinMode(GPIO_PIN_7, INPUT);

  pinMode(GPIO_PIN_48, INPUT);

  pinMode(GPIO_PIN_47, INPUT);

  pinMode(GPIO_PIN_13, INPUT);

  pinMode(GPIO_PIN_14, INPUT);

  pinMode(GPIO_PIN_21, INPUT);

  pinMode(GPIO_PIN_0, INPUT);

  Serial.println("GPIO Status Monitoring Started");

}

void loop() {

  // Read the current state of each GPIO pin

  bool currentState[8];

  currentState[0] = digitalRead(GPIO_PIN_40);

  currentState[1] = digitalRead(GPIO_PIN_7);

  currentState[2] = digitalRead(GPIO_PIN_48);

  currentState[3] = digitalRead(GPIO_PIN_47);

  currentState[4] = digitalRead(GPIO_PIN_13);

  currentState[5] = digitalRead(GPIO_PIN_14);

  currentState[6] = digitalRead(GPIO_PIN_21);

  currentState[7] = digitalRead(GPIO_PIN_0);

  // Check for changes in GPIO pin states

  for (int i = 0; i < 8; i++) {

    if (currentState[i] != prevState[i]) {

      // Print the pin number and its new state if it has changed

      Serial.print("GPIO ");

      Serial.print(i == 0 ? GPIO_PIN_40 :

                   i == 1 ? GPIO_PIN_7 :

                   i == 2 ? GPIO_PIN_48 :

                   i == 3 ? GPIO_PIN_47 :

                   i == 4 ? GPIO_PIN_13 :

                   i == 5 ? GPIO_PIN_14 :

                   i == 6 ? GPIO_PIN_21 : GPIO_PIN_0);

      Serial.print(" changed to ");

      Serial.println(currentState[i] ? "HIGH" : "LOW");

      // Update the previous state

      prevState[i] = currentState[i];

    }

  }

  // Delay to avoid flooding the serial monitor

  delay(100); // Adjust the delay as needed

}

arduino ino file download:

.zip

5-free-gpio-state.zip (Size: 1.04 KB / Downloads: 393)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

5-free-gpio-state.ino.merged.zip (Size: 179.57 KB / Downloads: 382)

[arduino code examples for DM8]-05 Read free GPIO state

Posted by: admin - 02-03-2026, 12:12 AM - Forum: DM8 - No Replies

Code:
/*

 * Made by KinCony IoT: https://www.kincony.com

 *

 * GPIO Status Monitoring

 *

 * This program monitors the status (high or low) of multiple GPIO pins on the ESP32-S3.

 * It prints the status of the pins to the serial monitor whenever a change is detected.

 *

 * GPIO Pins Monitored:

 * - GPIO 40

 * - GPIO 7

 * - GPIO 48

 * - GPIO 47

 * - GPIO 13

 * - GPIO 14

 * - GPIO 21

 * - GPIO 0

 *

 * Hardware Requirements:

 * - Connect the pins to appropriate devices or pull them to HIGH/LOW for testing

 */

#define GPIO_PIN_40 40

#define GPIO_PIN_7 7

#define GPIO_PIN_48 48

#define GPIO_PIN_47 47

#define GPIO_PIN_13 13

#define GPIO_PIN_14 14

#define GPIO_PIN_21 21

#define GPIO_PIN_0 0

// Store the previous state of the GPIO pins

bool prevState[8] = {false, false, false, false, false, false, false, false};

void setup() {

  // Initialize serial communication for debugging purposes

  Serial.begin(115200); // Initialize the serial monitor at 115200 baud

  while (!Serial);      // Wait for the serial monitor to open

  // Initialize GPIO pins as inputs

  pinMode(GPIO_PIN_40, INPUT);

  pinMode(GPIO_PIN_7, INPUT);

  pinMode(GPIO_PIN_48, INPUT);

  pinMode(GPIO_PIN_47, INPUT);

  pinMode(GPIO_PIN_13, INPUT);

  pinMode(GPIO_PIN_14, INPUT);

  pinMode(GPIO_PIN_21, INPUT);

  pinMode(GPIO_PIN_0, INPUT);

  Serial.println("GPIO Status Monitoring Started");

}

void loop() {

  // Read the current state of each GPIO pin

  bool currentState[8];

  currentState[0] = digitalRead(GPIO_PIN_40);

  currentState[1] = digitalRead(GPIO_PIN_7);

  currentState[2] = digitalRead(GPIO_PIN_48);

  currentState[3] = digitalRead(GPIO_PIN_47);

  currentState[4] = digitalRead(GPIO_PIN_13);

  currentState[5] = digitalRead(GPIO_PIN_14);

  currentState[6] = digitalRead(GPIO_PIN_21);

  currentState[7] = digitalRead(GPIO_PIN_0);

  // Check for changes in GPIO pin states

  for (int i = 0; i < 8; i++) {

    if (currentState[i] != prevState[i]) {

      // Print the pin number and its new state if it has changed

      Serial.print("GPIO ");

      Serial.print(i == 0 ? GPIO_PIN_40 :

                   i == 1 ? GPIO_PIN_7 :

                   i == 2 ? GPIO_PIN_48 :

                   i == 3 ? GPIO_PIN_47 :

                   i == 4 ? GPIO_PIN_13 :

                   i == 5 ? GPIO_PIN_14 :

                   i == 6 ? GPIO_PIN_21 : GPIO_PIN_0);

      Serial.print(" changed to ");

      Serial.println(currentState[i] ? "HIGH" : "LOW");

      // Update the previous state

      prevState[i] = currentState[i];

    }

  }

  // Delay to avoid flooding the serial monitor

  delay(100); // Adjust the delay as needed

}

arduino ino file download:

.zip

5-free-gpio-state.zip (Size: 1.04 KB / Downloads: 419)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

5-free-gpio-state.ino.merged.zip (Size: 179.57 KB / Downloads: 338)

[arduino code examples for DM4]-02 Read digital input ports state

Posted by: admin - 02-03-2026, 12:09 AM - Forum: DM4 - No Replies

Code:
/*

 KeyPressed on PIN1

 by Mischianti Renzo <http://www.mischianti.org>

 https://www.mischianti.org/2019/01/02/pcf8574-i2c-digital-i-o-expander-fast-easy-usage/

*/

#include "Arduino.h"

#include "PCF8574.h"

// Define I2C pins

#define I2C_SDA 8   // SDA pin

#define I2C_SCL 18  // SCL pin

// Set i2c address

PCF8574 pcf8574(0x24);

unsigned long timeElapsed;

void setup()

{

    Wire.begin(I2C_SDA, I2C_SCL);

    Serial.begin(115200);

    delay(1000);

//    pcf8574.pinMode(P0, OUTPUT);

 pcf8574.pinMode(P0, INPUT);

 pcf8574.pinMode(P1, INPUT);

 pcf8574.pinMode(P2, INPUT);

 pcf8574.pinMode(P3, INPUT);

    Serial.print("Init pcf8574...");

    if (pcf8574.begin()){

        Serial.println("OK");

    }else{

        Serial.println("KO");

    }

}

void loop()

{

 uint8_t val1 = pcf8574.digitalRead(P0);

 uint8_t val2 = pcf8574.digitalRead(P1);

 uint8_t val3 = pcf8574.digitalRead(P2);

 uint8_t val4 = pcf8574.digitalRead(P3);

 if (val1==LOW) Serial.println("KEY1 PRESSED");

 if (val2==LOW) Serial.println("KEY2 PRESSED");

 if (val3==LOW) Serial.println("KEY3 PRESSED");

 if (val4==LOW) Serial.println("KEY4 PRESSED");

    delay(300);

}

arduino ino file download:

.zip

2-digital-input.zip (Size: 667 bytes / Downloads: 355)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

2-digital-input.ino.merged.zip (Size: 199.38 KB / Downloads: 357)

[arduino code examples for DM4]-01 4 Channel DAC output by digital input buttons

Posted by: admin - 02-03-2026, 12:08 AM - Forum: DM4 - No Replies

Code:
// Basic demo for configuring the MCP4728 4-Channel 12-bit I2C DAC

#include <Adafruit_MCP4728.h>

#include <Wire.h>

Adafruit_MCP4728 mcp;

#define I2C_SDA 8   // SDA pin

#define I2C_SCL 18  // SCL pin

TwoWire MYI2C = TwoWire(0);

void setup(void)

{

  Serial.begin(115200);

  while (!Serial)

    delay(10); // will pause Zero, Leonardo, etc until serial console opens

  Serial.println("Adafruit MCP4728 test!");

  MYI2C.begin(I2C_SDA, I2C_SCL,100000);

  // Try to initialize!

  if (!mcp.begin(MCP4728_I2CADDR_DEFAULT,&MYI2C)) {

    Serial.println("Failed to find MCP4728 chip");

    while (1) {

      delay(10);

    }

  }

  mcp.setChannelValue(MCP4728_CHANNEL_A, 4095);

  mcp.setChannelValue(MCP4728_CHANNEL_B, 2048);

  mcp.setChannelValue(MCP4728_CHANNEL_C, 1024);

  mcp.setChannelValue(MCP4728_CHANNEL_D, 0);

}

void loop() { delay(1000); }

arduino ino file download:

.zip

1-dac-4ch.zip (Size: 596 bytes / Downloads: 341)
BIN file (you can use esp32 download tool download to ESP32-S3 with address 0x0 then directly to use) download:

.zip

1-dac-4ch.ino.merged.zip (Size: 198.77 KB / Downloads: 353)

connecting sensors

Posted by: skench - 02-02-2026, 11:07 PM - Forum: KC868-A8 - Replies (5)

Good afternoon, can you tell me how to connect a temperature and humidity sensor to the A8 or A16 boards? I have several different sensors
An AM2120 temperature and humidity sensor https://ali.click/klm2yz
There is also a BME280 pressure and temperature sensor. https://ali.click/zmm2ye

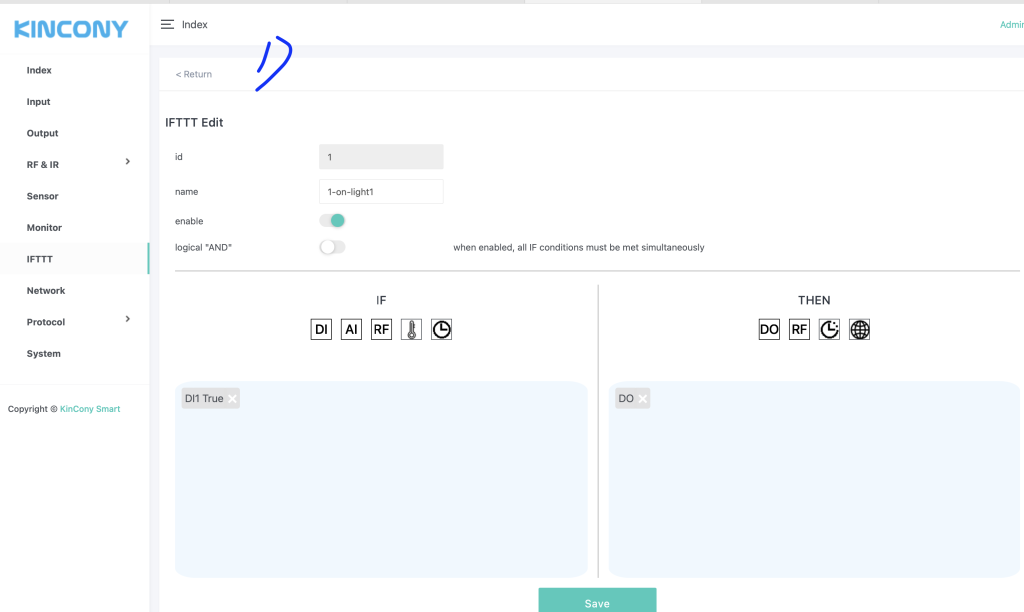

And I also bought a DHT22 temperature and humidity sensor. https://ali.click/mom2y9 there's a problem with everyone, with the latest DHT22, I don't understand where to get the 5v from, which vcc pin to connect to to get the 5v? I'm acting on the picture https://www.kincony.com/forum/showthread.php?tid=3194 I tried to connect the AM2120 in different ways, both to the ds18b20 and to other neighboring ports and tried the settings in the sensors tab, as well as different firmware ksc v2, I thought there might be a problem with the firmware, but I also failed.

TA with Home Assistant with Ethernet Only

Posted by: upstream - 02-02-2026, 10:54 PM - Forum: Getting Started with ESPHome and Home Assistant - Replies (3)

How do I get the Tiny Alarm System (TA) to work with Home Assistant?

The yaml example at this post is set to use wifi. I want to use ethernet / poe only.

However, if I remove the wifi components, this line:

PHP Code:
- platform: tuya_wifi_mcu

is located all over the place.

Does anyone have a complete yaml example without any wifi (ethernet only)?

E16V3 - baudrate change

Posted by: ldebacker - 02-02-2026, 04:40 PM - Forum: Suggestions and feedback on KinCony's products - Replies (3)

	Hello, Is there a way to change the default RS485 baudrate (which is 38400 bps) ? Any existing register to change the RS485 parameters ? Thanks in advance !

E16v3 - CE

Posted by: ldebacker - 02-02-2026, 04:35 PM - Forum: Suggestions and feedback on KinCony's products - Replies (9)

	Hello, I have seen the CE certificate for the Kincony products here: https://www.kincony.com/images/patent/CCJS.2411163.pdf This certificate mentions The Kincony V2, but not the V3. Where can I find the certificate for the V3? Thanks in advance !

Pages (421): « Previous 1 … 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 … 421 Next »

Login
Username:
Password:	Lost Password?
	Remember me
